(1 PC) XP1026-BD-000V MACOM RF Amplifier IC General Purpose 27GHz ~ 32GHz
Tax included.

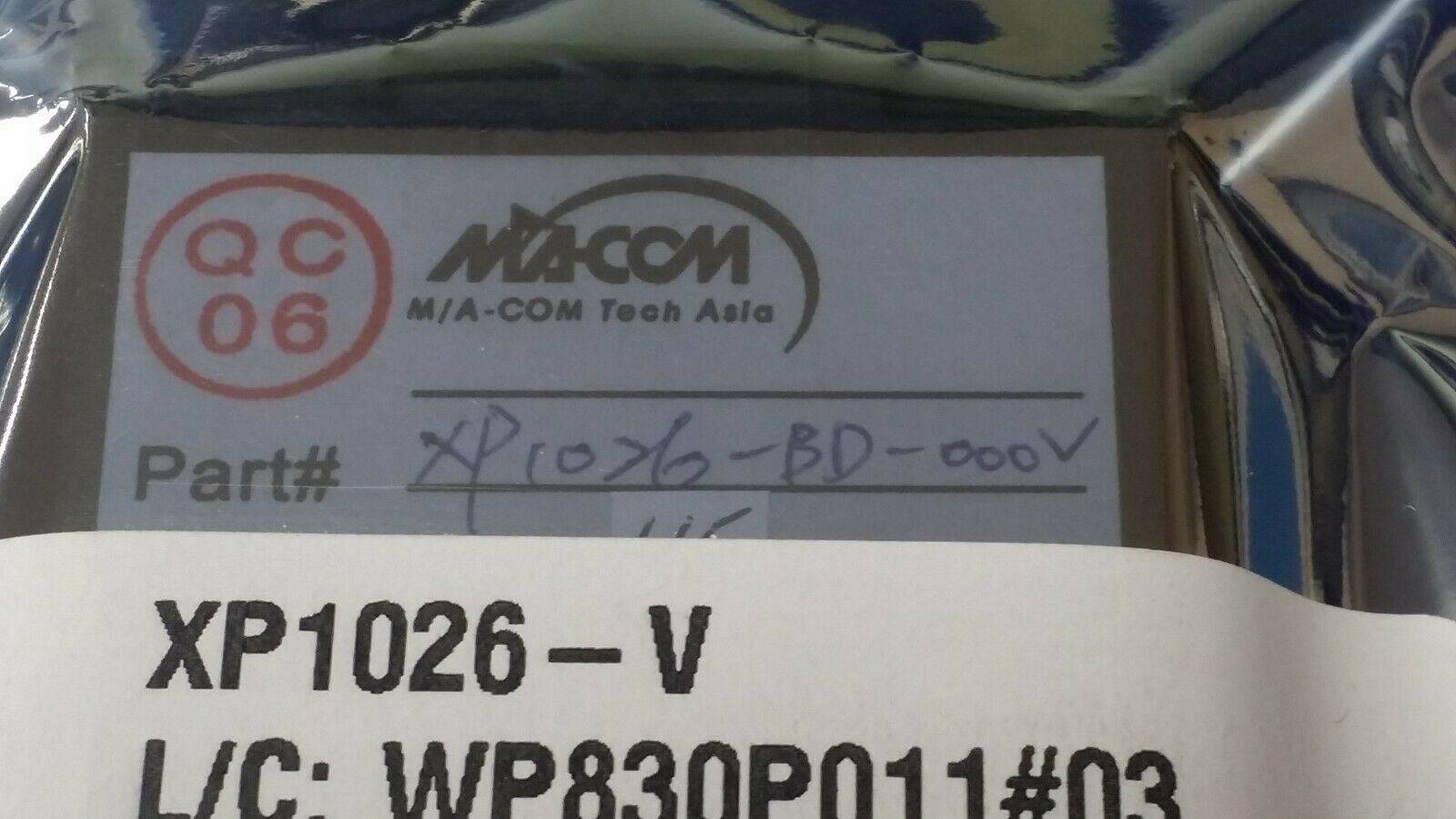

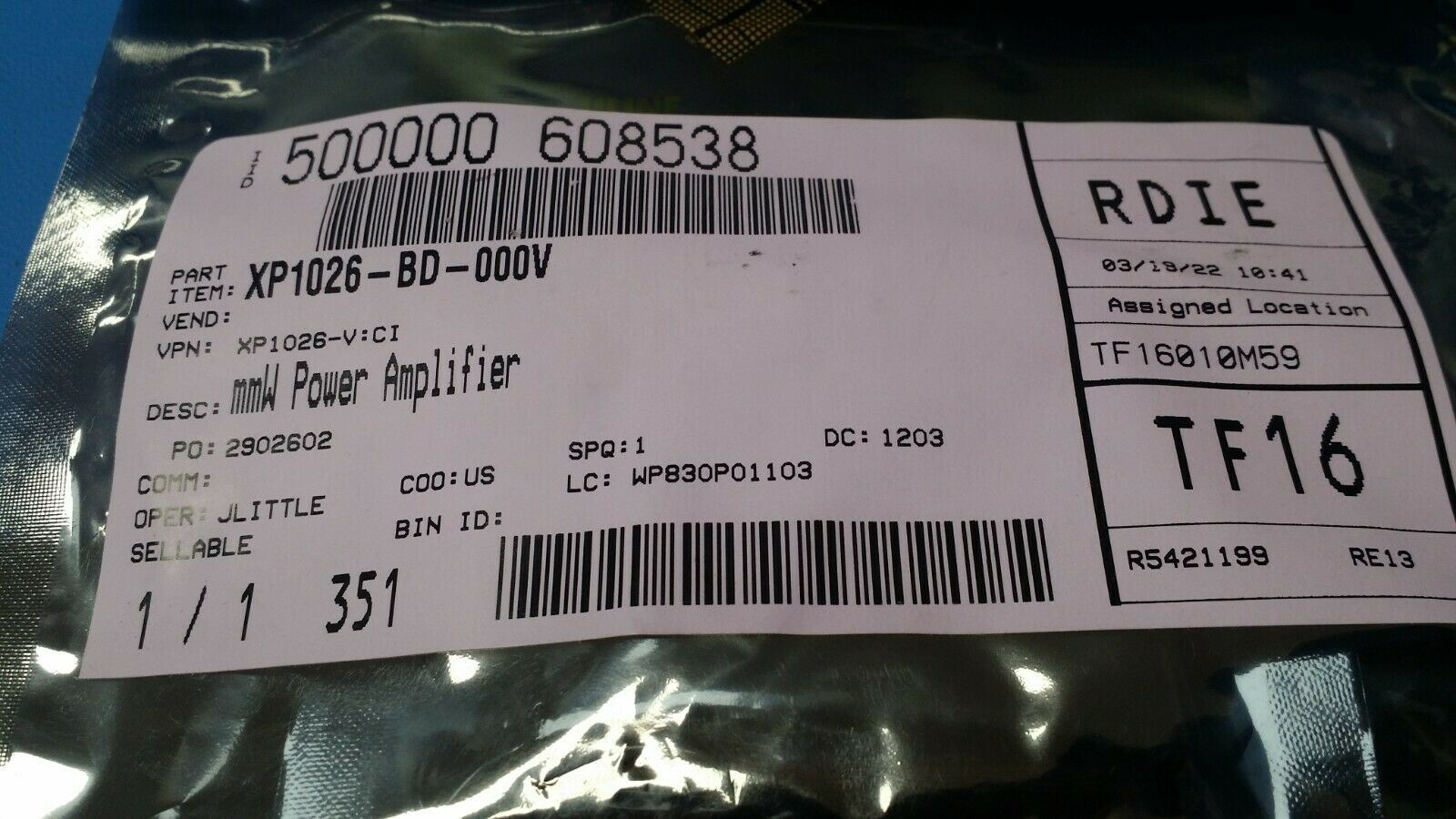

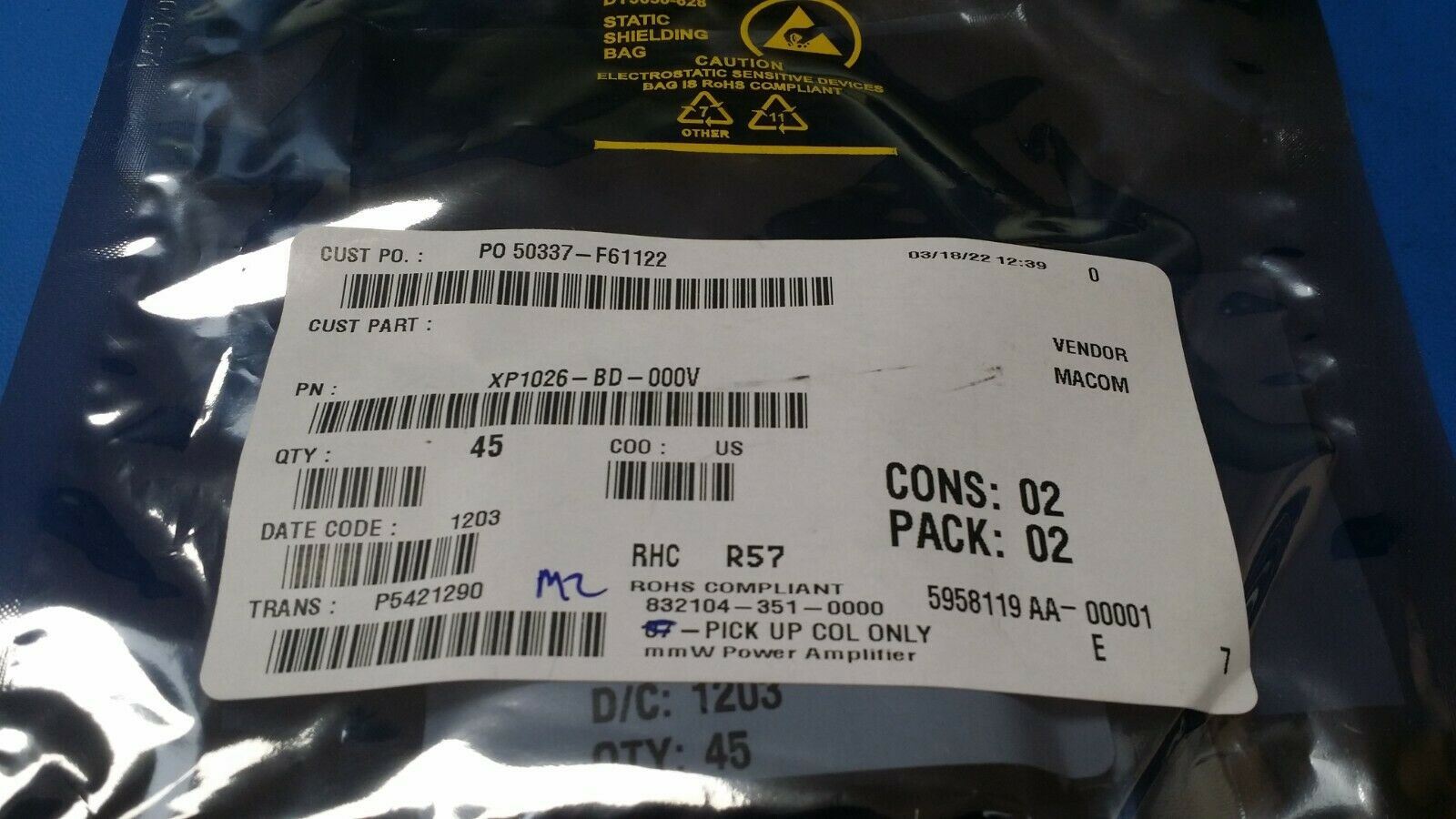

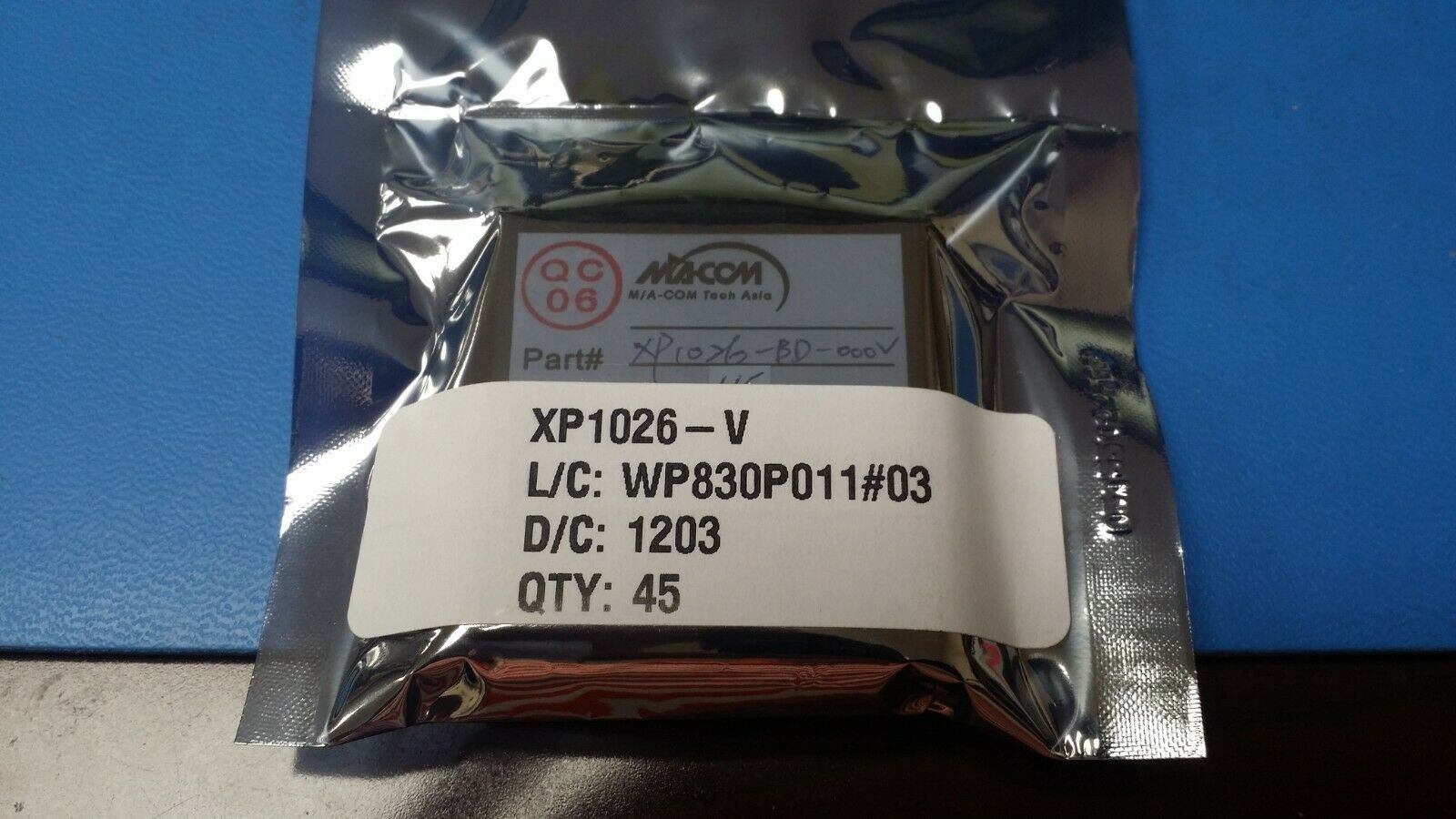

THIS IS FOR (1 PC) OF XP1026-BD-000V BY MACOM
RF Amplifier IC General Purpose 27GHz ~ 32GHz
Mfr MACOM Technology Solutions
Series -
Package Bulk
Part Status Active
Frequency 27GHz ~ 32GHz
P1dB 32dBm
Gain 21dB
Noise Figure -
RF Type General Purpose
Voltage - Supply 5.5V
Current - Supply 550mA
Test Frequency -
Package / Case Module
Supplier Device Package -
Base Product Number XP1026
XP1026-BD-000V Product Details
MACOM’s three stage 27.0 to 32.0 GHz GaAs MMIC power amplifier has a small signal gain of 21.0 dB with +33 dBm saturated output power. It can alos be used in low power linear applications, with and OIP3 of 40dBm. This MMIC uses MACOM’s GaAs PHEMT device model technology, and is based upon electron beam lithography to ensure high repeatability and uniformity. The chip has surface passivation to protect and provide a rugged part with backside via holes and gold metallization to allow either a conductive epoxy or eutectic solder die attach process. This device is well suited for Millimeter-wave Point-to-Point Radio, LMDS, SATCOM and VSAT applications.
Feature
Ka-Band 2W Power Amplifier
100% Visual Inspection to MIL-STD-883 Method 2010
100% On-Wafer RF, DC and Output Power Testing
+40.0 dBm Output Third Order Intercept (OIP3)
+33.0 dBm Saturated Output Power
21.0 dB Small Signal Gain
RoHS* Compliant
260°C Reflow Compatible
Applications
Aerospace and Defense
SATCOM
VSAT
Wireless Networking and Communication
Applications
Min Frequency: 27,000 MHz
Max Frequency: 32,000 MHz
Gain: 21 dB
OIP3: 40 dBm
Output P1dB: 32 dBm
Bias Voltage: 5 V
Bias Current: 900 mA
