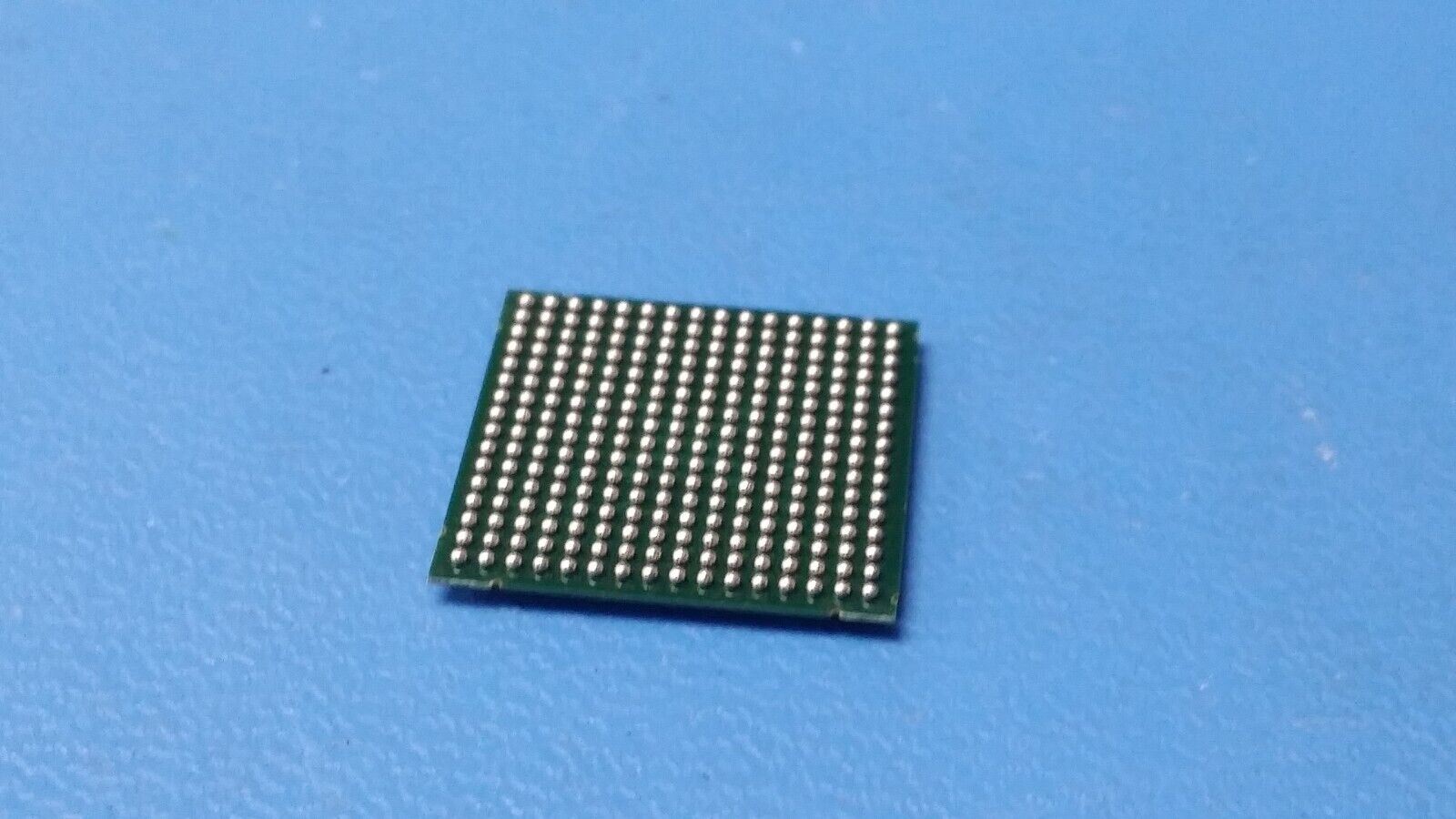

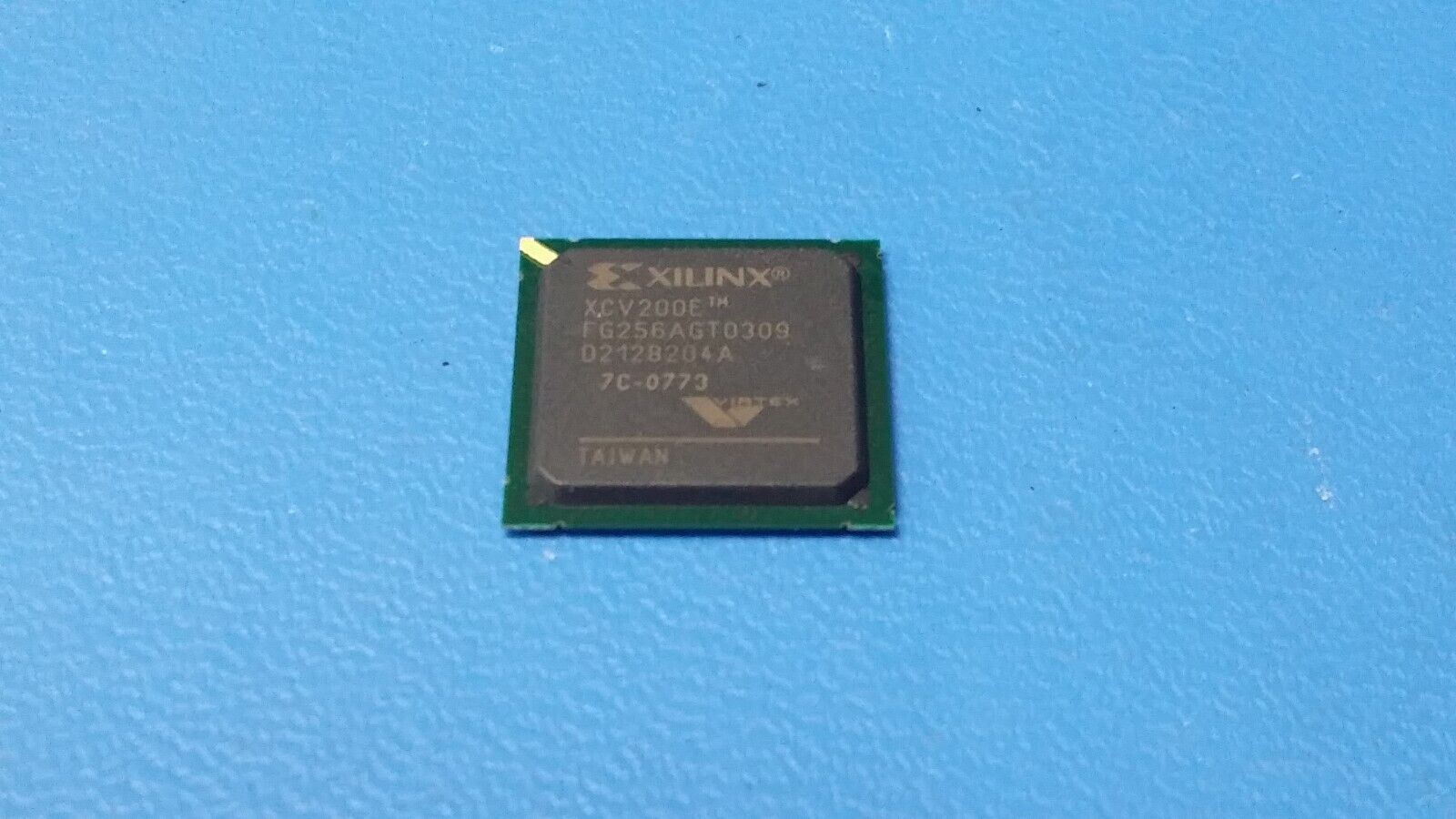

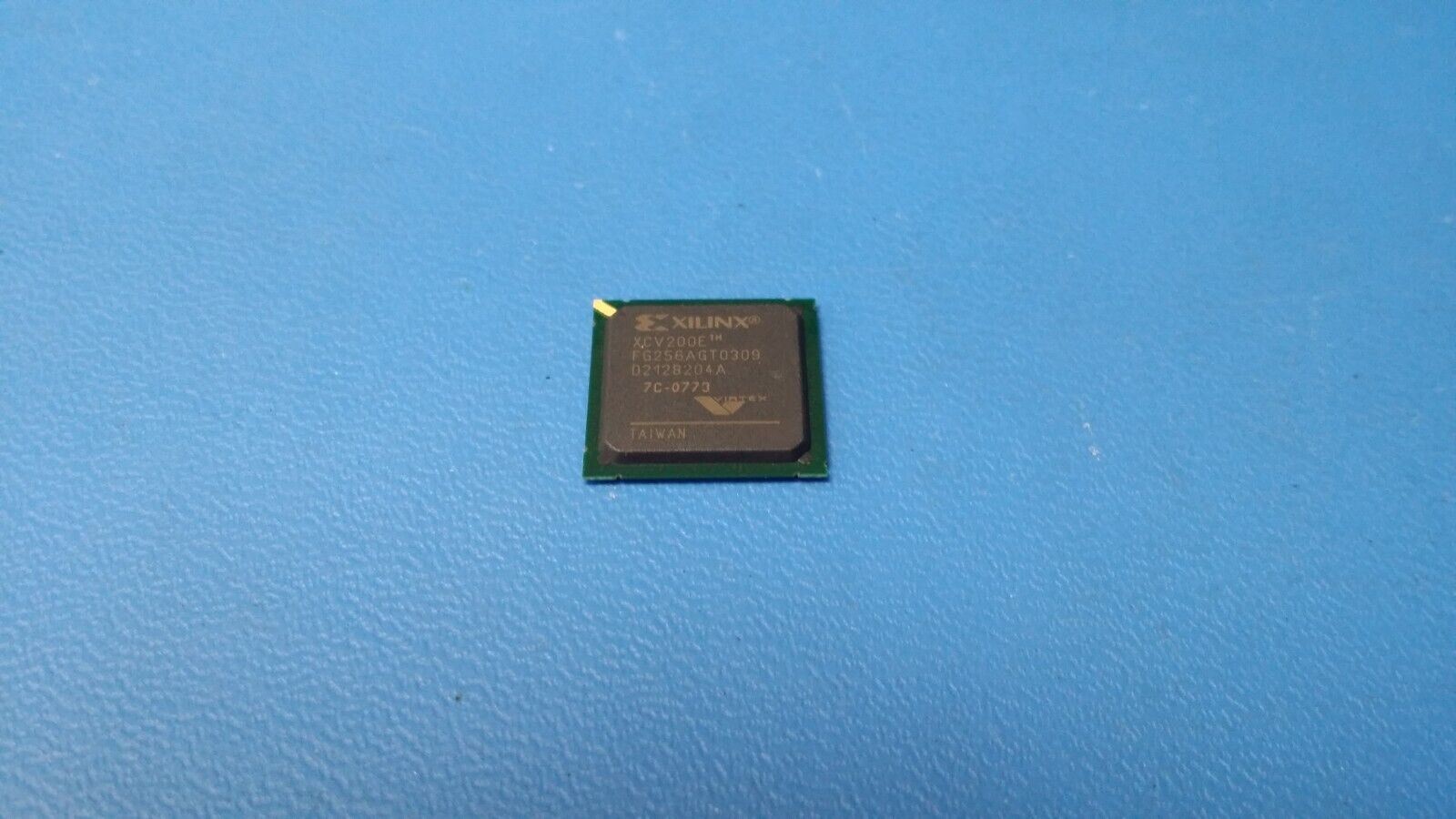

THIS IS FOR (1 PC) OF XCV200E-7FG256C BY XILINX
FIELD PROGRAMMABLE GATE ARRAY, CMOS, PBGA256

Part #: XCV200E-7FG256C
Part Category: Programmable Logic ICs
Manufacturer: Xilinx, Inc.
Description: Field Programmable Gate Array, 1176 CLBs, 63504 Gates, 400MHz, 5292-Cell, CMOS, PBGA256

Mfr Package Description FBGA-256
Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 400.0  MHz
Combinatorial Delay of a CLB-Max 0.42  ns
JESD-30 Code S-PBGA-B256
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of CLBs 1176.0
Number of Equivalent Gates 63504.0
Number of Inputs 176.0
Number of Logic Cells 5292.0
Number of Outputs 176.0
Number of Terminals 256
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 85.0  Cel
Organization 1176 CLBS, 63504 GATES
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA256,16X16,40
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 225
Power Supplies 1.2/3.6,1.8
Qualification Status Not Qualified
Seated Height-Max 2.0  mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 1.8  V
Supply Voltage-Min 1.71  V
Supply Voltage-Max 1.89  V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn63Pb37)
Terminal Form BALL
Terminal Pitch 1.0  mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Length 17.0  mm
Width 17.0  mm
