(1 PC) XCS10XL-4TQ144C XILINX IC FPGA 112 I/O 144TQFP
(1 PC) XCS10XL-4TQ144C XILINX IC FPGA 112 I/O 144TQFP
(1 PC) XCS10XL-4TQ144C XILINX IC FPGA 112 I/O 144TQFP
(1 PC) XCS10XL-4TQ144C XILINX IC FPGA 112 I/O 144TQFP

(1 PC) XCS10XL-4TQ144C XILINX IC FPGA 112 I/O 144TQFP

Tax included.
Only 21 left!

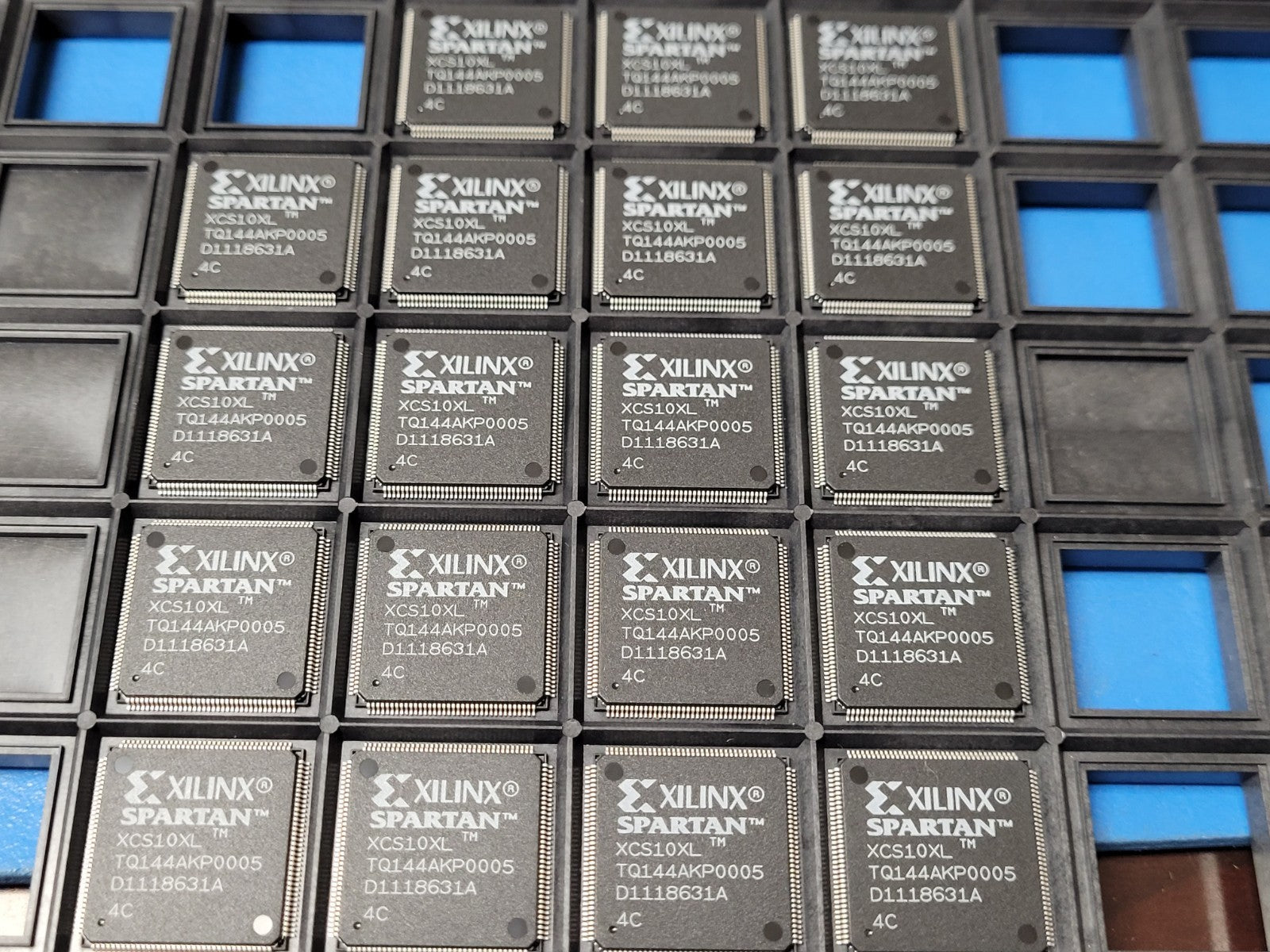

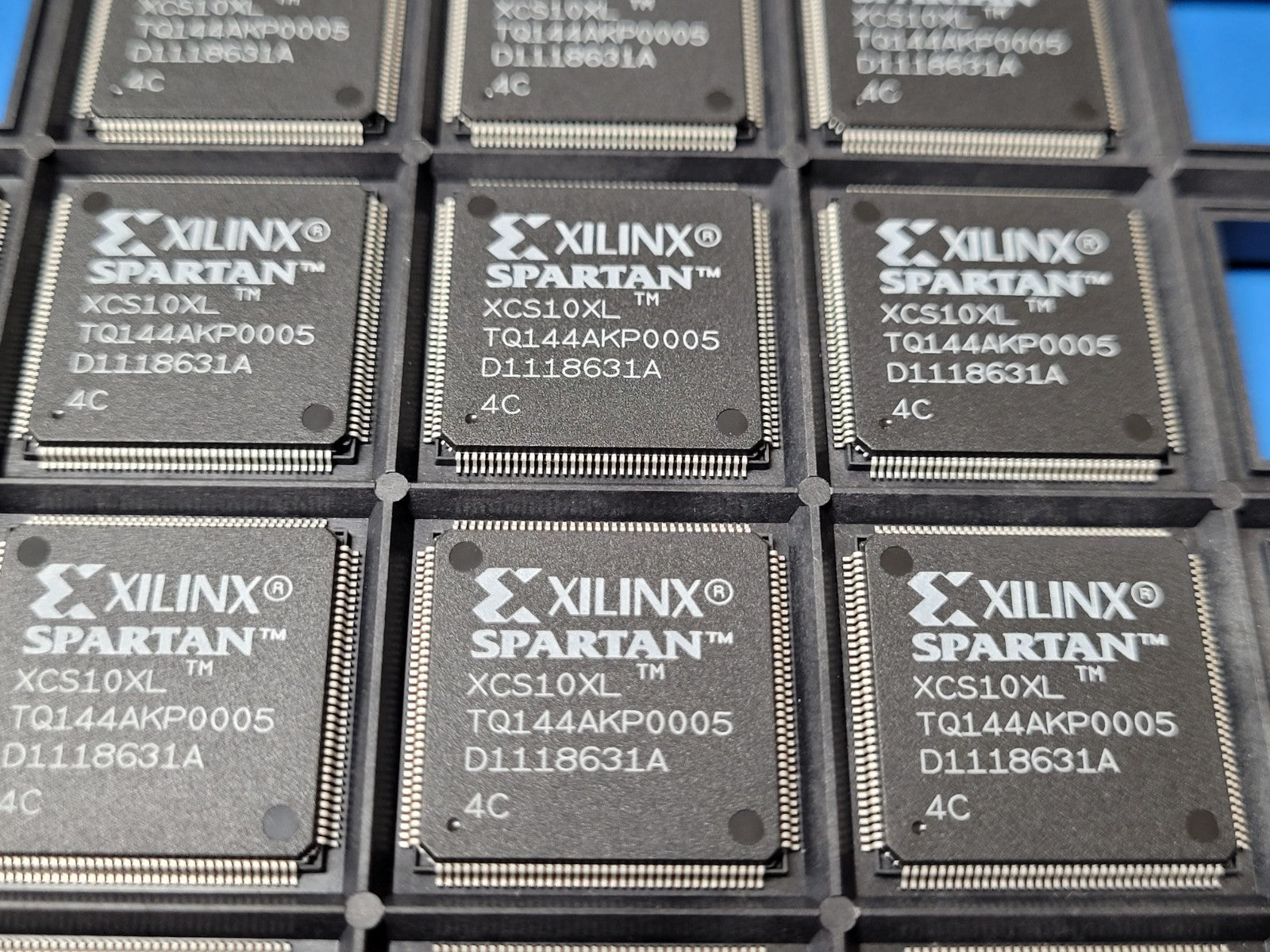

THIS IS FOR (1 PC) OF XCS10XL-4TQ144C BY XILINX
IC FPGA 112 I/O 144TQFP

Part #: XCS10XL-4TQ144C
Part Category: Programmable Logic ICs
Manufacturer: Xilinx, Inc.
Description: Field Programmable Gate Array, 196 CLBs, 3000 Gates, 217MHz, 196-Cell, CMOS, PQFP144

Mfr Package Description PLASTIC, TQFP-144
Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 217.0  MHz
Combinatorial Delay of a CLB-Max 1.1  ns
JESD-30 Code S-PQFP-G144
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of CLBs 196.0
Number of Equivalent Gates 3000.0
Number of Inputs 112.0
Number of Logic Cells 196.0
Number of Outputs 112.0
Number of Terminals 144
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 85.0  Cel
Organization 196 CLBS, 3000 GATES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP144,.87SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 225
Power Supplies 3.3
Qualification Status Not Qualified
Seated Height-Max 1.6  mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 3.3  V
Supply Voltage-Min 3.0  V
Supply Voltage-Max 3.6  V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.5  mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 20.0  mm
Width 20.0  mm
Additional Feature MAXIMUM USABLE GATES 10000
