(1 PC) XCM69D618TQ8, MCM69D618TQ8 Multi-Port SRAM, 64KX18, CMOS, PQFP100
(1 PC) XCM69D618TQ8, MCM69D618TQ8 Multi-Port SRAM, 64KX18, CMOS, PQFP100
(1 PC) XCM69D618TQ8, MCM69D618TQ8 Multi-Port SRAM, 64KX18, CMOS, PQFP100
(1 PC) XCM69D618TQ8, MCM69D618TQ8 Multi-Port SRAM, 64KX18, CMOS, PQFP100
(1 PC) XCM69D618TQ8, MCM69D618TQ8 Multi-Port SRAM, 64KX18, CMOS, PQFP100

(1 PC) XCM69D618TQ8, MCM69D618TQ8 Multi-Port SRAM, 64KX18, CMOS, PQFP100

Tax included.
Only 100 left!

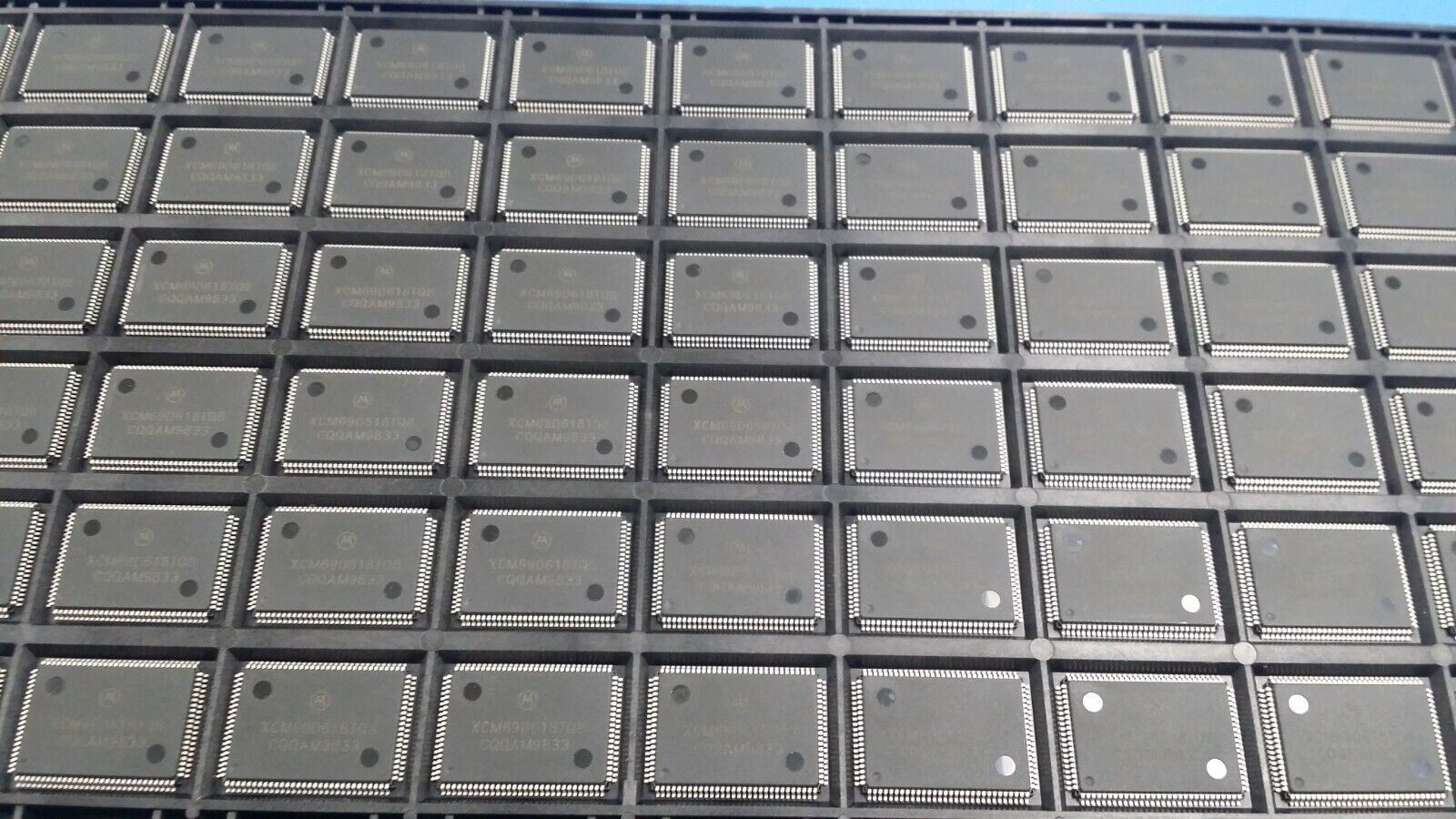

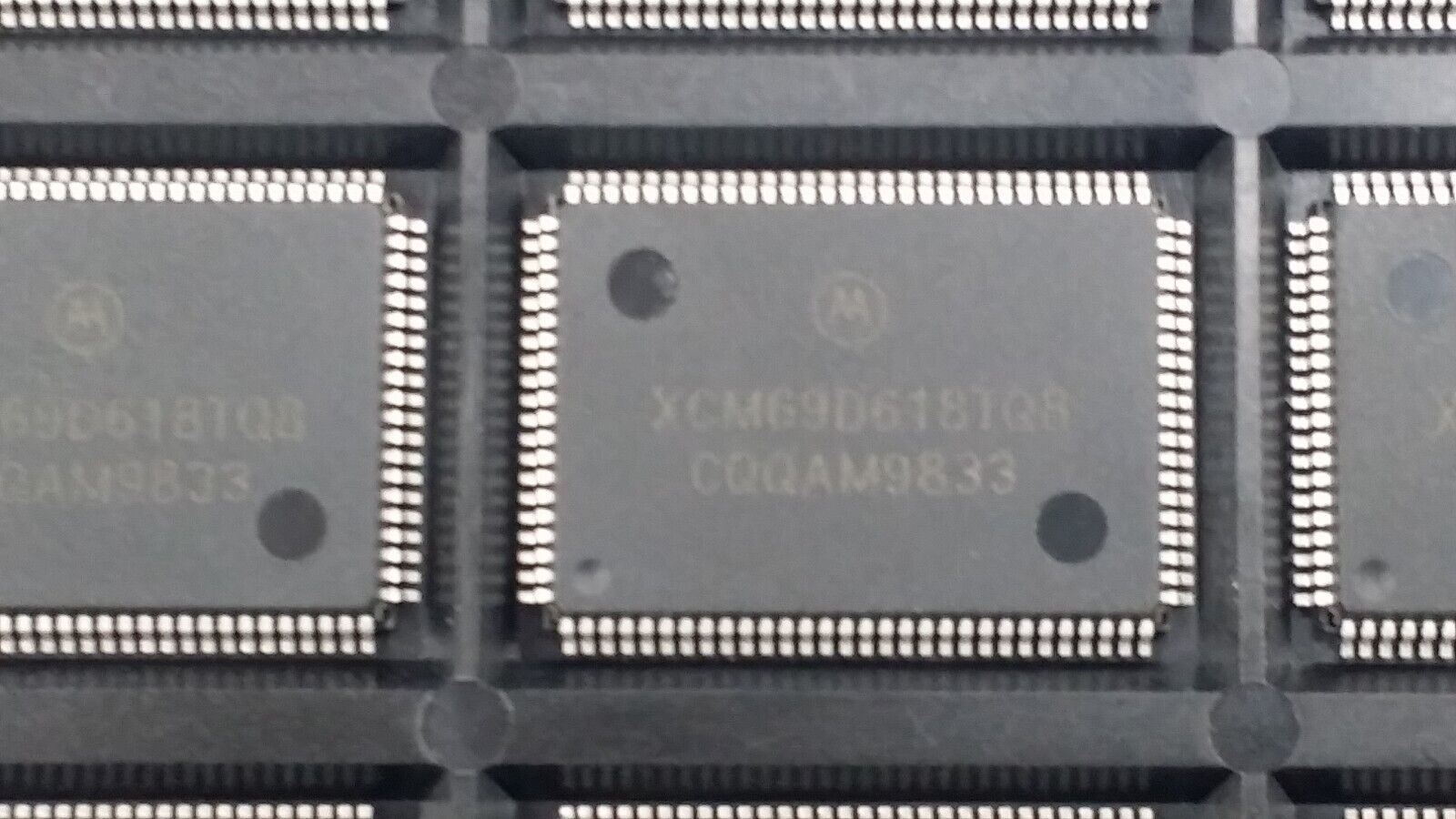

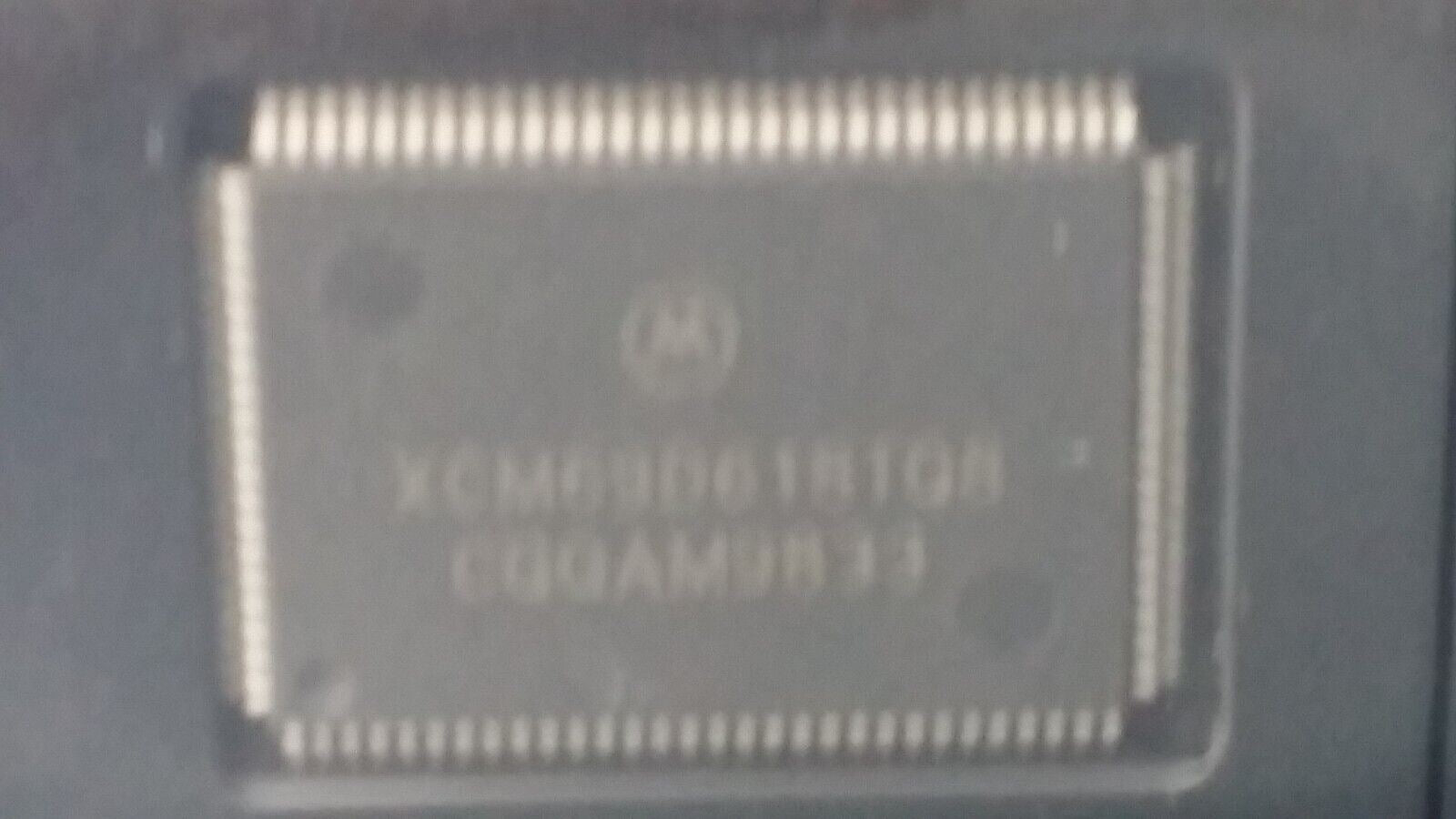

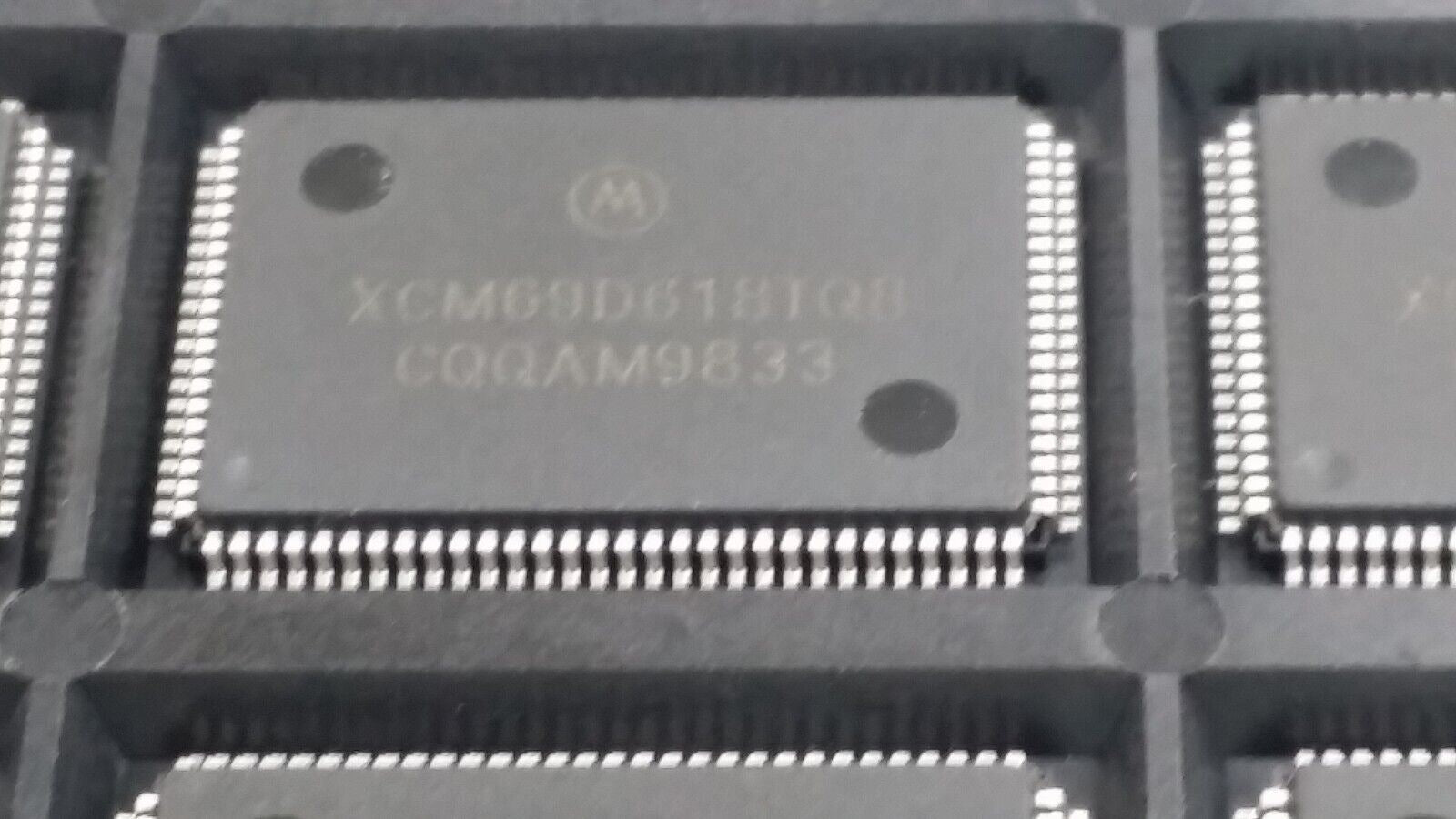

THIS IS FOR (1 PC) OF XCM69D618TQ8, MCM69D618TQ8 BY MOTOROLA
Multi-Port SRAM, 64KX18, CMOS, PQFP100

Part #: MCM69D618TQ8
Part Category: Memory ICs
Manufacturer: Motorola Solutions, Inc.
Description: Multi-Port SRAM, 64KX18, CMOS, PQFP100

Mfr Package Description TQFP-100
Status Discontinued
JESD-30 Code R-PQFP-G100
JESD-609 Code e0
Memory Density 1179648.0  bit
Memory IC Type MULTI-PORT SRAM
Memory Width 18
Number of Functions 1
Number of Ports 2
Number of Terminals 100
Number of Words 65536.0  words
Number of Words Code 64K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 64KX18
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Shape RECTANGULAR
Package Style FLATPACK, LOW PROFILE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 1.6  mm
Supply Voltage-Nom (Vsup) 3.3  V
Supply Voltage-Min (Vsup) 3.135  V
Supply Voltage-Max (Vsup) 3.465  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.65  mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 20.0  mm
Width 14.0  mm
