(1 PC) XC3195A-3PP175C XILINX FPGA PPGA-175
(1 PC) XC3195A-3PP175C XILINX FPGA PPGA-175
(1 PC) XC3195A-3PP175C XILINX FPGA PPGA-175
(1 PC) XC3195A-3PP175C XILINX FPGA PPGA-175

(1 PC) XC3195A-3PP175C XILINX FPGA PPGA-175

Tax included.
Only 139 left!

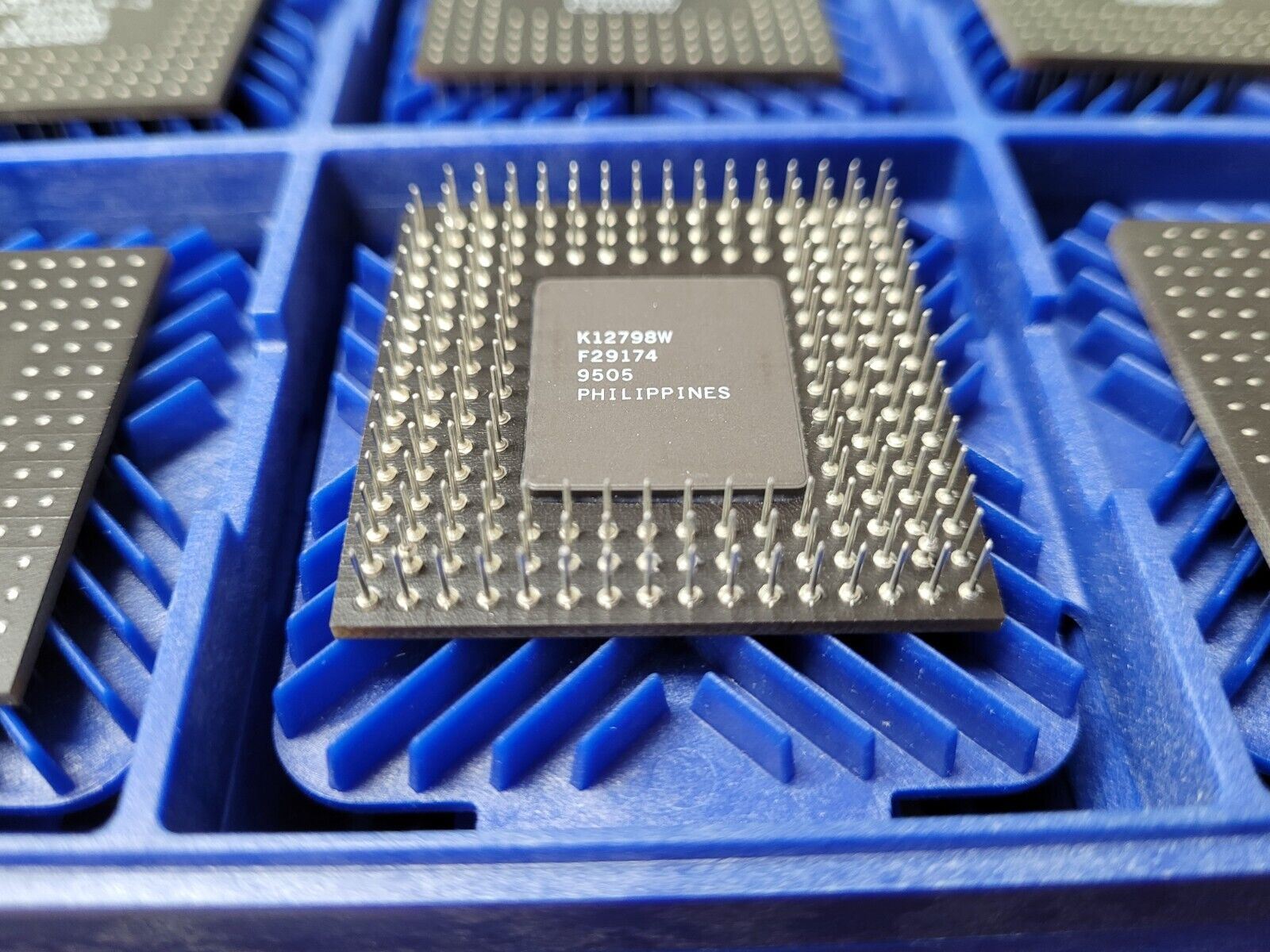

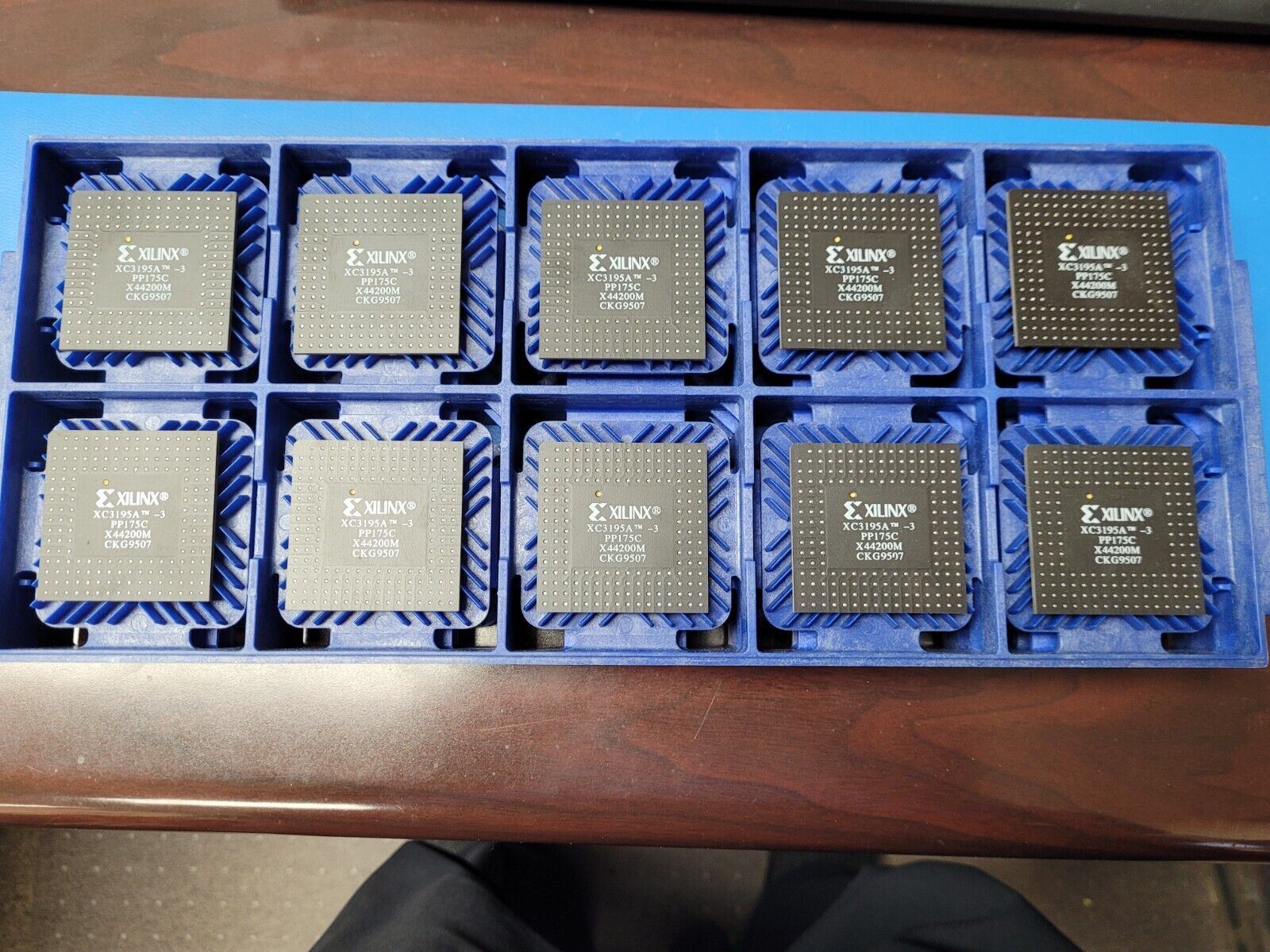

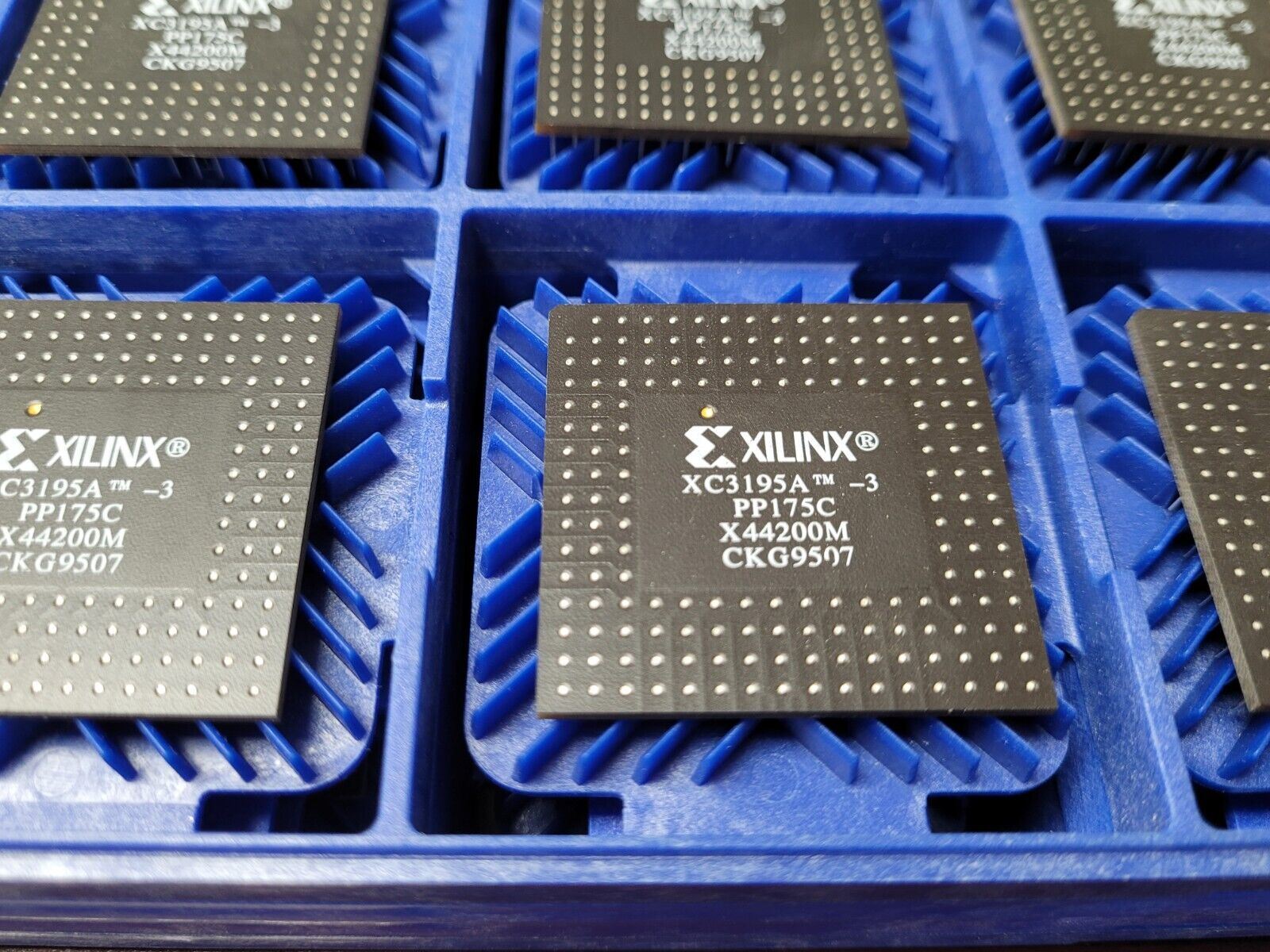

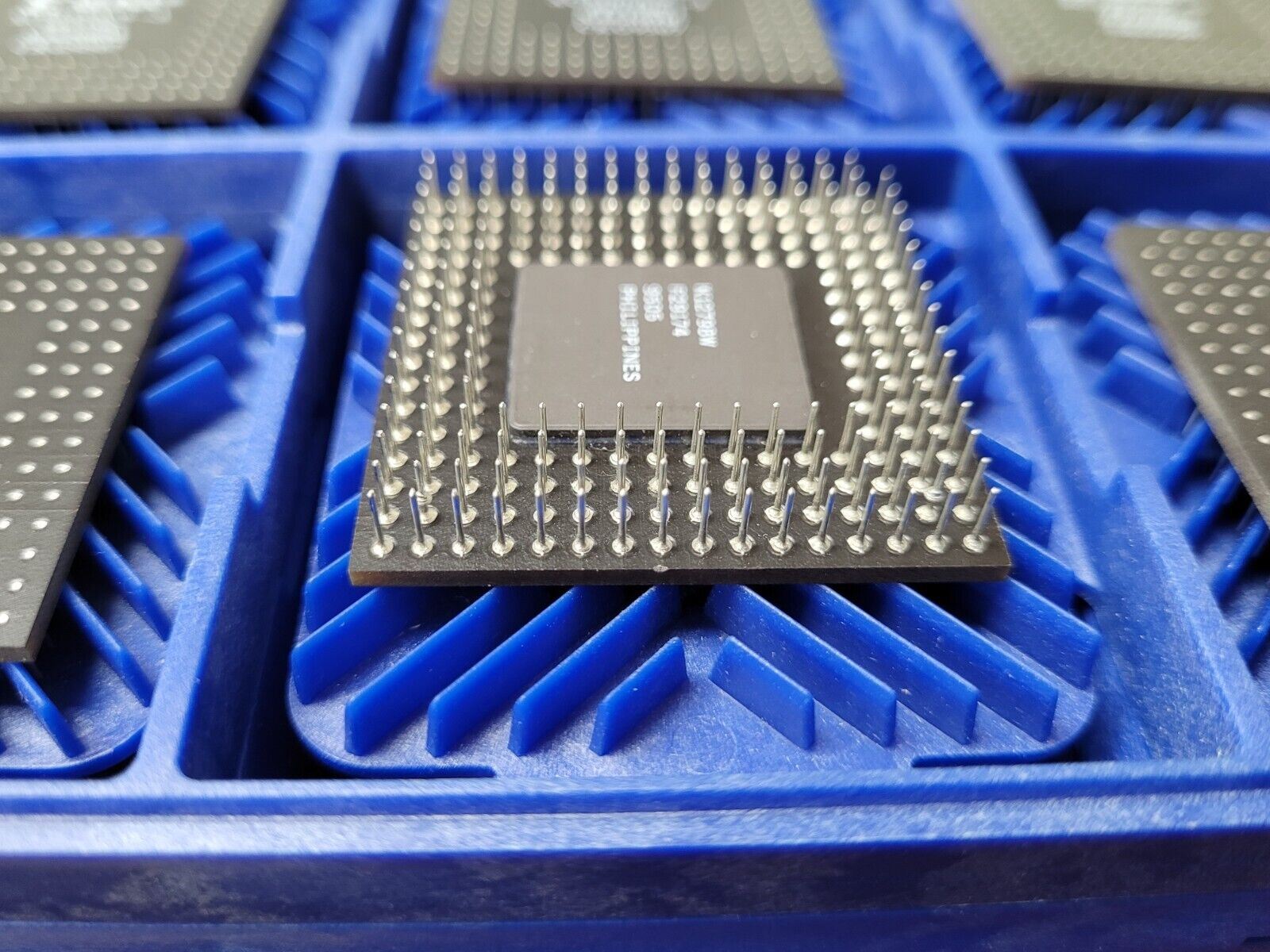

THIS IS FOR (1 PC) OF XC3195A-3PP175C BY XILINX
FPGA PPGA-175

Part #: XC3195A-3PP175C
Part Category: Programmable Logic ICs
Manufacturer: Xilinx, Inc.
Description: Field Programmable Gate Array, 484 CLBs, 6500 Gates, 270MHz, 484-Cell, CMOS, PPGA175

Mfr Package Description PLASTIC, PGA-175
Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 270.0  MHz
Combinatorial Delay of a CLB-Max 2.7  ns
JESD-30 Code S-PPGA-P175
Moisture Sensitivity Level 1
Number of CLBs 484.0
Number of Equivalent Gates 6500.0
Number of Inputs 144.0
Number of Logic Cells 484.0
Number of Outputs 144.0
Number of Terminals 175
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 85.0  Cel
Organization 484 CLBS, 6500 GATES
Package Body Material PLASTIC/EPOXY
Package Code HPGA
Package Equivalence Code PGA175,16X16
Package Shape SQUARE
Package Style GRID ARRAY, HEAT SINK/SLUG
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 4.191  mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5.0  V
Supply Voltage-Min 4.75  V
Supply Voltage-Max 5.25  V
Surface Mount NO
Technology CMOS
Temperature Grade OTHER
Terminal Form PIN/PEG
Terminal Pitch 2.54  mm
Terminal Position PERPENDICULAR
Length 42.164  mm
Width 42.164  mm
Additional Feature MAX USABLE 7500 LOGIC GATES
