(1 PC) XC18V512VQ44C XILINX 64KX8 CONFIGURATION MEMORY, 15ns, PQFP44

(1 PC) XC18V512VQ44C XILINX 64KX8 CONFIGURATION MEMORY, 15ns, PQFP44

  • $12.95
    Unit price per
Tax included.

Only 160 left!

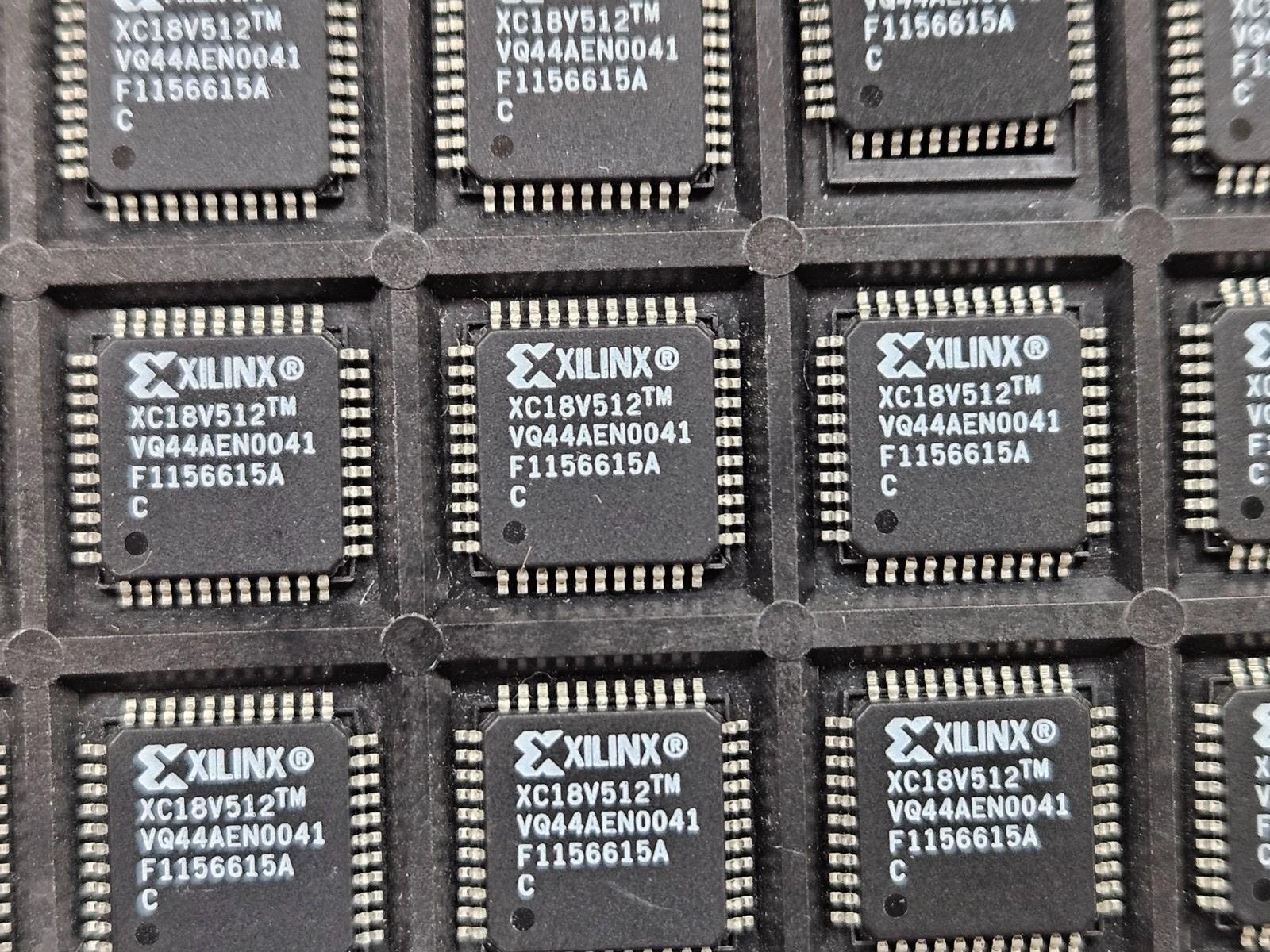

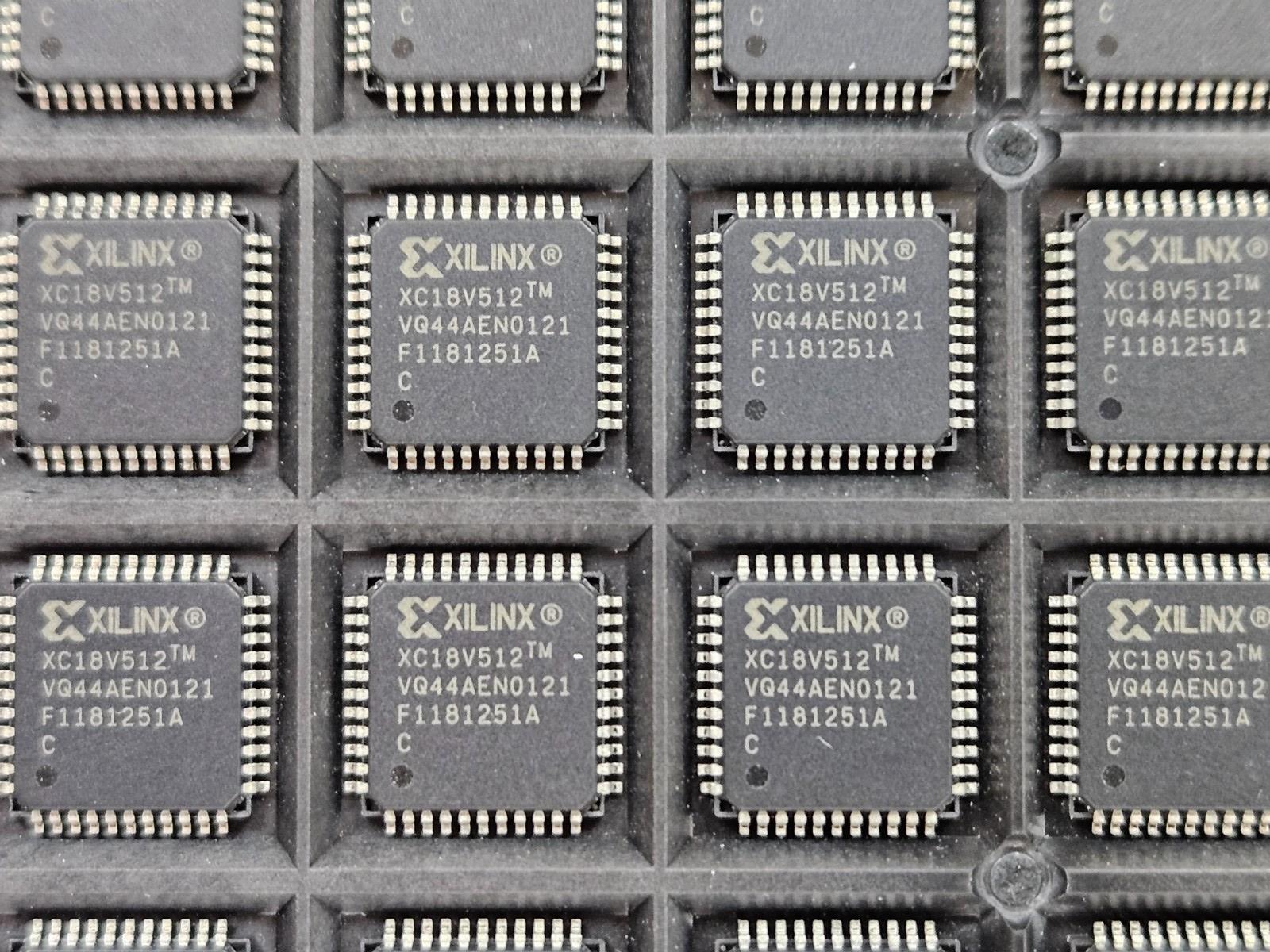

THIS LISTING IS FOR (1 PC) OF XC18V512VQ44C BY XILINX
64KX8 CONFIGURATION MEMORY, 15ns, PQFP44

Part #: XC18V512VQ44C

Part Category: Memory ICs
Manufacturer: Xilinx, Inc.
Description: 64KX8 CONFIGURATION MEMORY, 15ns, PQFP44
Mfr Package Description

PLASTIC, VQFP-44
REACH Compliant Yes
Status EOL
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 15.0 ns
Clock Frequency-Max (fCLK) 33.0 MHz
Data Retention Time-Min 20
Endurance 20000.0 Write/Erase Cycles
JESD-30 Code S-PQFP-G44
JESD-609 Code e0
Memory Density 524288.0 bit
Memory IC Type CONFIGURATION MEMORY
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 44
Number of Words 65536.0 words
Number of Words Code 64K
Operating Mode SYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 64KX8
Package Body Material PLASTIC/EPOXY
Package Code TQFP
Package Equivalence Code TQFP44,.47SQ,32
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE
Parallel/Serial PARALLEL/SERIAL
Peak Reflow Temperature (Cel) 225
Power Supplies (V) 2.5/3.3,3.3
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Standby Current-Max 0.01 Amp
Supply Current-Max 0.025 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 10.0 mm
Width 10.0 mm
