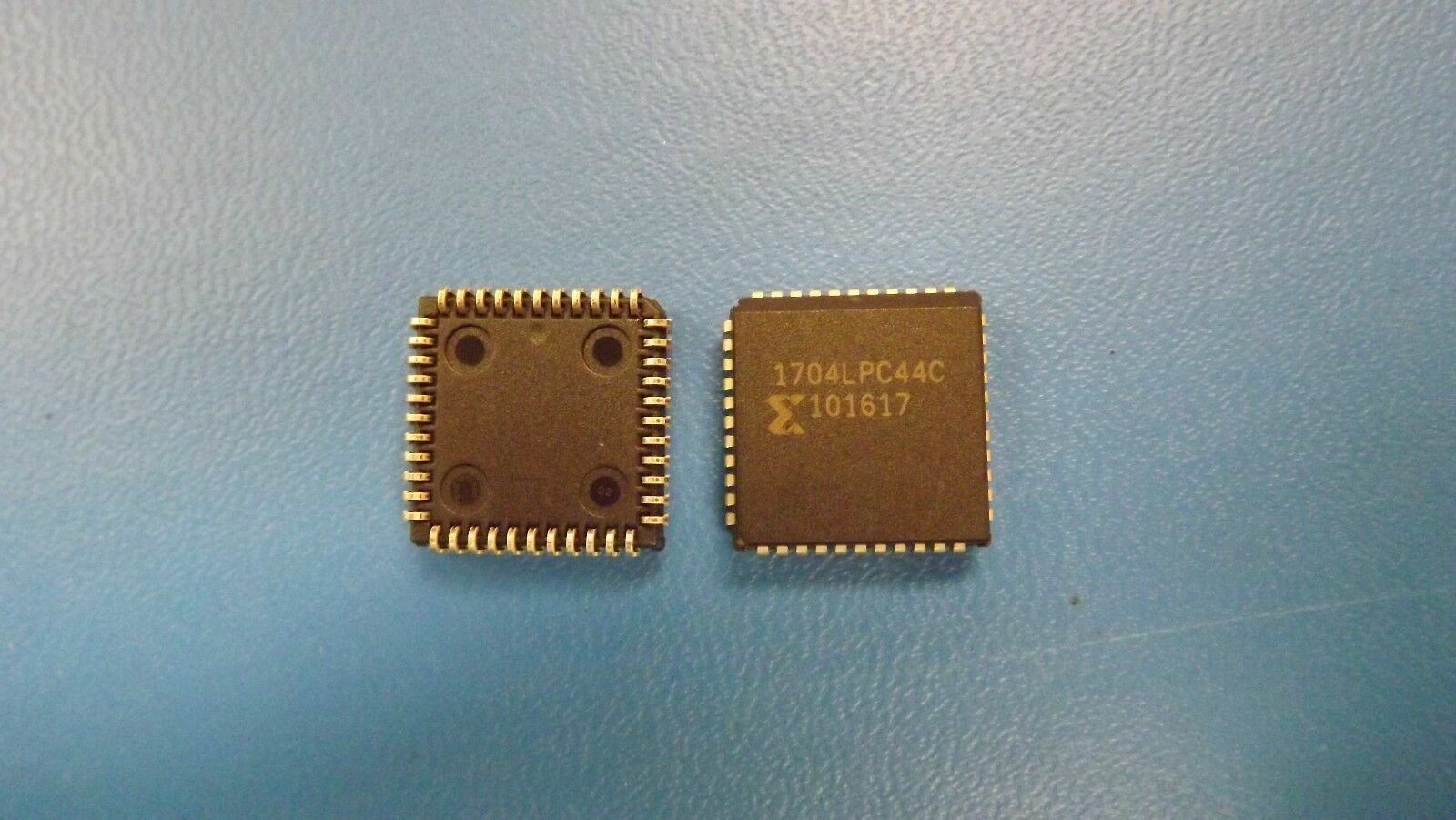

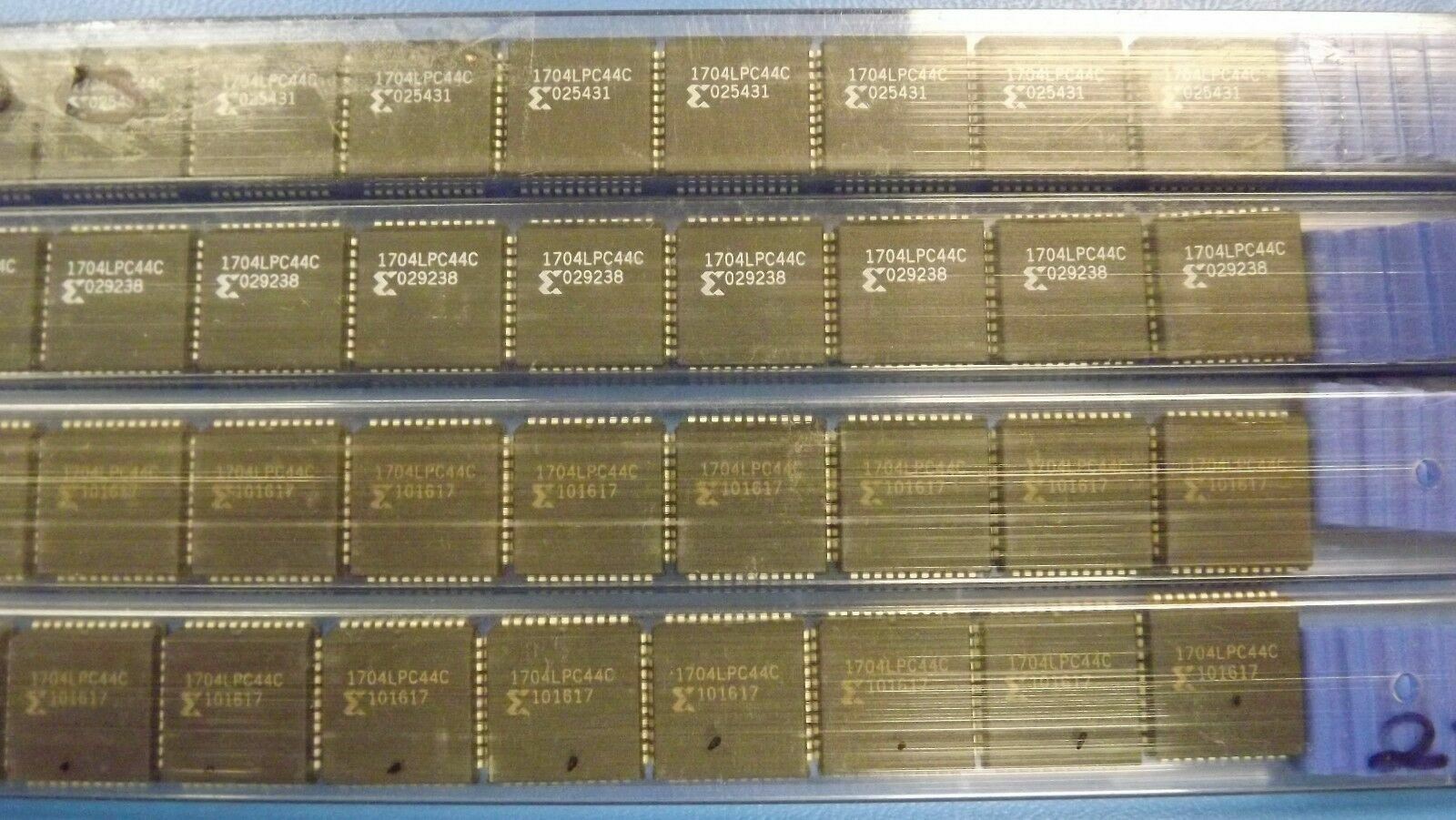

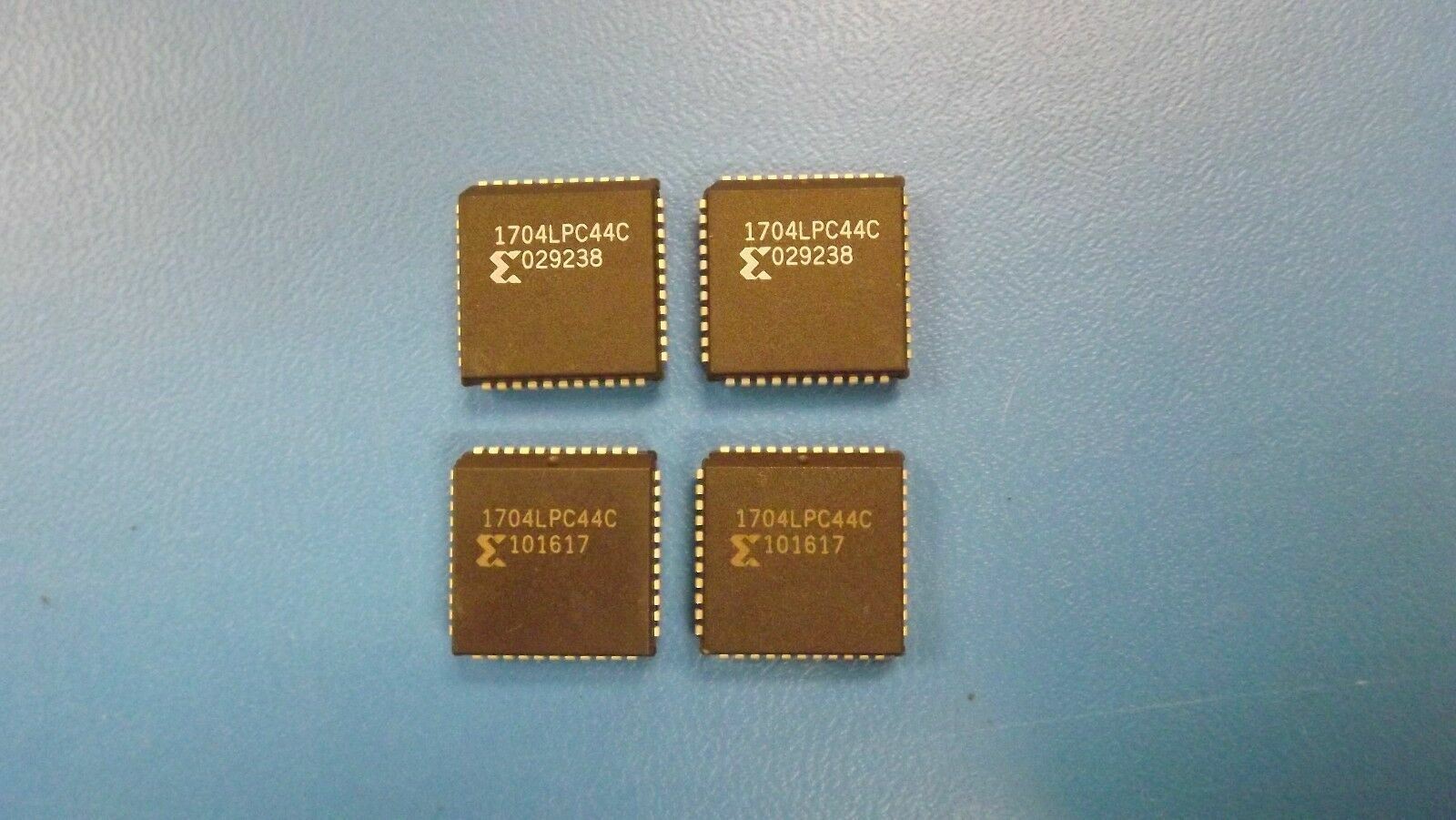

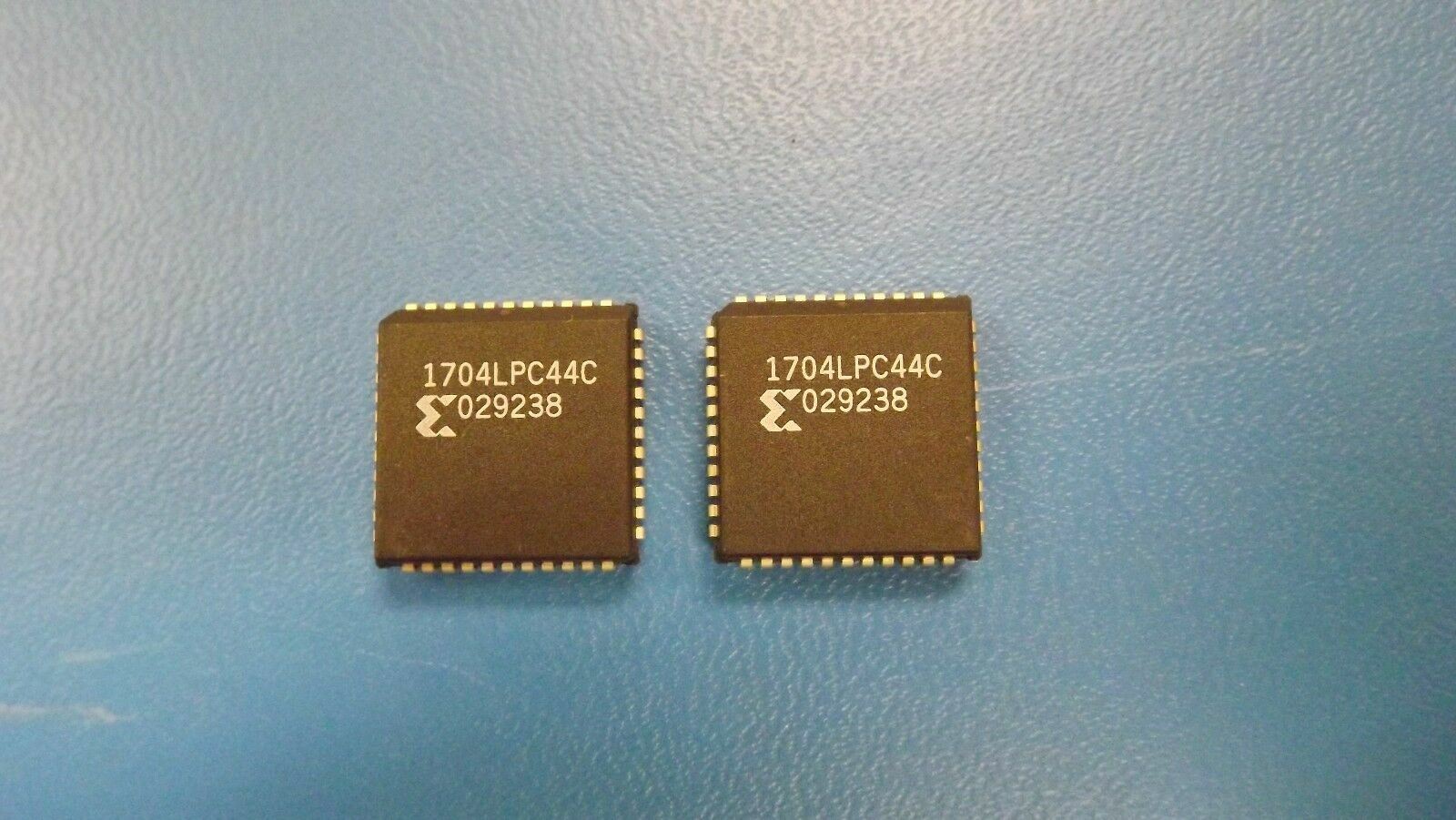

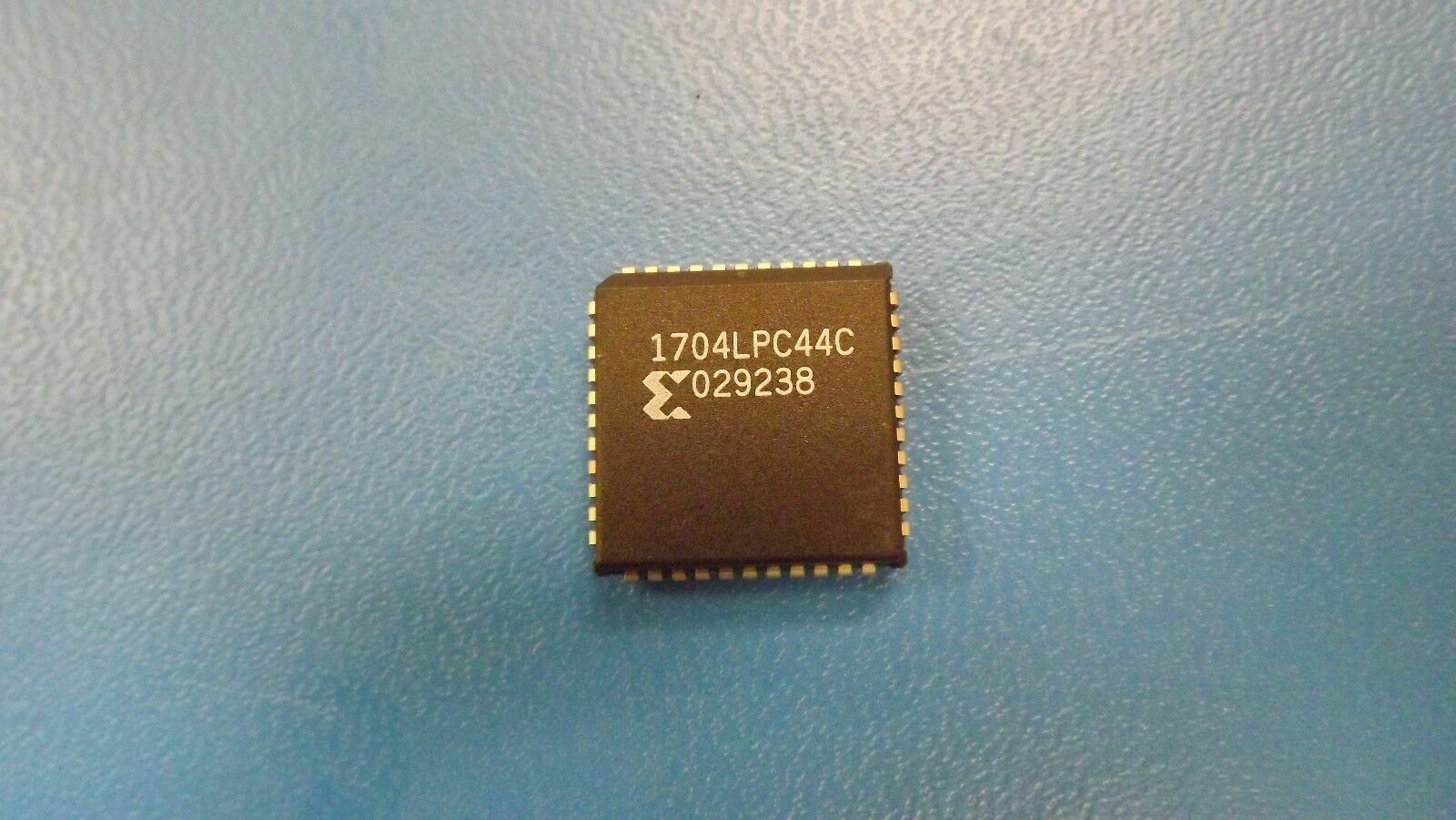

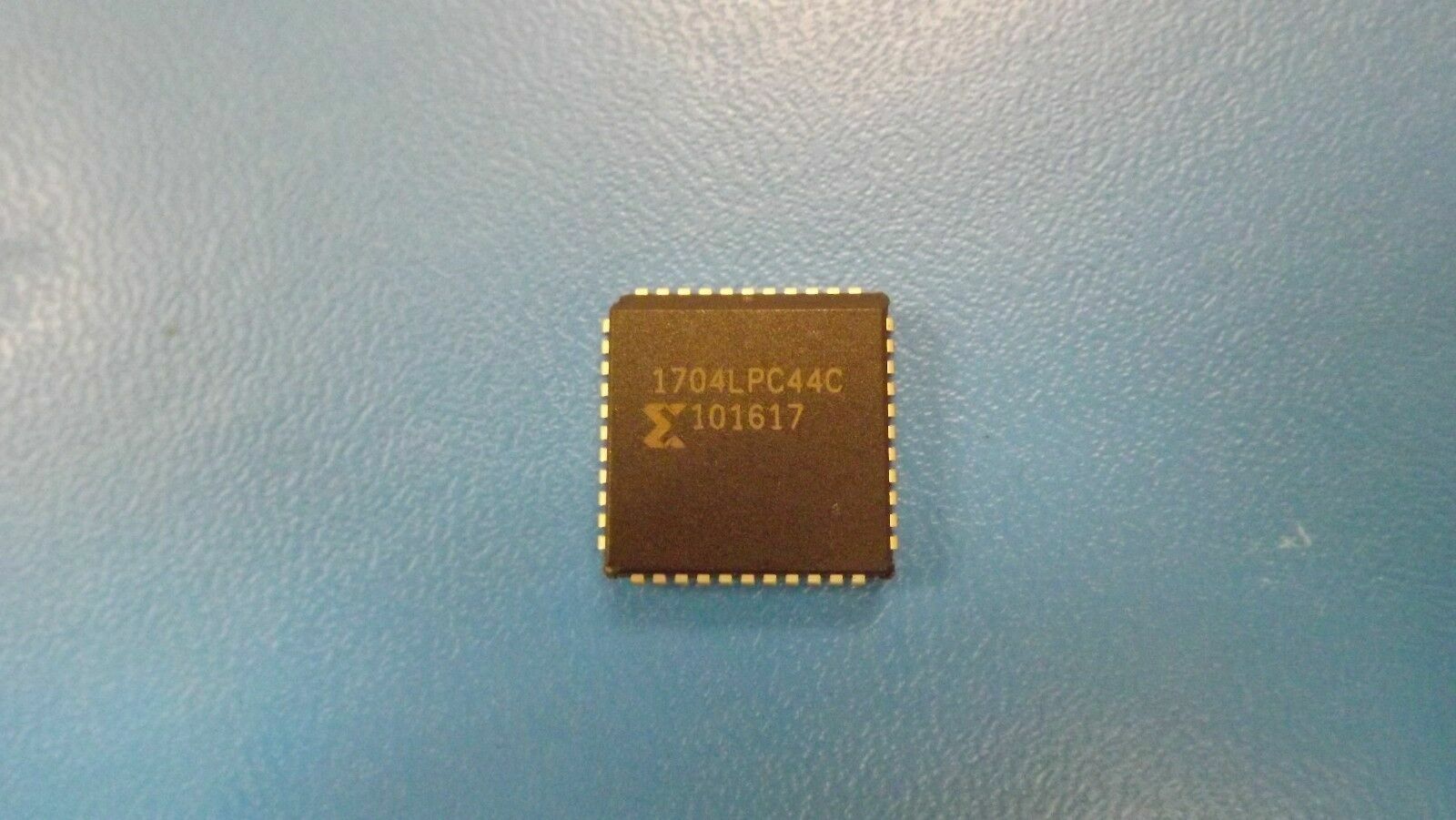

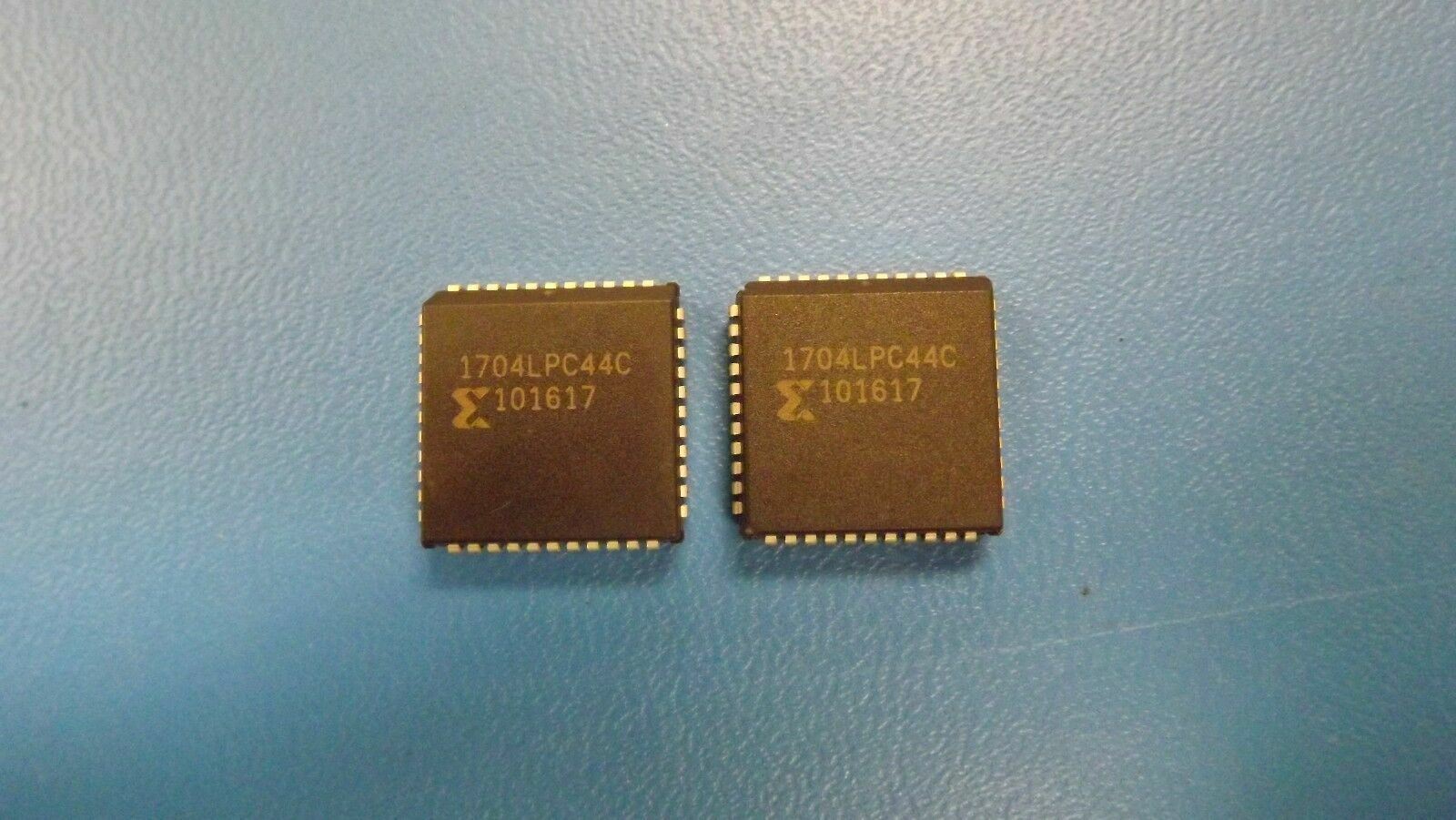

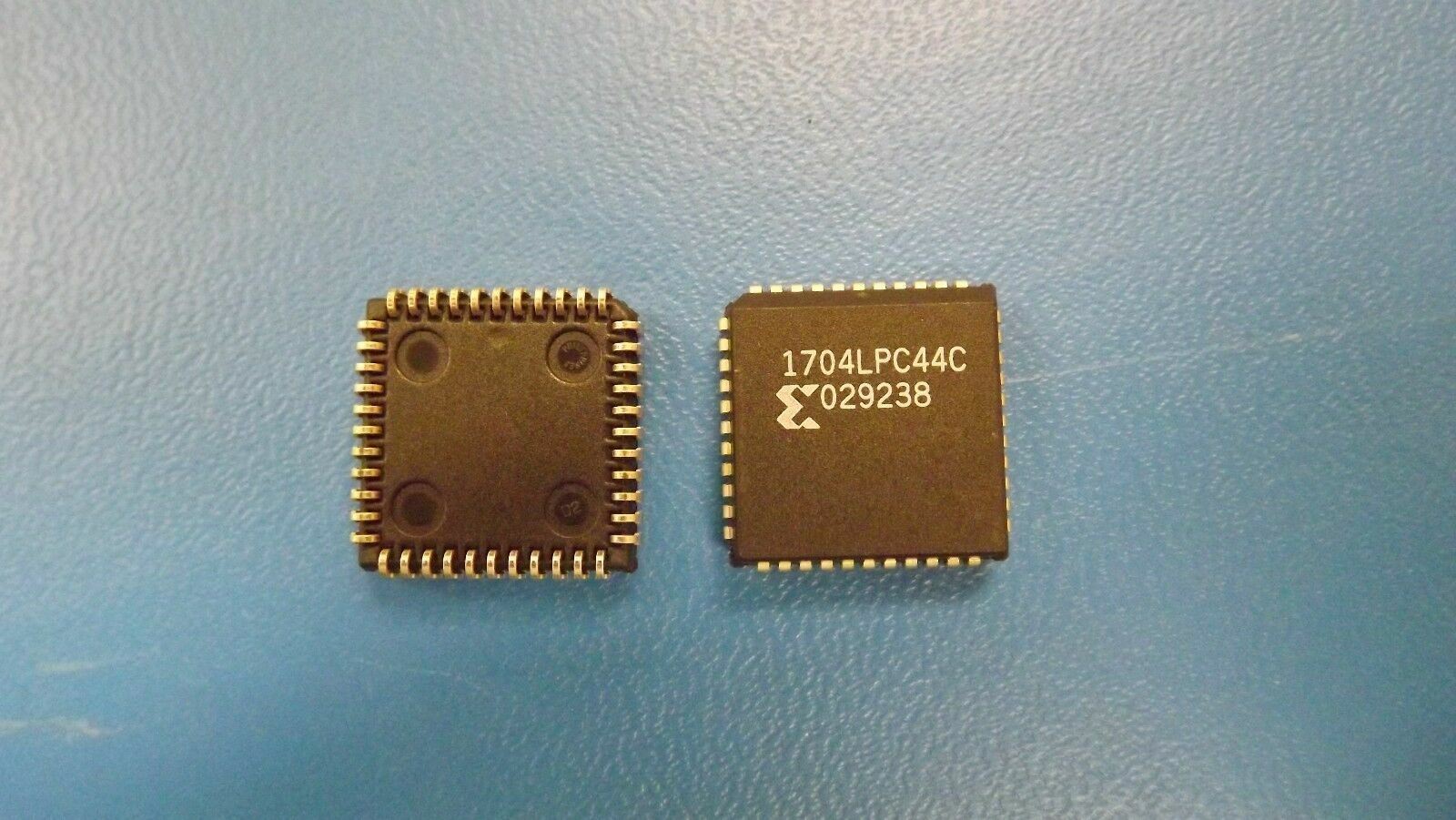

(1 PC) XC1704LPC44C XILINX PROM Serial 4M-bit 3.3V 44-Pin PLCC
Tax included.
THIS LISTING IS FOR (1 PC) OF XC1704LPC44C BY XILINX
SPECIFICATIONS
| Mfr Package Description | PLASTIC, CC-44 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Sub Category | OTP ROMs |
| Clock Frequency-Max (fCLK) | 15.0 MHz |
| I/O Type | COMMON |
| JESD-30 Code | S-PQCC-J44 |
| JESD-609 Code | e0 |
| Memory Density | 4194304.0 bit |
| Memory IC Type | CONFIGURATION MEMORY |
| Memory Width | 1 |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Terminals | 44 |
| Number of Words | 4194304.0 words |
| Number of Words Code | 4M |
| Operating Mode | SYNCHRONOUS |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Organization | 4MX1 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC44,.7SQ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Parallel/Serial | SERIAL |
| Peak Reflow Temperature (Cel) | 225 |
| Power Supplies (V) | 3.3 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.572 mm |
| Standby Current-Max | 5.0E-5 Amp |
| Supply Current-Max | 0.01 Amp |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Supply Voltage-Min (Vsup) | 3.0 V |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 16.5862 mm |
| Width | 16.5862 mm |
| Additional Feature | USED FOR STORING THE CONFIGURATION BITSTREAMS OF XILINX FPGAS |
