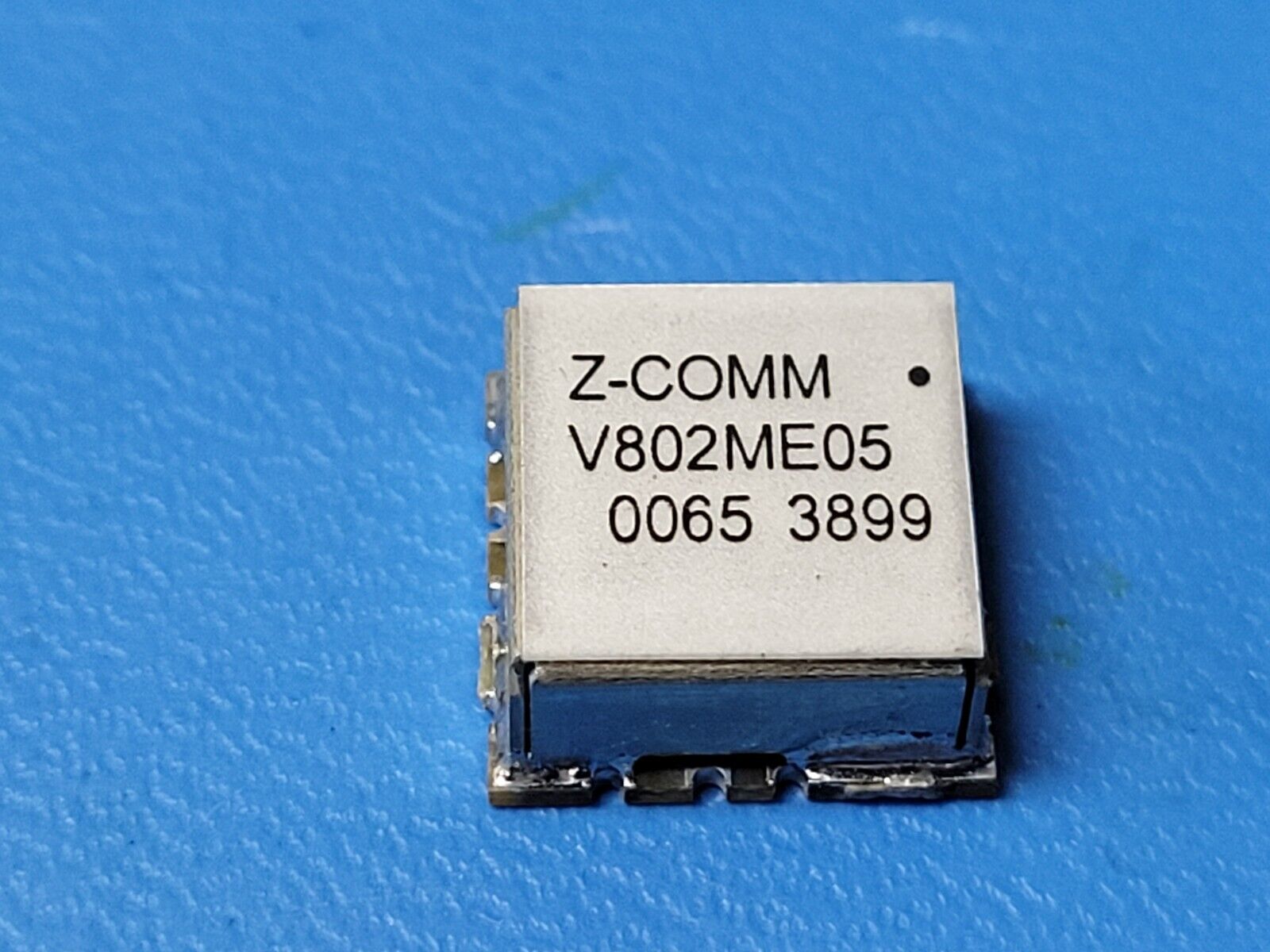

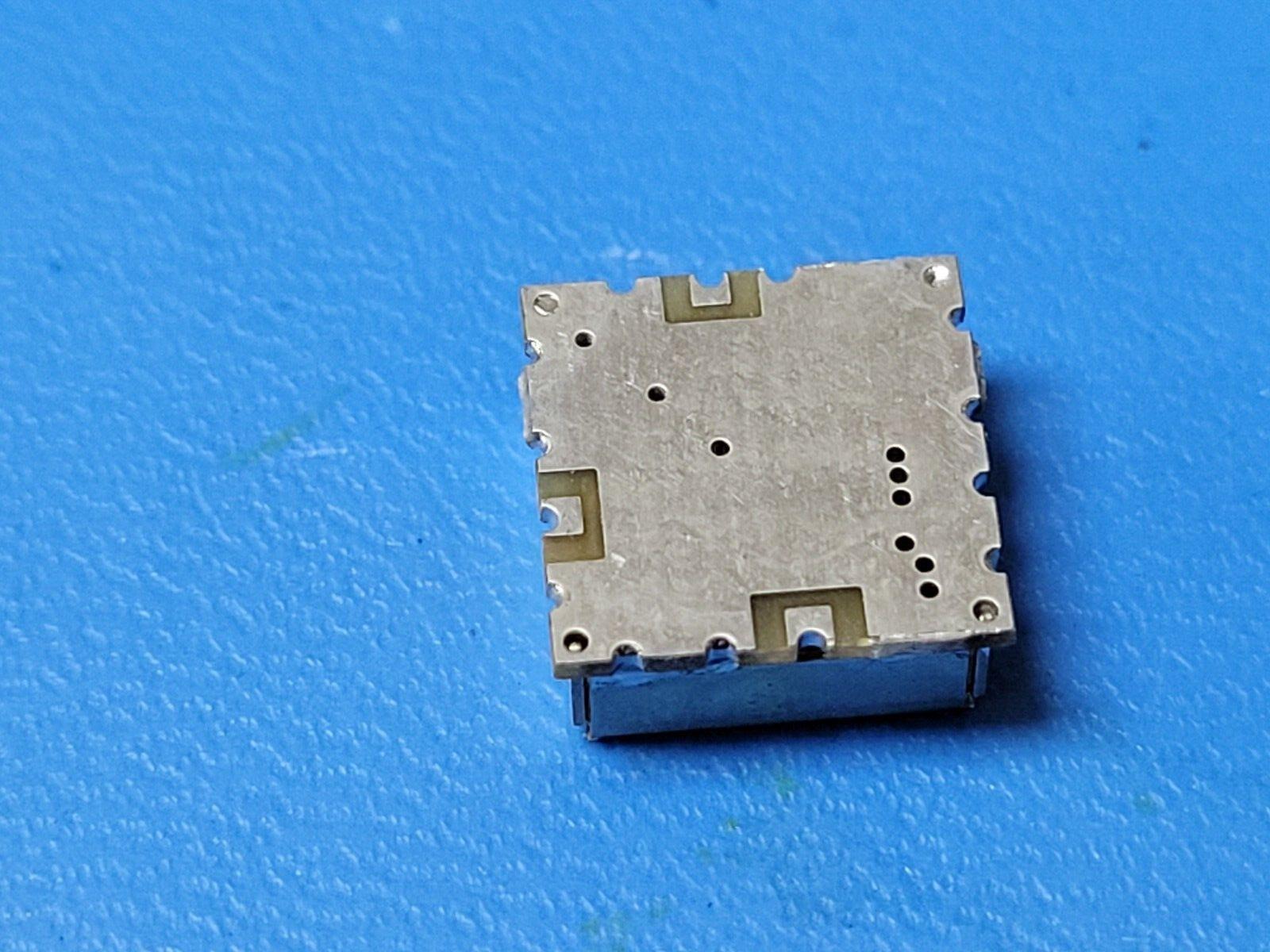

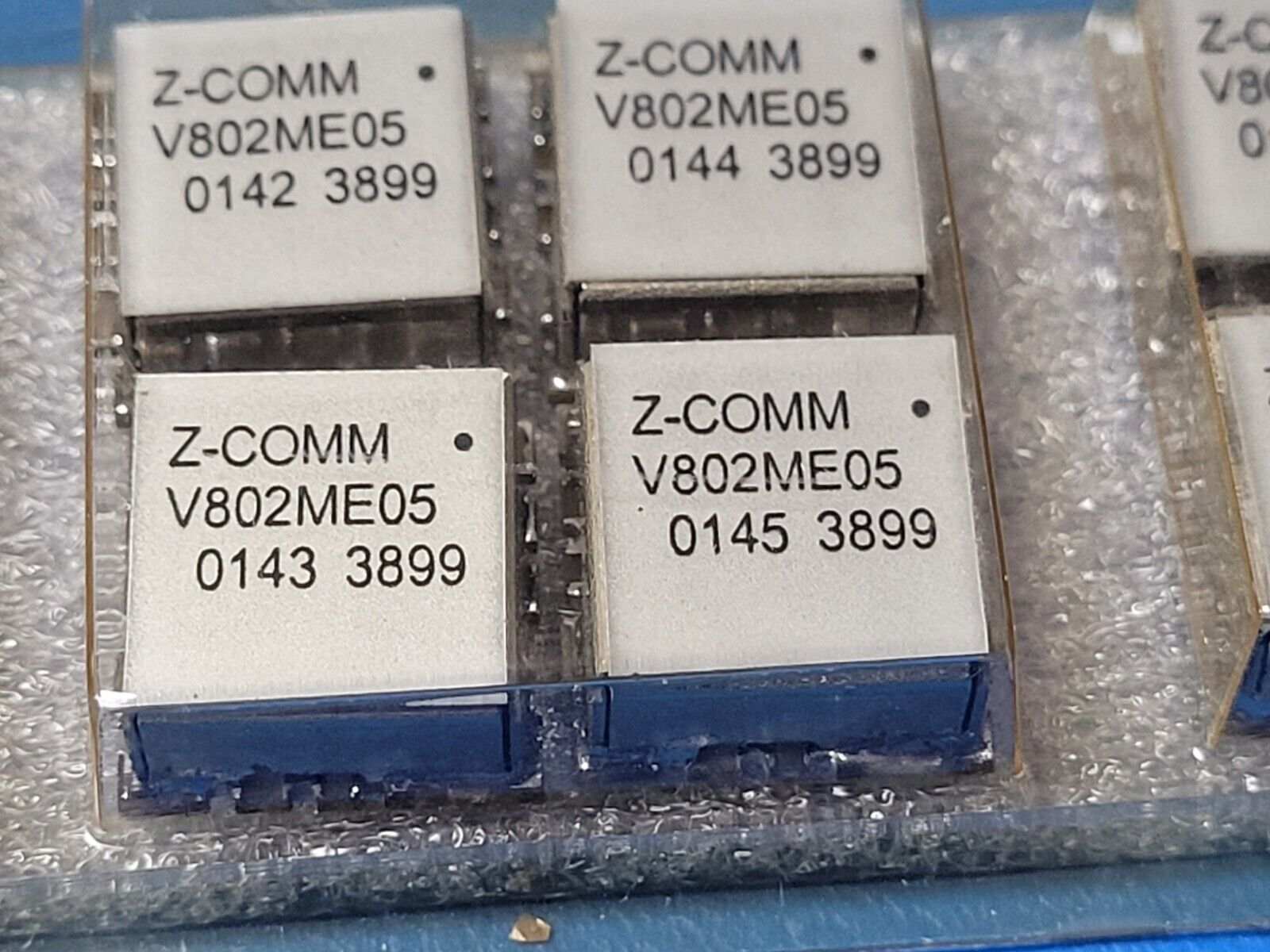

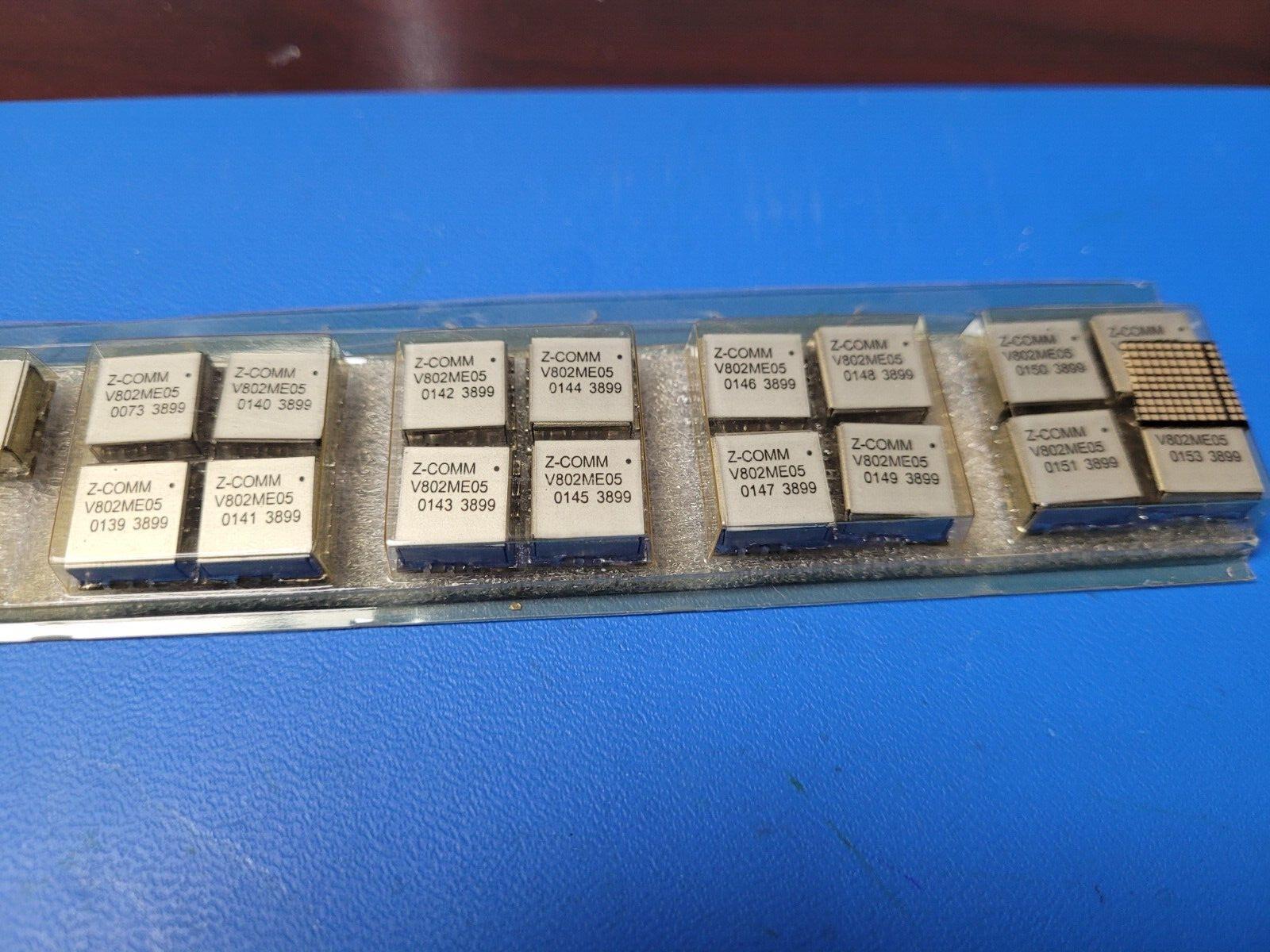

THIS IS FOR (1 PC) OF V802ME05 BY Z-COMM
Voltage Controlled Oscillator, 2200MHz Min, 2400MHz Max

Part #: V802ME05
Part Category: Oscillators
Manufacturer: Z-Communications, Inc.
Description: Voltage Controlled Oscillator, 2200MHz Min, 2400MHz Max

REACH Compliant Yes
Status Contact Mfr
Oscillator Type VOLTAGE CONTROLLED OSCILLATOR
Control Voltage-Min 0.5  V
Control Voltage-Max 8.0  V
Modulation Sensitivity 53.0  MHz/V
Mounting Feature SURFACE MOUNT
Offset Frequency 1.0  kHz
Operating Frequency-Min 2200.0  MHz
Operating Frequency-Max 2400.0  MHz
Operating Temperature-Min -30.0  Cel
Operating Temperature-Max 80.0  Cel
Output Power 5.25  dBm
Phase Noise -68.0  dBc/Hz
Physical Dimension 12.7mm x 12.7mm x 5.588mm
Power Variation 3.25  dB
Supply Voltage-Nom 5.0  V
