(1 PC) UPD70216GF-8 NEC Microprocessor, 16-Bit, 8MHz, CMOS, QFP80
Tax included.

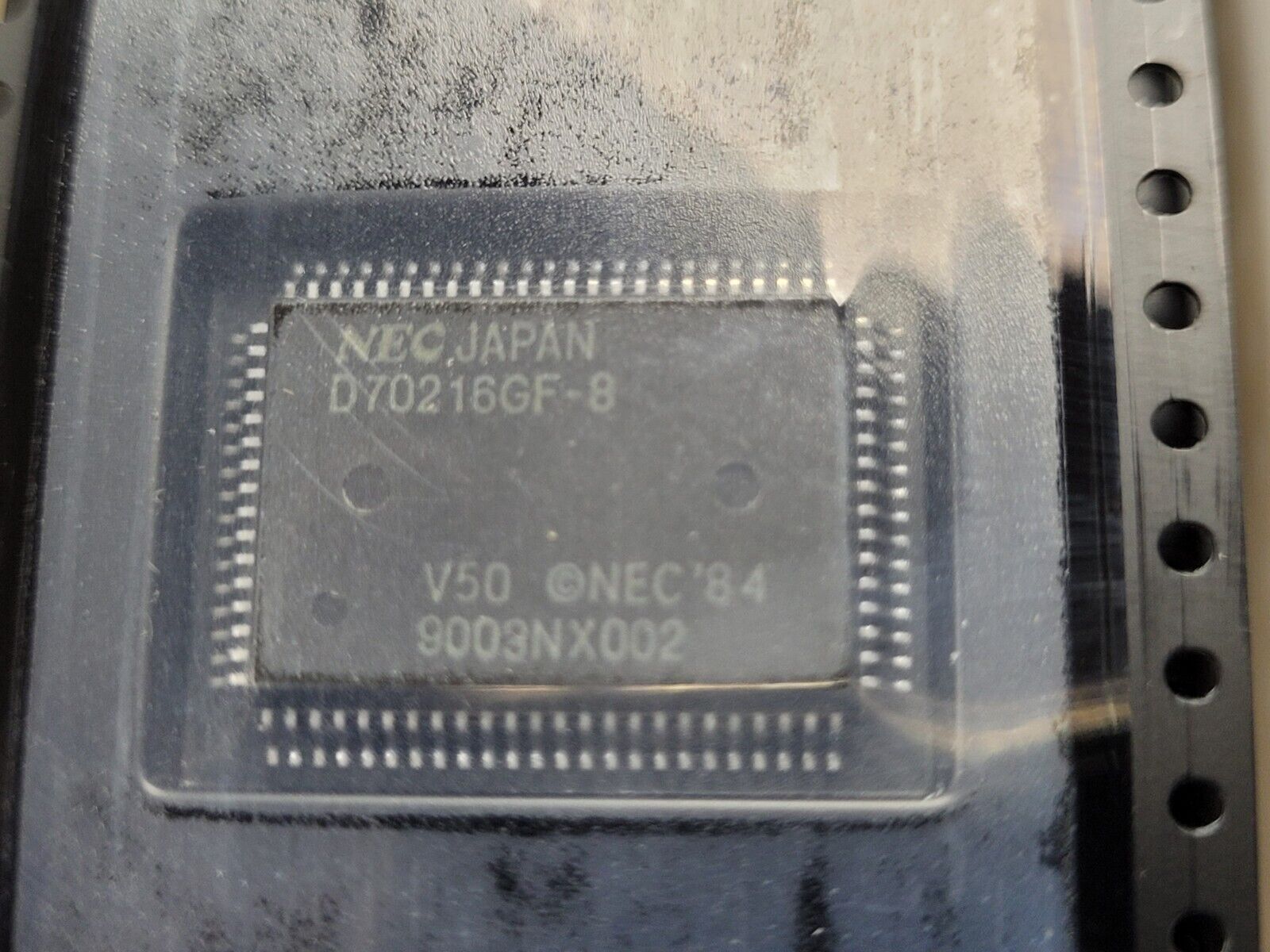

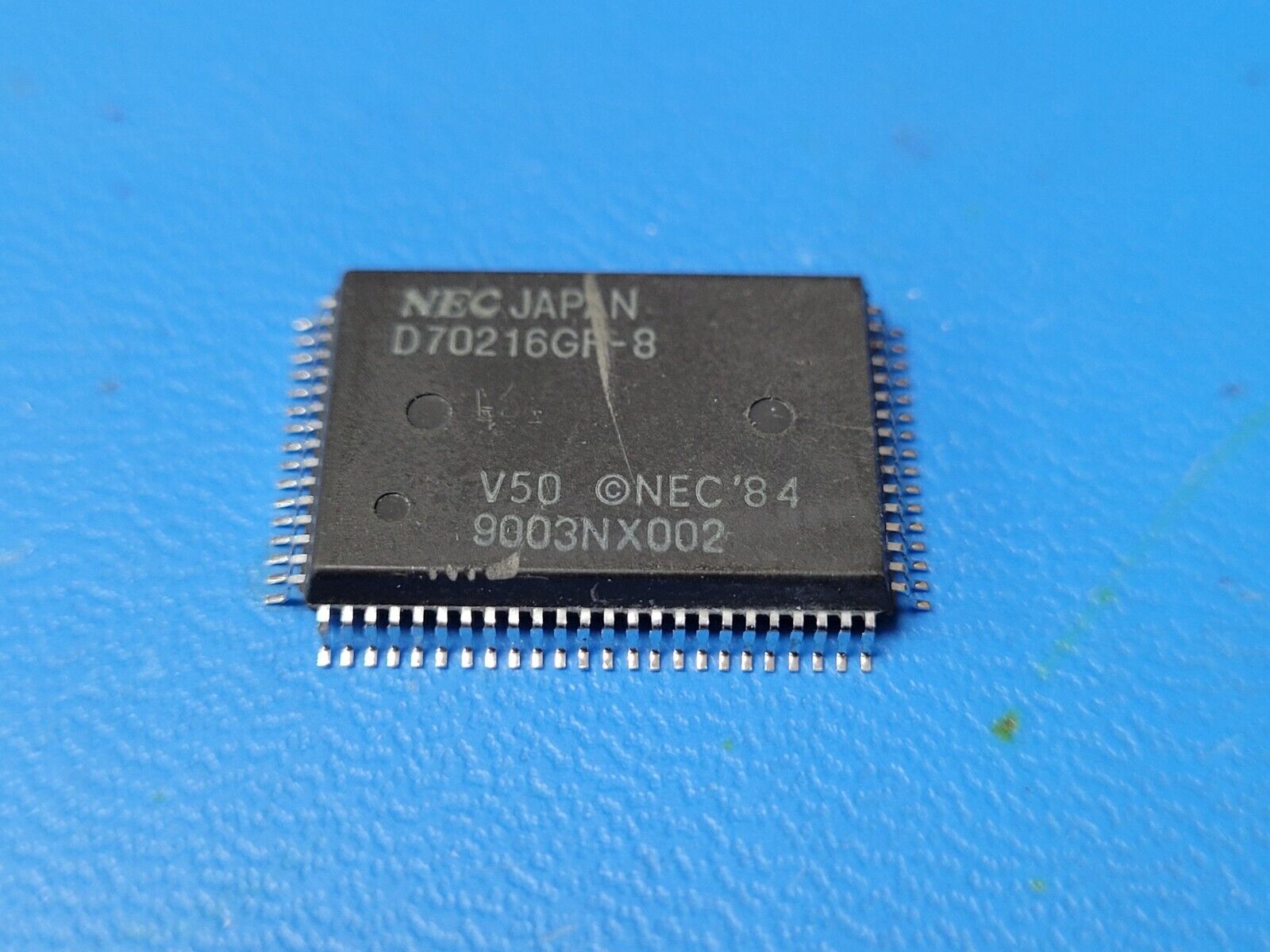

THIS IS FOR (1 PC) OF UPD70216GF-8 BY NEC
Microprocessor, 16-Bit, 8MHz, CMOS, QFP80
Part #: UPD70216GF8
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: NEC Corporation
Description: Microprocessor, 16-Bit, 8MHz, CMOS, PQFP80
Mfr Package Description PLASTIC, QFP-80
Status Discontinued
Address Bus Width 20.0
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 16.0 MHz
External Data Bus Width 16.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PQFP-G80
Low Power Mode YES
Number of DMA Channels 4.0
Number of External Interrupts 8.0
Number of Serial I/Os 1.0
Number of Terminals 80
On Chip Data RAM Width 0
Operating Temperature-Min -10.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Shape RECTANGULAR
Package Style FLATPACK
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 3.0 mm
Speed 8.0 MHz
Supply Current-Max 90.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Length 20.0 mm
Width 14.0 mm
Additional Feature THREE 16-BIT TIMER; DYNAMIC REFRESH CONTROL
