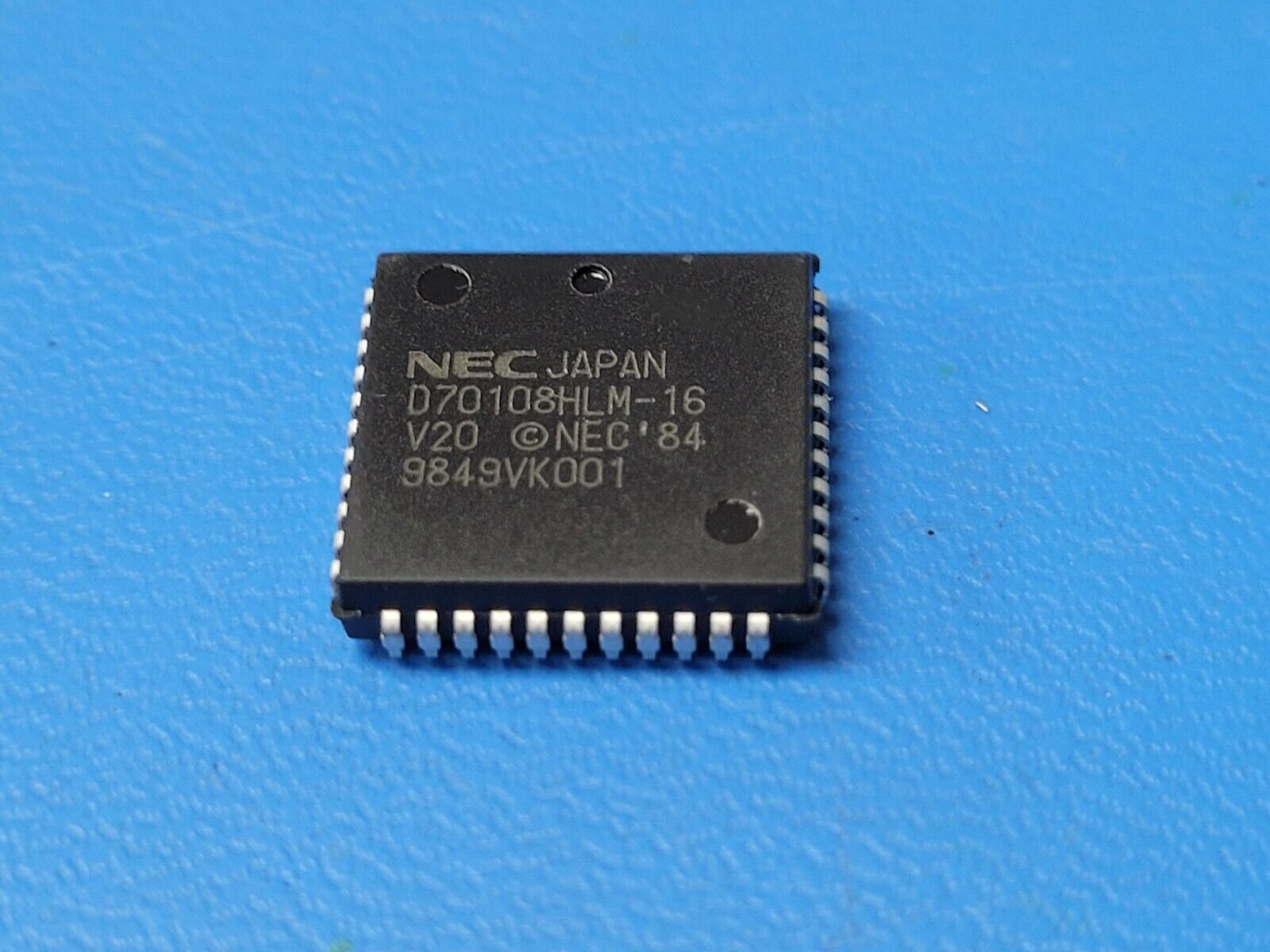

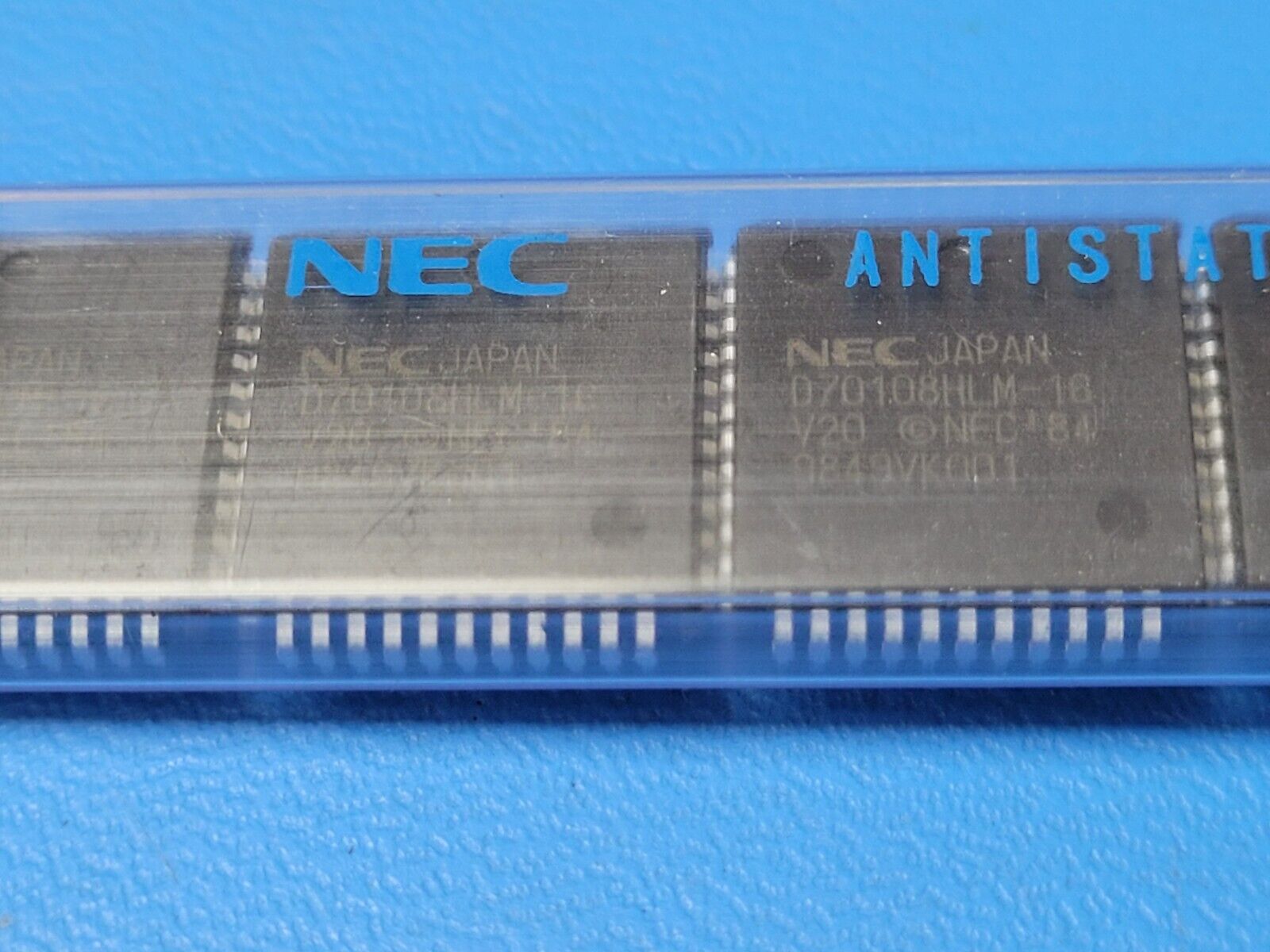

(1 PC) UPD70108HLM-16 NEC Microprocessor, 16-Bit, 8MHz, MOS, PLCC44
Tax included.
THIS IS FOR (1 PC) OF UPD70108HLM-16 BY NEC
Microprocessor, 16-Bit, 8MHz, MOS, PLCC44
Part #: UPD70108HLM-16
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: NEC Corporation
Description: Microprocessor, 16-Bit, 8MHz, MOS, PQCC44
Mfr Package Description 0.650 INCH, PLASTIC, QFJ-44
Status Discontinued
Address Bus Width 16.0
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 8.0 MHz
External Data Bus Width 8.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-J44
Low Power Mode NO
Number of Terminals 44
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Shape SQUARE
Package Style CHIP CARRIER
Qualification Status Not Qualified
Seated Height-Max 4.46 mm
Speed 8.0 MHz
Supply Voltage-Nom 3.0 V
Supply Voltage-Min 2.7 V
Supply Voltage-Max 3.3 V
Surface Mount YES
Technology MOS
Temperature Grade INDUSTRIAL
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 16.58 mm
Width 16.59 mm
Additional Feature ALSO OPERATES AT 5V SUPPLY
