(1 PC) UPD23C2001-069 NEC MASK ROM, 256KX8, 250ns, CMOS, PDIP32
(1 PC) UPD23C2001-069 NEC MASK ROM, 256KX8, 250ns, CMOS, PDIP32
(1 PC) UPD23C2001-069 NEC MASK ROM, 256KX8, 250ns, CMOS, PDIP32

(1 PC) UPD23C2001-069 NEC MASK ROM, 256KX8, 250ns, CMOS, PDIP32

Tax included.
Only 100 left!

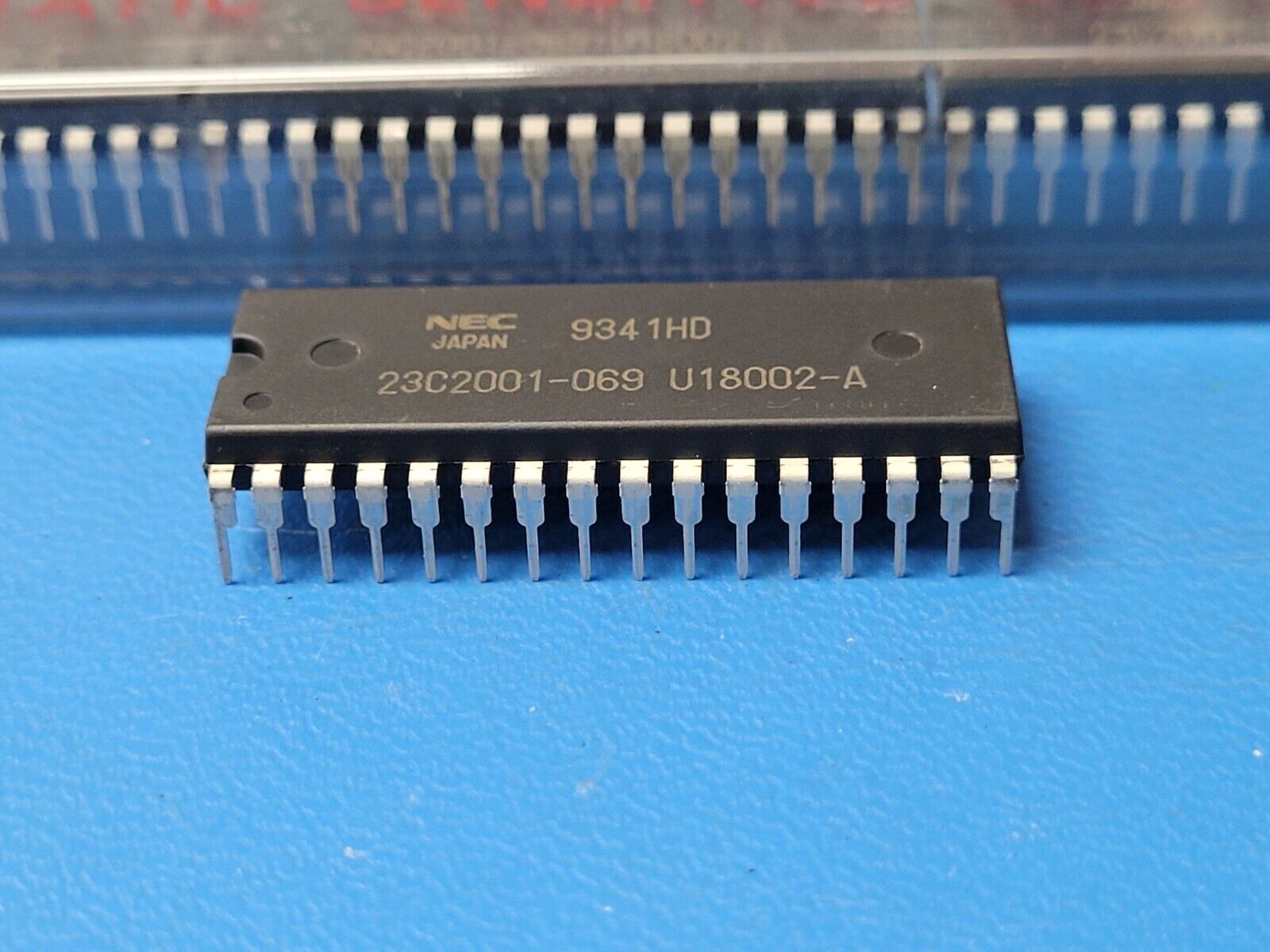

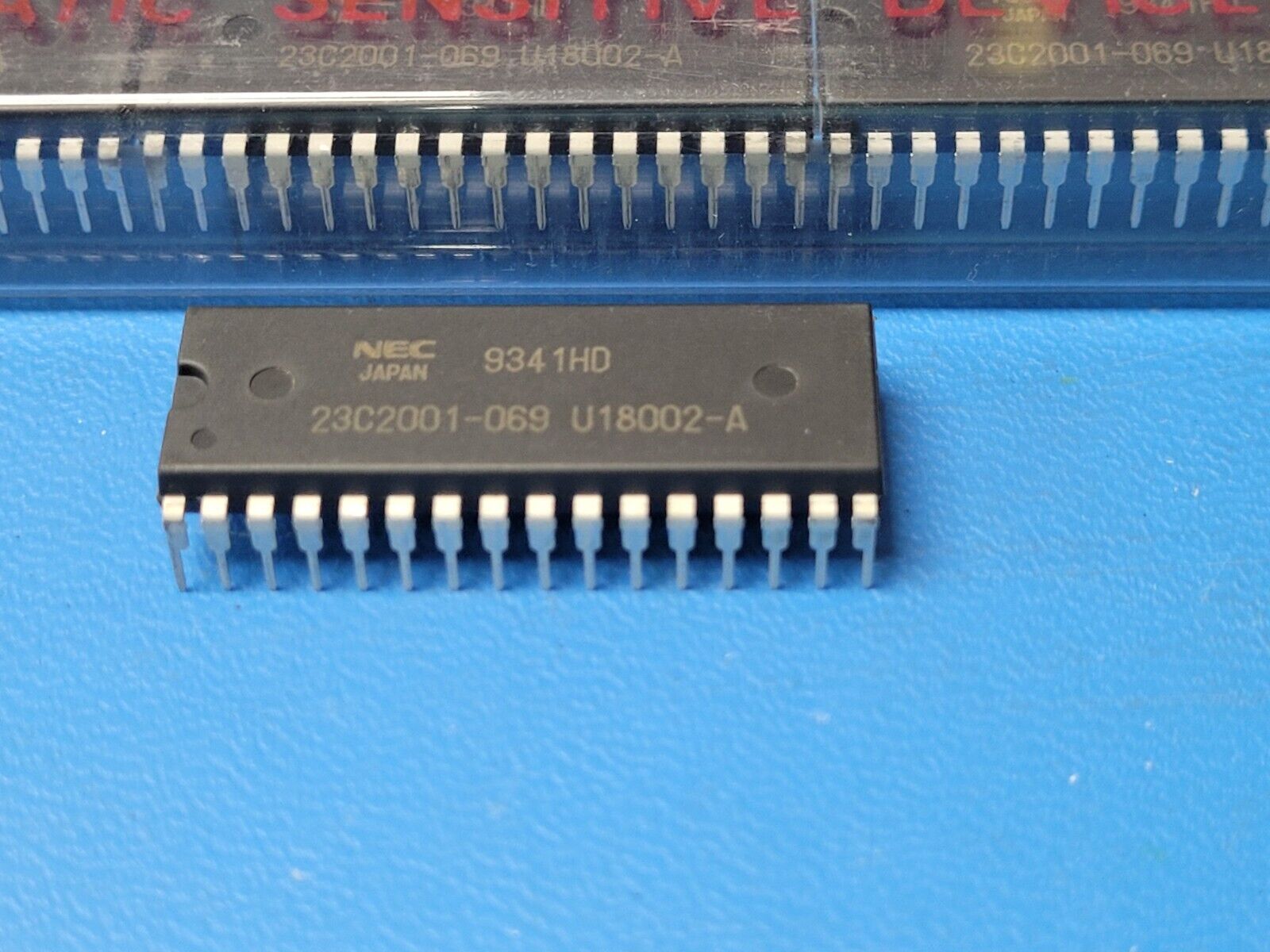

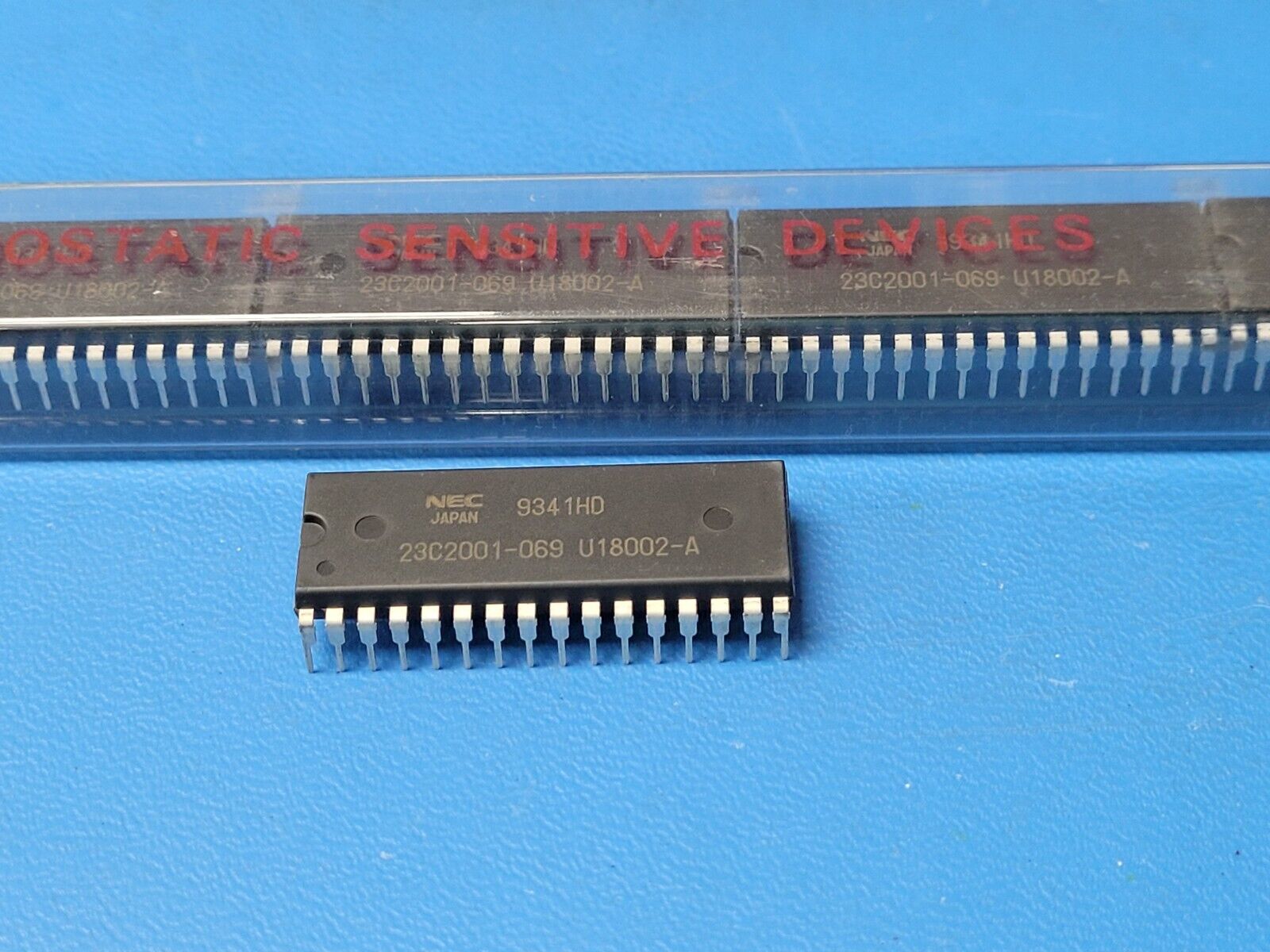

THIS IS FOR (1 PC) OF UPD23C2001C-069 BY NEC
ROM, 256KX8, 250ns, CMOS, PDIP32

Part #: UPD23C2001C
Part Category: Memory ICs
Manufacturer: NEC Corporation
Description: MASK ROM, 256KX8, 250ns, CMOS, PDIP32

Mfr Package Description PLASTIC, DIP-32
Status Discontinued
Access Time-Max 250.0  ns
JESD-30 Code R-PDIP-T32
Memory Density 2097152.0  bit
Memory IC Type MASK ROM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 262144.0  words
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -10.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 256KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 5.08  mm
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
Width 15.24  mm
