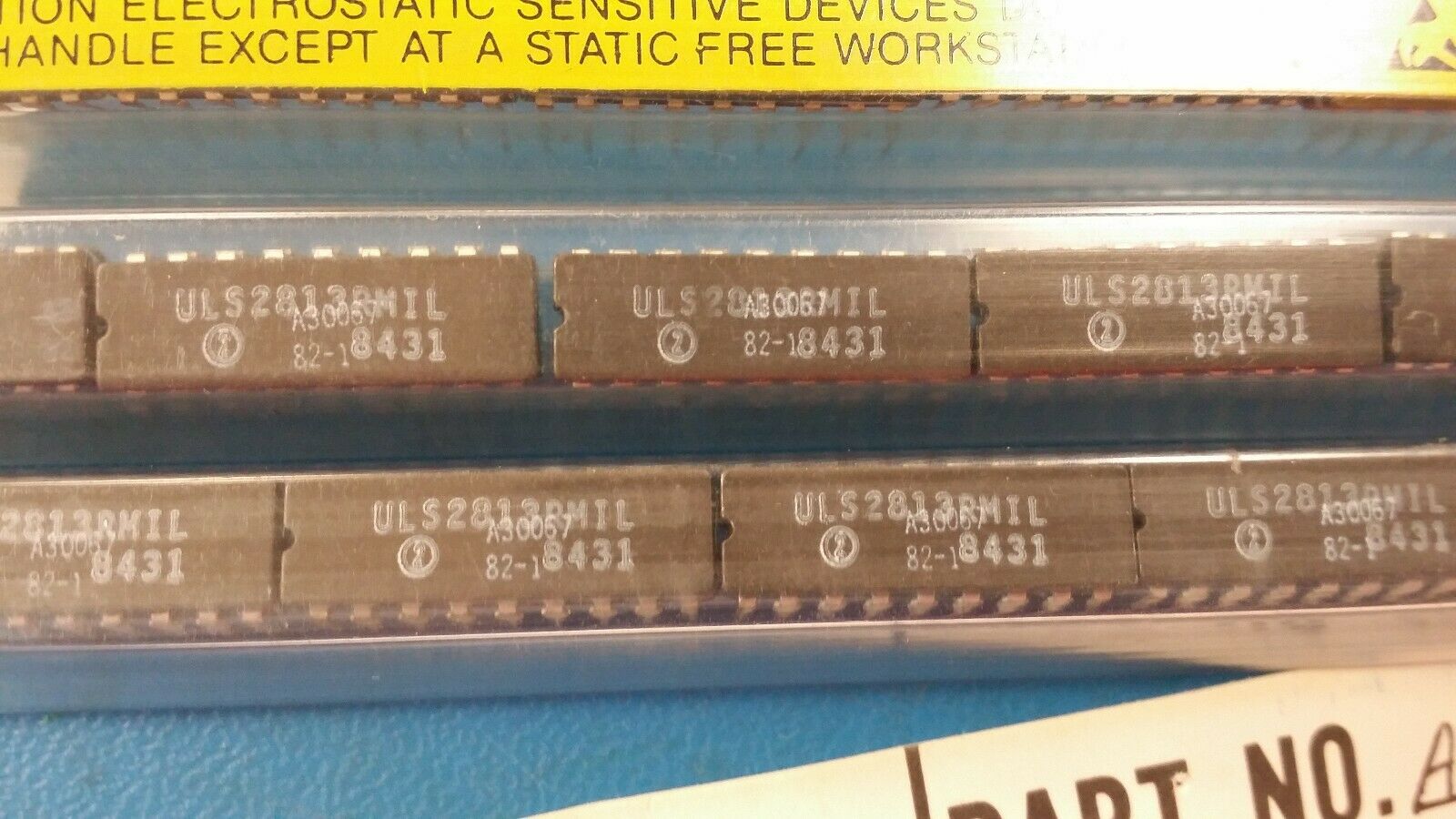

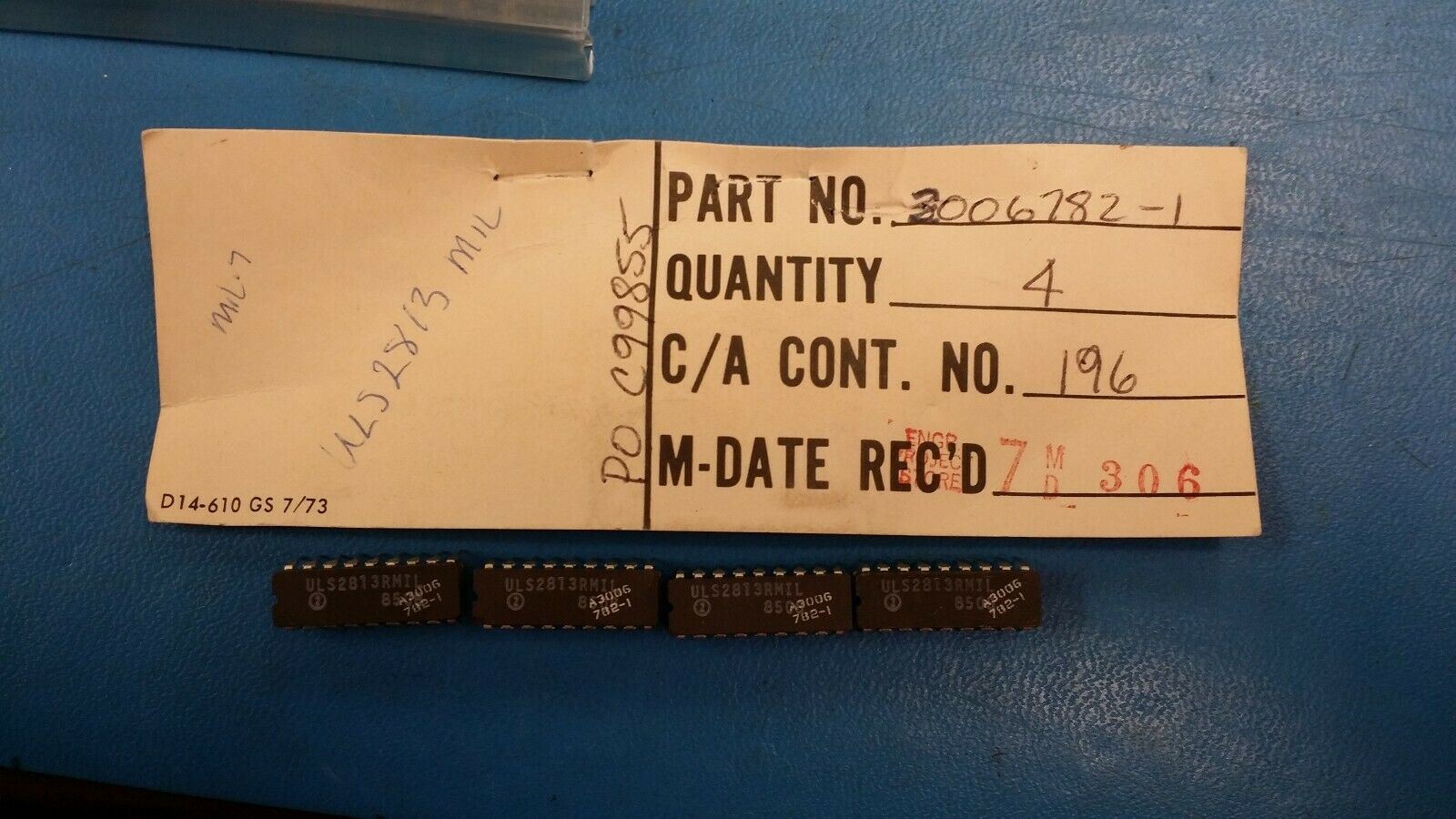

THIS LISTING IS FOR (1 PC) OF ULS-2813R BY SPRAGUE-ALLEGRO
Power Bipolar Transistor, 50V, 8-Element, NPN, Silicon, CDIP18

Part #: ULS-2813R
Part Category: Transistors
Manufacturer: Allegro MicroSystems Europe Ltd.
Description: Power Bipolar Transistor, 50V V(BR)CEO, 8-Element, NPN, Silicon, Ceramic, Glass-Sealed, 18 Pin

Mfr Package Description HERMETIC SEALED, CERAMIC GLASS, CERDIP-18
Status Discontinued
Collector-emitter Voltage-Max 50.0  V
Configuration 8 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
DC Current Gain-Min (hFE) 900.0
JESD-30 Code R-GDIP-T18
JESD-609 Code e0
Number of Elements 8.0
Number of Terminals 18
Package Body Material CERAMIC, GLASS-SEALED
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Additional Feature HIGH RELIABILITY
