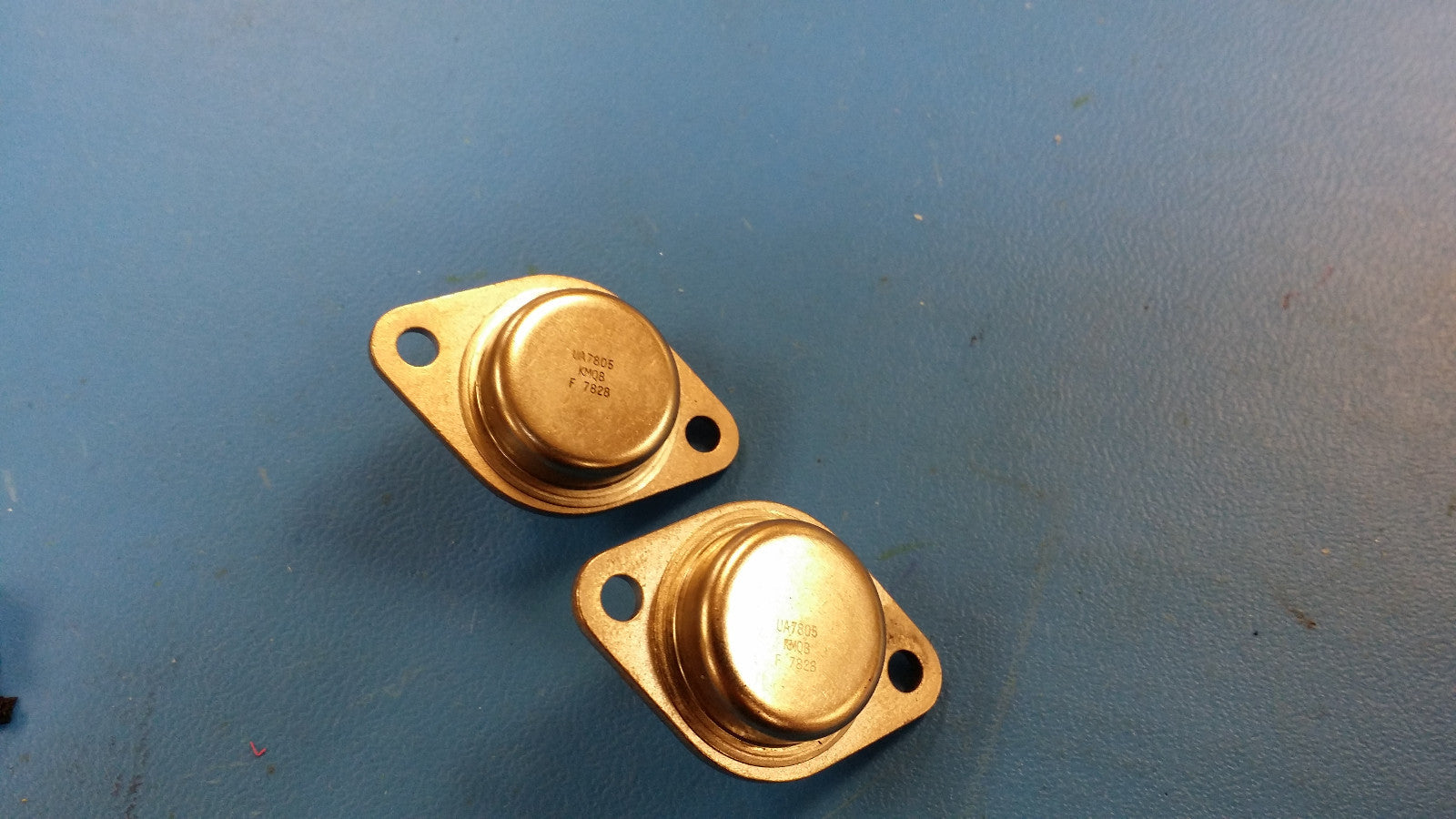

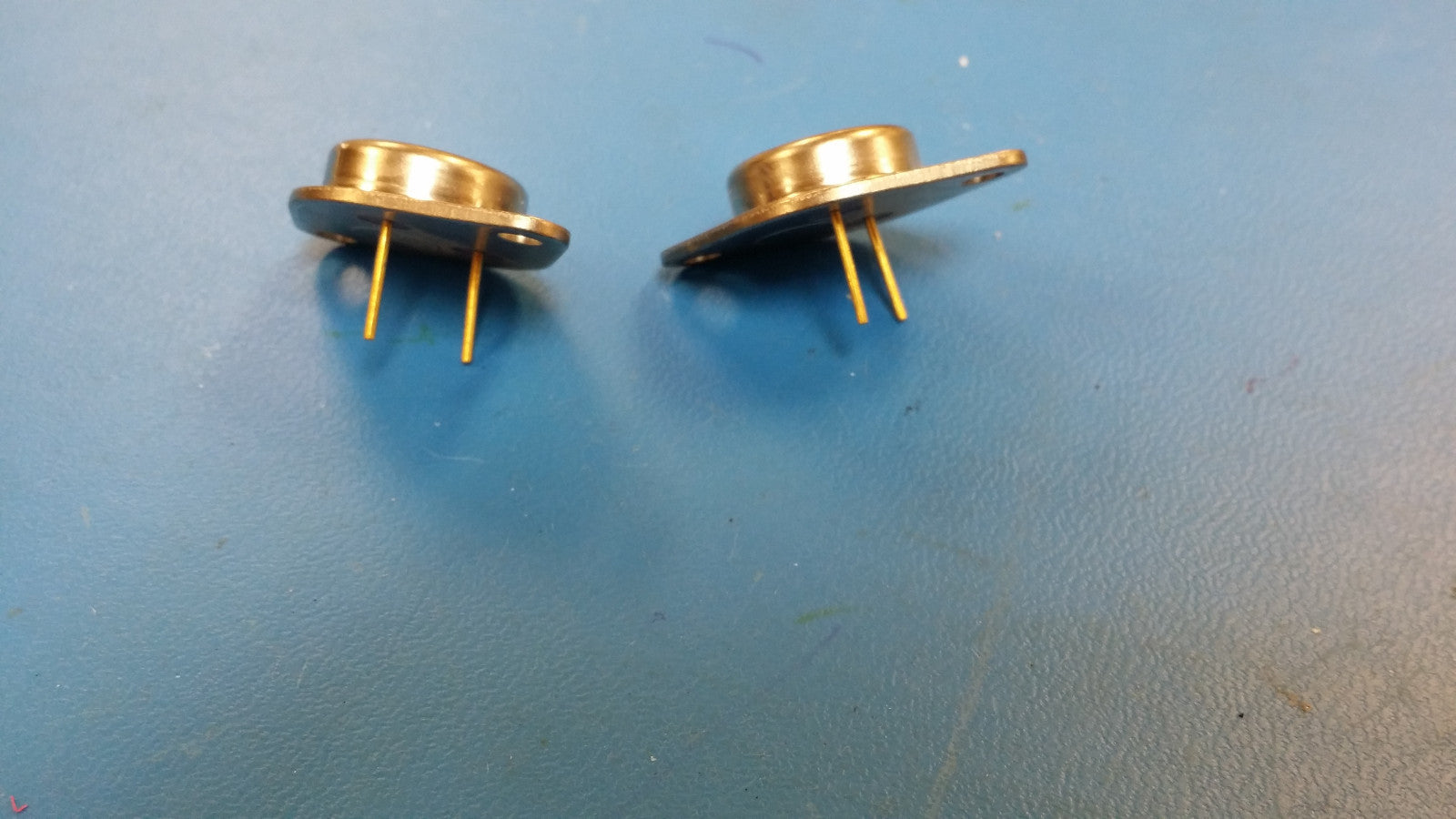

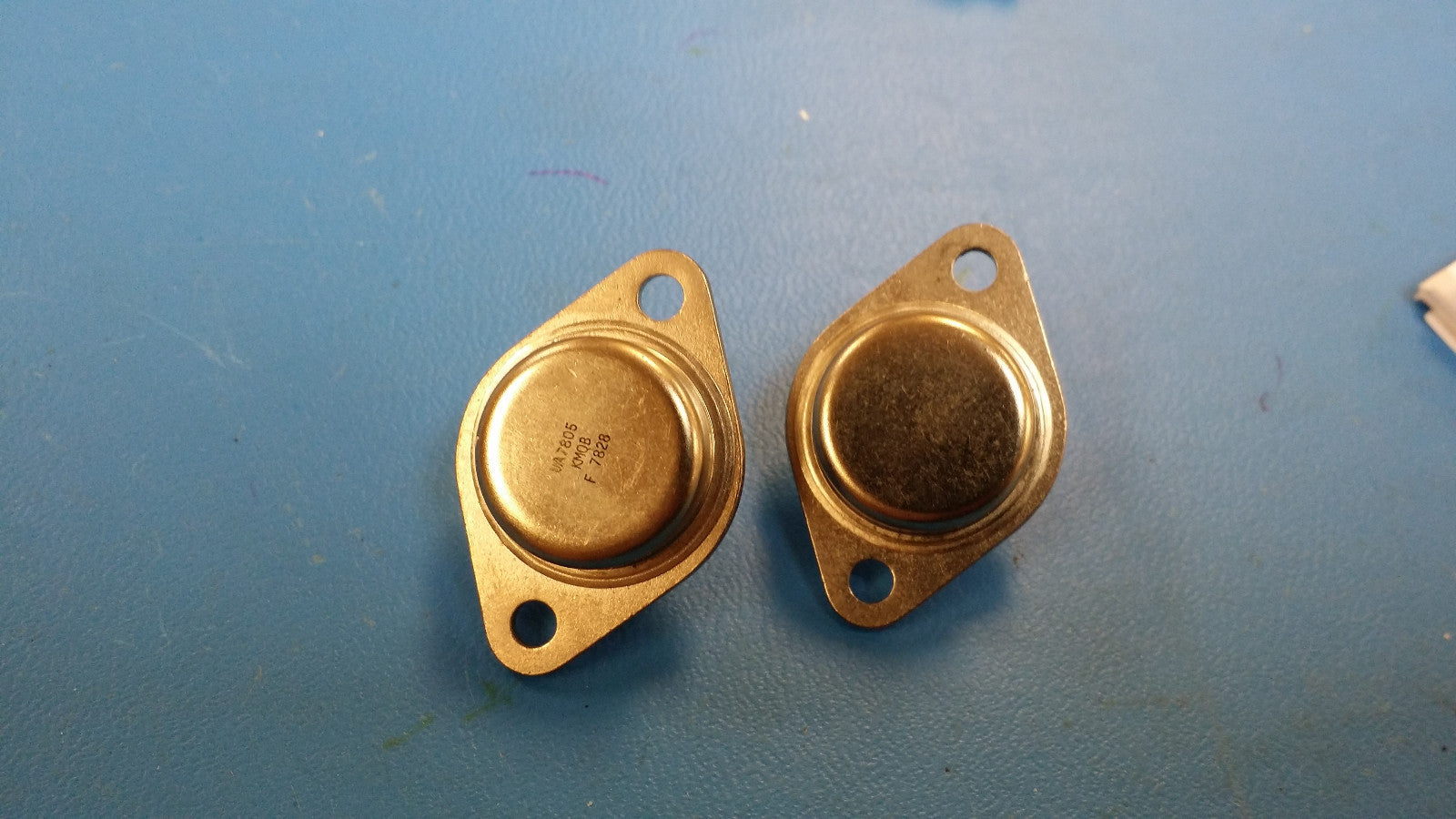

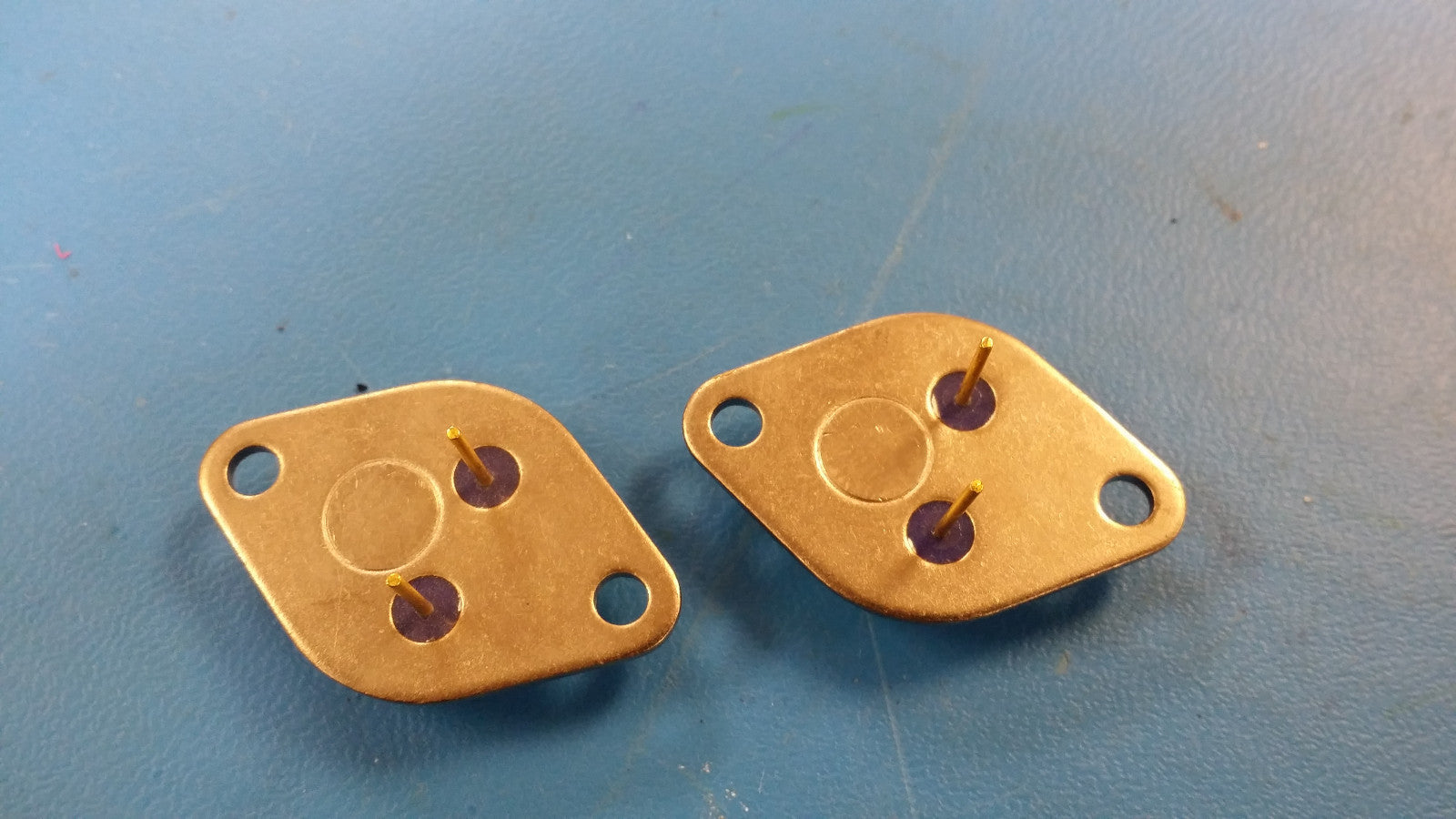

(1 PC) UA7805KMQB FSC Fixed Positive Standard Regulator, 5VBIPolar TO-3
Tax included.
THIS LISTING IS FOR (1 PCS) OF UA7805KMQB BY FSC
Fixed Positive Standard Regulator, 5VBIPolar TO-3
Part #: UA7805KMQB
Part Category: Regulators
Manufacturer: Fairchild Semiconductor
Description: Fixed Positive Standard Regulator, 5VBIPolar
Mfr Package Description TO-3, CAN-2
Status Discontinued
Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Adjustability FIXED
Dropout Voltage1-Nom 2.0 V
Input Voltage Absolute-Max 35.0 V
Input Voltage-Min 7.0 V
Input Voltage-Max 25.0 V
JESD-30 Code O-XBFM-P2
JESD-609 Code e0
Line Regulation-Max 0.05 V
Load Regulation-Max 0.1 V
Number of Functions 1
Number of Outputs 1.0
Number of Terminals 2
Operating Temperature, TJ-Min -55.0 Cel
Operating Temperature, TJ-Max 150.0 Cel
Output Current1-Max 1.0 A
Output Voltage1-Nom 5.0 V
Output Voltage1-Min 4.65 V
Output Voltage1-Max 5.35 V
Package Body Material UNSPECIFIED
Package Equivalence Code TO-204/-3
Package Shape ROUND
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Screening Level 38535Q/M;38534H;883B
Sub Category Other Regulators
Surface Mount NO
Technology BIPOLAR
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form PIN/PEG
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Voltage Tolerance-Max 7.0 %
