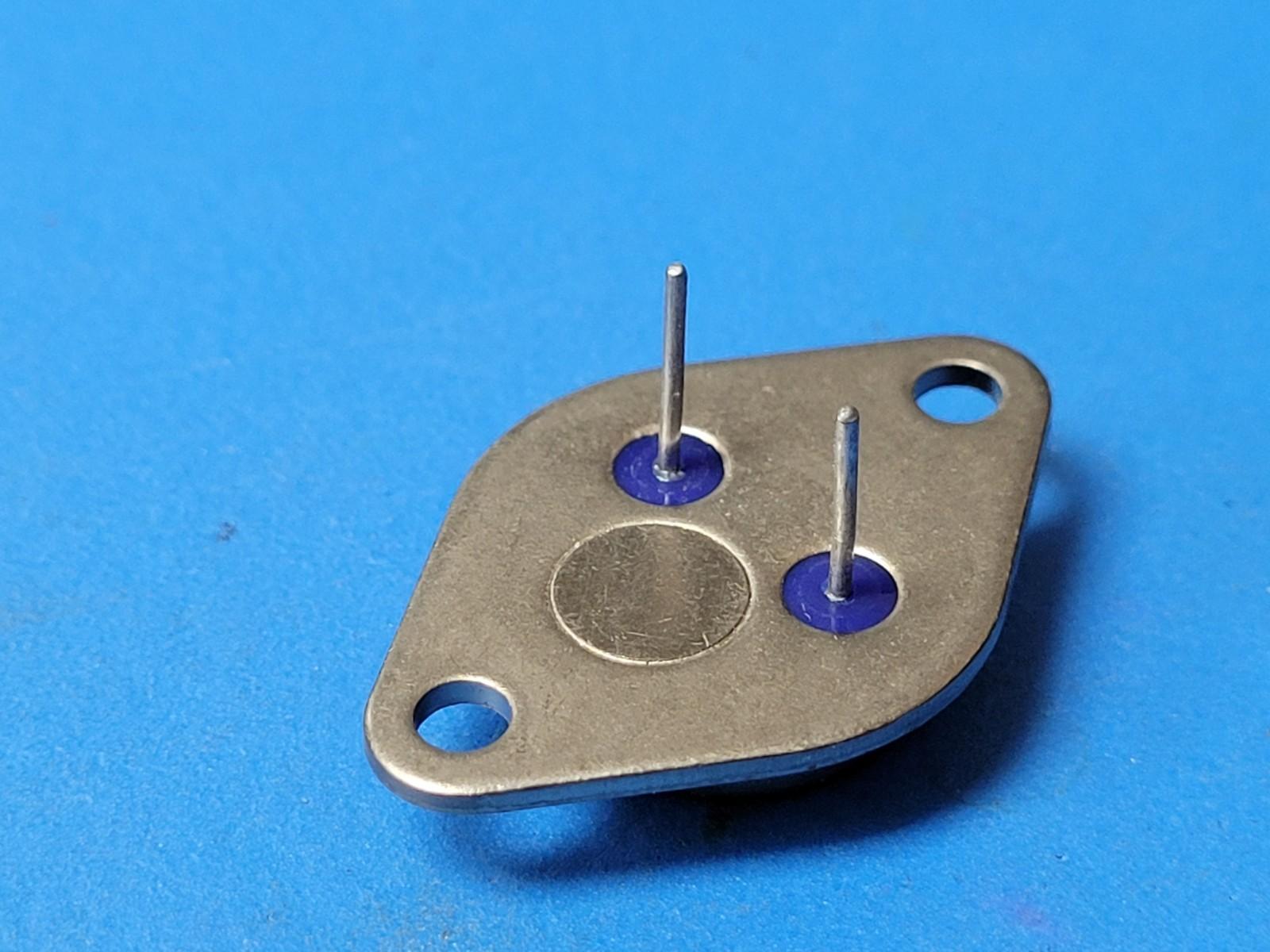

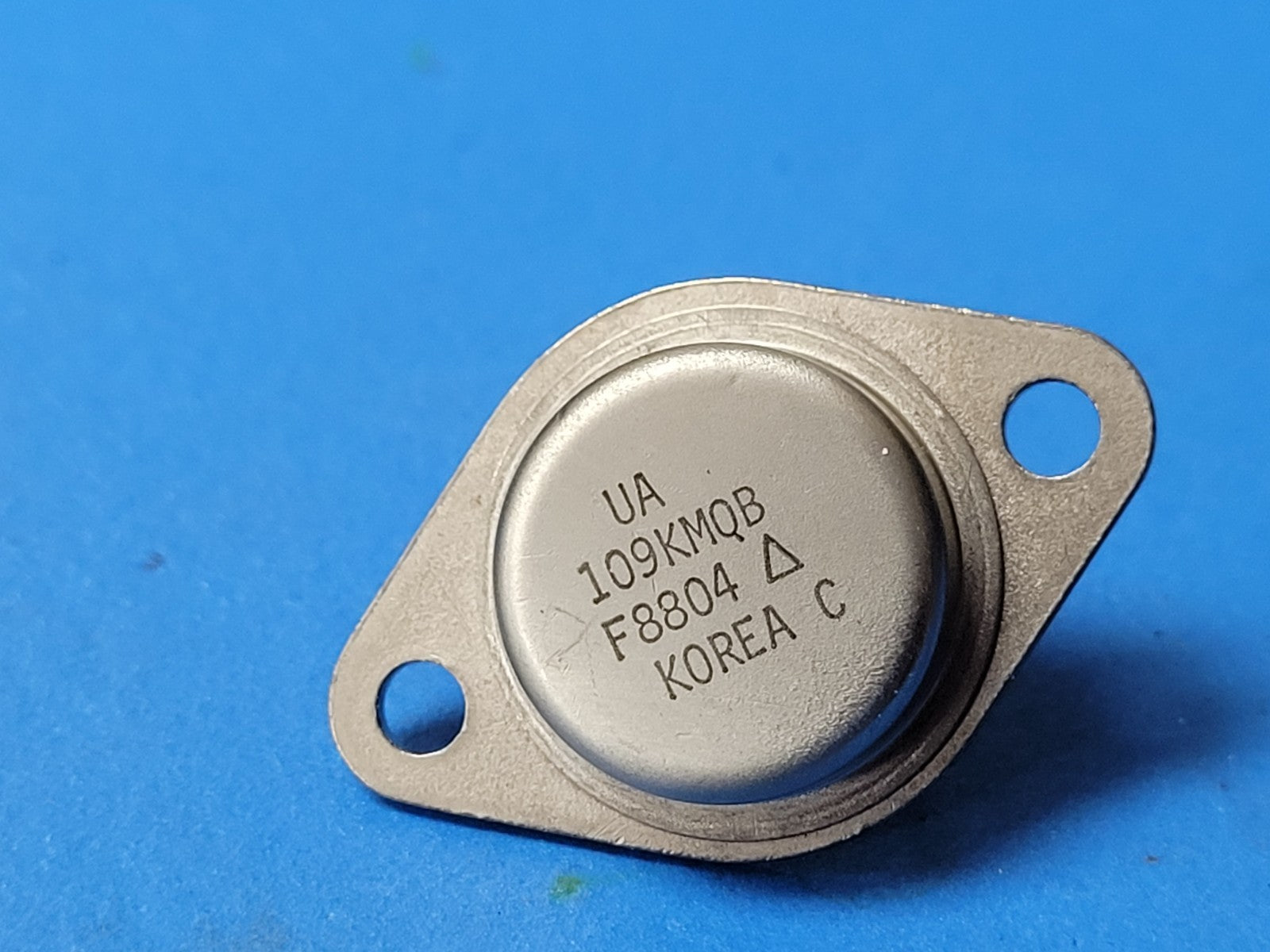

(1 PC) UA109KMQB FSC Fixed Positive Standard Regulator, 5V, BIPolar TO-204

$12.95
Unit price per

Tax included.

THIS IS FOR (1 PC) OF UA109KMQB BY FSC

Fixed Positive Standard Regulator, 5V, BIPolar TO-204

Part #: UA109KMQB

Obsolete

Part Category:Fixed Positive Single Output Standard Regulators

Manufacturer:FAIRCHILD SEMICONDUCTOR CORP

Description:

Fixed Positive Standard Regulator, 5V, BIPolar

Status Discontinued

Adjustability FIXED

Input Voltage-Max (V) 25.0000

Input Voltage-Min (V) 7.0000

JESD-30 Code O-XBFM-P2

J-STD-609 Code e0

Number of Functions 1

Number of Outputs 1

Number of Terminals 2

Operating Temperature-Max (Cel) 150

Operating Temperature-Min (Cel) -55

Output Current1-Max (A) 1.0000

Output Voltage1-Max (V) 5.4000

Output Voltage1-Min (V) 4.6000

Output Voltage1-Nom (V) 5.0000

Package Body Material UNSPECIFIED

Package Code BFM

Package Equivalence Code TO-204/-3

Package Shape ROUND

Package Style FLANGE MOUNT

DLA Qualification Not Qualified

Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

Screening Level / Reference Standard 38535Q/M;38534H;883B

Surface Mount NO

Technology BIPOLAR

Terminal Finish TIN LEAD

Terminal Form PIN/PEG

Terminal Position BOTTOM

Voltage Tolerance-Max (%) 8.000000
