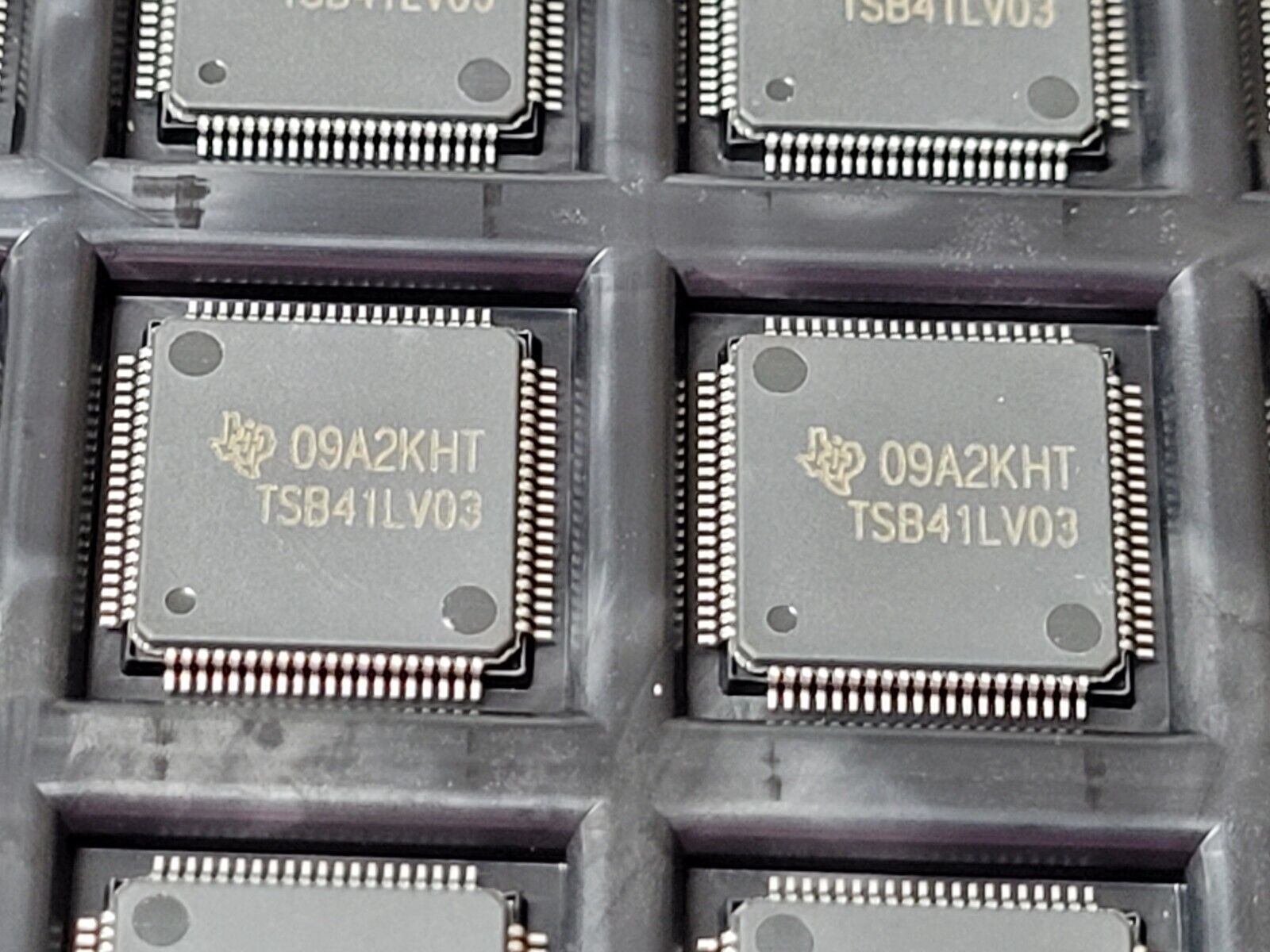

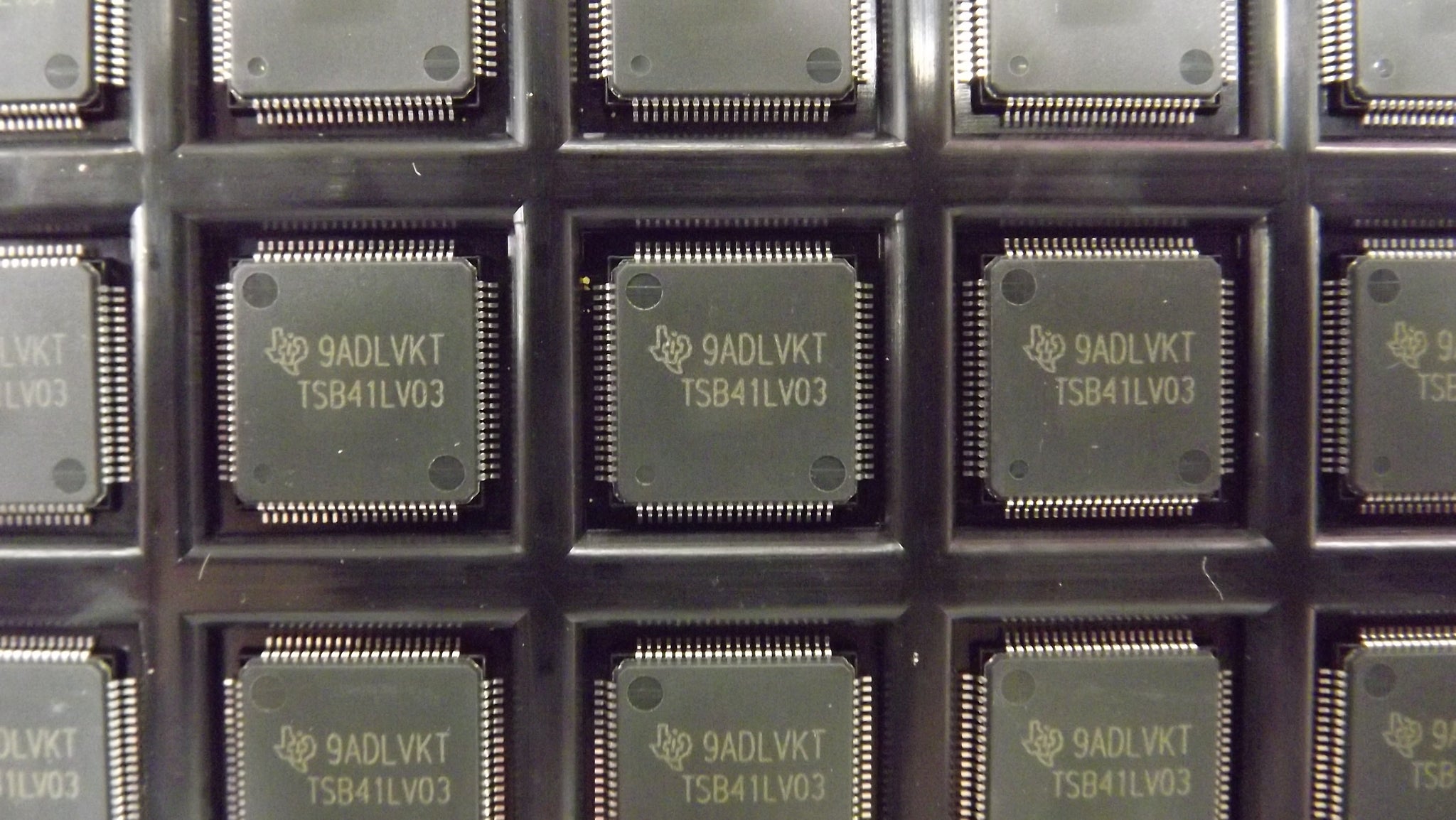

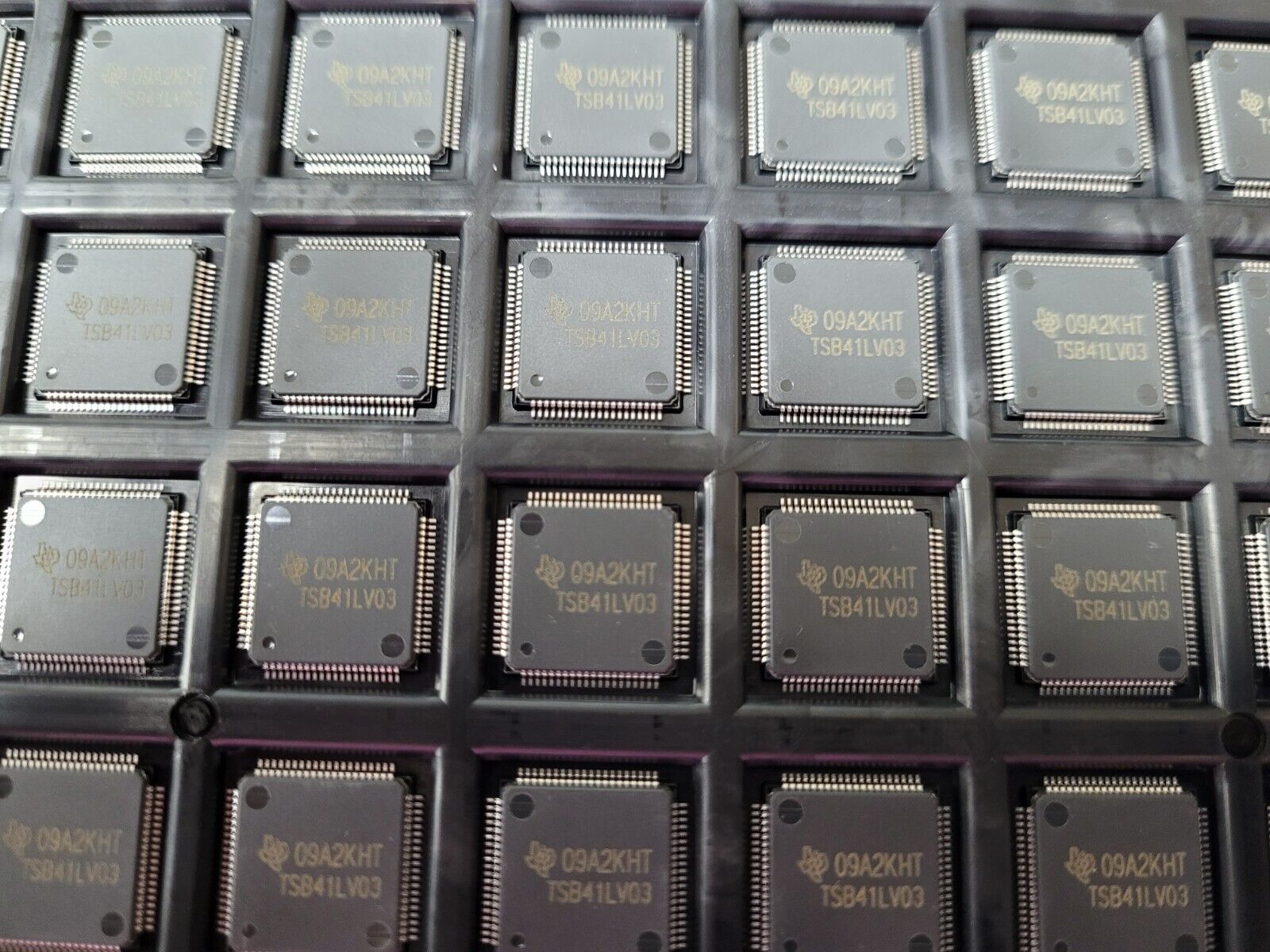

(1 PC) TSB41LV03PFP TI Line Transceiver, 1 Func, 6 Driver, 6 Rcvr, CMOS, PQFP80
Tax included.

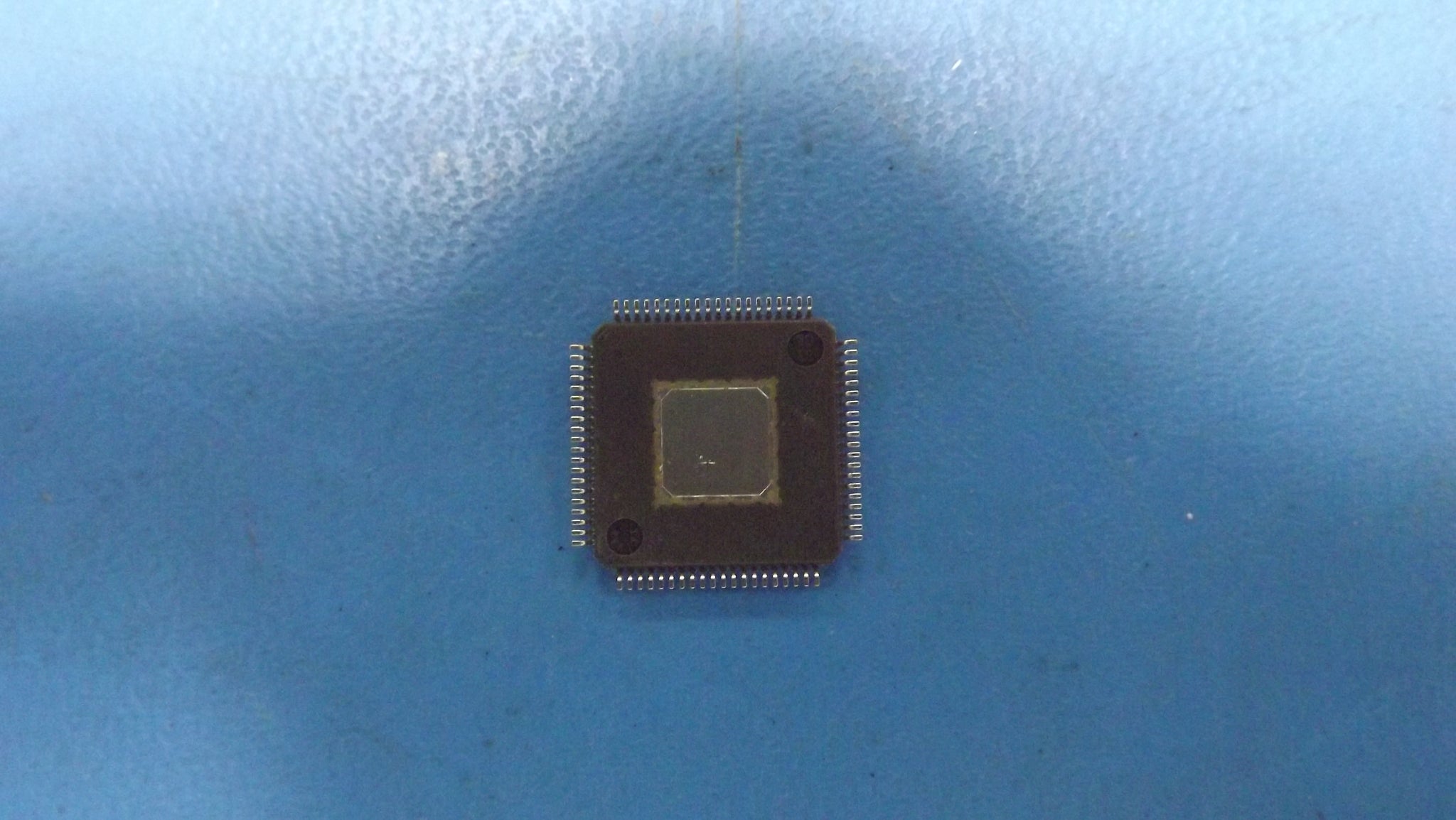

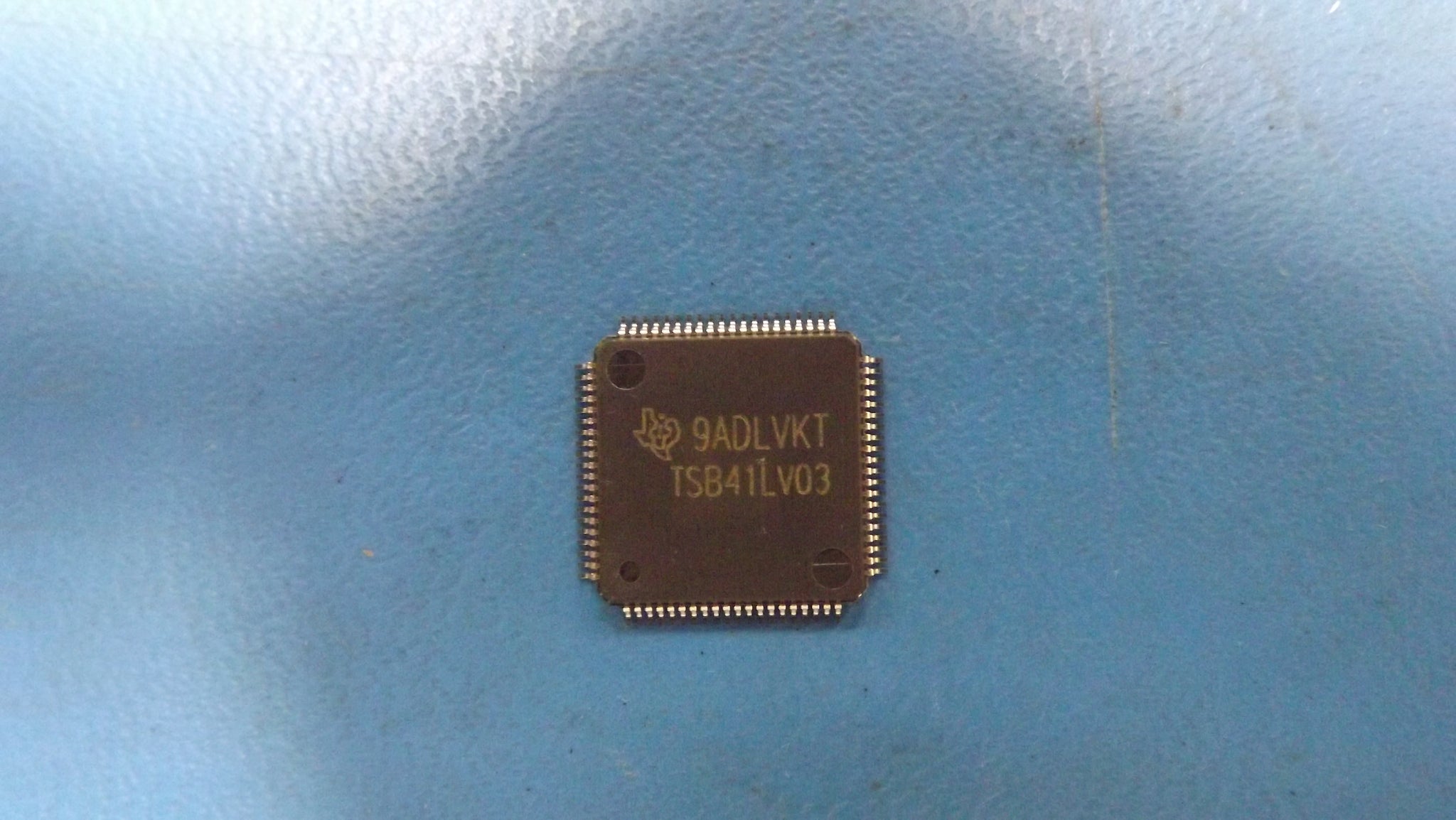

THIS IS FOR (1 PC) OF TSB41LV03PFP BY TI
Line Transceiver, 1 Func, 6 Driver, 6 Rcvr, CMOS, PQFP80
Part #: TSB41LV03PFP
Part Category: Interface ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: Line Transceiver, 1 Func, 6 Driver, 6 Rcvr, CMOS, PQFP80
Mfr Package Description POWER, PLASTIC, QFP-80
Status Discontinued
Interface IC Type LINE TRANSCEIVER
Differential Output YES
Driver Number of Bits 6.0
Input Characteristics DIFFERENTIAL
Interface Standard IEEE 1394
JESD-30 Code S-PQFP-G80
Number of Functions 1
Number of Terminals 80
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Out Swing-Min 0.172 V
Output Low Current-Max 0.012 Amp
Package Body Material PLASTIC/EPOXY
Package Code HTFQFP
Package Equivalence Code TQFP80,.55SQ
Package Shape SQUARE
Package Style FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Receive Delay-Max 0.0 ns
Receiver Number of Bits 6.0
Seated Height-Max 1.2 mm
Sub Category Line Driver or Receivers
Supply Current-Max 330.0 mA
Supply Voltage-Nom 3.0 V
Supply Voltage-Min 2.7 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 12.0 mm
Width 12.0 mm
