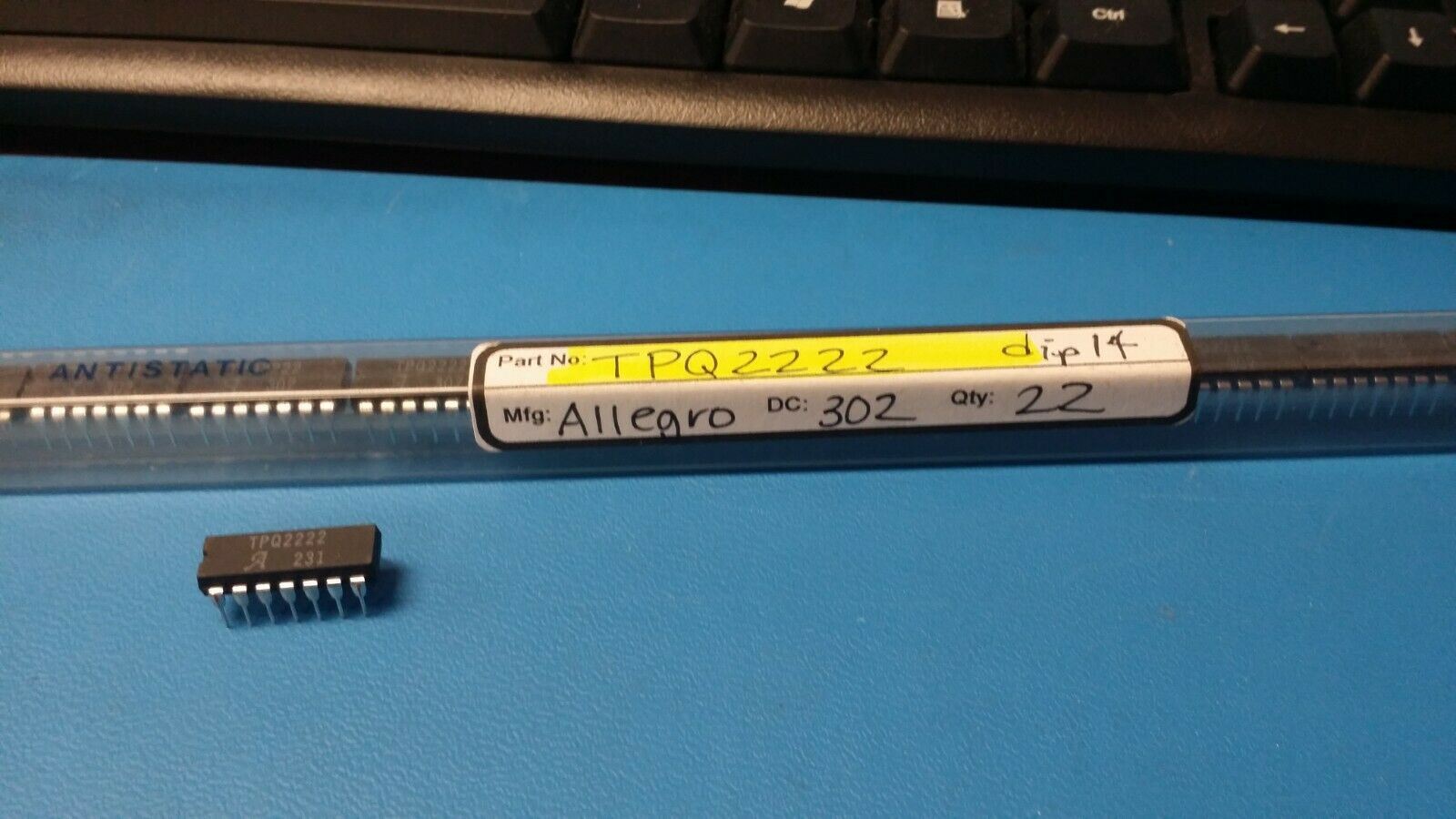

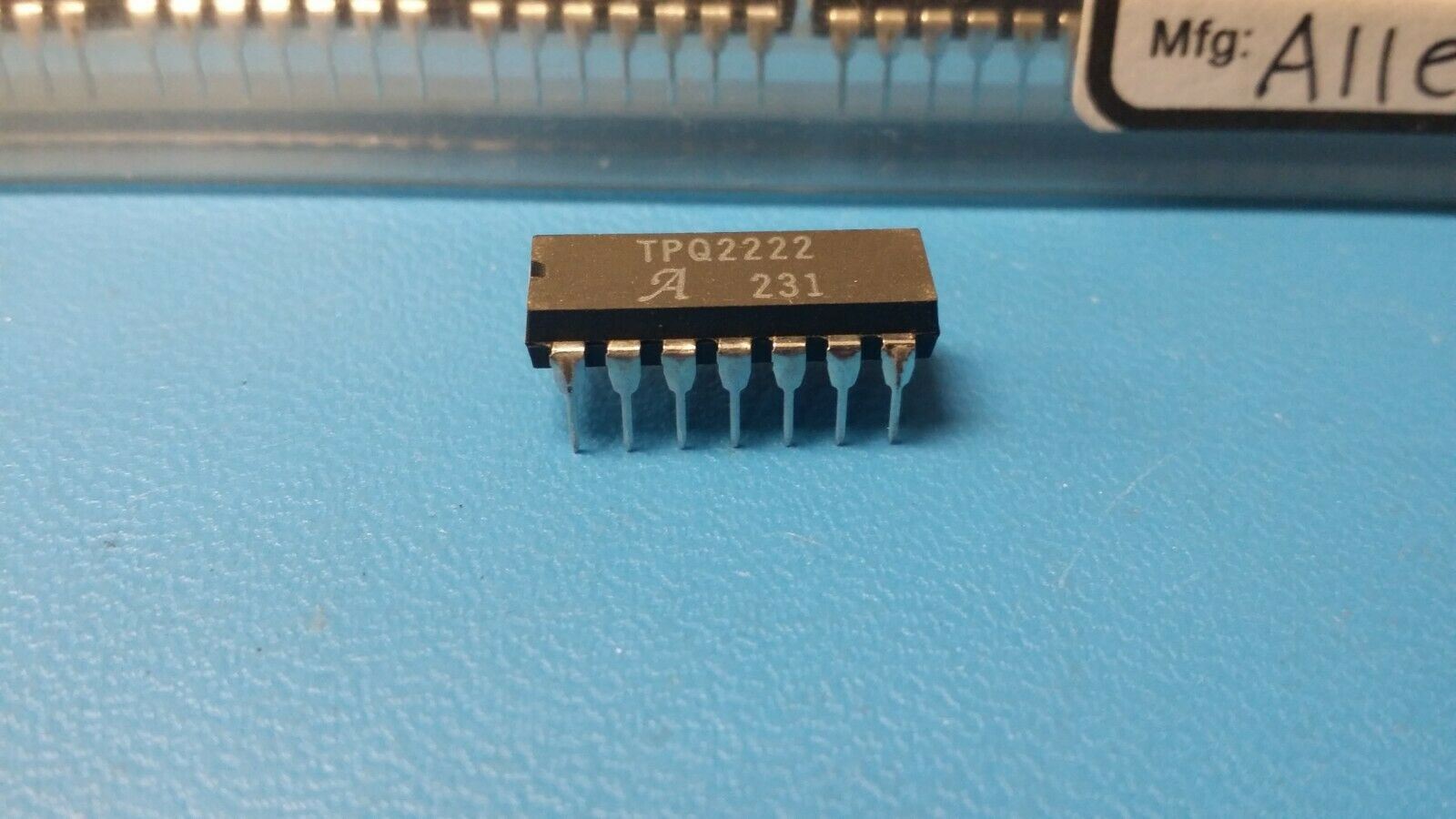

(1 PC) TPQ2222 TI Power Bipolar Transistor, 40V, 4-Element, NPN, 14 Pin
(1 PC) TPQ2222 TI Power Bipolar Transistor, 40V, 4-Element, NPN, 14 Pin
(1 PC) TPQ2222 TI Power Bipolar Transistor, 40V, 4-Element, NPN, 14 Pin

(1 PC) TPQ2222 TI Power Bipolar Transistor, 40V, 4-Element, NPN, 14 Pin

Tax included.
Only 18 left!
THIS LISTING IS FOR (1 PC) OF TPQ2222 BY TI
Power Bipolar Transistor, 40V, 4-Element, NPN, 14 Pin

Part #: TPQ2222
Part Category: Transistors
Manufacturer: Allegro MicroSystems Europe Ltd.
Description: Power Bipolar Transistor, 40V V(BR)CEO, 4-Element, NPN, Silicon, Plastic/Epoxy, 14 Pin

Status Discontinued
Collector-base Capacitance-Max 8.0  pF
Collector-emitter Voltage-Max 40.0  V
Configuration SEPARATE, 4 ELEMENTS
DC Current Gain-Min (hFE) 30.0
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Number of Elements 4.0
Number of Terminals 14
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 200.0  MHz
VCEsat-Max 1.6  V
