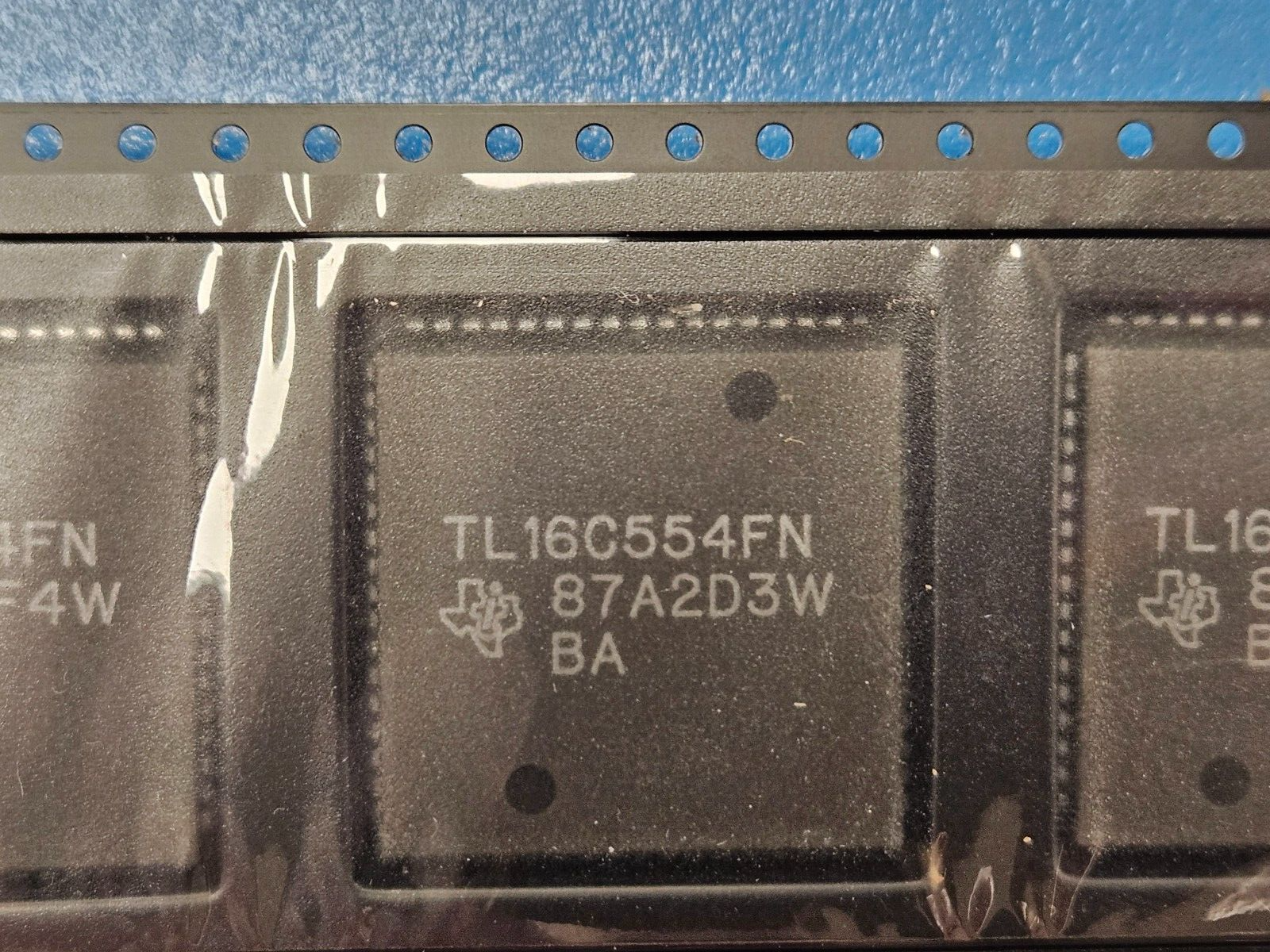

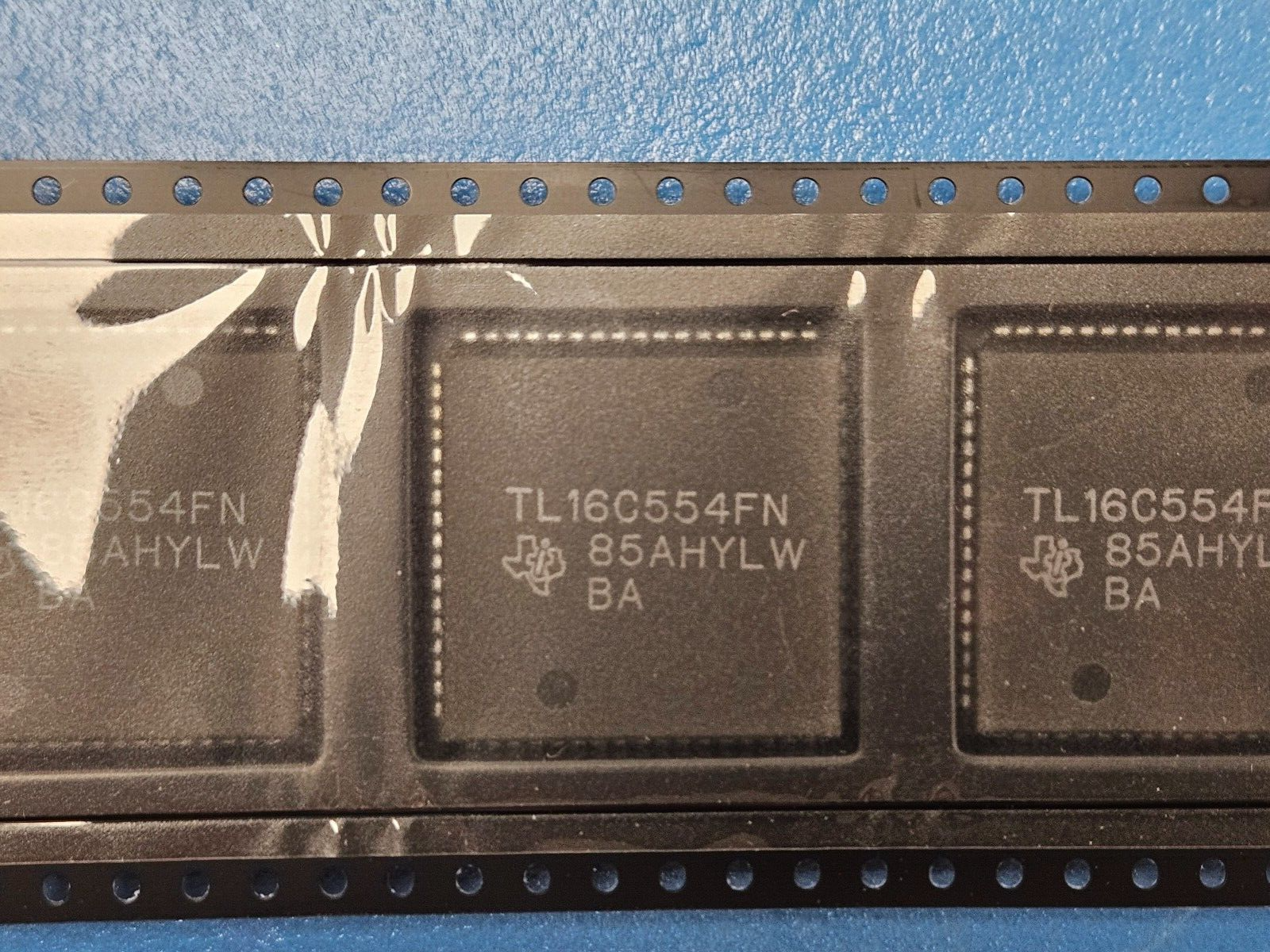

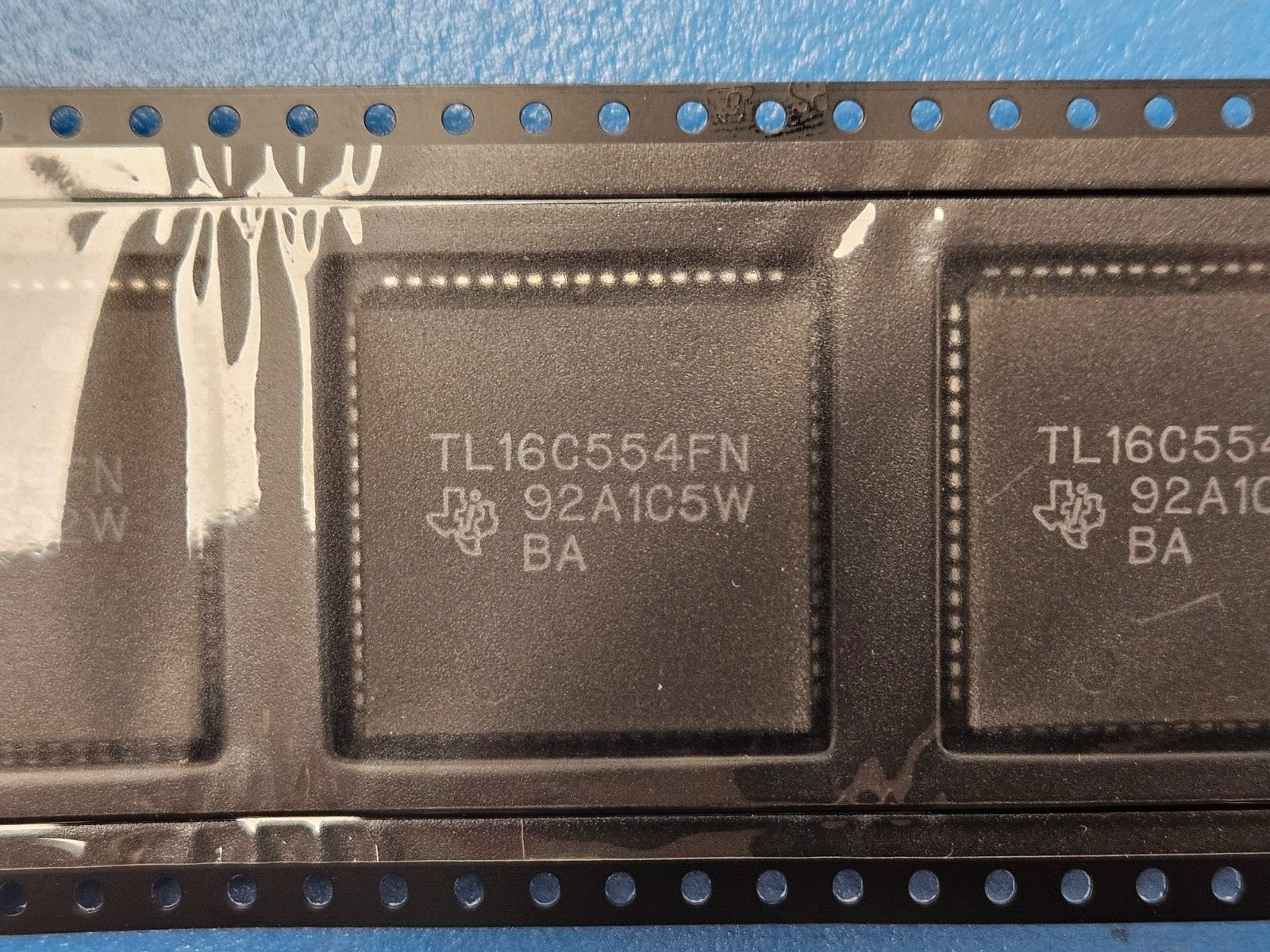

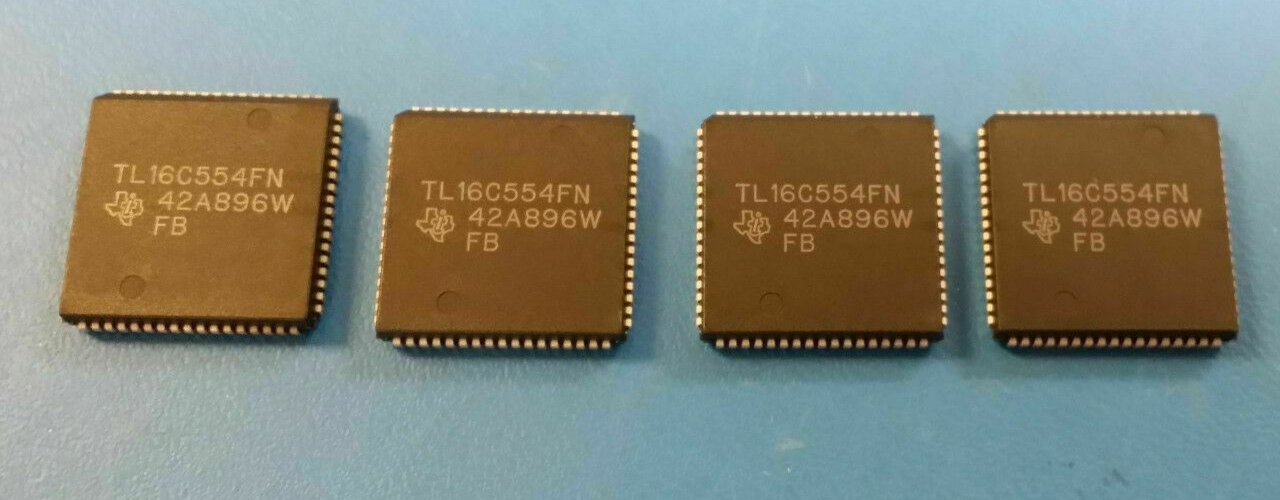

(1 PC) TL16C554FN TEXAS INSTRUMENTS UART 4-CH 16Byte FIFO 5V 68-Pin PLCC
Tax included.
THIS LISTING IS FOR (1 PC) OF TL16C554FN BY TEXAS INSTRUMENTS
UART 4-CH 16Byte FIFO 5V 68-Pin PLCC
UART 4-CH 16Byte FIFO 5V 68-Pin PLCC
Status Active
Address Bus Width 3.0
Boundary Scan NO
Clock Frequency-Max 16.0 MHz
Communication Protocol ASYNC, BIT
Data Encoding/Decoding Method NRZ
Data Transfer Rate-Max 0.125 MBps
External Data Bus Width 8.0
JESD-30 Code S-PQCC-J68
JESD-609 Code e4
Low Power Mode NO
Moisture Sensitivity Level 3
Number of DMA Channels 0.0
Number of I/O Lines 0.0
Number of Serial I/Os 4.0
Number of Terminals 68
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC68,1.0SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 260
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 4.57 mm
Sub Category Serial IO/Communication Controllers
Supply Current-Max 50.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 24.23 mm
Width 24.23 mm
