(1 PC) TDA8768AH/5 Philips 1CH 12BIT PROPRIETARY METHOD ADC PARALLEL PQFP44
Tax included.

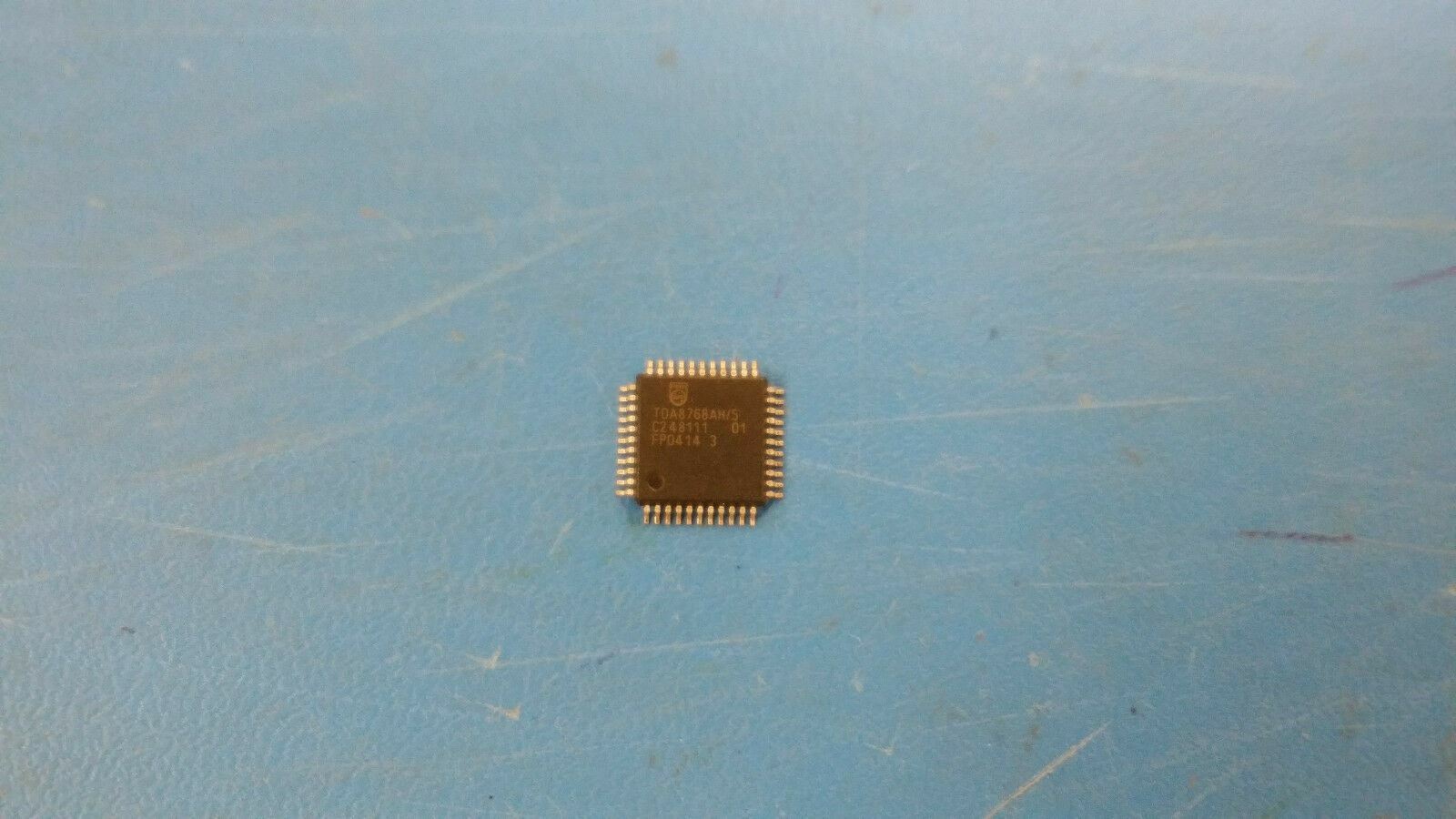

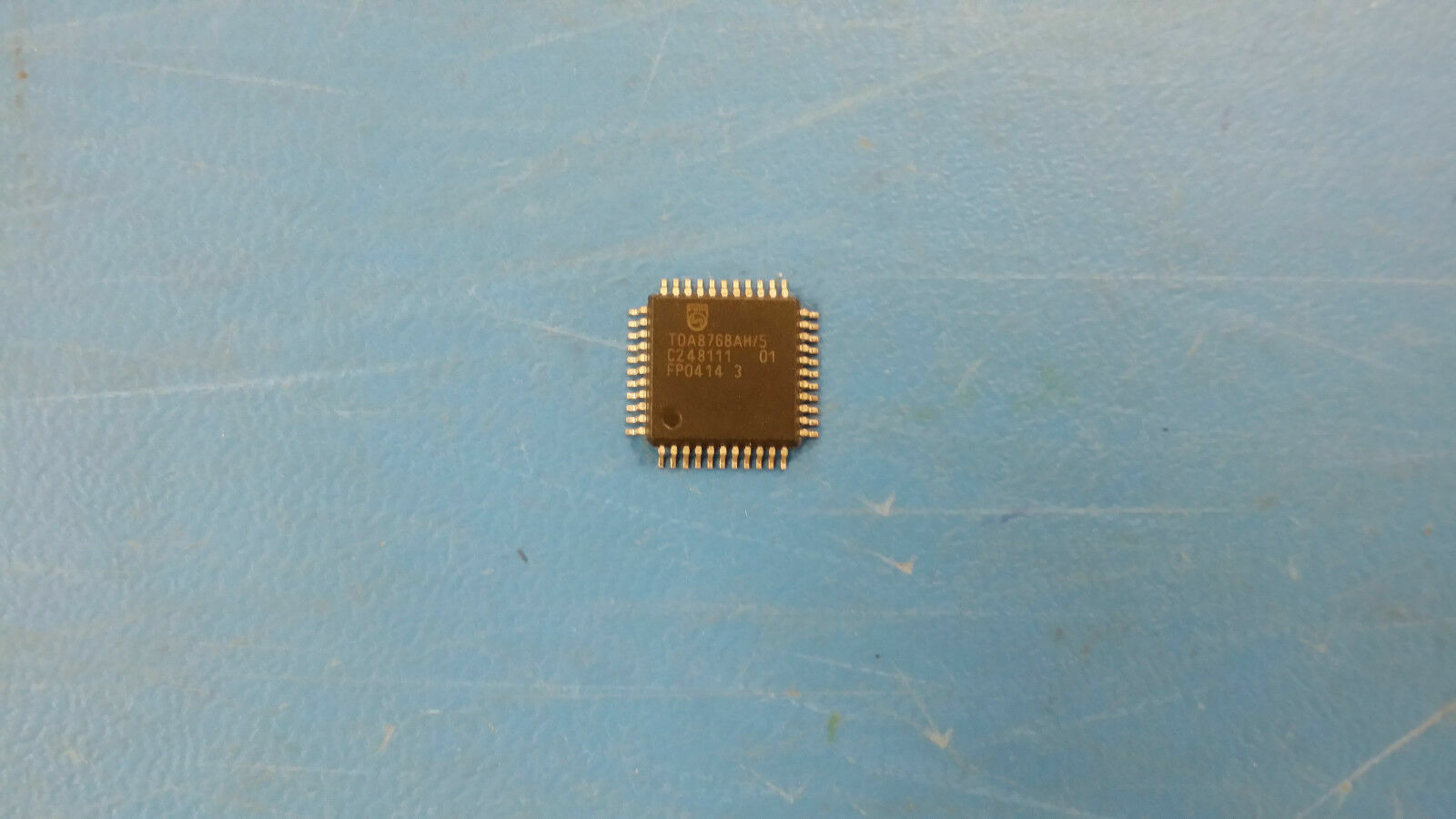

THIS LISTING IS FOR (1 PC) OF TDA8768AH/5 BY PHILIPS
1CH 12BIT PROPRIETARY METHOD ADC PARALLEL ACCESS PQFP44
Manufacturer: Philips
Description: 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, PQFP44
1CH 12BIT PROPRIETARY METHOD ADC PARALLEL ACCESS PQFP44
Part #: TDA8768AH/5
Part Category: ConvertersManufacturer: Philips
Description: 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, PQFP44
| Mfr Package Description | 10 X 10 MM, 1.75 MM HEIGHT, PLASTIC, SOT-307-2, QFP-44 |
| Status | Discontinued |
| Converter Type | ADC, PROPRIETARY METHOD |
| JESD-30 Code | S-PQFP-G44 |
| JESD-609 Code | e3 |
| Linearity Error-Max (EL) | 0.1099 % |
| Number of Analog In Channels | 1 |
| Number of Bits | 12 |
| Number of Functions | 1 |
| Number of Terminals | 44 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 85 Cel |
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY |
| Output Format | PARALLEL, WORD |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QFP |
| Package Shape | SQUARE |
| Package Style | FLATPACK |
| Qualification Status | Not Qualified |
| Sample-and-Hold/Track-and-Hold | SAMPLE |
| Sample Rate | 55 MHz |
| Seated Height-Max | 2.1 mm |
| Supply Voltage-Nom | 5 V |
| Surface Mount | YES |
| Technology | BICMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.8000 mm |
| Terminal Position | QUAD |
| Length | 10 mm |
| Width | 10 mm |
