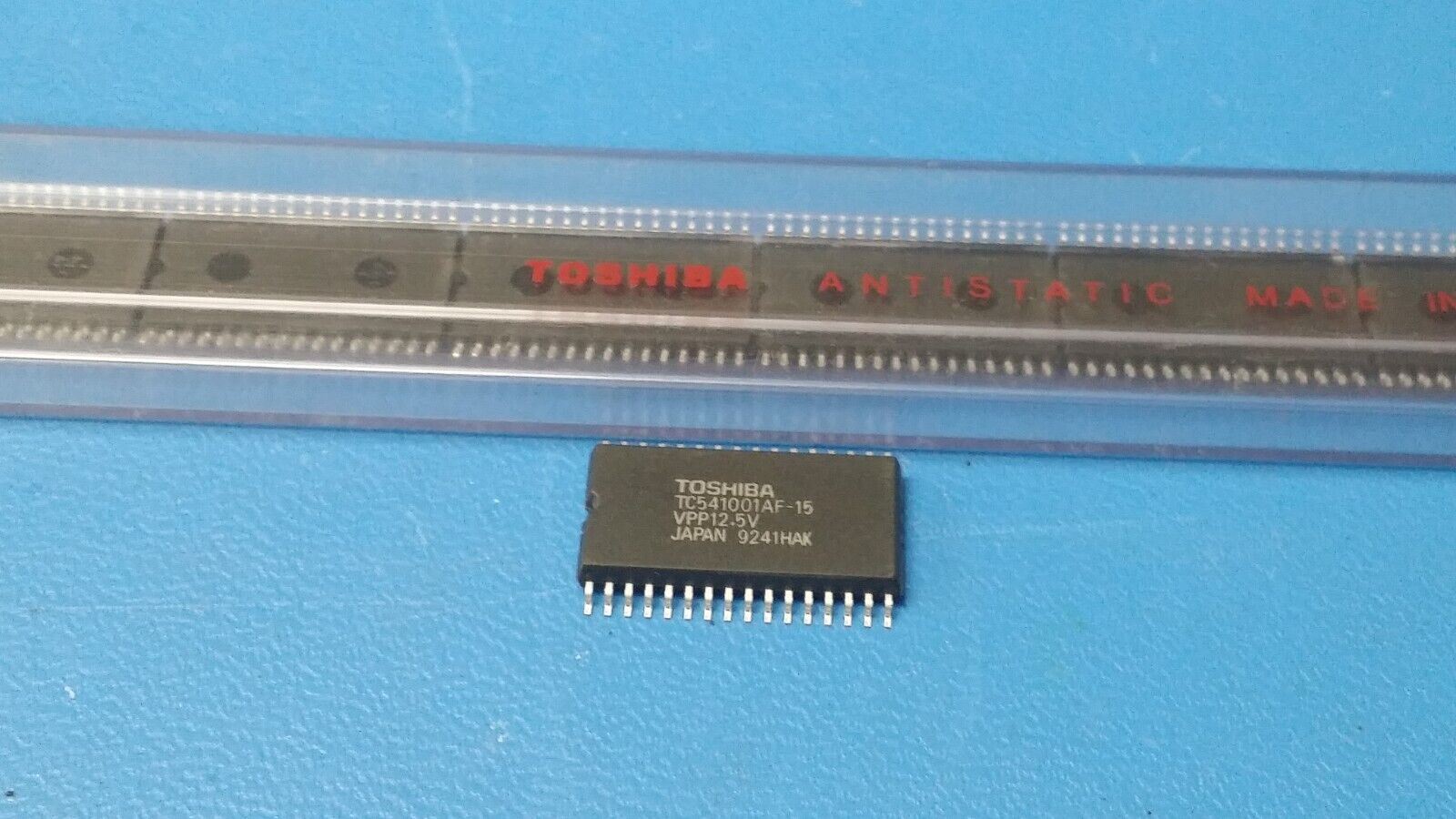

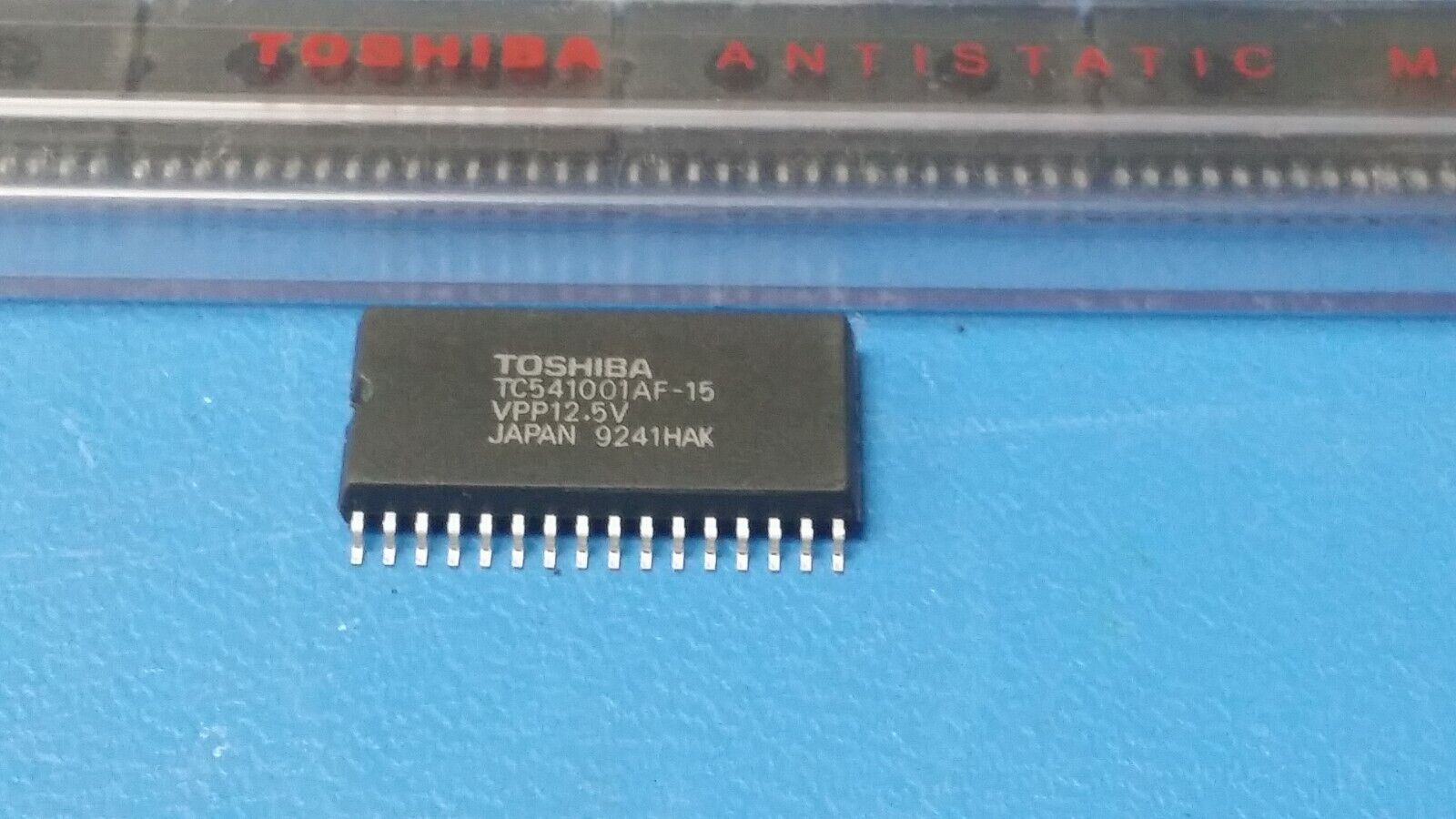

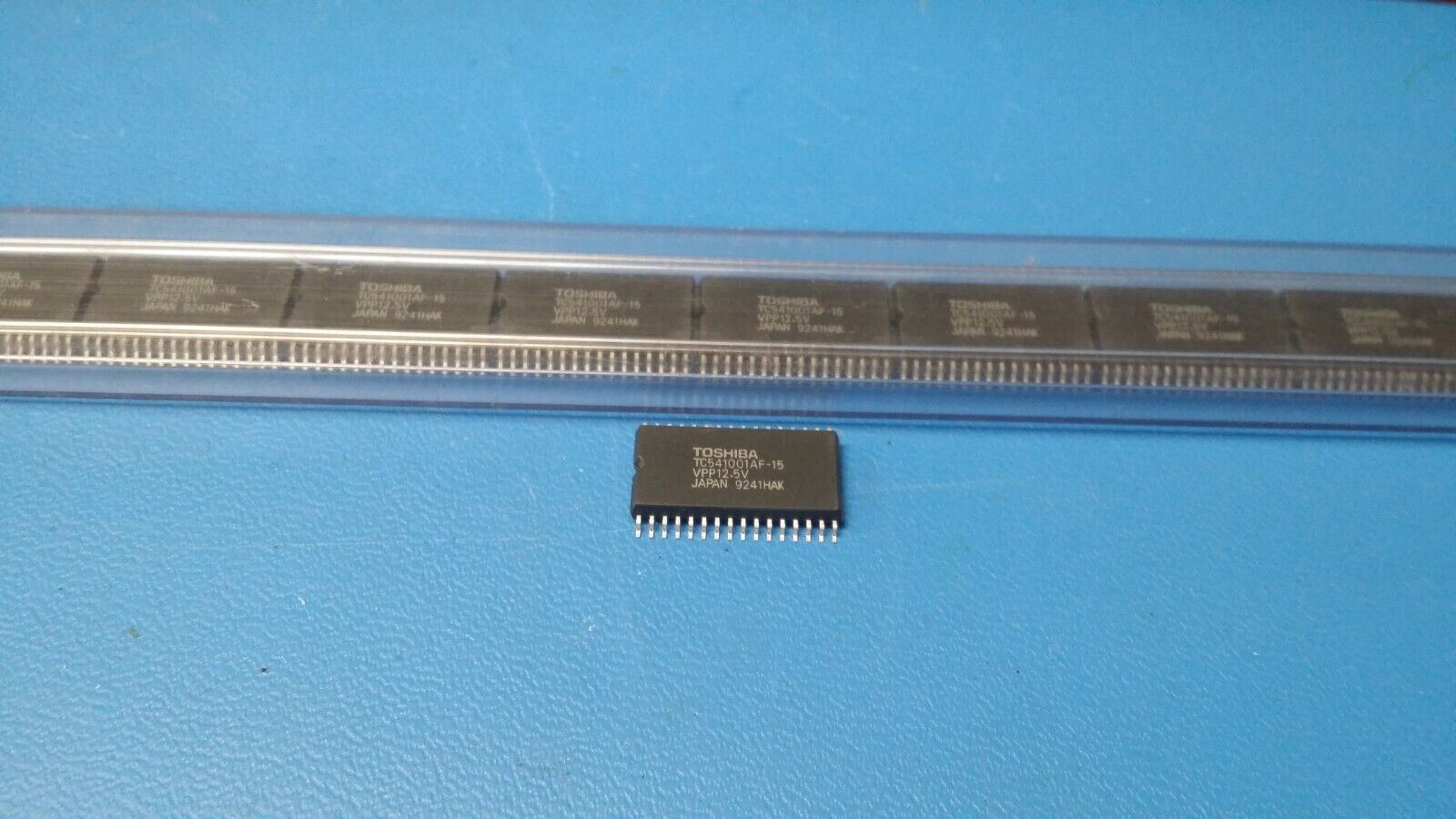

(1 PC) TC541001AF-15 TOSHIBA OTP ROM 128KX8 150ns CMOS SOP-32
Tax included.
THIS IS FOR (1 PC) OF TC541001AF-15 BY TOSHIBA
OTP ROM 128KX8 150ns CMOS SOP-32
Part #: TC541001AF-15
Part Category: Memory ICs
Manufacturer: Toshiba America Electronic Components, Inc.
Description: OTP ROM, 128KX8, 150ns, CMOS, PDSO32
Mfr Package Description 0.525 INCH, PLASTIC, SOP-32
Status Active
Sub Category OTP ROMs
Access Time-Max 150.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Memory Density 1048576.0 bit
Memory IC Type OTP ROM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 131072.0 words
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 128KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP32,.56
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 2.8 mm
Standby Current-Max 1.0E-4 Amp
Supply Current-Max 0.03 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 20.6 mm
Width 10.7 mm
