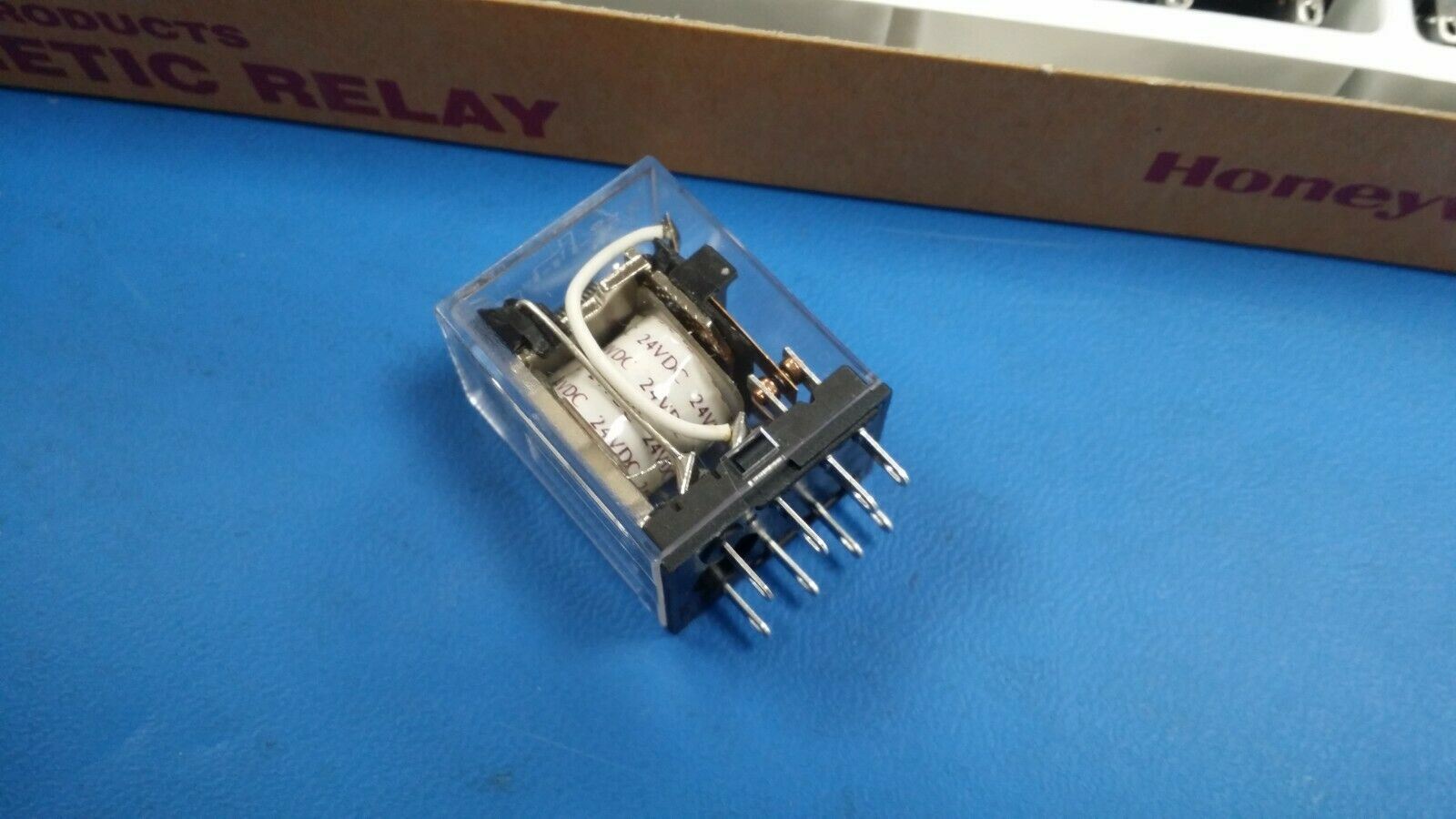

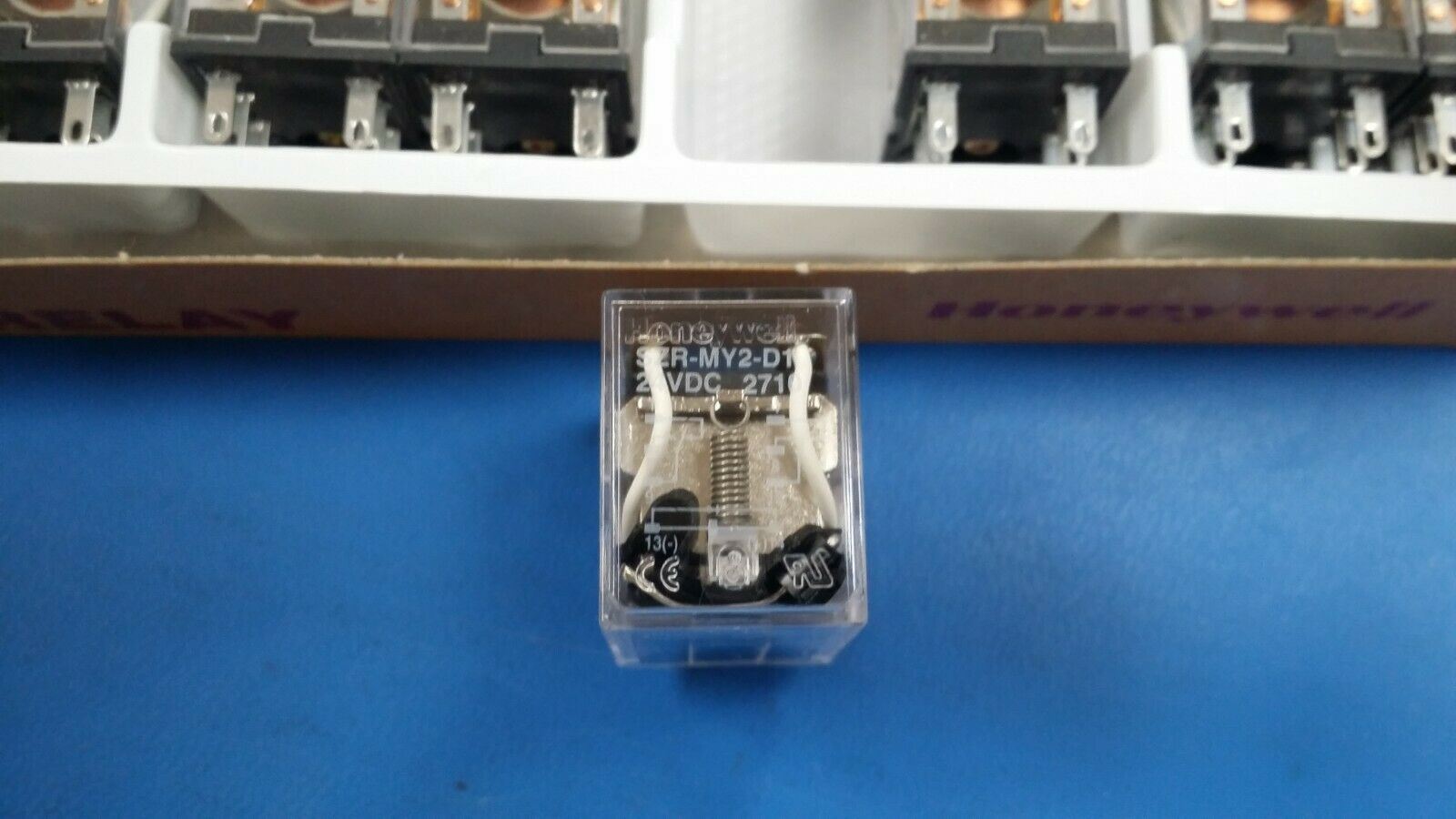

(1 PC) SZR-MY2-D1-DC24V HONEYWELL RELAY GEN PURPOSE DPDT 5A 24V ROHS
Tax included.
THIS IS FOR (1 PC) OF SZR-MY2-D1-DC24V BY HONEYWELL
RELAY GEN PURPOSE DPDT 5A 24V
Manufacturer: Honeywell
Product Category: General Purpose Relays
Product: Power Relays
Type: General Purpose
Coil Voltage: 24 VDC
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Current Rating: 5 A
Contact Termination: Plug In
Mounting Style: Panel Mount
Switching Voltage: 250 VAC, 125 VDC
Coil Termination: Plug In
Coil Type: Non-Latching
Coil Resistance: 650 Ohms
Coil Current: 36.9 mA
Contact Material: Silver Cadmium Oxide (AgCdO)
Length: 28 mm
Width: 21.5 mm
Height: 36 mm
Brand: Honeywell
Contact Form: DPDT (2 Form C)
Power Consumption: 900 mW
Product Type: General Purpose Relays
200
Subcategory: Relays
Unit Weight: 1.234589 oz
