(1 PC) STW56N60M2 STMICRO Trans MOSFET N-CH 650V 52A 3-Pin TO-247 ROHS
Tax included.

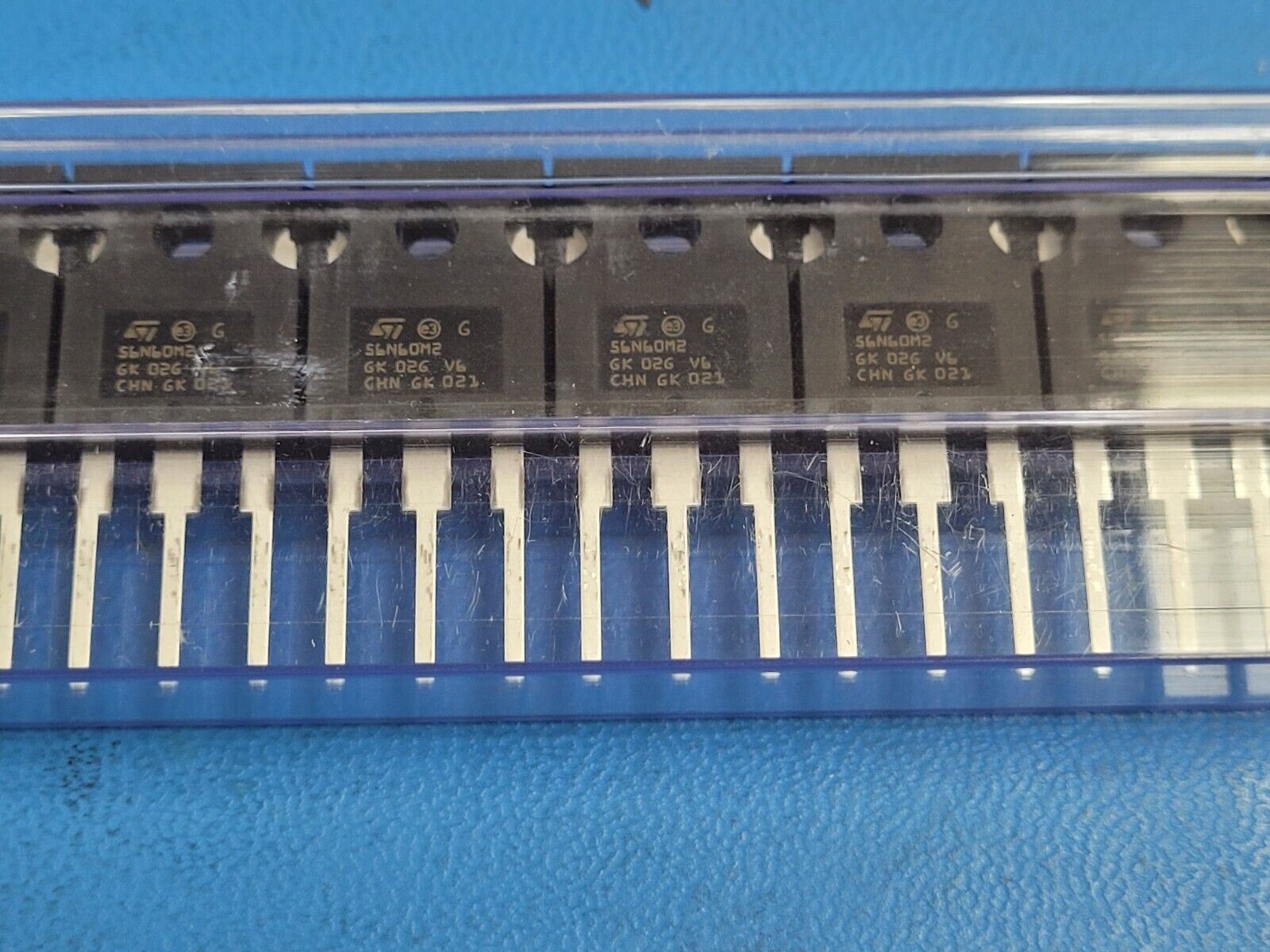

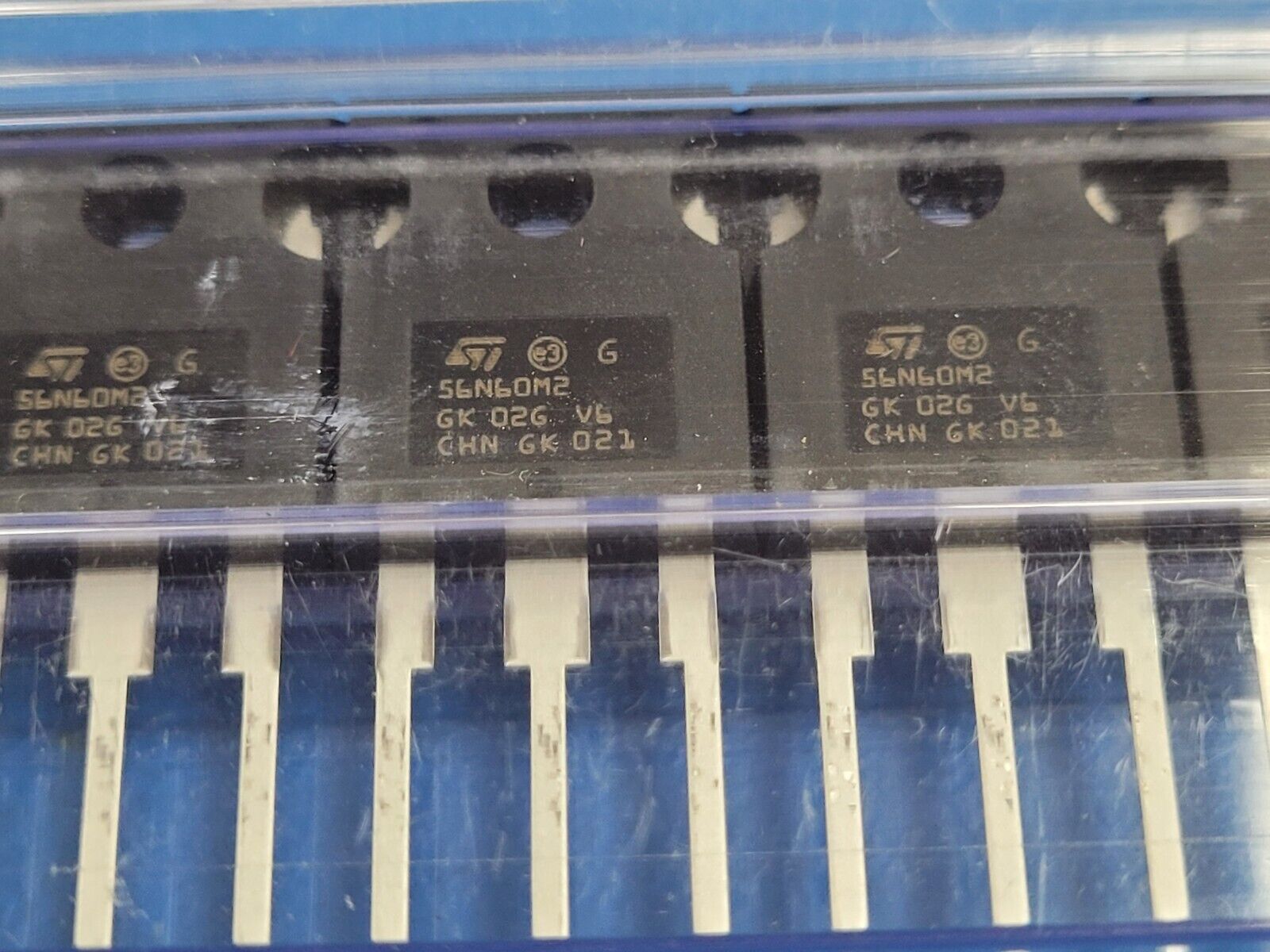

THIS IS FOR (1 PC) OF STW56N60M2 BY STMICRO
Trans MOSFET N-CH 650V 52A 3-Pin TO-247 ROHS
Manufacturer: STMicroelectronics
Product Category: MOSFETs
RoHS: YES
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 600 V
Id - Continuous Drain Current: 52 A
Rds On - Drain-Source Resistance: 55 mOhms
Vgs - Gate-Source Voltage: - 25 V, + 25 V
Vgs th - Gate-Source Threshold Voltage: 2 V
Qg - Gate Charge: 91 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 350 W
Channel Mode: Enhancement
Tradename: MDmesh
Packaging: Tube
Brand: STMicroelectronics
Configuration: Single
Fall Time: 14 ns
Product Type: MOSFETs
Rise Time: 26.5 ns
Series: STW56N60M2
Subcategory: Transistors
Transistor Type: 1 N-Channel Power MOSFET
Typical Turn-Off Delay Time: 119 ns
Typical Turn-On Delay Time: 18 ns
