(1 PC) STC1396, 5961-00-931-0083 SILICON TRANSISTOR CORP. 900201-71
Tax included.

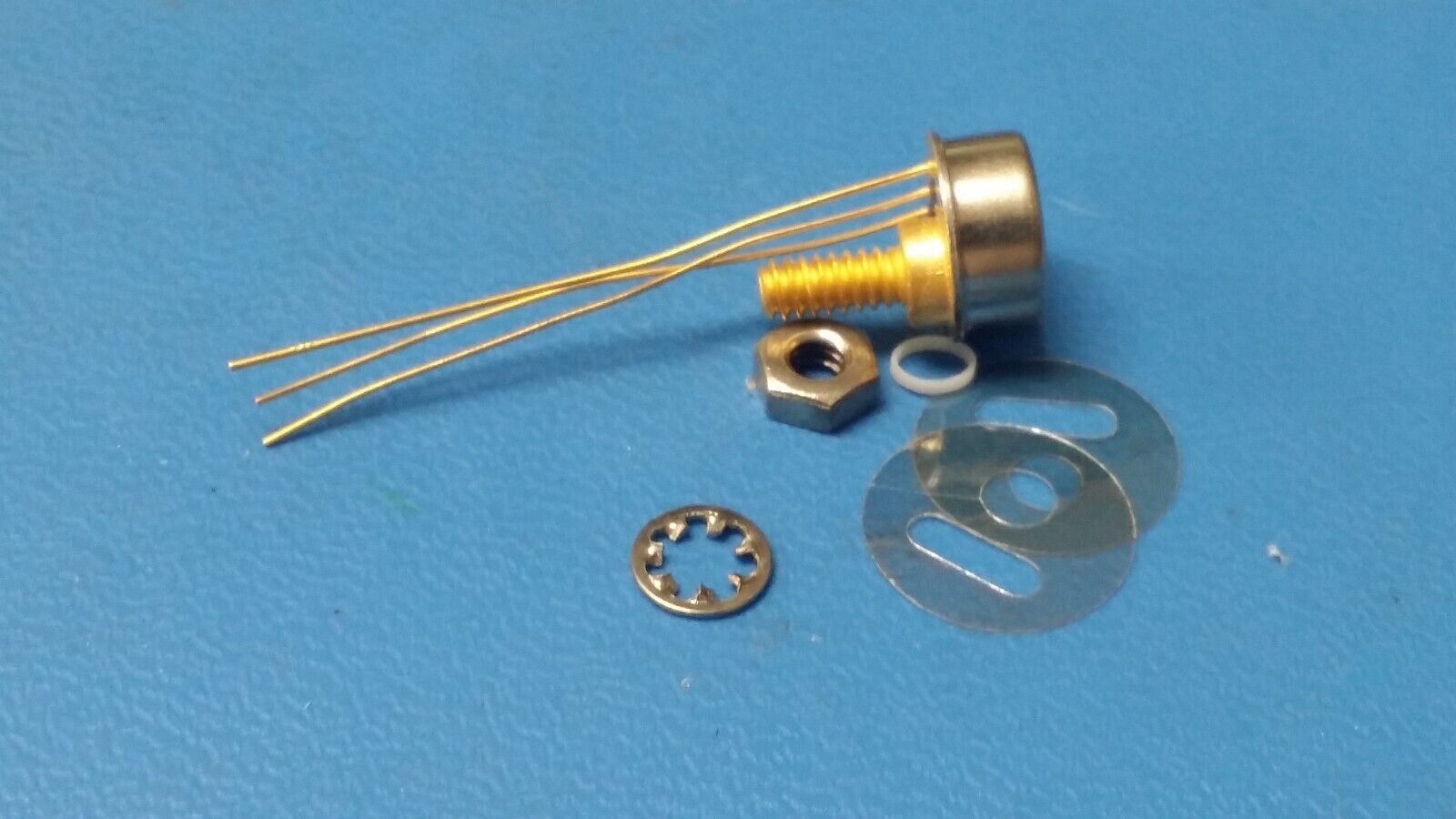

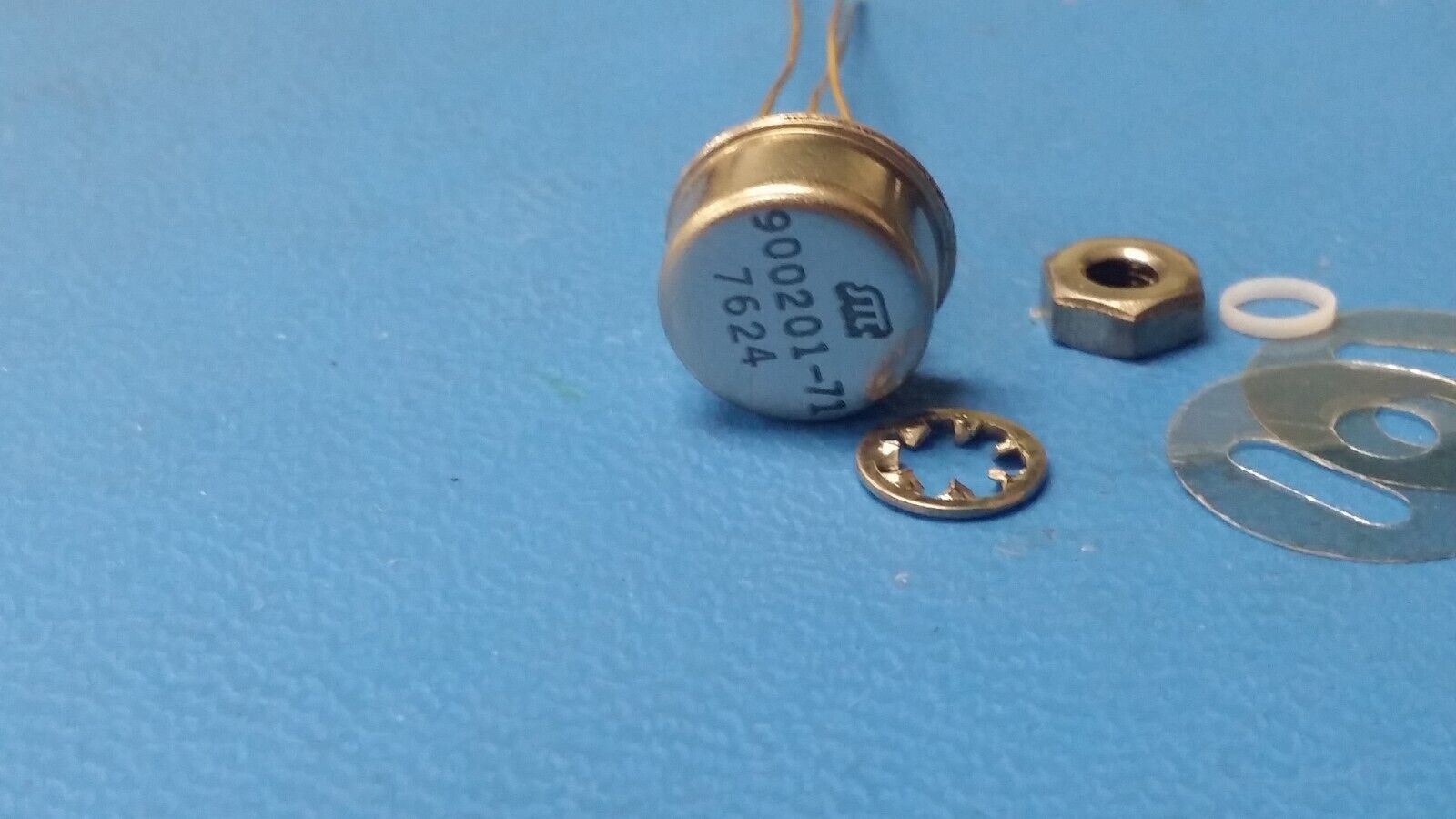

THIS IS FOR (1 PC) OF STC1396, 5961-00-931-0083 BY SILICON TRANSISTOR CORP. (900201-71)

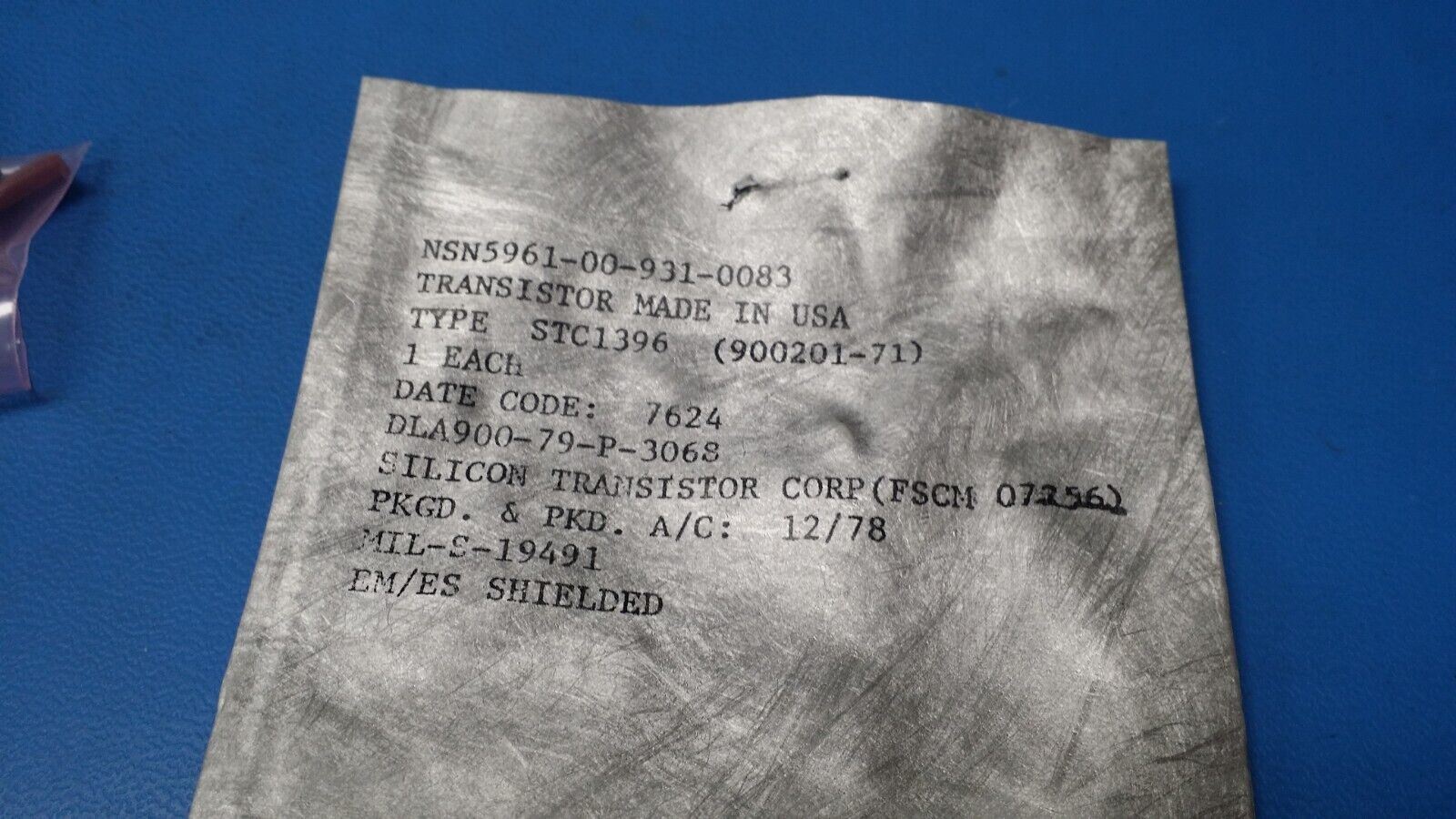

CHARACTERISTICS DATA of NSN 5961-00-931-0083, 5961009310083
MRC Criteria Characteristic
ABBH INCLOSURE MATERIAL METAL
ABHP OVERALL LENGTH 0.205 INCHES NOMINAL
ABJT TERMINAL LENGTH 1.525 INCHES NOMINAL
ADAV OVERALL DIAMETER 0.460 INCHES NOMINAL
AKPV MOUNTING FACILITY QUANTITY 1
ALAS INTERNAL CONFIGURATION JUNCTION CONTACT
AXGY MOUNTING METHOD TERMINAL AND THREADED STUD
AYQS TERMINAL CIRCLE DIAMETER 0.210 INCHES NOMINAL
CBBL FEATURES PROVIDED HERMETICALLY SEALED CASE
CQJX NOMINAL THREAD SIZE 0.138 INCHES
CTMZ III SEMICONDUCTOR MATERIAL SILICON
CTQN VOLTAGE RATING IN VOLTS PER CHARACTERISTIC 80.0 MAXIMUM COLLECTOR TO BASE VOLTAGE, DC AND 80.0 MAXIMUM COLLECTOR TO EMITTER VOLTAGE, DC AND 10.0 MAXIMUM EMITTER TO BASE VOLTAGE, DC
CTQX CURRENT RATING PER CHARACTERISTIC 500.00 MILLIAMPERES SOURCE CUTOFF CURRENT MAXIMUM
CTRD POWER RATING PER CHARACTERISTIC 40.0 WATTS SMALL-SIGNAL INPUT POWER, COMMON-COLLECTOR MINIMUM
FEAT SPECIAL FEATURES JUNCTION PATTERN ARRANGEMENT: NPN
THSD THREAD SERIES DESIGNATOR UNC
TTQY TERMINAL TYPE AND QUANTITY 1 THREADED STUD AND 3 UNINSULATED WIRE LEAD
