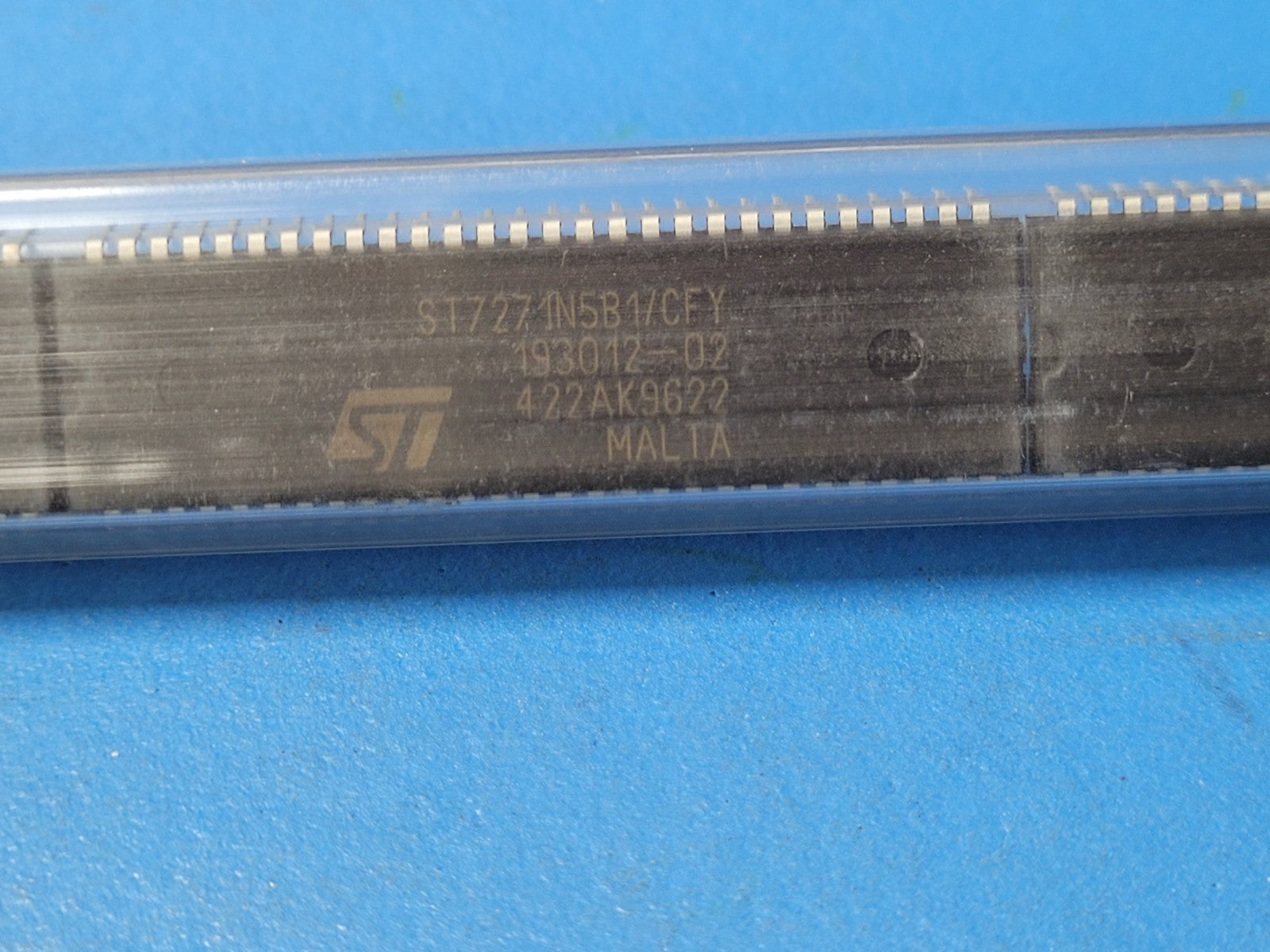

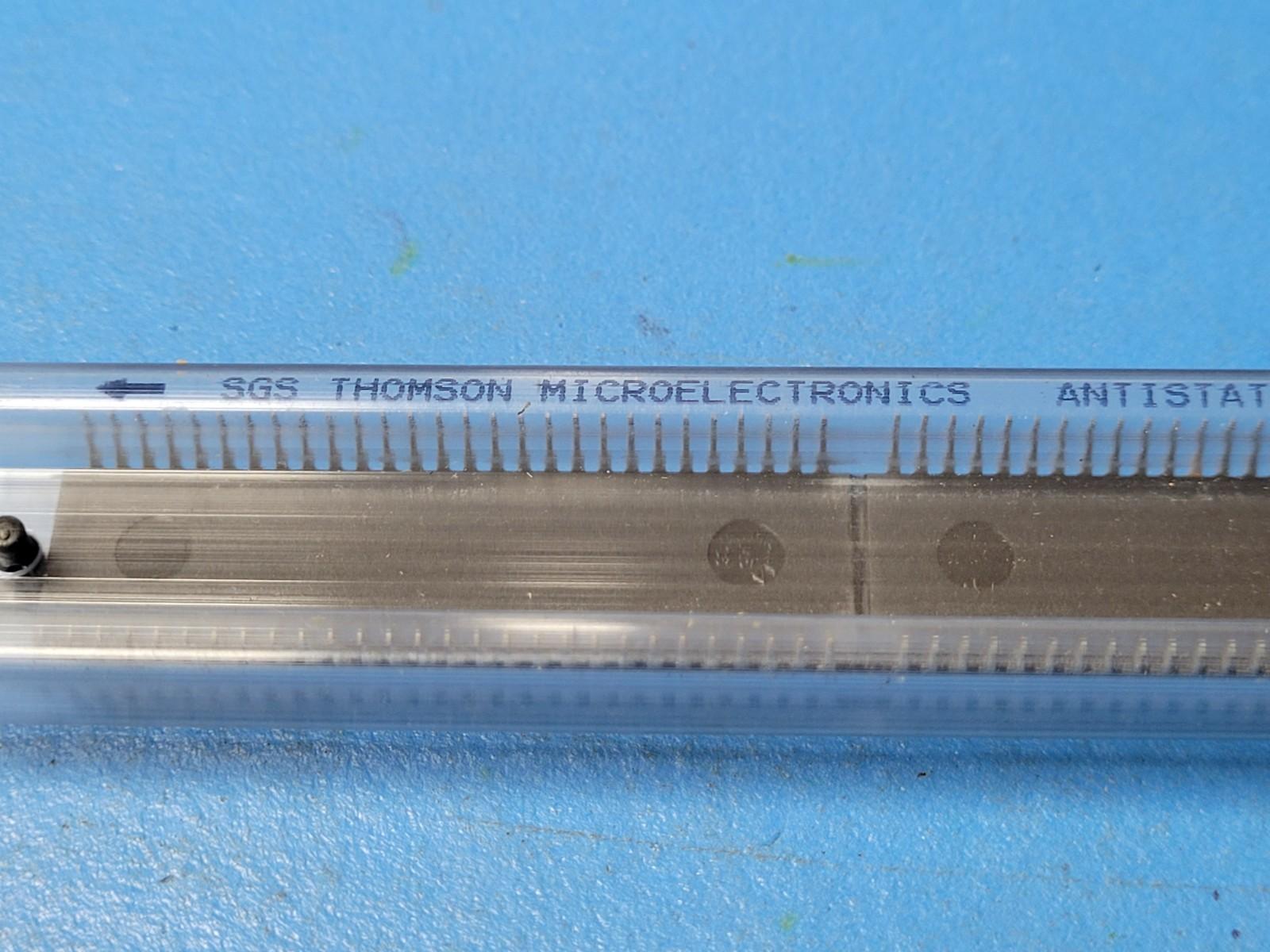

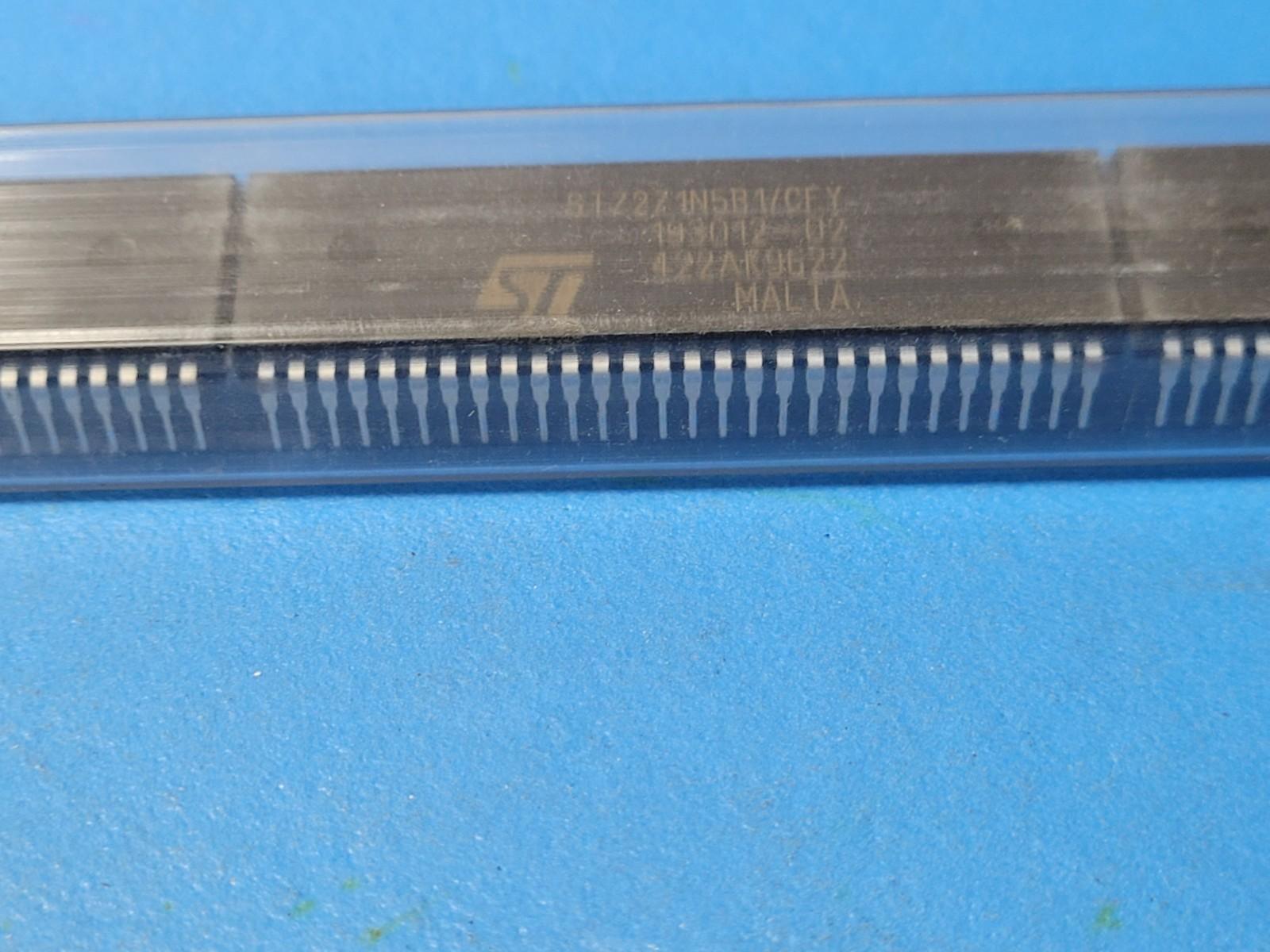

(1 PC) ST7271N5B1/CFY Microcontroller, 8-Bit, MROM, ST72 CPU, 4MHz, CMOS, PDIP56

$14.95
Unit price per

Tax included.

THIS IS FOR (1 PC) OF ST7271N5B1/CFY BY STMICRO

Microcontroller, 8-Bit, MROM, ST72 CPU, 4MHz, CMOS, PDIP56

Part #: ST7271N5B1

Obsolete

Part Category: Microcontrollers

Manufacturer: STMICROELECTRONICS

Description:

Microcontroller, 8-Bit, MROM, ST72 CPU, 4MHz, CMOS, PDIP56

Status Discontinued

ADC Channels YES

Address Bus Width 0

Bit Size 8

CPU Family ST72

Clock Frequency-Max (MHz) 4.0000000000000000

DMA Channels NO

External Data Bus Width 0

JESD-30 Code R-PDIP-T56

J-STD-609 Code e0

Length (mm) 52.1200

Number of I/O Lines 27

Number of Terminals 56

Program Memory Width (bits) 8

Operating Temperature-Max (Cel) 70.0000

Operating Temperature-Min (Cel) 0.0000

PWM Channels YES

Package Body Material PLASTIC/EPOXY

Package Code SDIP

Package Equivalence Code SDIP56,.6

Package Shape RECTANGULAR

Package Style IN-LINE, SHRINK PITCH

DLA Qualification Not Qualified

Data RAM Size (bytes) 256

Program Memory Size (words) 16384

Program Memory Type MROM

Speed (MHz) 4.00000000

Supply Current-Max (mA) 2.50000000

Supply Voltage-Max (V) 5.5000

Supply Voltage-Min (V) 4.5000

Supply Voltage-Nom (V) 5.0000

Surface Mount NO

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch (mm) 1.780

Terminal Position DUAL

Width (mm) 15.2400

uPs/uCs/Peripheral ICs Type MICROCONTROLLER

Data EEPROM Size (bytes) 512

Connectivity SPI

Peripherals POR, PWM(18), TIMER, WDT

A/D Converters 8-Ch 8-Bit
