(1 PC) SNJ54LS374J Octal D-Type Edge Triggered Flip-Flops with 3-State Outputs
Tax included.

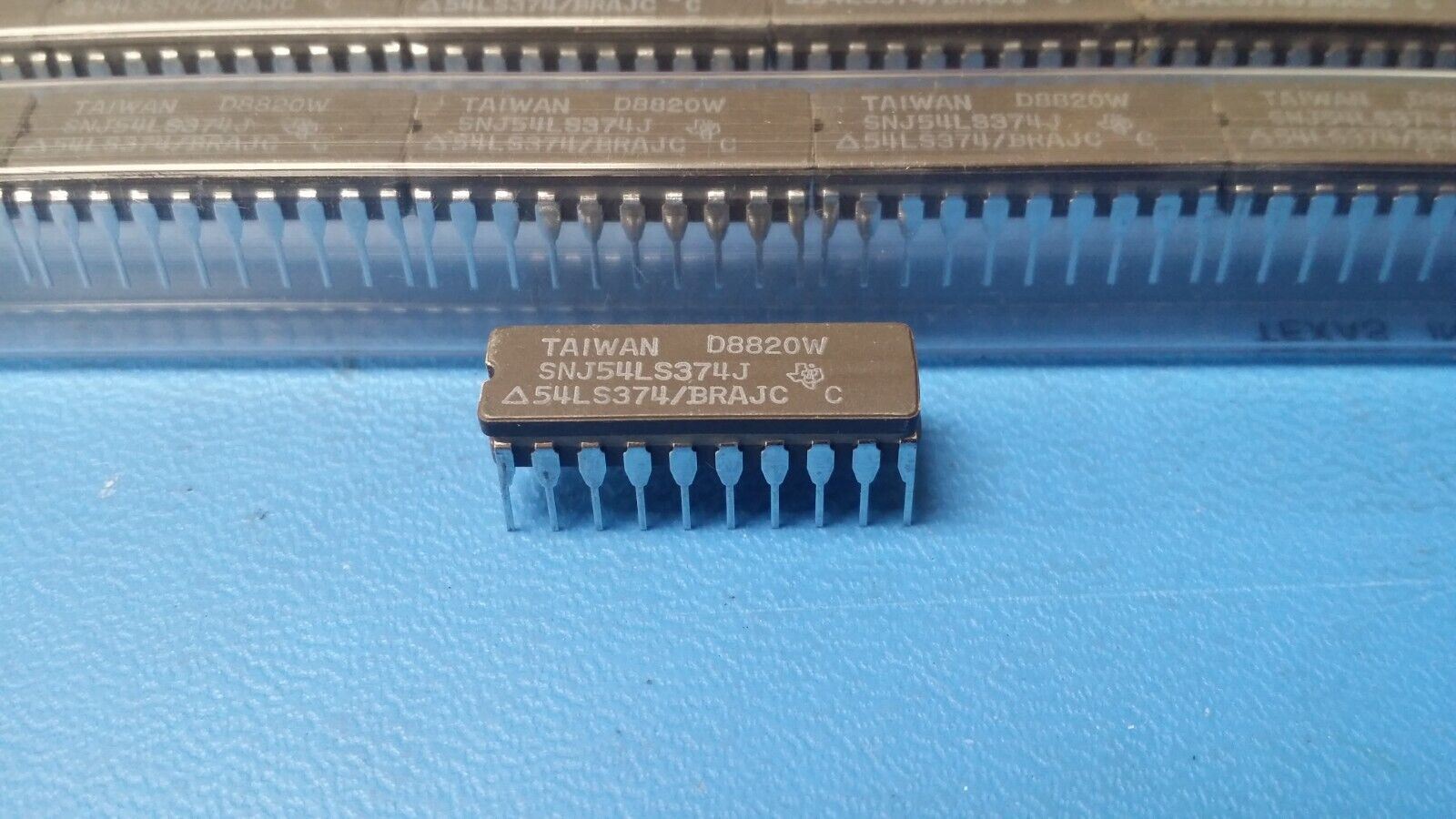

THIS IS FOR (1 PC) OF SNJ54LS374J BY TI
Octal D-Type Edge Triggered Flip-Flops with 3-State Outputs
Manufacturer: Texas Instruments
Product Category: Flip Flops
Number of Circuits: 1
Logic Family: LS
Logic Type: Bipolar
Polarity: Non-Inverting
Input Type: TTL
Output Type: 3-State
Propagation Delay Time: 28 ns
High Level Output Current: - 2.6 mA
Low Level Output Current: 24 mA
Supply Voltage - Min: 4.75 V
Supply Voltage - Max: 5.25 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: CDIP-20
Packaging: Tube
Brand: Texas Instruments
Function: D-Type Bus Interface
Height: 4.57 mm
Length: 24.2 mm
Number of Channels: 8
Number of Input Lines: 8
Number of Output Lines: 8
Operating Supply Voltage: 5 V
Operating Temperature Range: - 55 C to + 125 C
Product Type: Flip Flops
Series: SN54LS374
1
Subcategory: Logic ICs
Width: 6.92 mm
Unit Weight: 0.007760 oz
