(1 PC) SNJ54LS194AJ 54LS194A/BEAJC Shift Register Single 4-Bit CDIP16
Tax included.

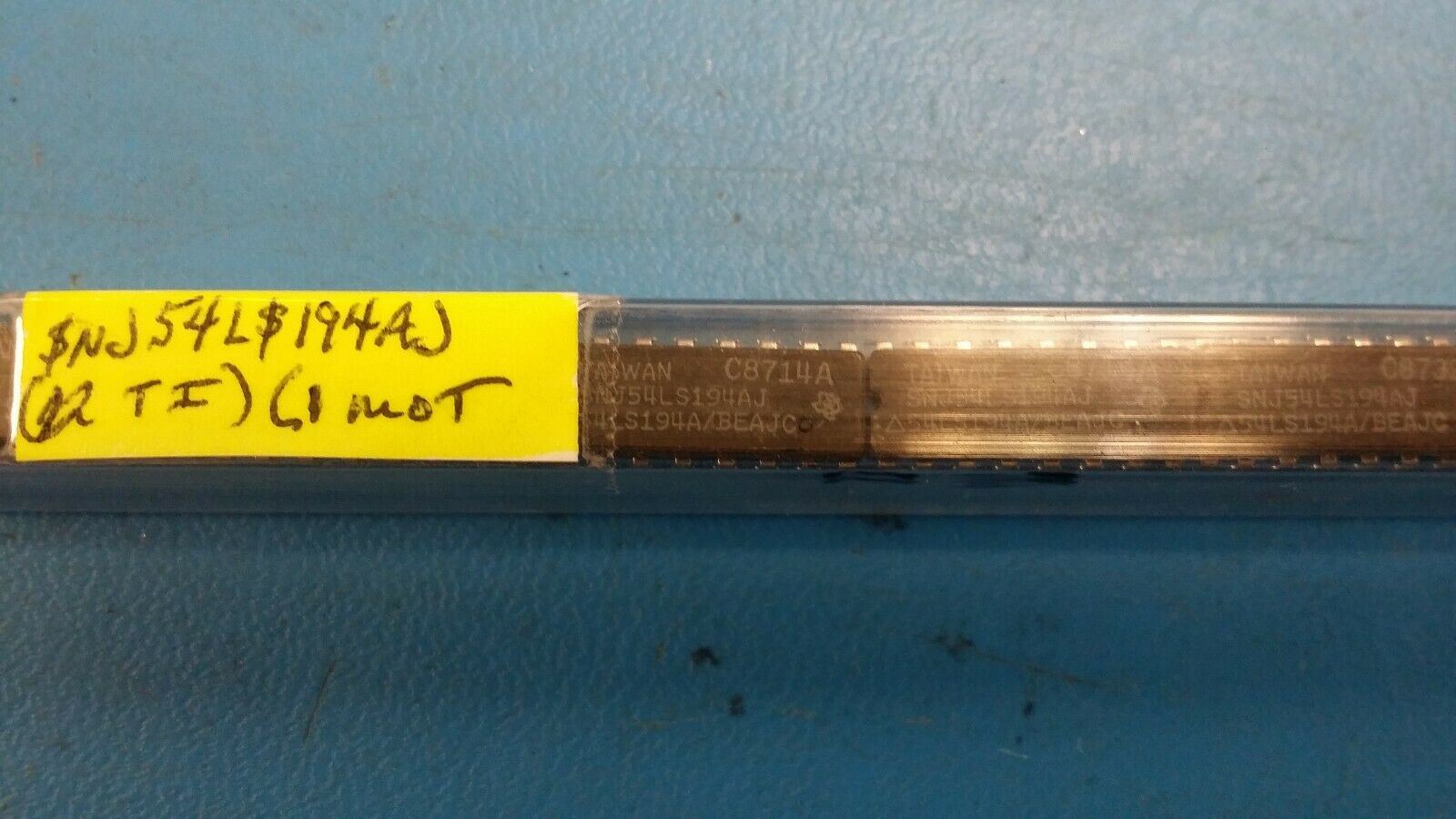

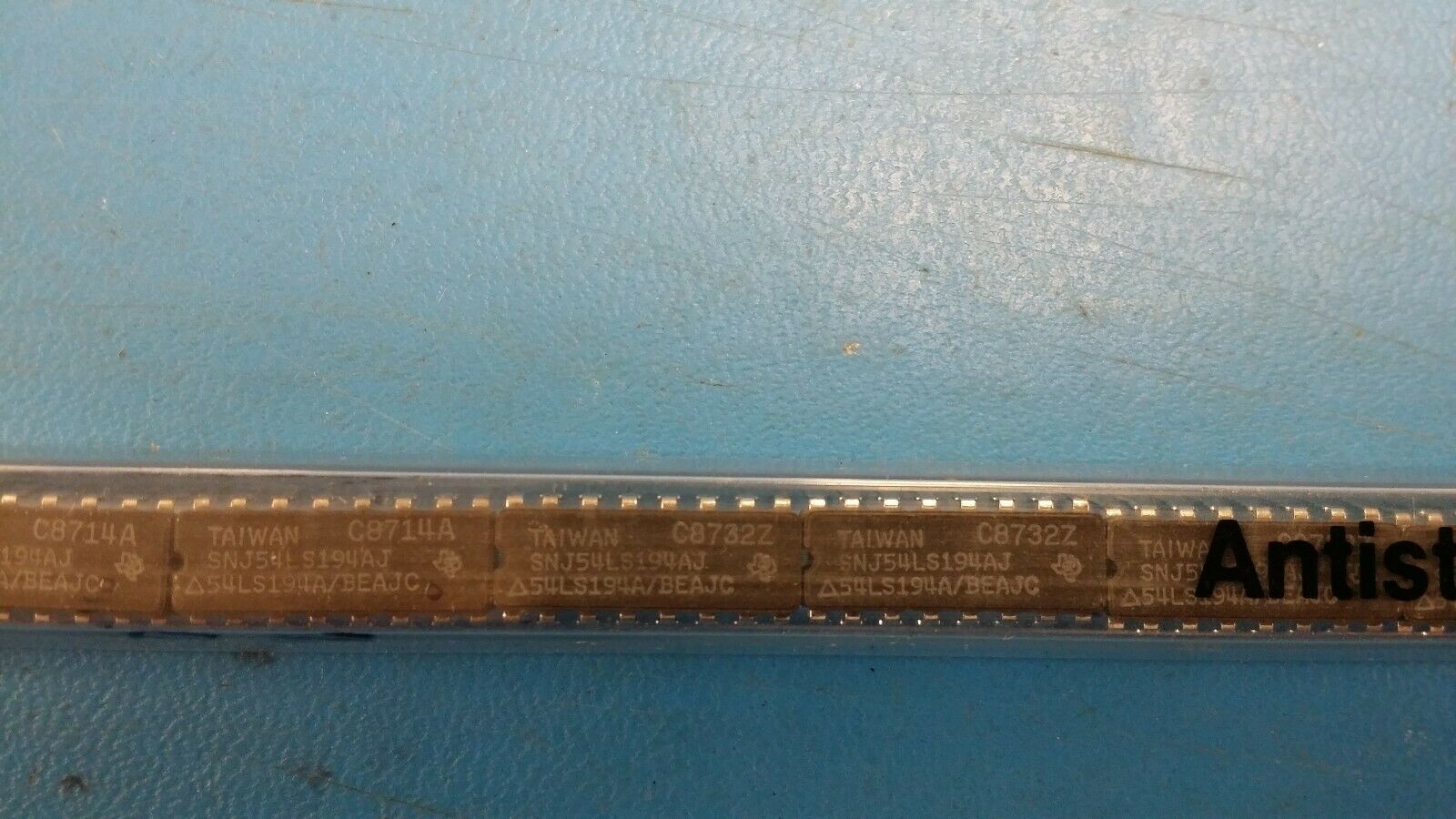

THIS LISTING IS FOR (1 PC) OF SNJ54LS194AJ 54LS194A/BEAJC BY TI, MOT
Shift Register Single 4-Bit CDIP16
Shift Register Single 4-Bit Serial/Parallel to Parallel 16-Pin CDIP
Package Type:
CDIP
Pin Count:
16
Propagation Delay Time:
30(ns)
Number of Inputs:
6
Number of Outputs:
4
Number of Bits:
4
Logic Family:
LS
Mounting:
Through Hole
Technology:
Bipolar
Operating Temperature Classification:
Military
Output Type:
Standard
Operating Supply Voltage (Typ):
5(V)
Operating Supply Voltage (Min):
4.5(V)
Logical Function:
Shift Register
Operating Temp Range:
-55C to 125C
Operating Supply Voltage (Max):
5.5(V)
Rad Hardened:
No
Type:
Not Required
Number of Elements:
1
Direction Type:
Bi-Directional
Packaging:
Rail/Tube
Terminal Count Output:
NO
Number of Count Input Enables:
0
Reset Type:
ASYNCHRONOUS
Number of Selection Inputs per Element:
2
Triggering Type:
POSITIVE-EDGE
Maximum Propagation Delay Time @ Maximum CL:
26@5V
Parallel Enable Input:
NO
