(1 PC) SNJ54ALS374FK TI Bus Driver, 1-Func, 8-Bit, True Output, TTL, CQCC20 '

$12.95
Unit price per

Tax included.

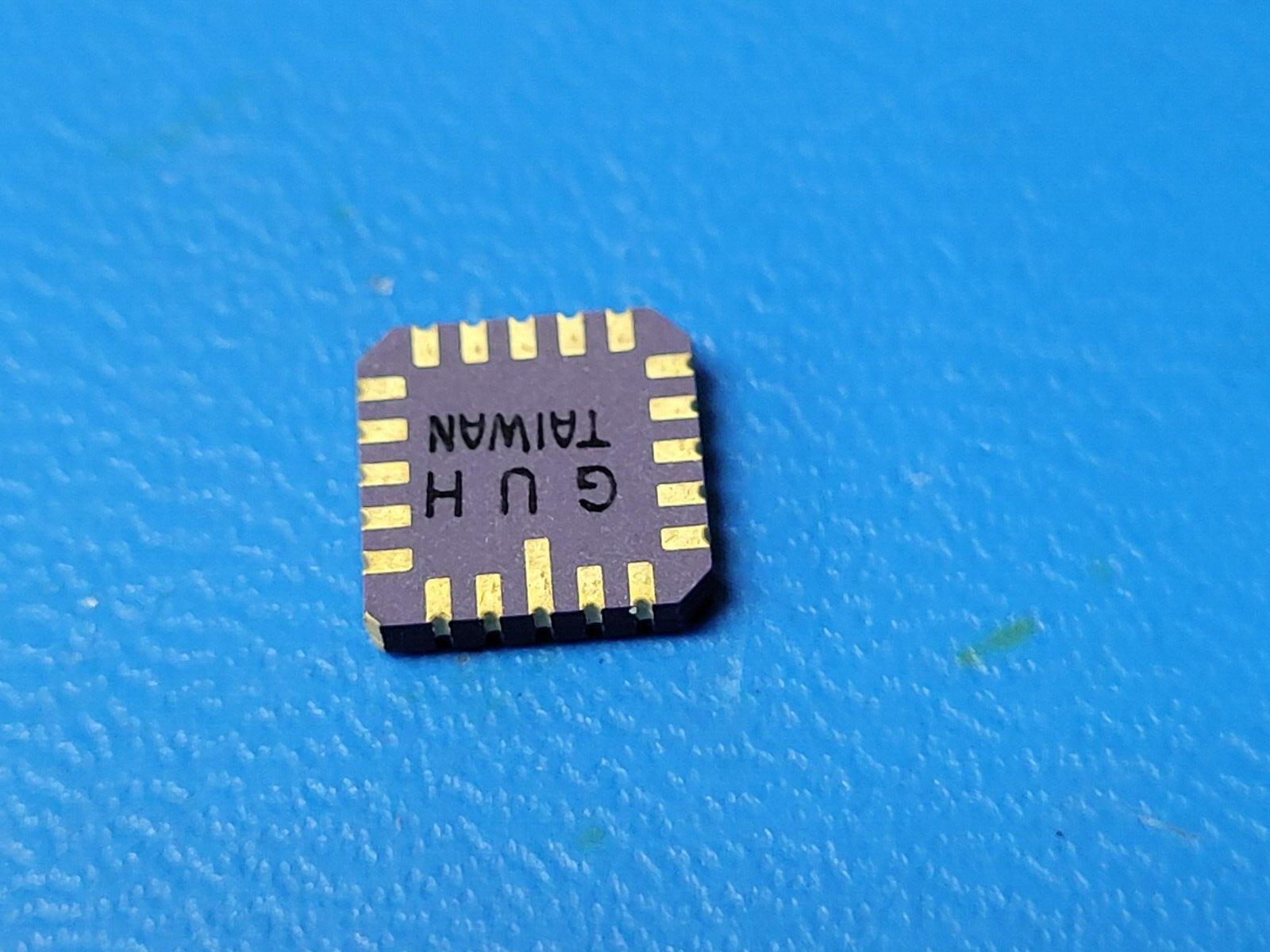

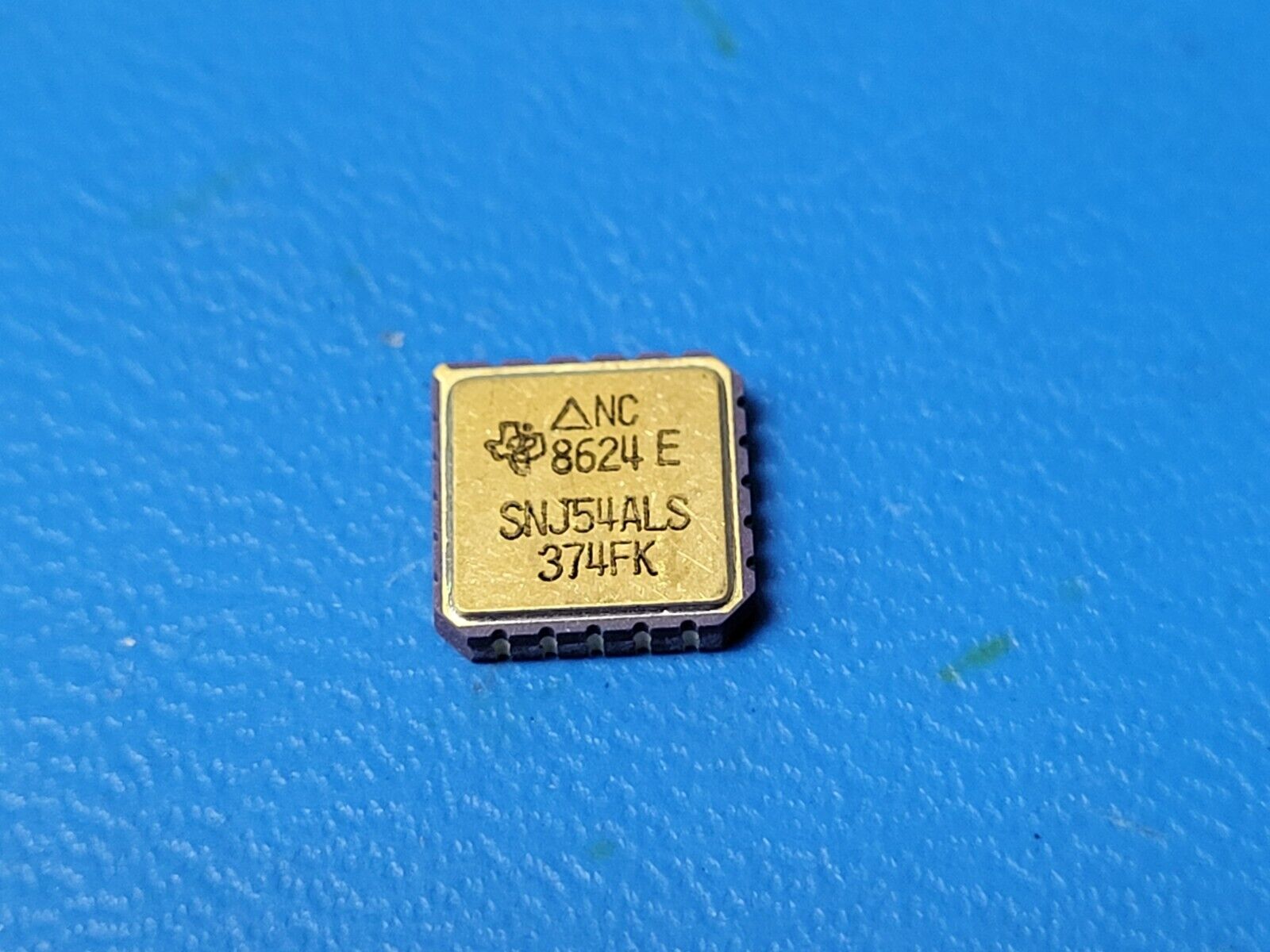

THIS IS FOR (1 PC) OF SNJ54ALS374FK BY TI

Bus Driver, 1-Func, 8-Bit, True Output, TTL, CQCC20

Part #: SNJ54ALS374FK

Part Category: Logic ICs

Manufacturer: Texas Instruments High-Performance Analog

Description: Bus Driver, ALS Series, 1-Func, 8-Bit, True Output, TTL, CQCC20

Logic IC Type BUS DRIVER

Family ALS

JESD-30 Code S-CQCC-N20

JESD-609 Code e0

Number of Bits 8

Number of Functions 1

Number of Ports 2

Number of Terminals 20

Operating Temperature-Min -55.0 Cel

Operating Temperature-Max 125.0 Cel

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material CERAMIC, METAL-SEALED COFIRED

Package Code QCCN

Package Shape SQUARE

Package Style CHIP CARRIER

Propagation Delay (tpd) 17.0 ns

Qualification Status Not Qualified

Seated Height-Max 2.03 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.5 V

Supply Voltage-Max (Vsup) 5.5 V

Surface Mount YES

Technology TTL

Temperature Grade MILITARY

Terminal Finish TIN LEAD

Terminal Form NO LEAD

Terminal Pitch 1.27 mm

Terminal Position QUAD

Length 8.89 mm

Width 8.89 mm
