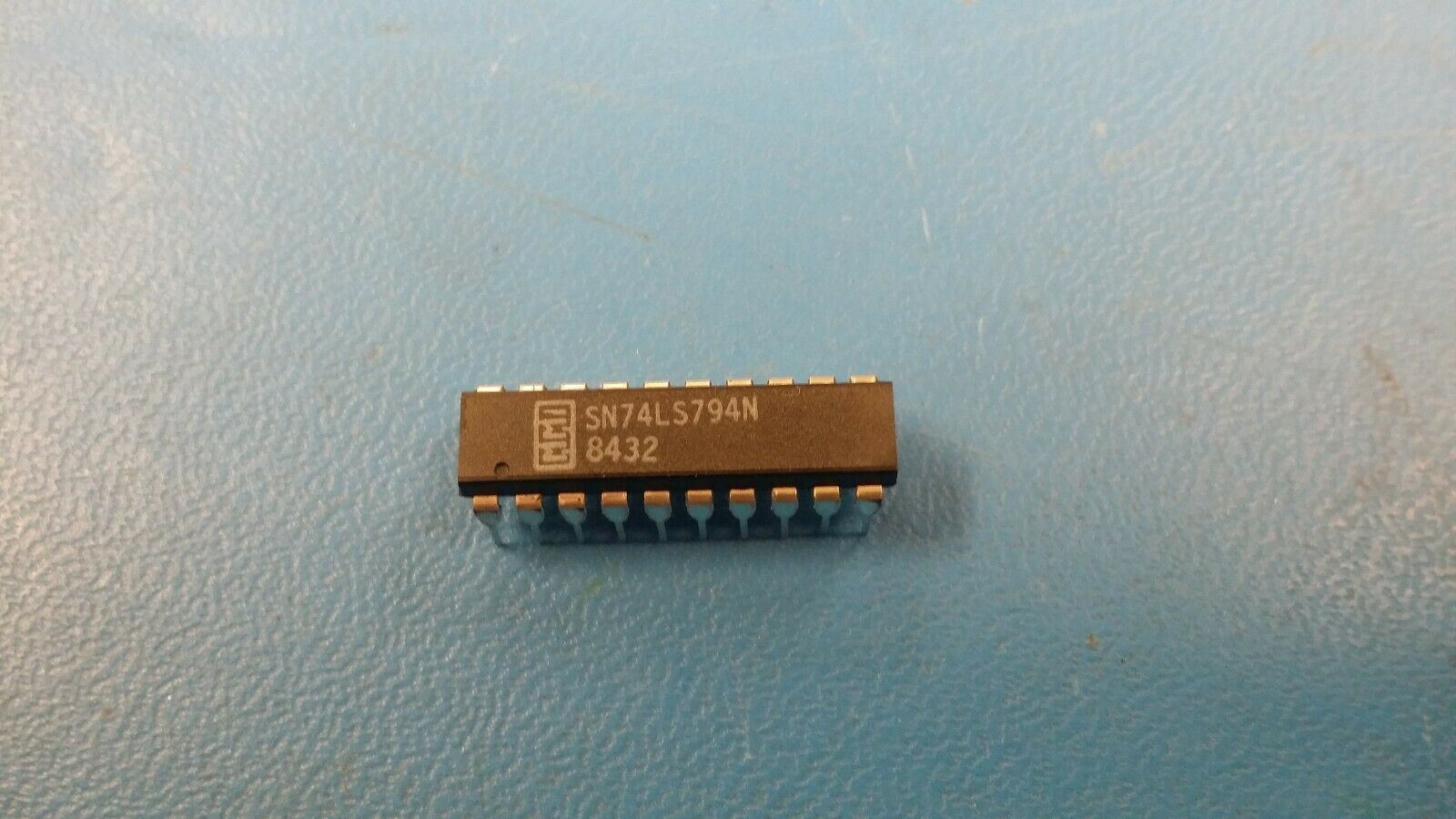

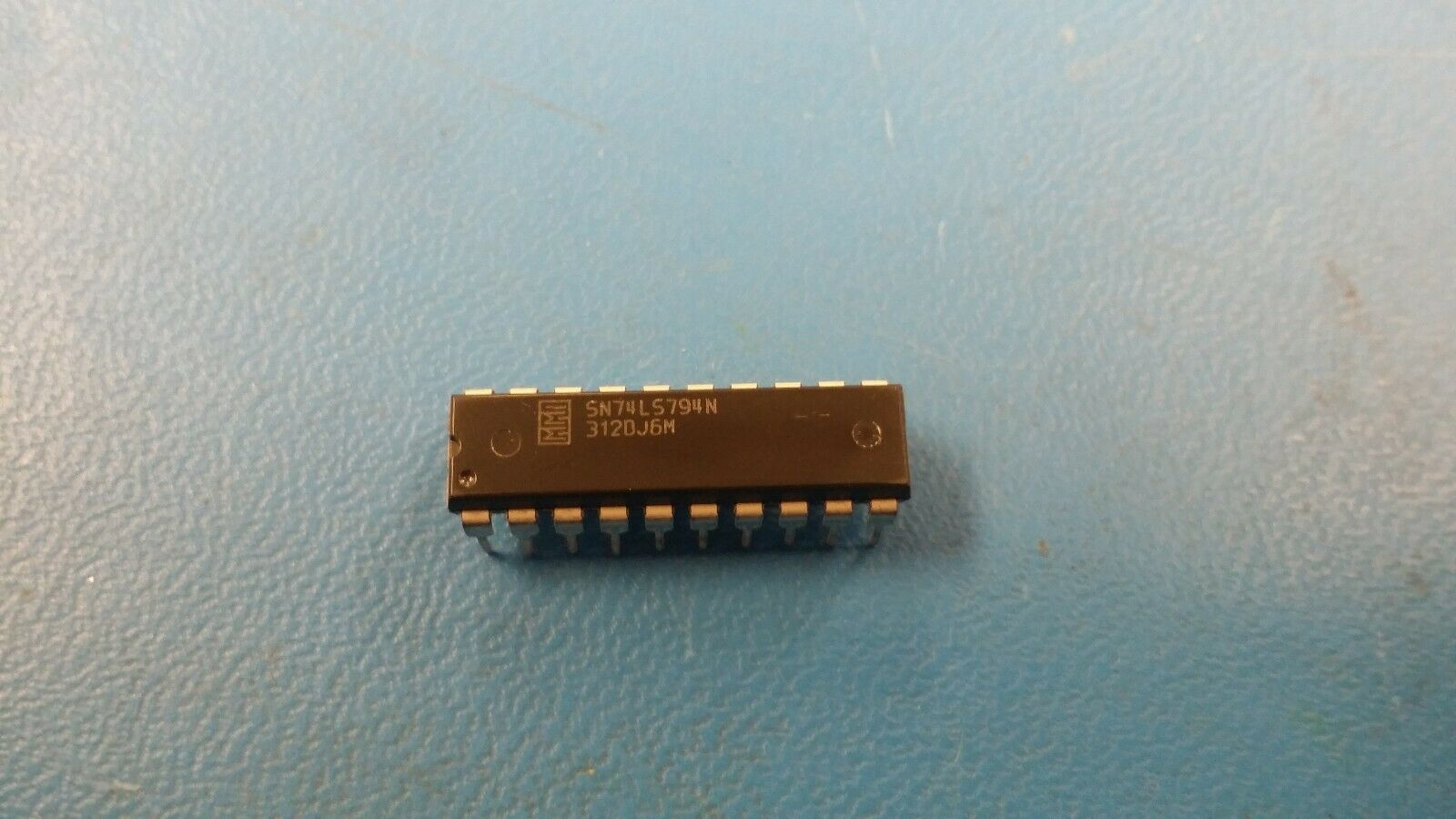

(1 PC) SN74LS794N MMI D Flip-Flop, 1-Func, Positive Edge Triggered, 8-Bit, DIP20
Tax included.
THIS LISTING IS FOR (1 PC) OF SN74LS794N BY MMI
D Flip-Flop, 1-Func, Positive Edge Triggered, 8-Bit, DIP20
Part #: SN74LS794N
Part Category: Logic ICs
Manufacturer: Advanced Micro Devices, Inc. (MMI)
Description: D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDIP20
| Status | Discontinued |
| Logic IC Type | D FLIP-FLOP |
| Sub Category | FF/Latches |
| Family | LS |
| fmax-Min | 35.0 MHz |
| JESD-30 Code | R-PDIP-T20 |
| JESD-609 Code | e0 |
| Load Capacitance (CL) | 45.0 pF |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 75.0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supply Current-Max (ICC) | 120.0 mA |
| Propagation Delay (tpd) | 20.0 ns |
| Qualification Status | Not Qualified |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Trigger Type | POSITIVE EDGE |
| Additional Feature | WITH READ-BACK |
