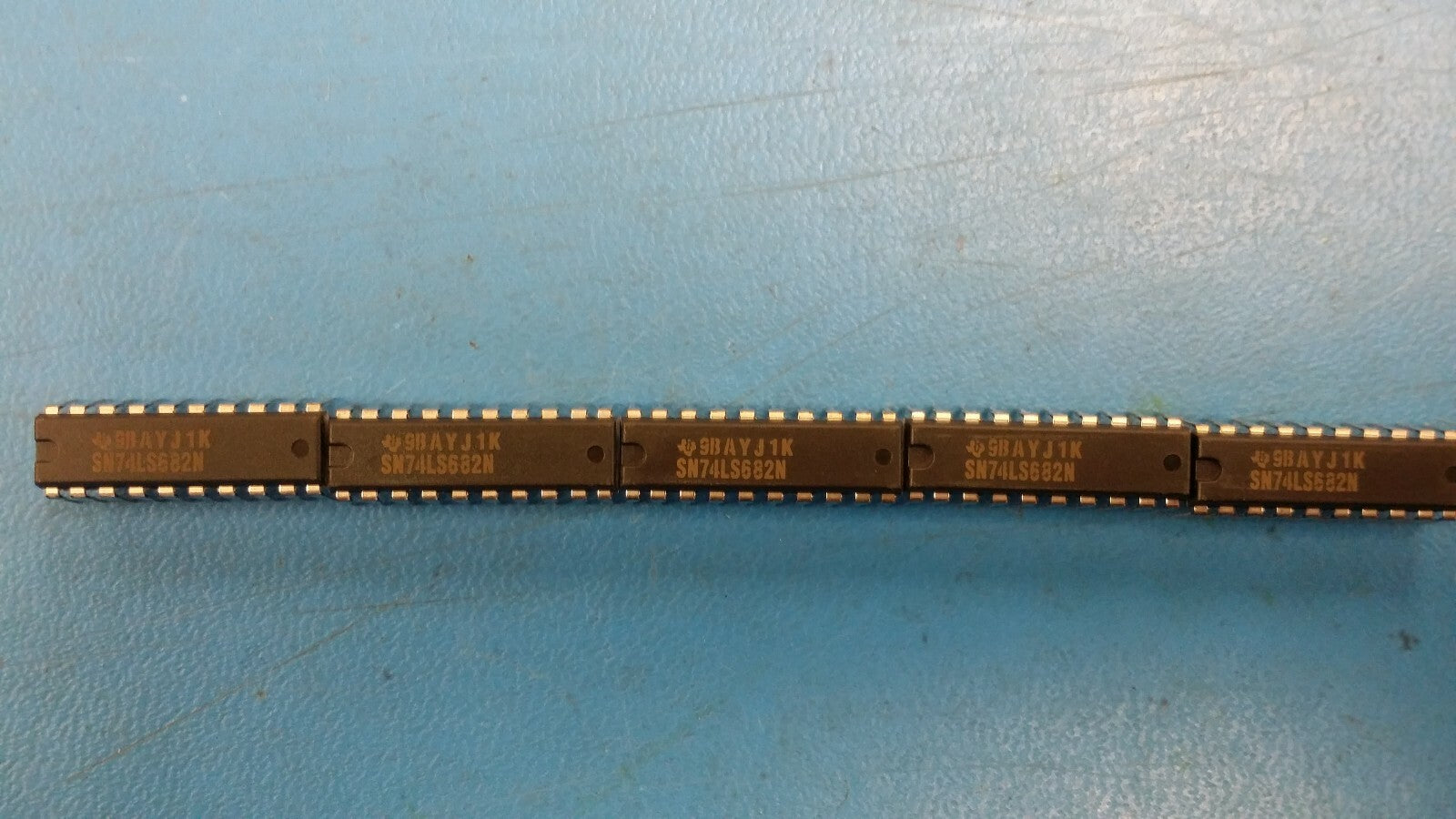

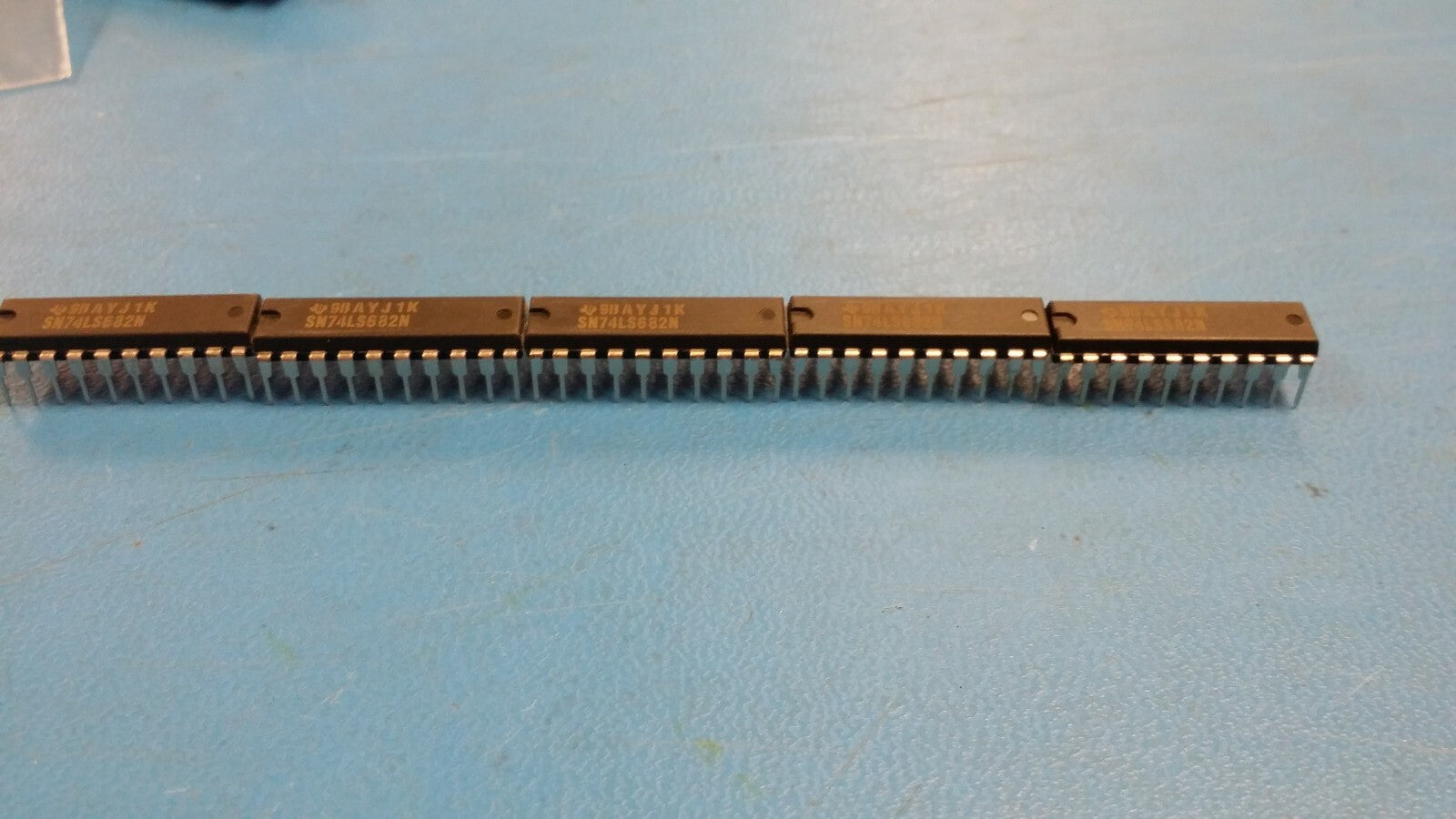

(1 PC) SN74LS682N TI Magnitude Comparator 8-Bit 20-Pin PDIP
Tax included.
THIS LISTING IS FOR ( PC) OF SN74LS682N BY TI
Magnitude Comparator 8-Bit 20-Pin PDIP
Manufacturer Texas Instruments
Series 74LS
Packaging Tube
Part Status Active
Type Magnitude Comparator
Number of Bits 8
Output Active Low
Output Function A=B, A>B
Voltage - Supply 4.85V ~ 5.25V
Current - Output High, Low 400µA, 24mA
Max Propagation Delay @ V, Max CL 30ns @ 5V, 45pF
Operating Temperature 0°C ~ 70°C
Package / Case 20-DIP (0.300", 7.62mm)
Supplier Device Package 20-PDIP
Mounting Type Through Hole
Base Part Number SN74LS68
