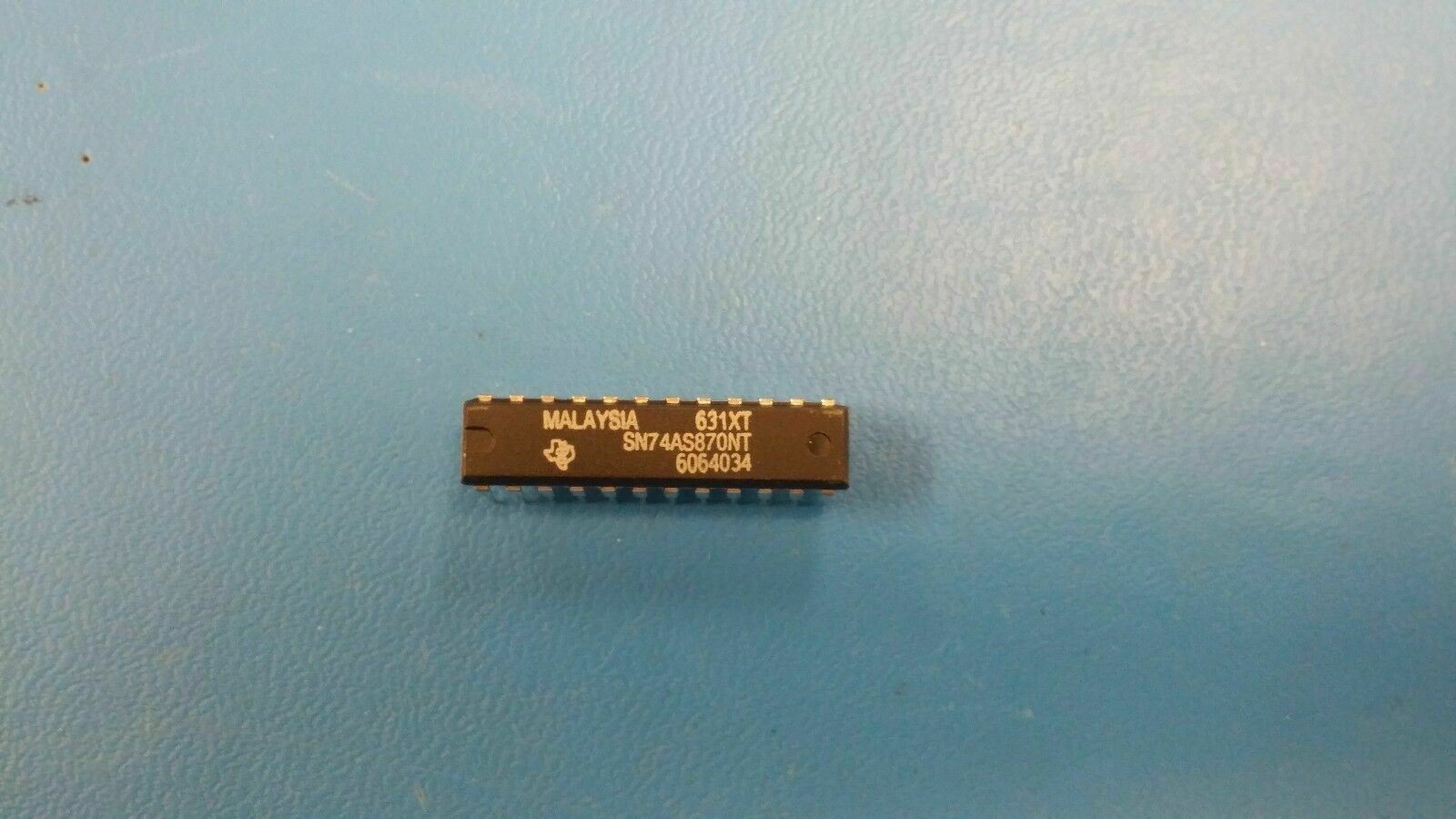

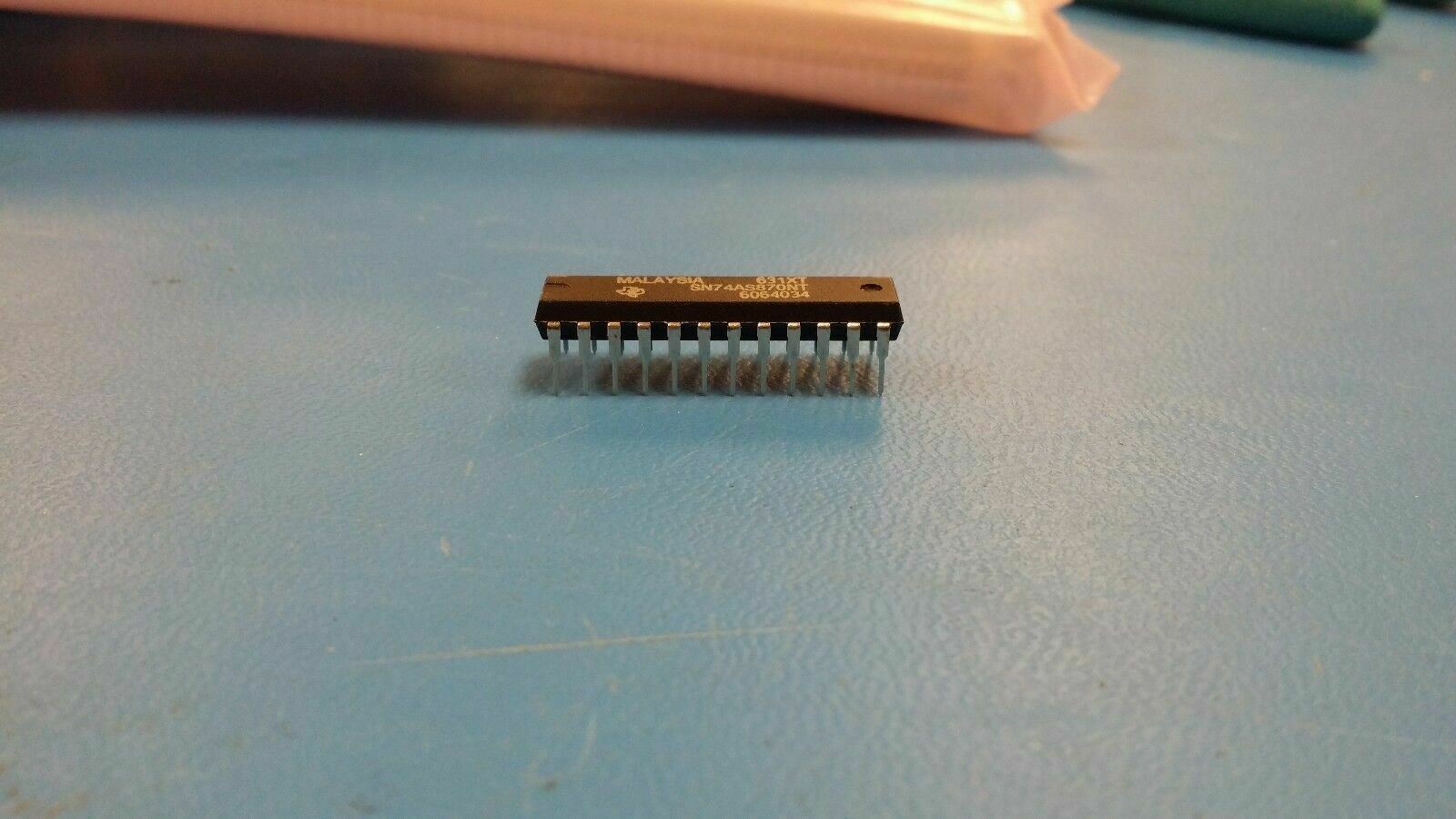

(1 PC) SN74AS870NT TI 16X4 DUAL-PORT SRAM 15ns PDIP24
Tax included.
THIS LISTING IS FOR (1 PC) OF SN74AS870NT BY TI
16X4 DUAL-PORT SRAM 15ns PDIP24
Part #: SN74AS870NT
Part Category: Memory ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: 16X4 DUAL-PORT SRAM, 15ns, PDIP24
Manufacturer: Texas Instruments High-Performance Analog
Description: 16X4 DUAL-PORT SRAM, 15ns, PDIP24
| Status | Discontinued |
| Sub Category | Other Memory ICs |
| Access Time-Max | 15.0 ns |
| JESD-30 Code | R-PDIP-T24 |
| JESD-609 Code | e0 |
| Memory Density | 64.0 bit |
| Memory IC Type | DUAL-PORT SRAM |
| Memory Width | 4 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 24 |
| Number of Words | 16.0 words |
| Number of Words Code | 16 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Organization | 16X4 |
| Output Characteristics | 3-STATE |
| Output Enable | NO |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 31.64 mm |
| Width | 7.62 mm |
| Additional Feature | DUAL MEMORY FOR MULTIBUS ARCHITECTURE |
