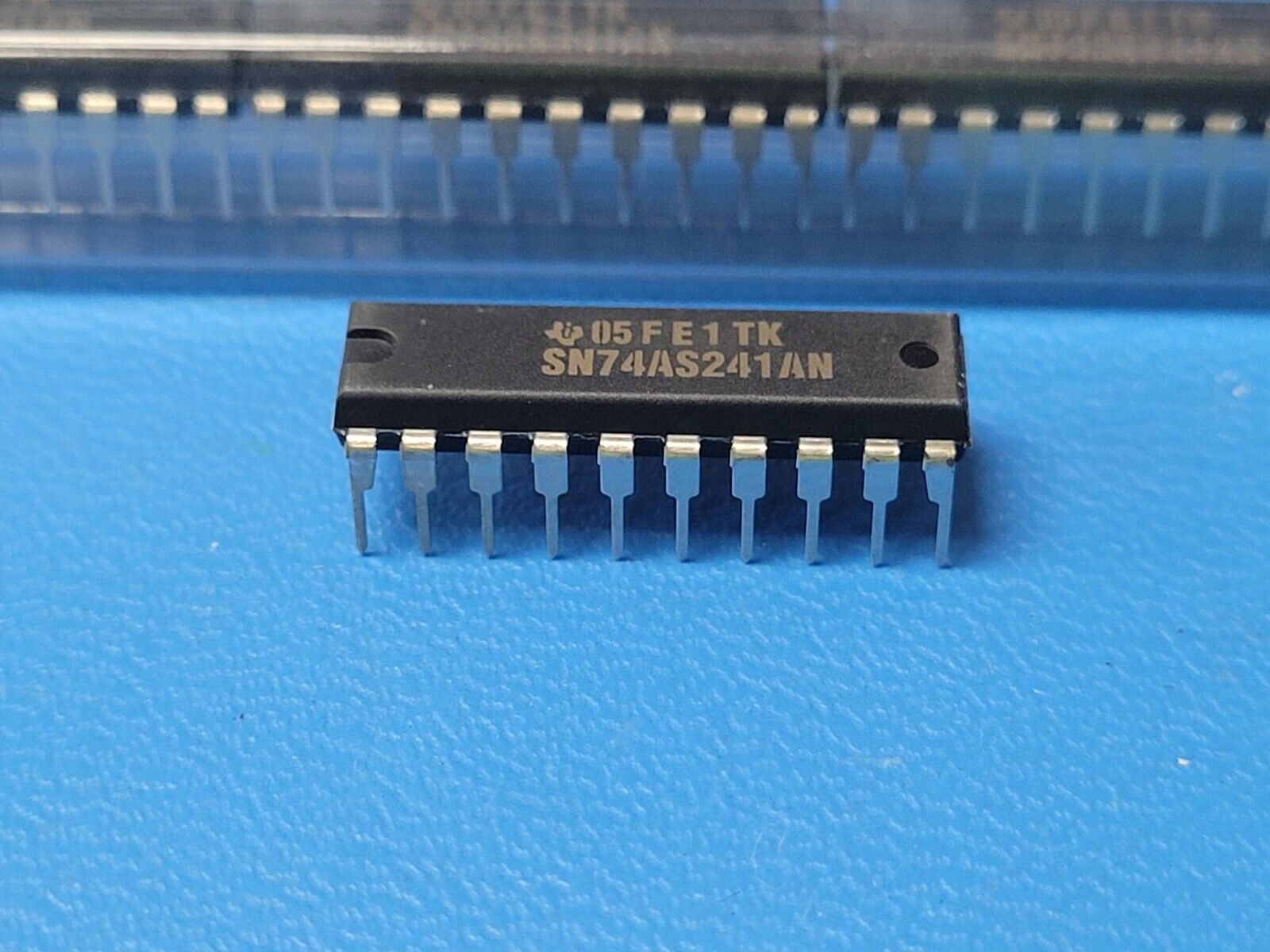

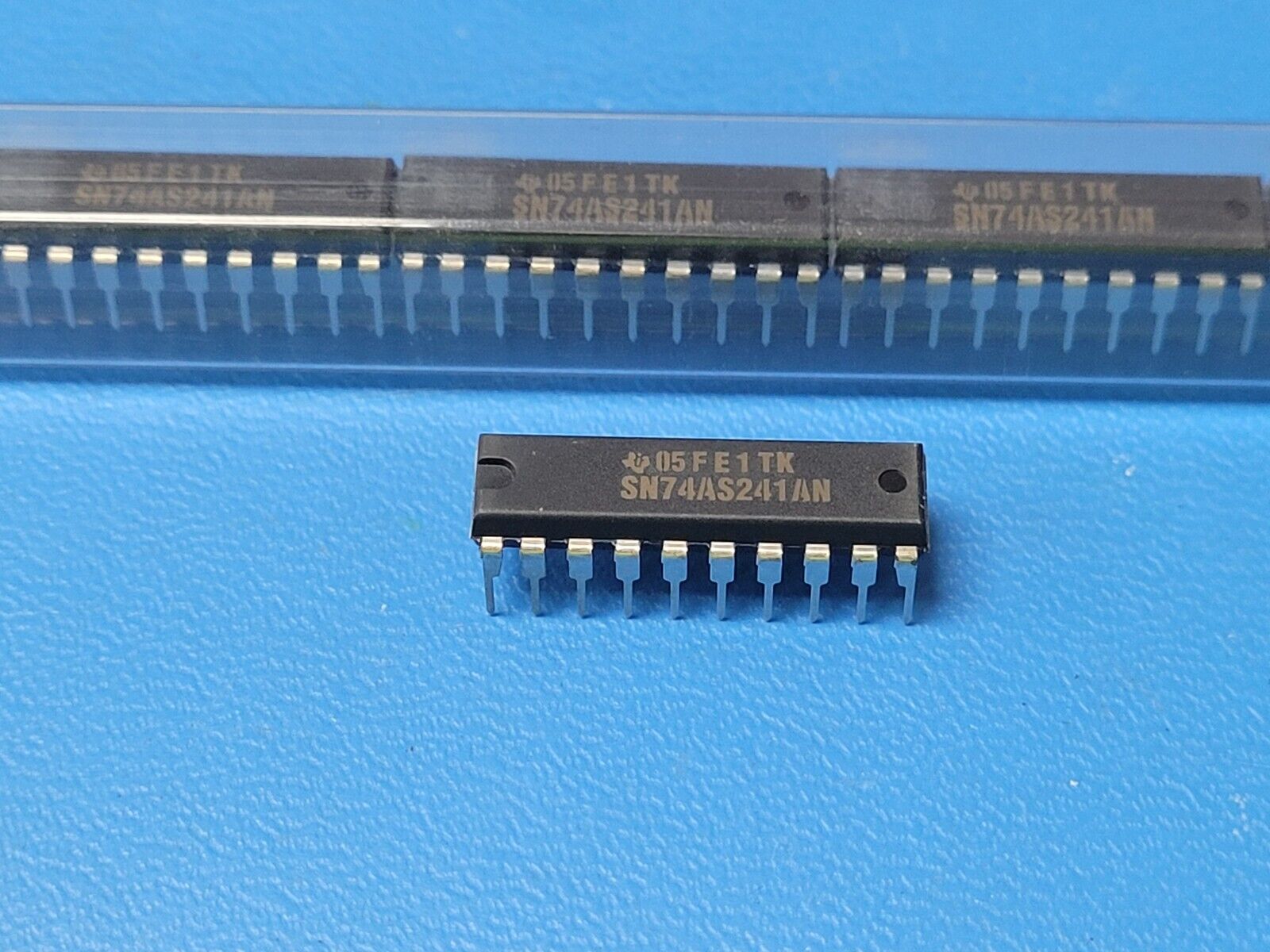

(1 PC) SN74AS241AN TI IC BUFFER NON-INVERT 5.5V 20DIP
Tax included.
THIS IS FOR (1 PC) OF SN74AS241AN BY TI
IC BUFFER NON-INVERT 5.5V 20DIP
Manufacturer: Texas Instruments
Product Category: Buffers & Line Drivers
RoHS: N
Number of Input Lines: 8 Input
Number of Output Lines: 3 Output
Polarity: Non-Inverting
High Level Output Current: - 15 mA
Low Level Output Current: 64 mA
Quiescent Current: 15 mA
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Operating Supply Current: 26 mA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package / Case: PDIP-20
Packaging: Tube
Brand: Texas Instruments
Function: Buffer/Line Driver
Height: 4.57 mm
Input Signal Type: Single-Ended
Length: 24.33 mm
Logic Family: AS
Logic Type: Bipolar
Number of Channels: 8
Operating Supply Voltage: 4.5 V to 5.5 V
Output Type: 3-State
Product Type: Buffers & Line Drivers
Propagation Delay Time: 6.2 ns
Series: SN74AS241A
20
Subcategory: Logic ICs
Technology: Bipolar
Width: 6.35 mm
Unit Weight: 0.042297 oz
