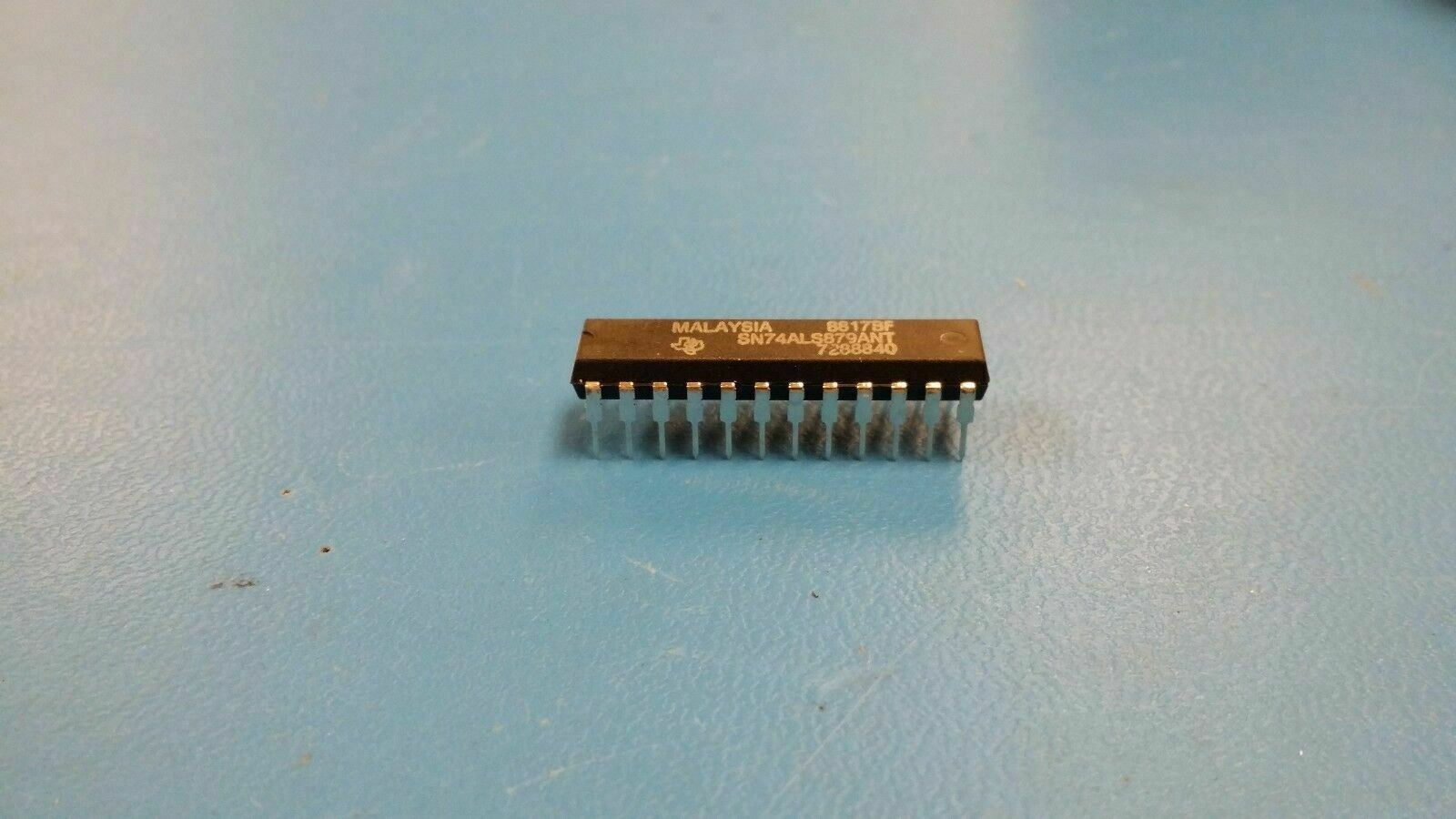

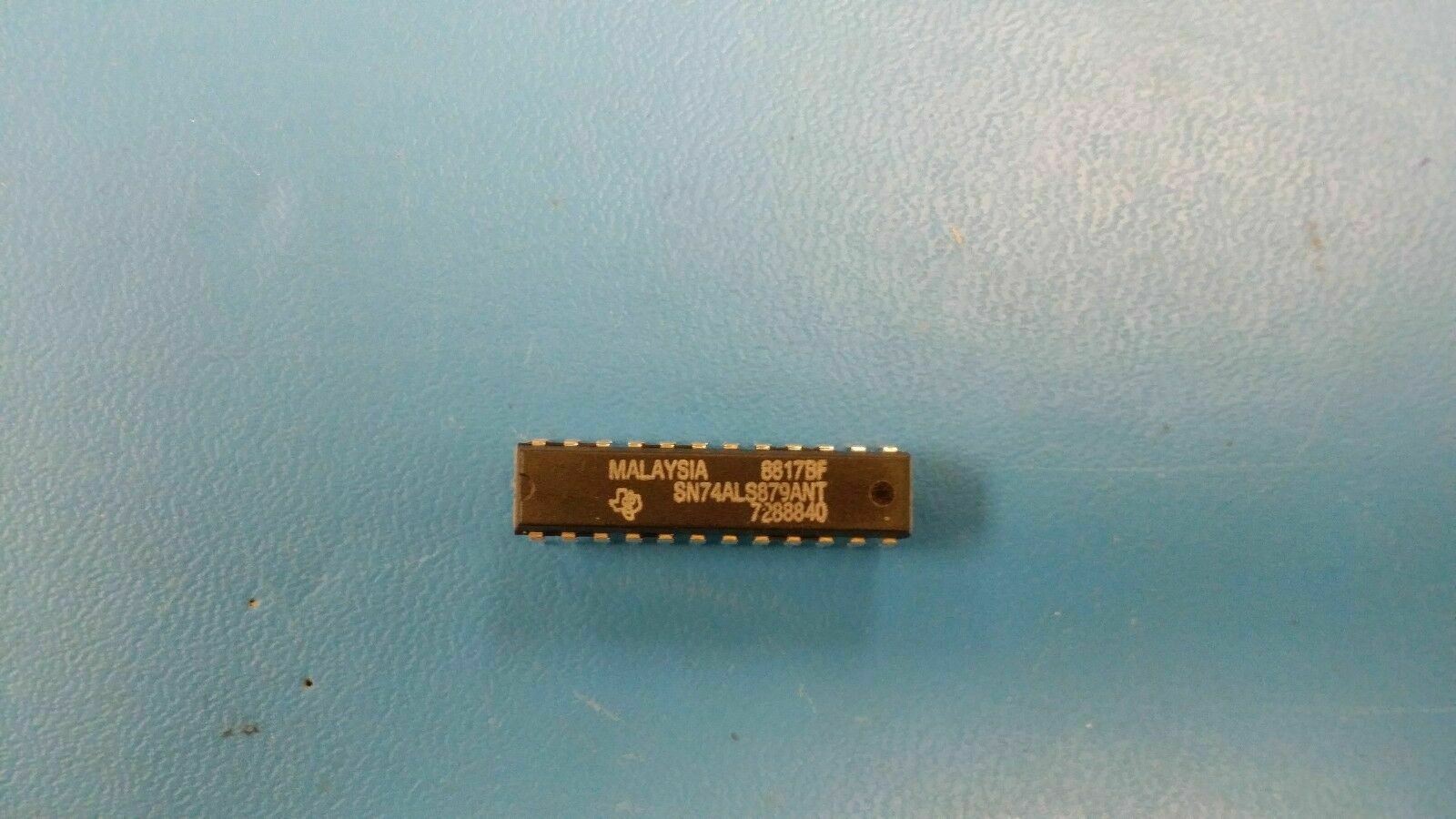

(1 PC) SN74ALS879ANT TI DUAL 4-BIT DRIVER TRUE OUTPUT PDIP24
Tax included.
THIS LISTING IS FOR (1 PC) OF SN74ALS879ANT BY TI
DUAL 4-BIT DRIVER TRUE OUTPUT PDIP24
Part #: SN74ALS879ANT
Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: ALS SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDIP24
Manufacturer: Texas Instruments High-Performance Analog
Description: ALS SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDIP24
| Mfr Package Description | 0.300 INCH, PLASTIC, DIP-24 |
| Status | Discontinued |
| Logic IC Type | BUS DRIVER |
| Sub Category | FF/Latches |
| Family | ALS |
| JESD-30 Code | R-PDIP-T24 |
| JESD-609 Code | e0 |
| Load Capacitance (CL) | 50.0 pF |
| Number of Bits | 4 |
| Number of Functions | 2 |
| Number of Ports | 2 |
| Number of Terminals | 24 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 5 |
| Power Supply Current-Max (ICC) | 31.0 mA |
| Propagation Delay (tpd) | 16.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Trigger Type | POSITIVE EDGE |
| Length | 31.64 mm |
| Width | 7.62 mm |
| Additional Feature | WITH SYNCHRONOUS CLEAR |
