(1 PC) SN74ABTH162260DLR TI Latch Multiplexed 3-ST 12-CH D-Type 56-Pin SSOP
Tax included.

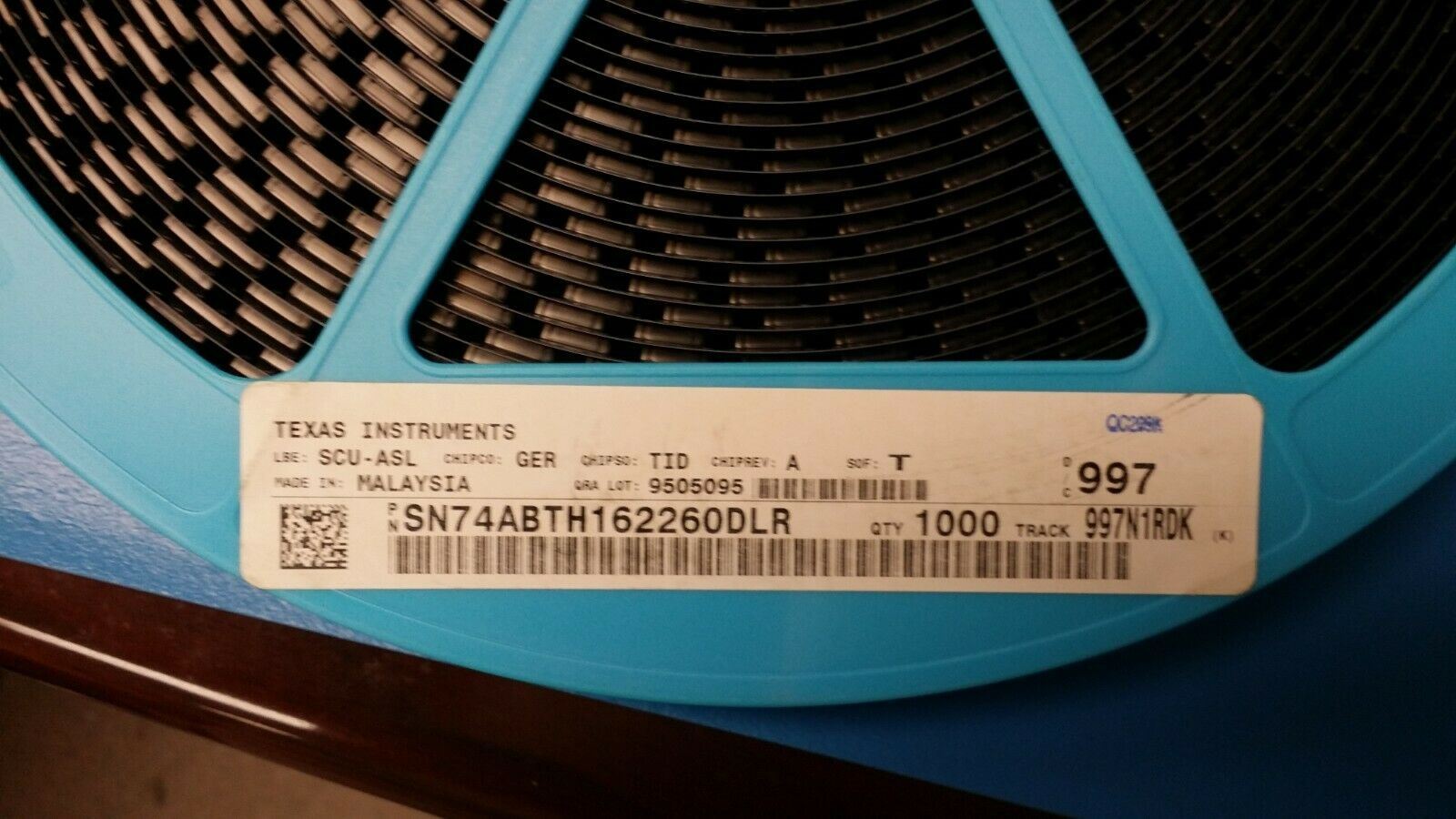

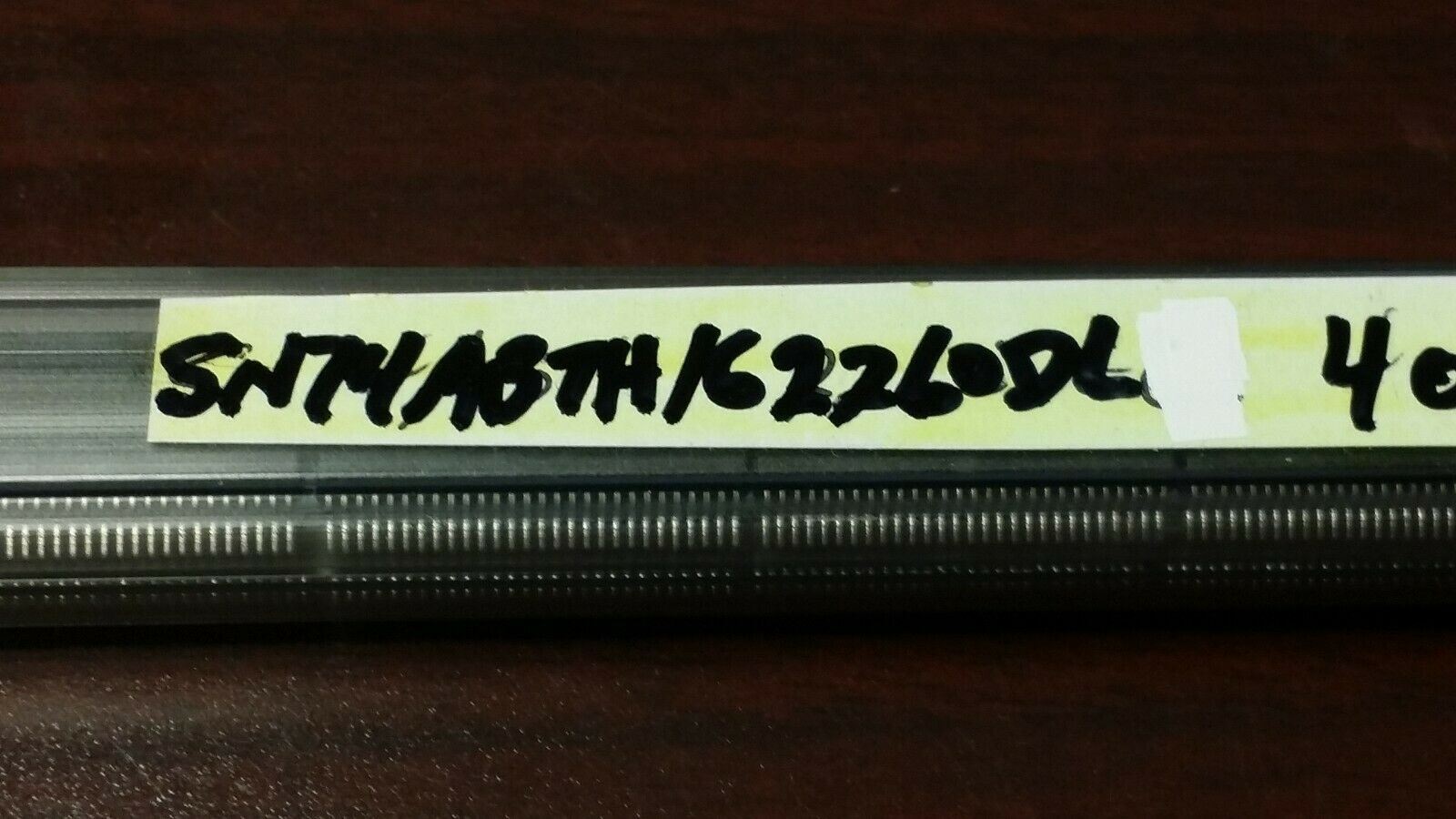

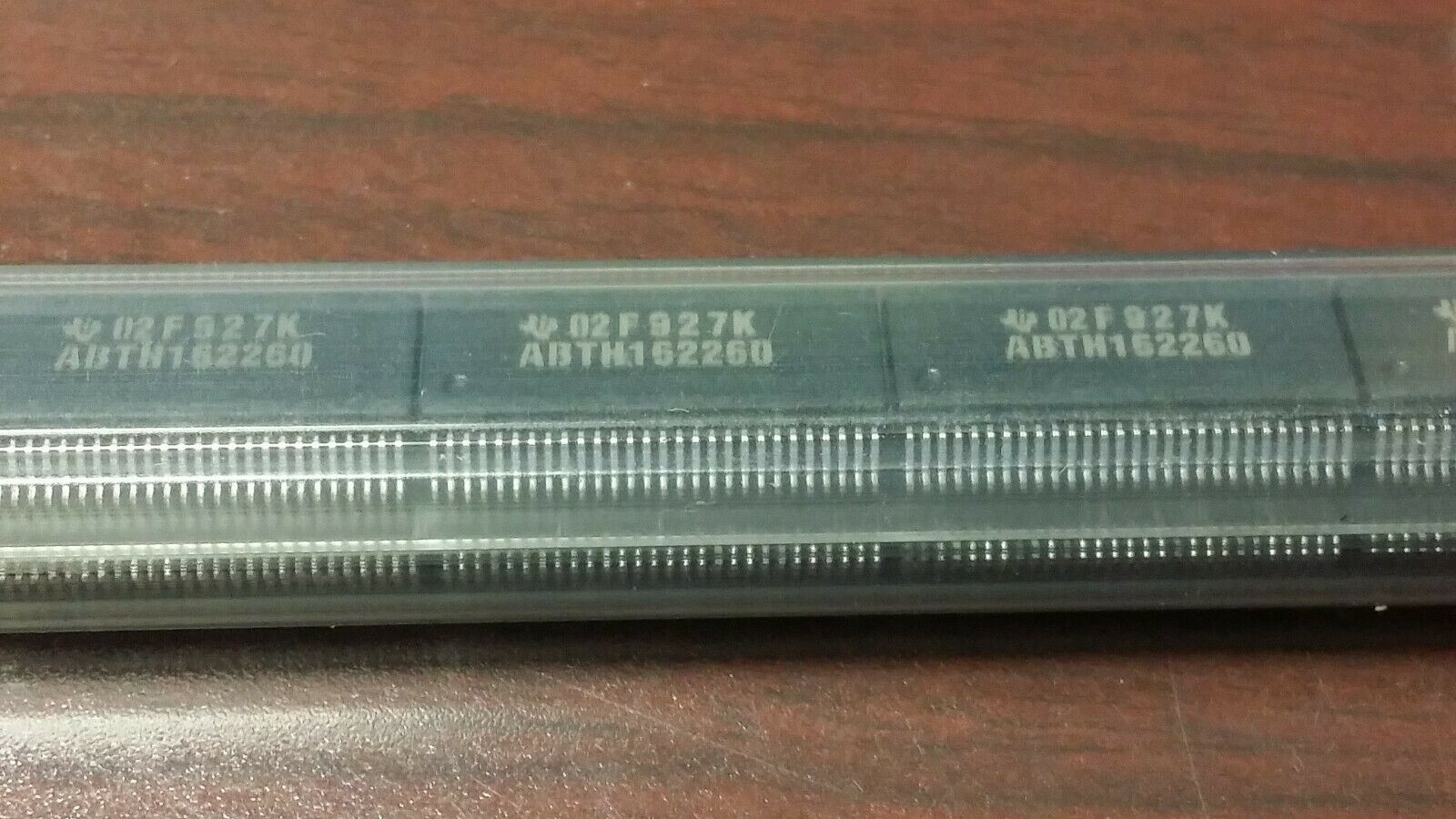

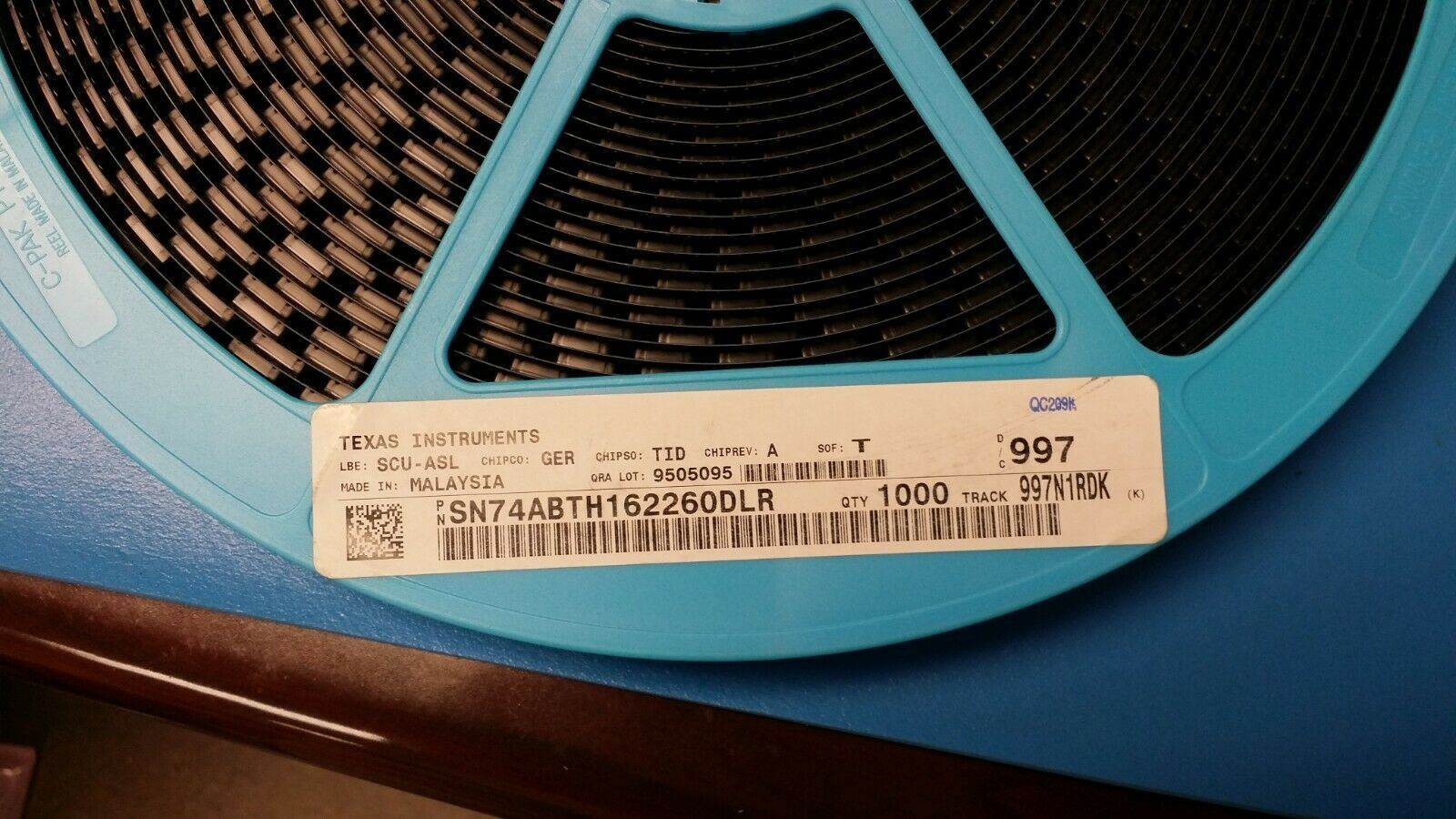

THIS LISTING IS FOR (1 PC) OF SN74ABTH162260DLR BY TI
Latch Multiplexed 3-ST 12-CH D-Type 56-Pin SSOP
description:
The ’ABTH162260 are 12-bit to 24-bit multiplexed D-type latches used in applications where two separate data
paths must be multiplexed onto, or demultiplexed from, a single data path. Typical applications include
multiplexing and/or demultiplexing of address and data information in microprocessor or bus-interface
applications. These devices are also useful in memory-interleaving applications.
Three 12-bit I/O ports (A1–A12, 1B1–1B12, and 2B1–2B12) are available for address and/or data transfer. The
output-enable (OE1B, OE2B, and OEA) inputs control the bus-transceiver functions. The OE1B and OE2B
control signals also allow bank control in the A-to-B direction.
Address and/or data information can be stored using the internal storage latches. The latch-enable (LE1B,
LE2B, LEA1B, and LEA2B) inputs are used to control data storage. When the latch-enable input is high, the
latch is transparent. When the latch-enable input goes low, the data present at the inputs is latched and remains
latched until the latch-enable input is returned high.
The B-port outputs, which are designed to sink up to 12 mA, include equivalent 25-Ω series resistors to reduce
overshoot and undershoot.
Manufacturer Texas Instruments
Series 74ABTH
Packaging Tape & Reel (TR)
Part Status Active
Logic Type D-Type Transparent Latch
Circuit 12:24
Output Type Tri-State
Voltage - Supply 4.5V ~ 5.5V
Independent Circuits 1
Delay Time - Propagation 3.6ns
Current - Output High, Low 32mA, 64mA
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 56-BSSOP (0.295", 7.50mm Width)
Supplier Device Package 56-SSOP
