(1 PC) SN72741J TI Operational Amplifier 1 Func 7500uV Offset-Max BIPolar CDIP14
Tax included.

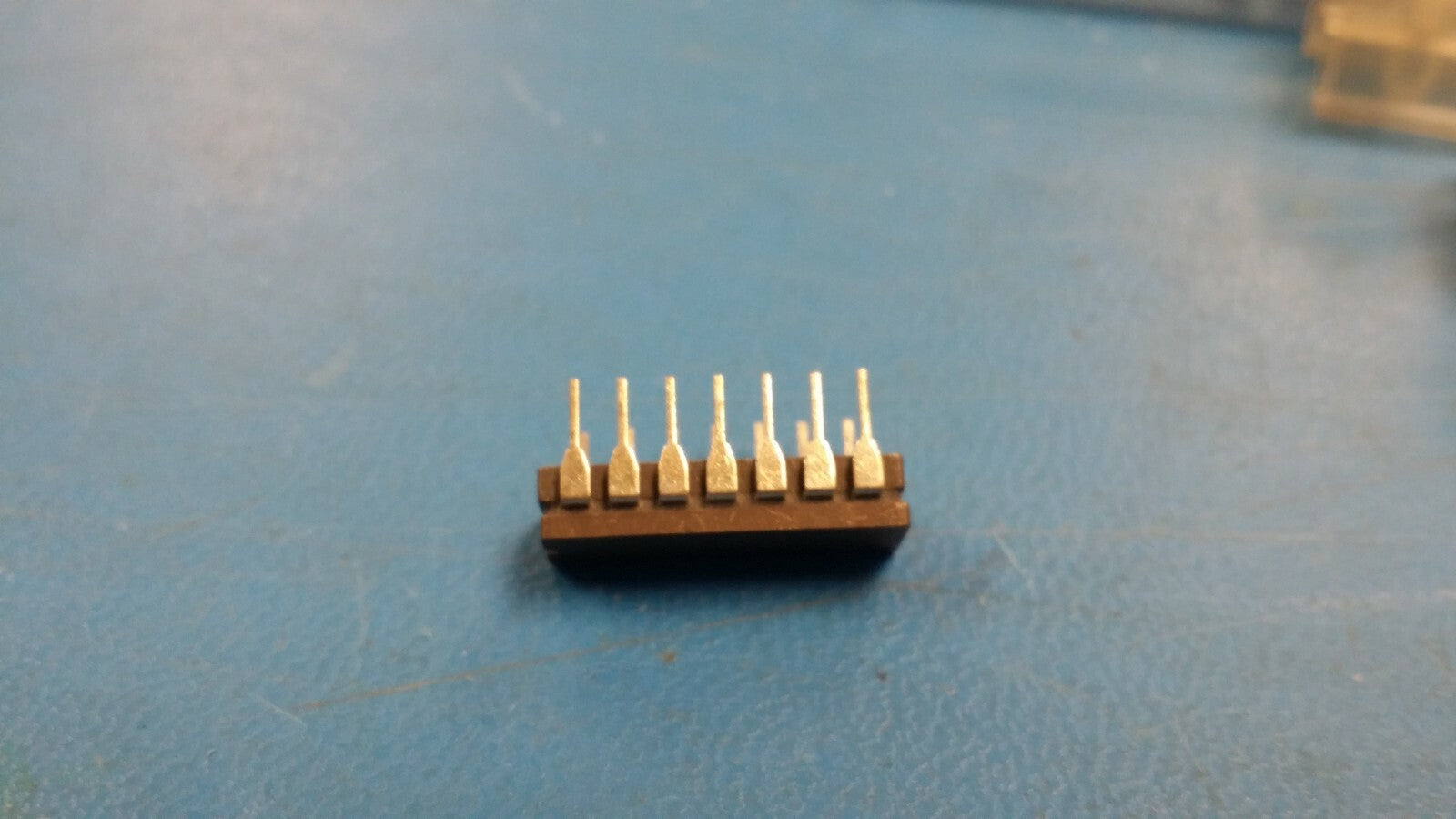

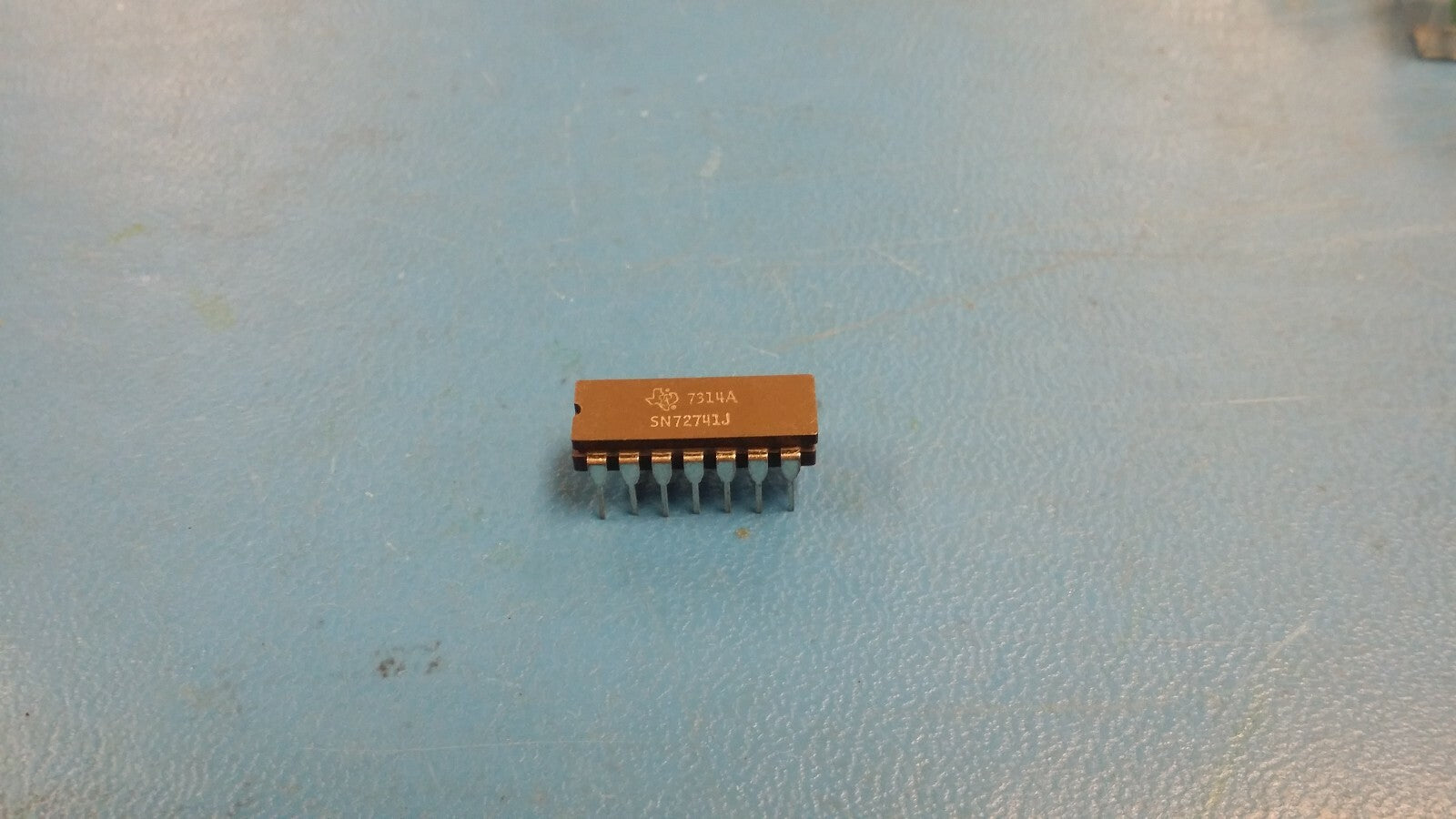

THIS LISTING IS FOR (1 PC) OF SN72741J BY TI
Operational Amplifier 1 Func 7500uV Offset-Max BIPolar CDIP14
Part #: SN72741J
Part Category: Amplifiers
Manufacturer: Texas Instruments High-Performance Analog
Description: Operational Amplifier, 1 Func, 7500uV Offset-Max, BIPolar, CDIP14
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Frequency Compensation YES
Input Offset Voltage-Max 7500.0 µV
JESD-30 Code R-XDIP-T14
Low-Offset NO
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 1
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Sub Category Operational Amplifier
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
