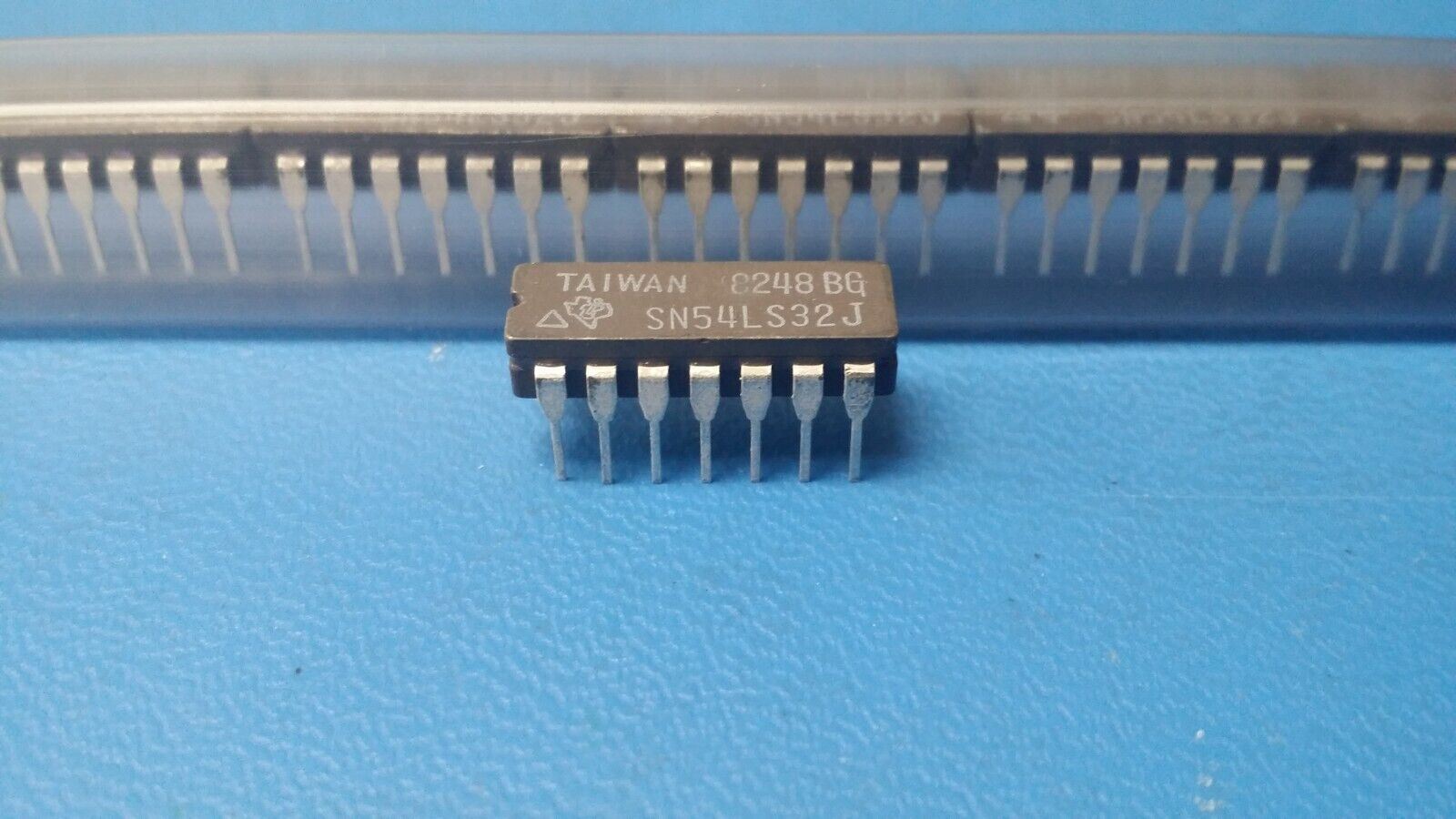

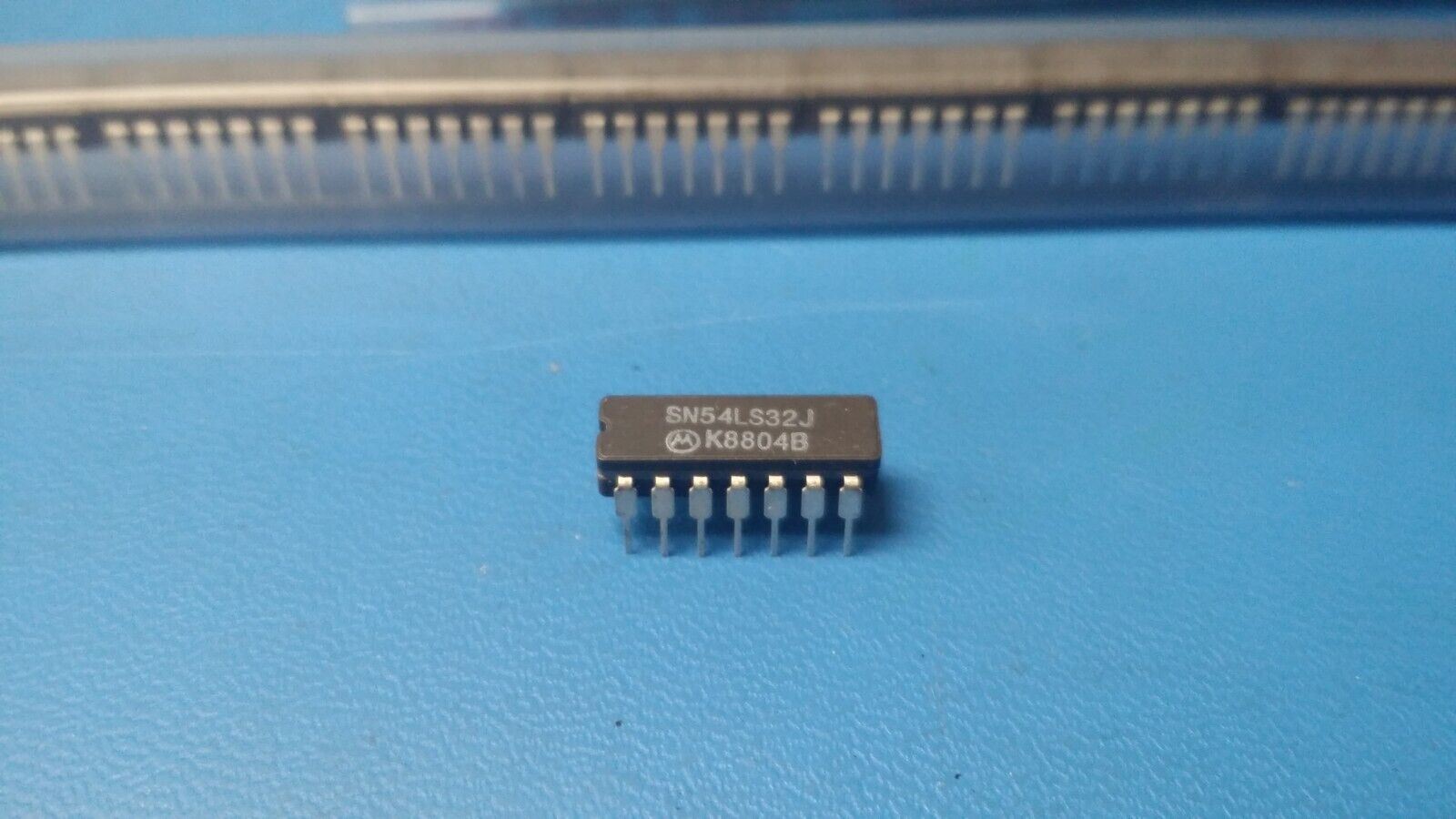

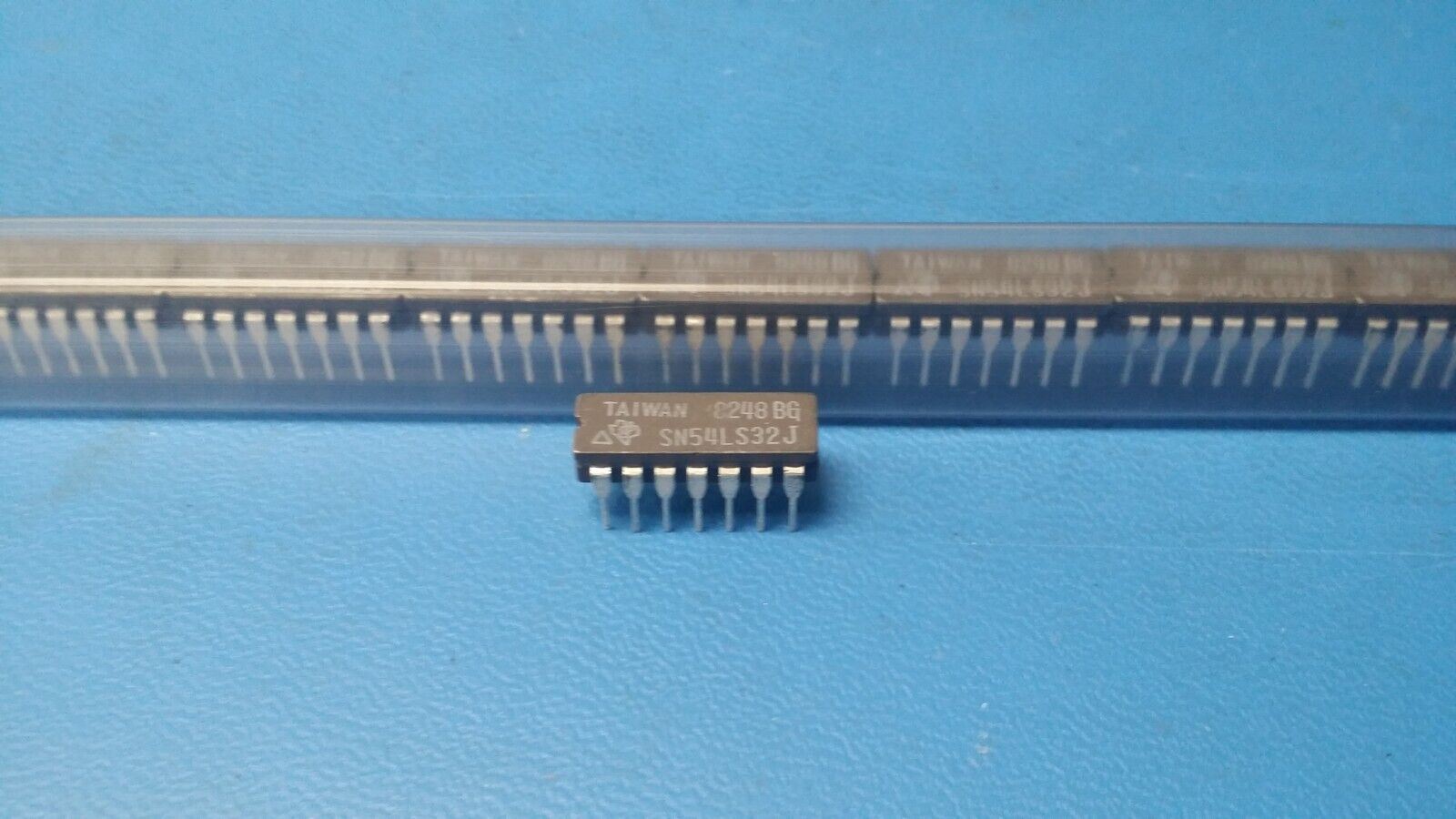

(1 PC) SN54LS32J TI, MOT OR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14
Tax included.
THIS IS FOR (1 PC) OF SN54LS32J BY TI, MOT
OR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14
Part #: SN54LS32J
Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: OR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14
Mfr Package Description DIP-14
Status Active
Logic IC Type OR GATE
Sub Category Gates
Family LS
JESD-30 Code R-GDIP-T14
JESD-609 Code e0
Load Capacitance (CL) 15.0 pF
Max I(ol) 8.0E-4 Amp
Number of Functions 4
Number of Inputs 2.0
Number of Terminals 14
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Packing Method TUBE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supply Current-Max (ICC) 9.8 mA
Prop. Delay@Nom-Sup 22.0 ns
Propagation Delay (tpd) 22.0 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology TTL
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 19.56 mm
Width 7.62 mm
