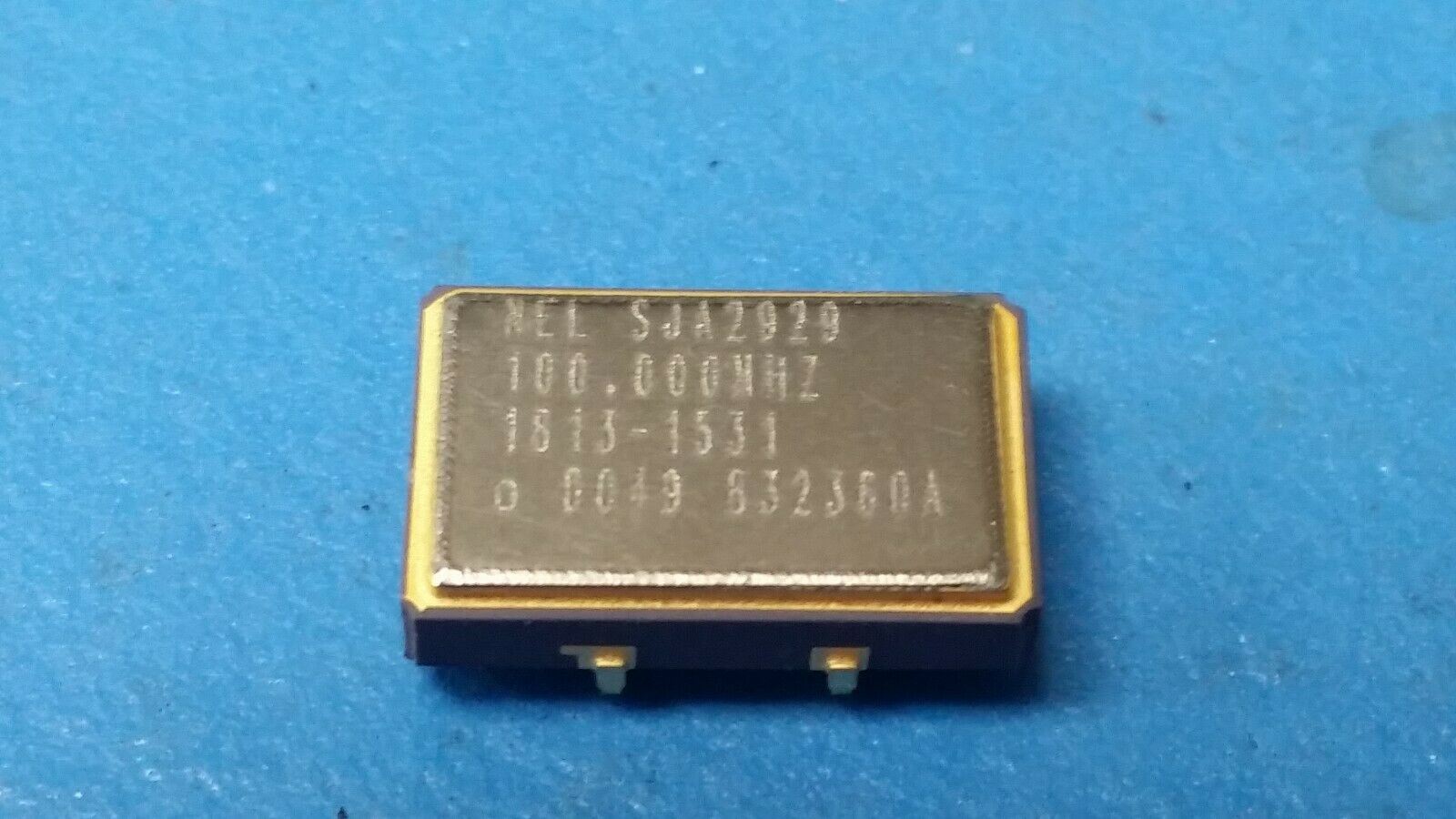

(1 PC) SJ-A2929/100MHz Positive ECL Crystal Clock Oscillator 3.3V 100.000MHz SMD

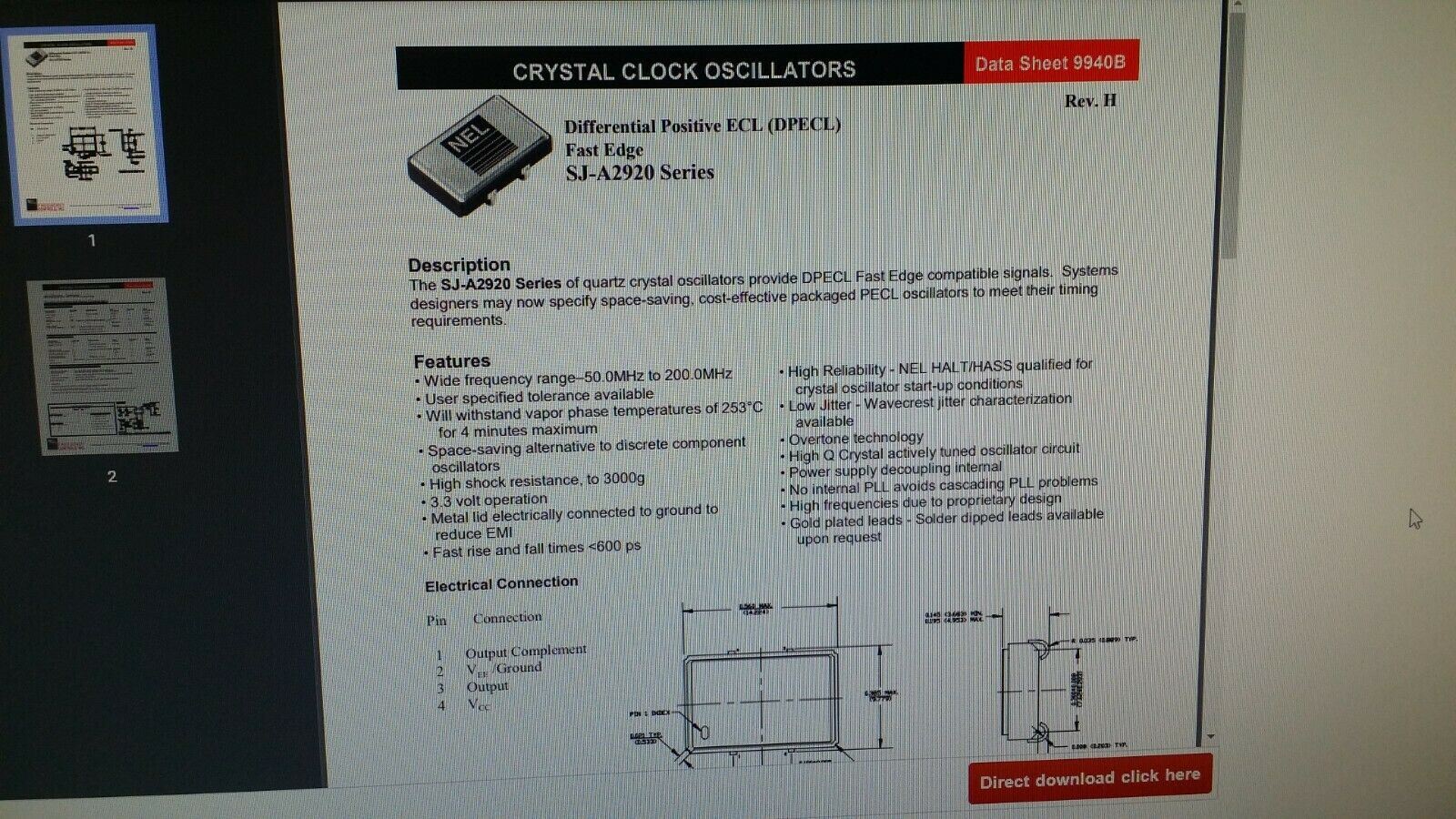

Description

The SJ-A2920 Series of quartz crystal oscillators provide DPECL Fast Edge compatible signals. Systems designers may now specify space-saving, cost-effective packaged PECL oscillators to meet their timing requirements.

Features

• Wide frequency range–50.0MHz to 200.0MHz

• User specified tolerance available

• Will withstand vapor phase temperatures of 253°C for 4 minutes maximum

• Space-saving alternative to discrete component oscillators

• High shock resistance, to 3000g

• 3.3 volt operation

• Metal lid electrically connected to ground to reduce EMI

• Fast rise and fall times <600 ps

• High Reliability - NEL HALT/HASS qualified for crystal oscillator start-up conditions

• Low Jitter - Wavecrest jitter characterization available

• Overtone technology

• High Q Crystal actively tuned oscillator circuit

• Power supply decoupling internal

• No internal PLL avoids cascading PLL problems

• High frequencies due to proprietary design

• Gold plated leads - Solder dipped leads available upon request
