(1 PC) SCN2651CC1N28 SIGNETICS 1 CHANNEL(S) 1Mbps SERIAL COMM CONTROLLER PDIP28
Tax included.

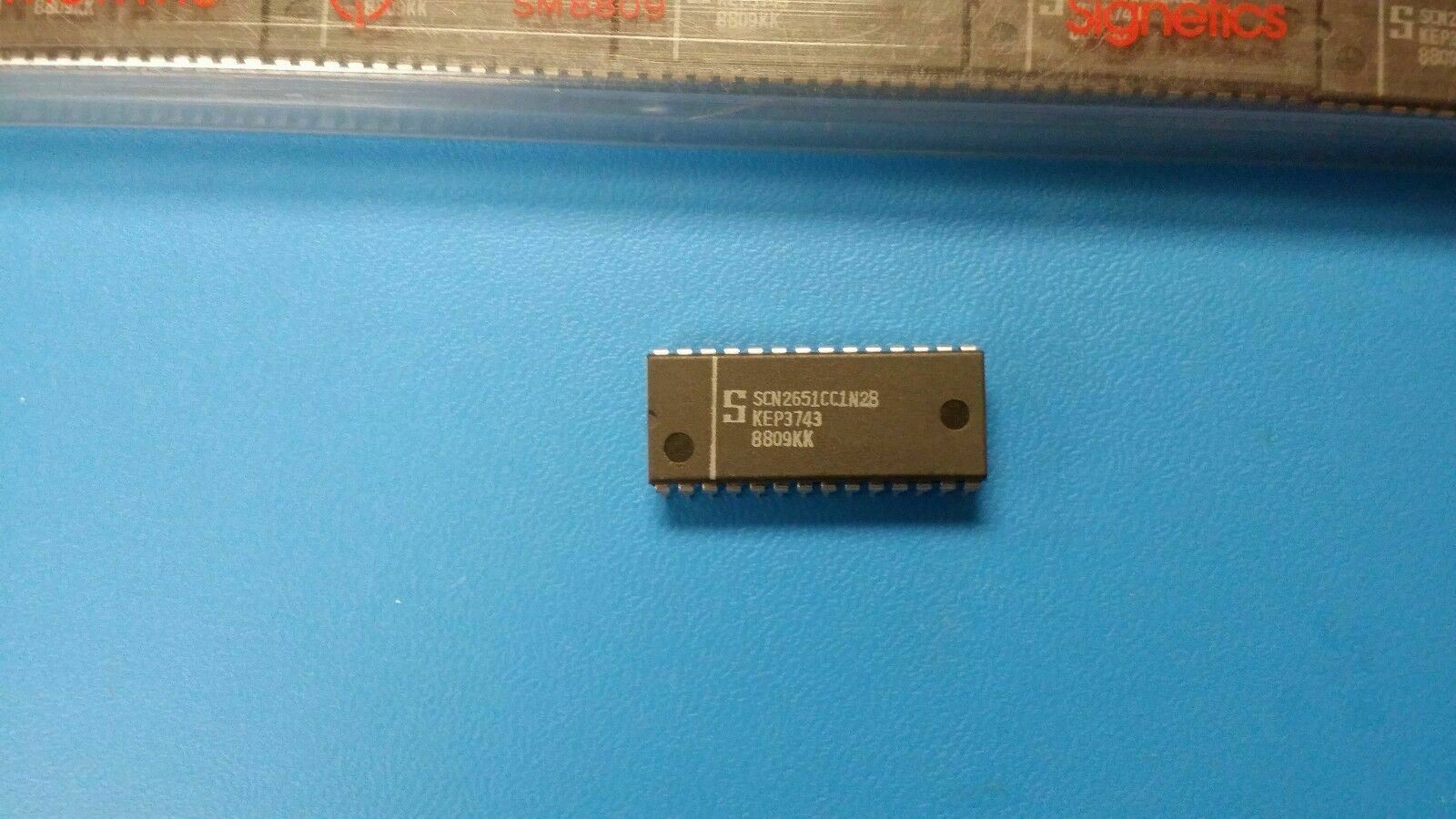

THIS LISTING IS FOR (1 PC) OF SCN2651CC1N28 BY SIGNETICS
1 CHANNEL(S) 1Mbps SERIAL COMM CONTROLLER PDIP28
| Mfr Package Description | PLASTIC, DIP-28 |
| Status | Discontinued |
| Microprocessor/Microcontroller/Peripheral IC Type | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL |
| Address Bus Width | 2.0 |
| Boundary Scan | NO |
| Bus Compatibility | SCN2650 |
| Communication Protocol | ASYNC, BIT; SYNC, BYTE; BISYNC |
| Data Encoding/Decoding Method | NRZ |
| Data Transfer Rate-Max | 0.125 MBps |
| External Data Bus Width | 8.0 |
| JESD-30 Code | R-PDIP-T28 |
| Low Power Mode | NO |
| Number of DMA Channels | 0.0 |
| Number of I/O Lines | 0.0 |
| Number of Serial I/Os | 1.0 |
| Number of Terminals | 28 |
| On Chip Data RAM Width | 0 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| RAM (words) | 0 |
| Seated Height-Max | 5.08 mm |
| Supply Current-Max | 150.0 mA |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | NO |
| Technology | NMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Length | 36.51 mm |
| Width | 15.24 mm |
| Additional Feature | MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS |
