(1 PC) SB80486DX-33 INTEL 32-BIT, 50MHz, MICROPROCESSOR, PQFP208
Tax included.

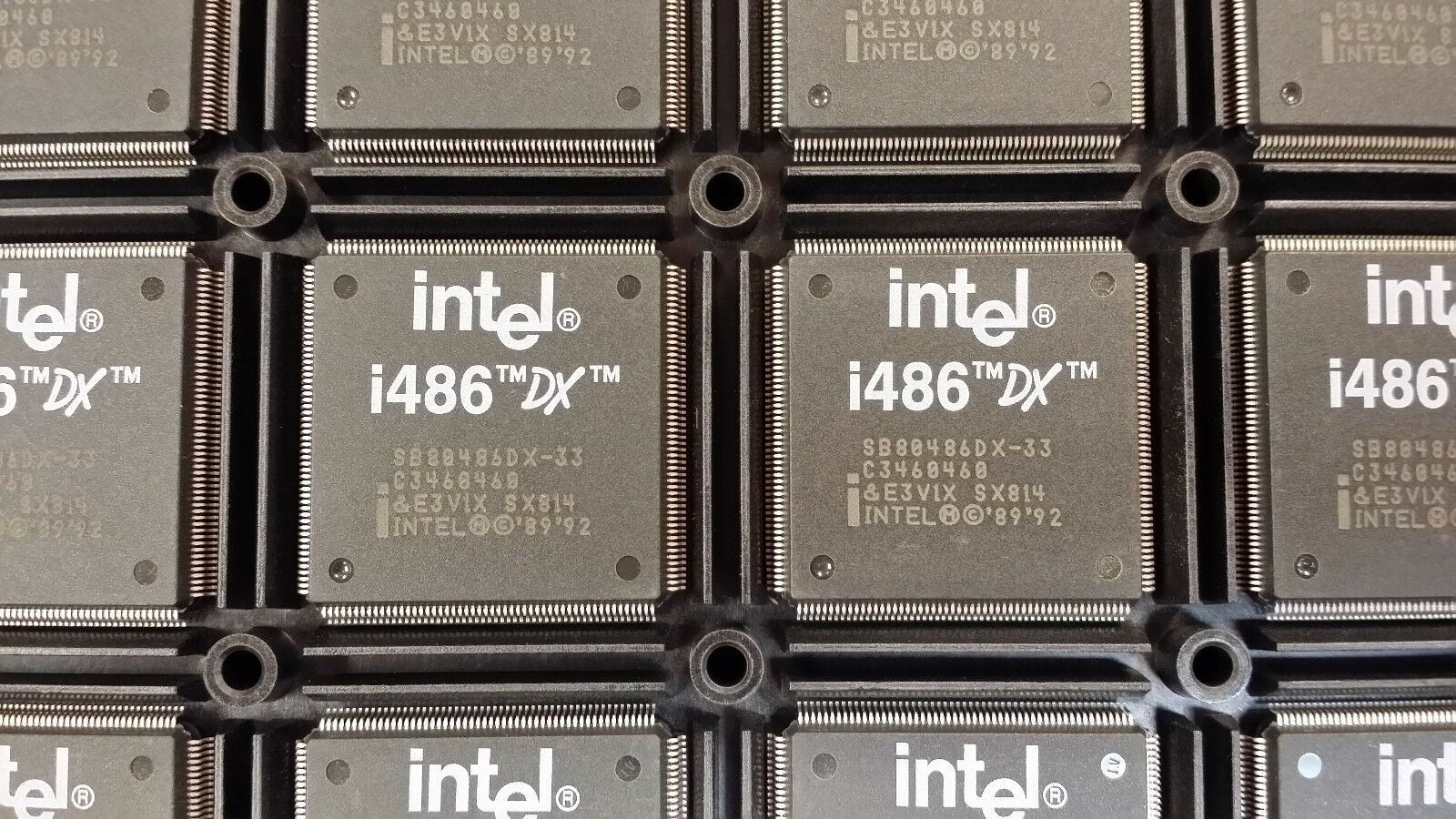

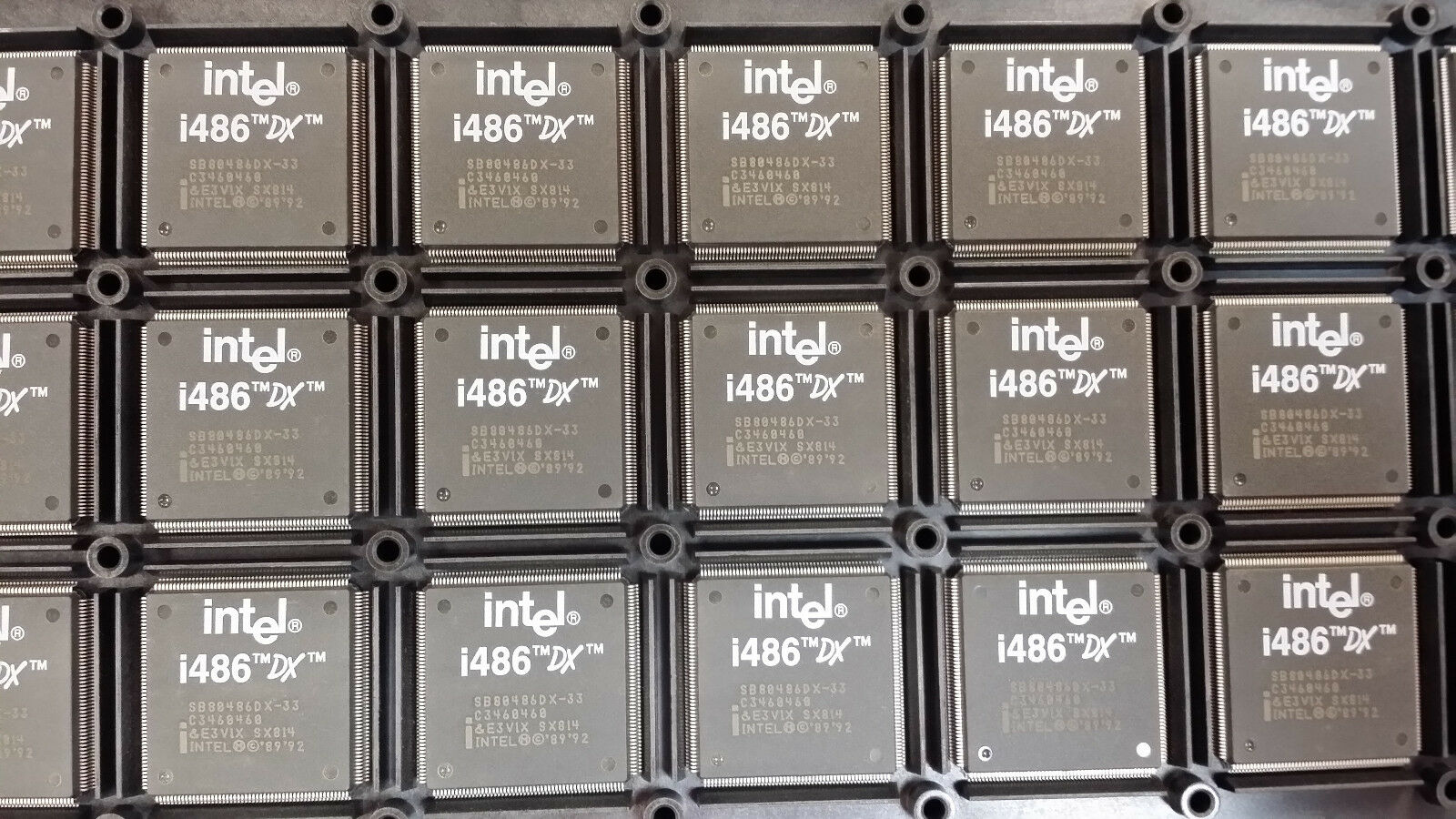

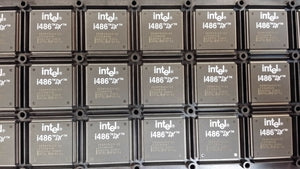

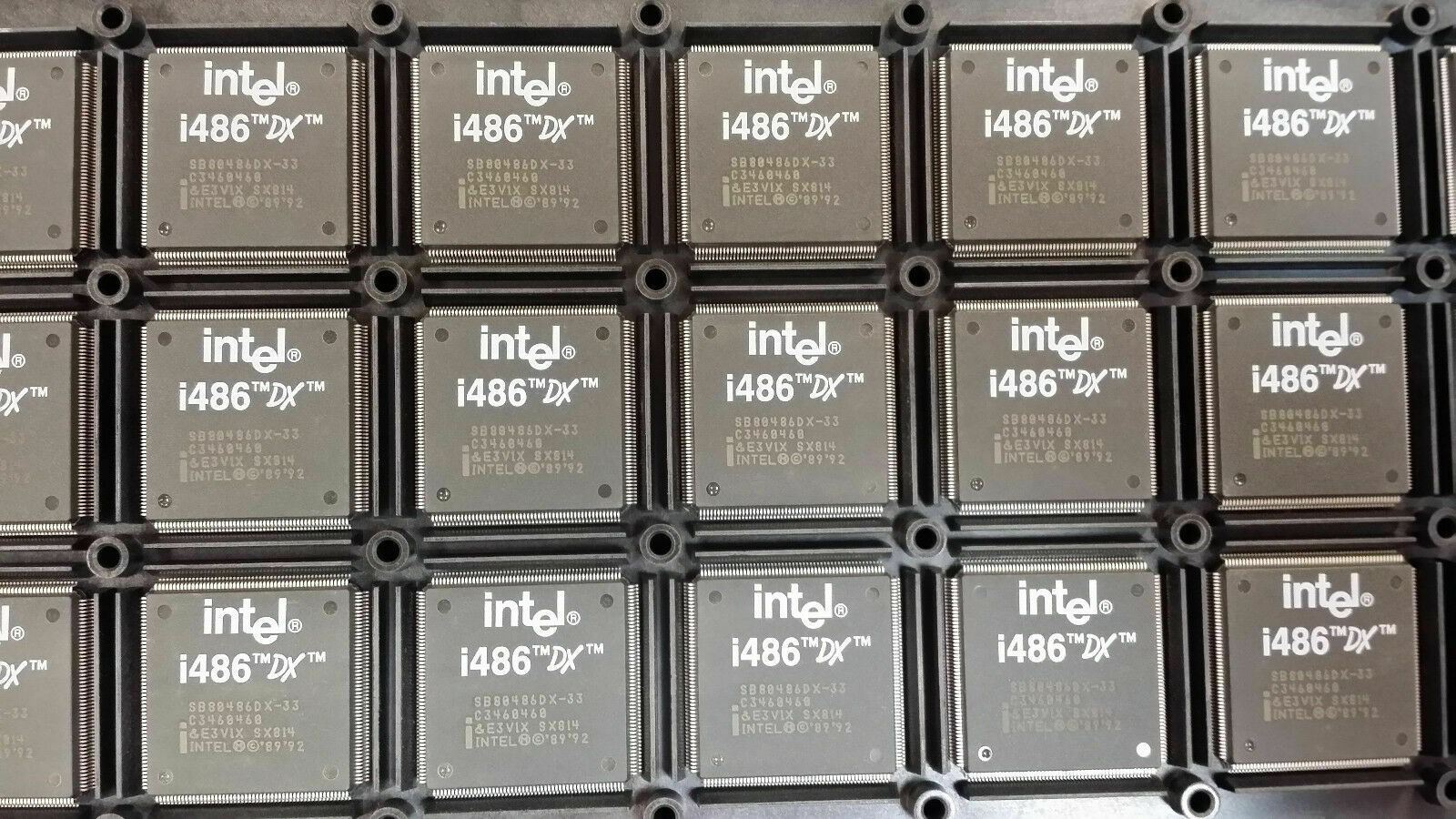

THIS LISTING IS FOR (1 PC) OF SB80486DX-33 BY INTEL
32-BIT, 50MHz, MICROPROCESSOR, PQFP208
Manufacturer: Intel Corporation
Description: 32-BIT, 50MHz, MICROPROCESSOR, PQFP208
Mfr Package Description
32-BIT, 50MHz, MICROPROCESSOR, PQFP208
Part #: SB80486DX33
Part Category: Microprocessors/Microcontrollers/Peripheral ICsManufacturer: Intel Corporation
Description: 32-BIT, 50MHz, MICROPROCESSOR, PQFP208
Mfr Package Description
| SHRINK, QFP-208 | |
| Status | Discontinued |
| Microprocessor/Microcontroller/Peripheral IC Type | MICROPROCESSOR |
| Address Bus Width | 32.0 |
| Bit Size | 32 |
| Boundary Scan | YES |
| Clock Frequency-Max | 33.0 MHz |
| External Data Bus Width | 32.0 |
| Format | FLOATING POINT |
| Integrated Cache | YES |
| JESD-30 Code | S-PQFP-G208 |
| Low Power Mode | YES |
| Number of DMA Channels | 0.0 |
| Number of External Interrupts | 3.0 |
| Number of Serial I/Os | 0.0 |
| Number of Terminals | 208 |
| On Chip Data RAM Width | 0 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | FQFP |
| Package Shape | SQUARE |
| Package Style | FLATPACK, FINE PITCH |
| Qualification Status | Not Qualified |
| RAM (words) | 0 |
| Seated Height-Max | 3.86 mm |
| Speed | 50.0 MHz |
| Supply Current-Max | 415.0 mA |
| Supply Voltage-Nom | 3.3 V |
| Supply Voltage-Min | 2.7 V |
| Supply Voltage-Max | 3.6 V |
| Surface Mount | YES |
| Technology | MOS |
| Temperature Grade | OTHER |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Length | 28.0 mm |
| Width | 28.0 mm |
|
|
|
