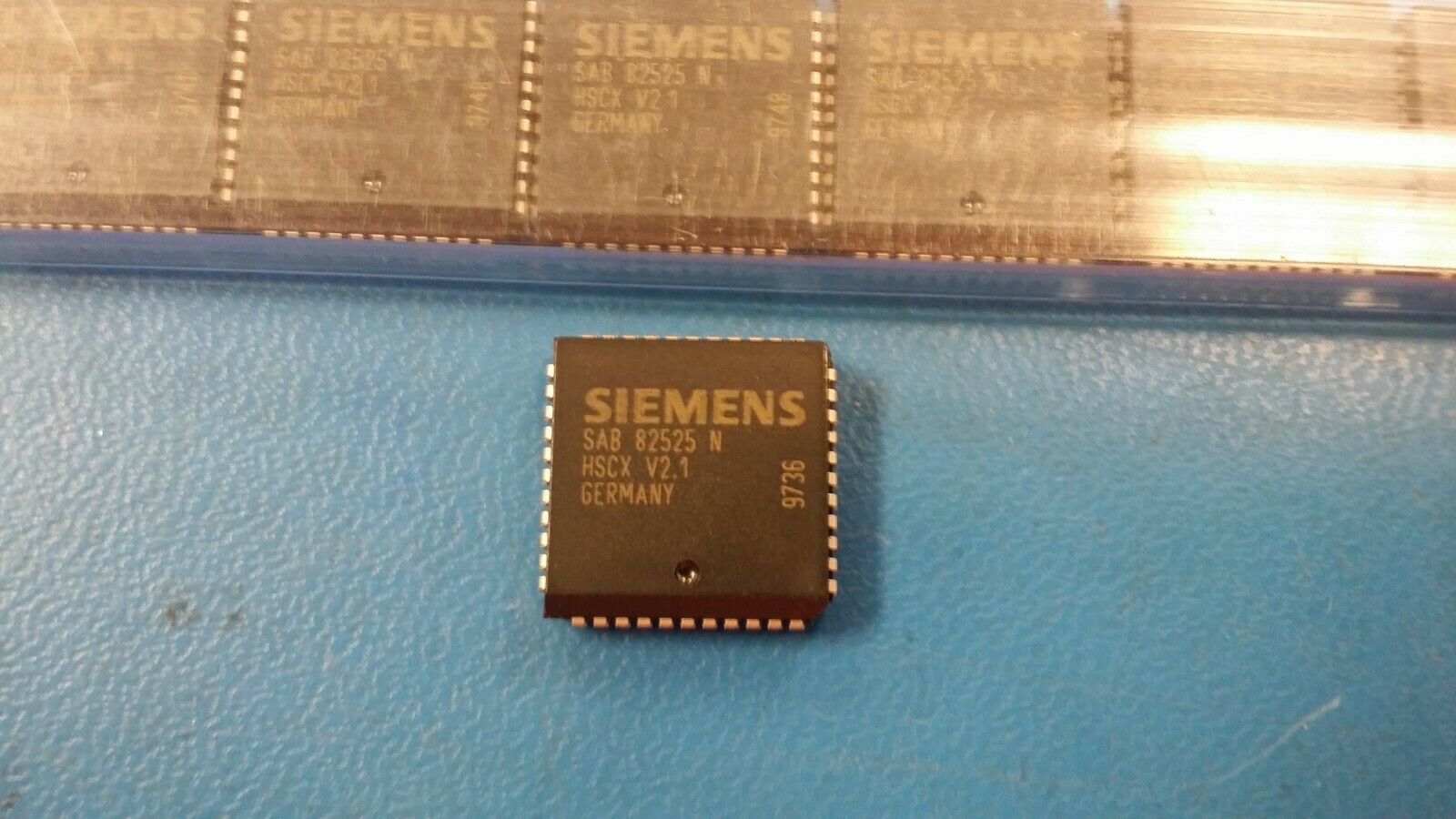

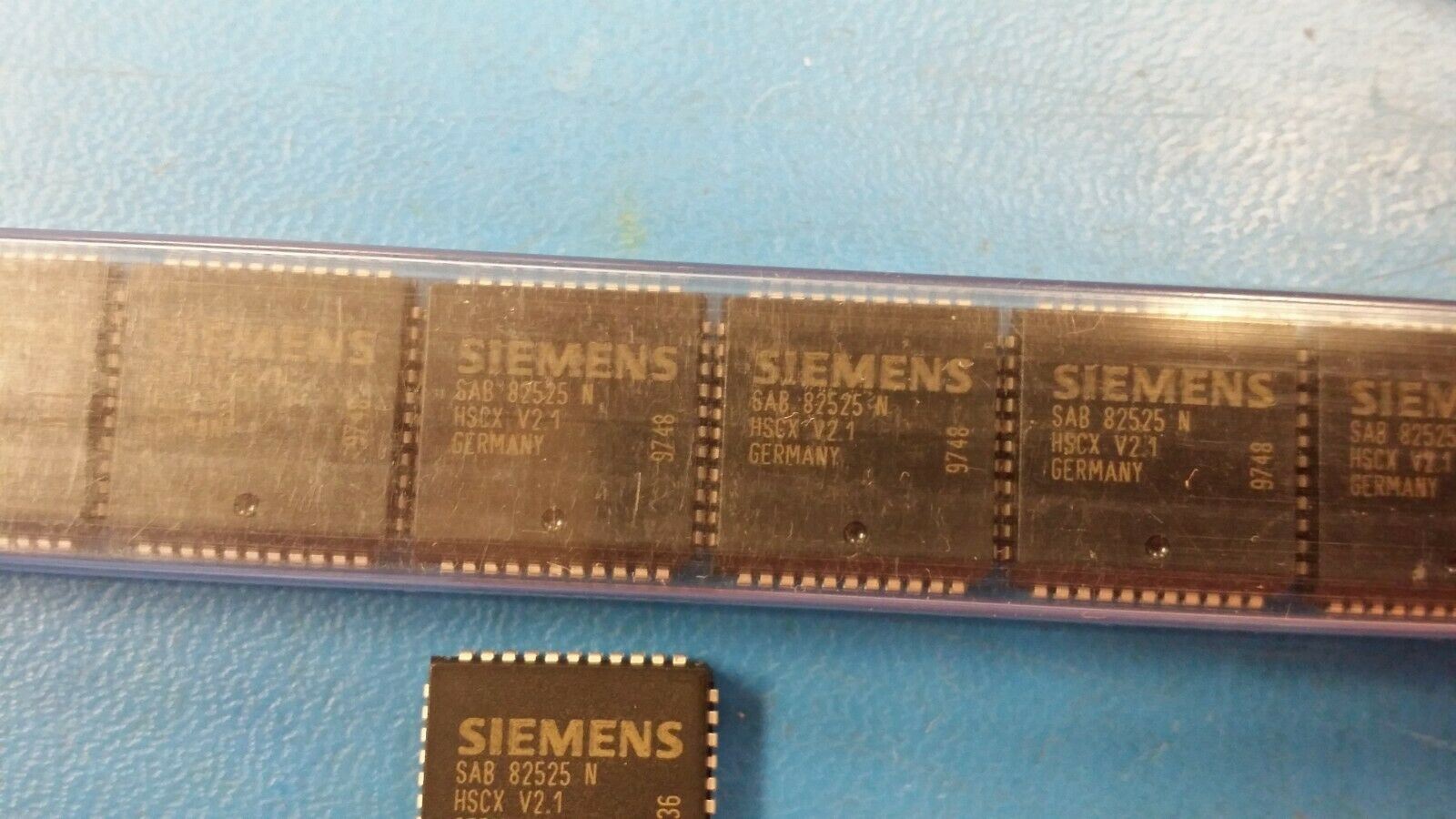

(1 PC) SAB82525N-V2.1 SIEMENS Communication Controller 44-Pin PLCC
Tax included.
THIS LISTING IS FOR (1 PC) OF SAB82525N-V2.1 BY SIEMENS
Communication Controller 44-Pin PLCC
Part #: SAB82525N
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Siemens Process Instrumentation
Description: Serial I/O Controller, 2 Channel(s), 0.5MBps, CMOS, PQCC44
Status Discontinued
Address Bus Width 7.0
Boundary Scan NO
Communication Protocol SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; LAPB; LAPD
Data Encoding/Decoding Method NRZ; NRZI
Data Transfer Rate-Max 0.5 MBps
External Data Bus Width 8.0
JESD-30 Code S-PQCC-J44
Low Power Mode NO
Number of DMA Channels 0.0
Number of I/O Lines 0.0
Number of Serial I/Os 2.0
Number of Terminals 44
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape SQUARE
Package Style CHIP CARRIER
Qualification Status Not Qualified
RAM (words) 0
Supply Voltage-Nom 5.0 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form J BEND
Terminal Position QUAD
