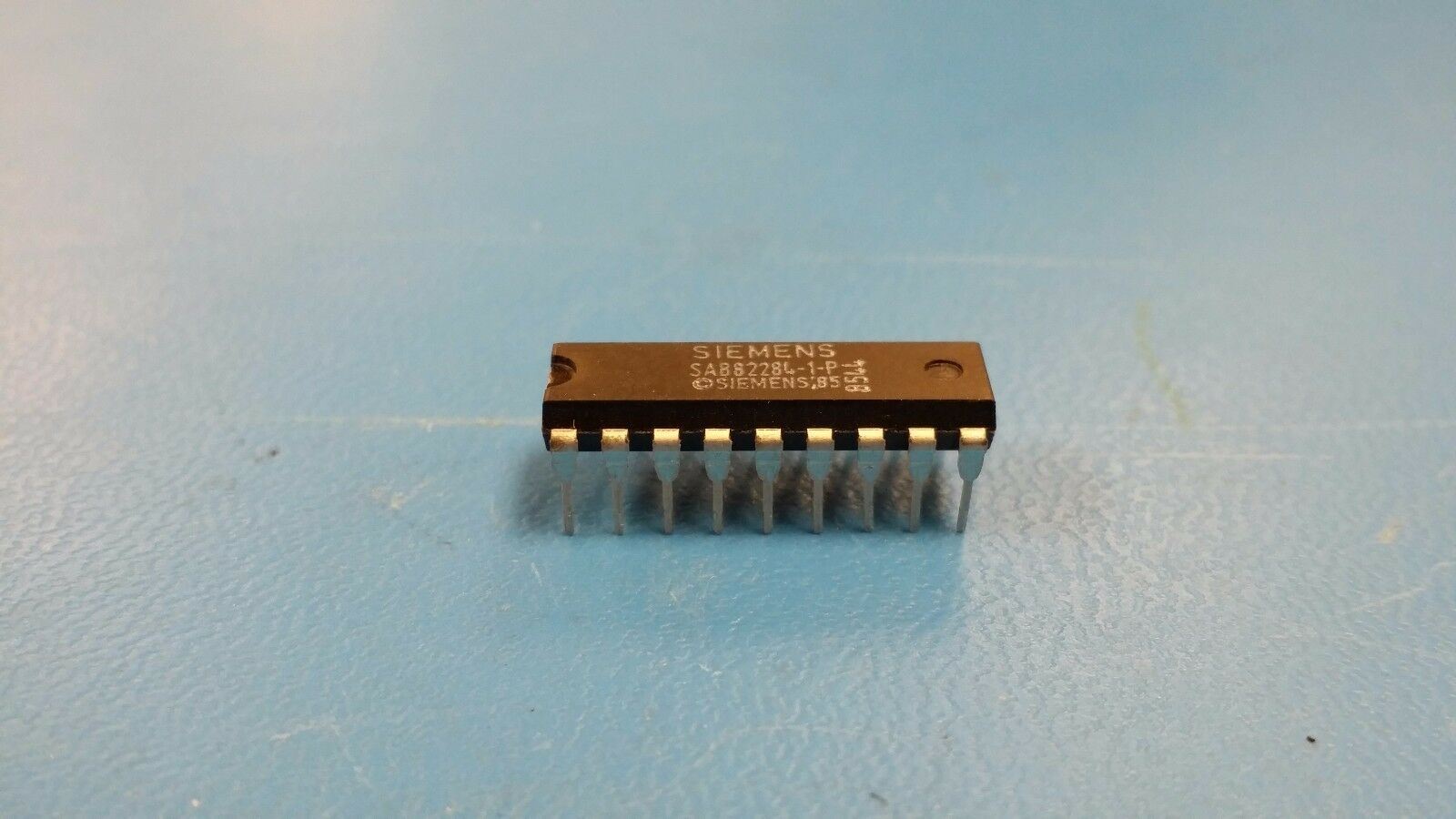

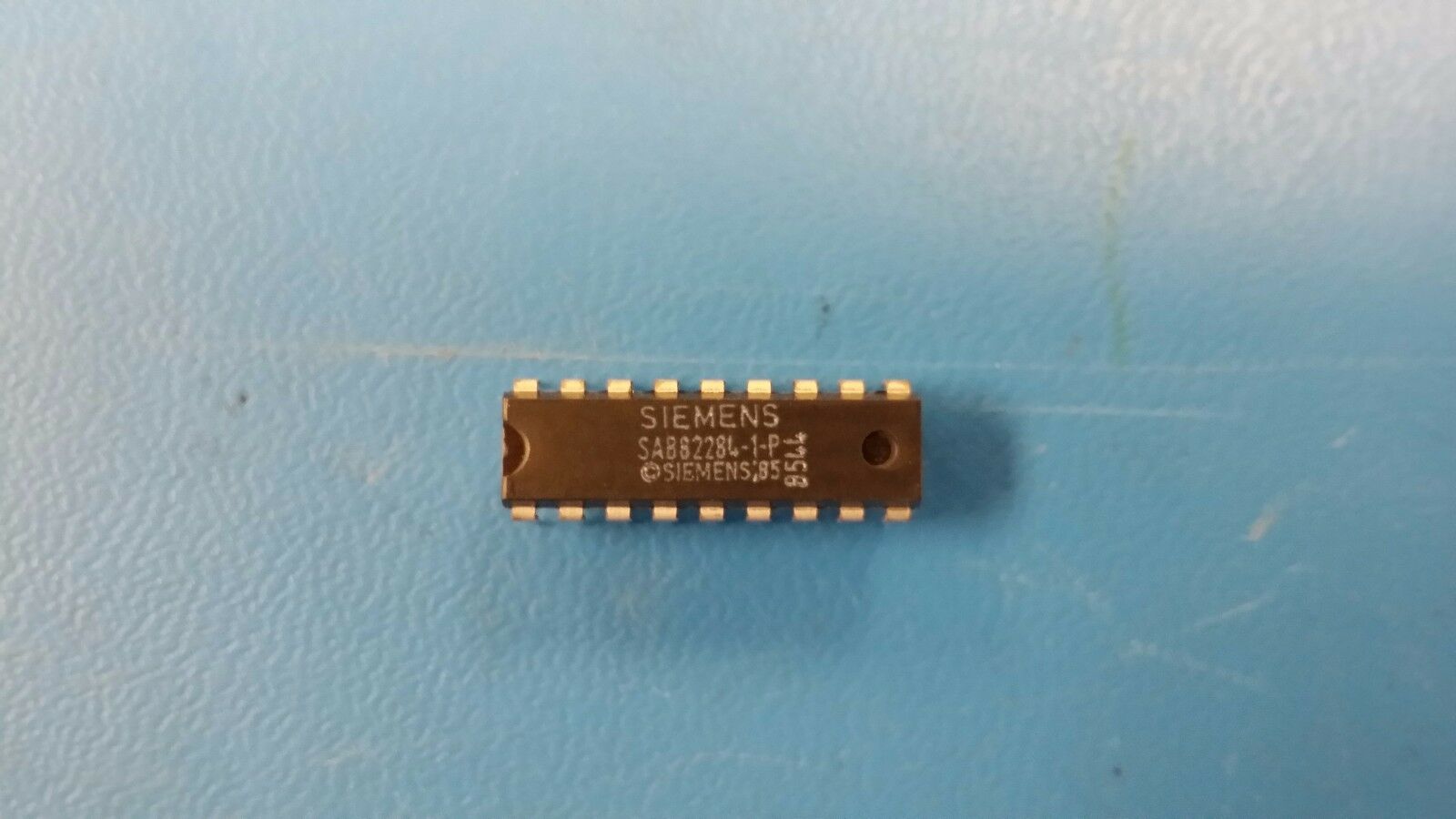

(1 PC) SAB82284-1-P SIEMENS 20MHz, PROC SPECIFIC CLOCK GENERATOR, PDIP18
(1 PC) SAB82284-1-P SIEMENS 20MHz, PROC SPECIFIC CLOCK GENERATOR, PDIP18

(1 PC) SAB82284-1-P SIEMENS 20MHz, PROC SPECIFIC CLOCK GENERATOR, PDIP18

Tax included.
Only 15 left!
THIS LISTING IS FOR(1 PC) OF SAB82284-1-P BY SIEMENS
20MHz, PROC SPECIFIC CLOCK GENERATOR, PDIP18

Part #: SAB82284-1-P

Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Siemens Technologies
Description: 20MHz, PROC SPECIFIC CLOCK GENERATOR, PDIP18


Mfr Package Description PLASTIC, DIP-18
REACH Compliant Yes
Status Active-Unconfirmed
Microprocessor/Microcontroller/Peripheral IC Type CLOCK GENERATOR, PROCESSOR SPECIFIC
JESD-30 Code R-PDIP-T18
Number of Terminals 18
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Clock Frequency-Max 20.0 MHz
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies 5
Primary Clock/Crystal Frequency-Nom 20.0 MHz
Qualification Status Not Qualified
Sub Category Clock Generators
Supply Current-Max 145.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
