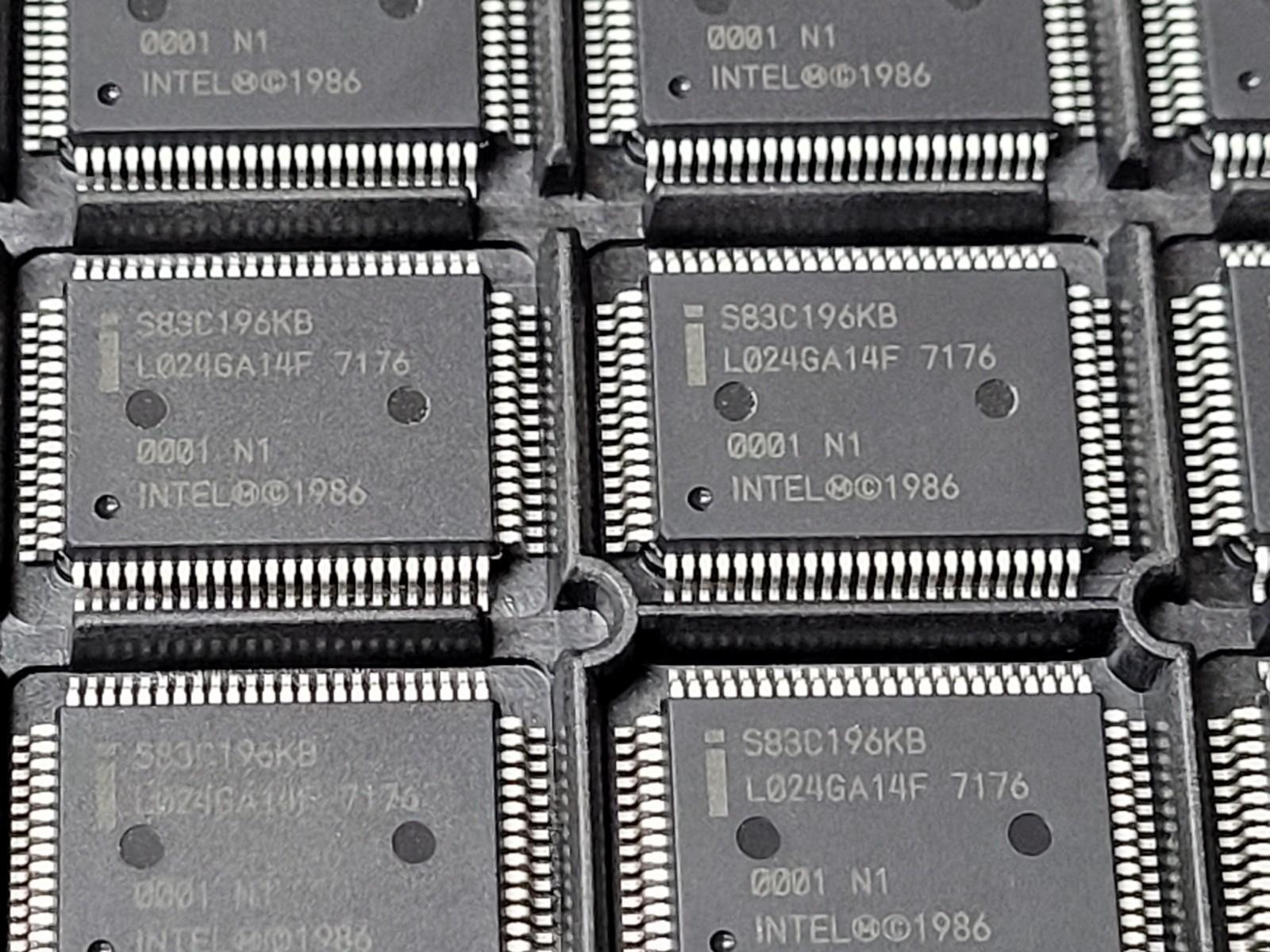

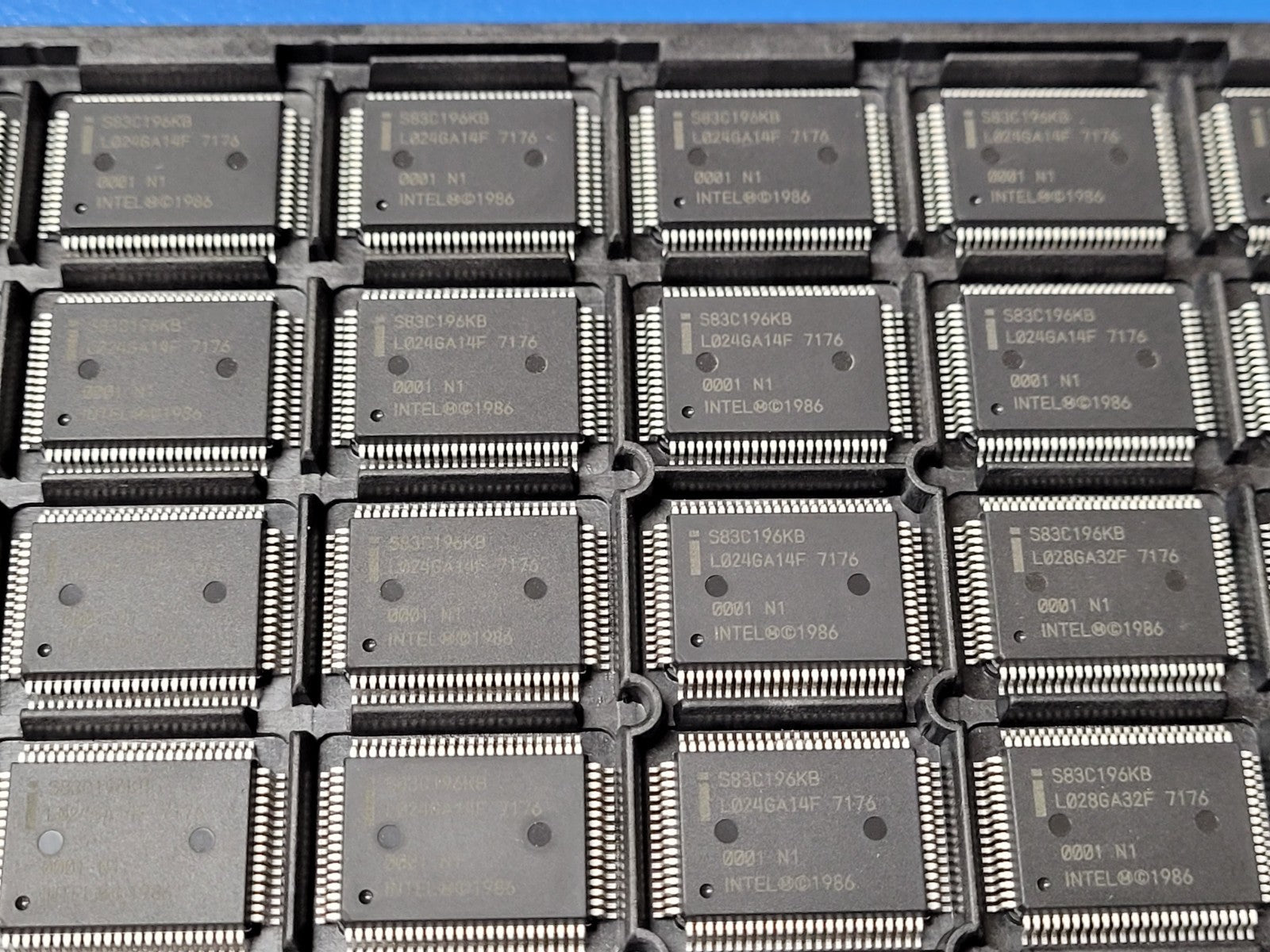

(1 PC) S83C196KB INTEL Microcontroller, 16-Bit, MROM, 12MHz, CMOS, PQFP80

$10.95
Unit price per

Tax included.

THIS IS FOR (1 PC) OF S83C196KB BY INTEL

Microcontroller, 16-Bit, MROM, 12MHz, CMOS, PQFP80

Part #: S83C196KB Obsolete

Part Category: Microcontrollers

Manufacturer: INTEL CORP

Description: Microcontroller, 16-Bit, MROM, 12MHz, CMOS, PQFP80

Status Discontinued

ADC Channels YES

Additional Feature FOUR SOFTWARE TIMERS; ROM PROTECT; DYNAMIC BUS SIZING

Address Bus Width 16

Bit Size 16

Boundary Scan NO

Clock Frequency-Max (MHz) 12.0000000000000000

DAC Channels NO

DMA Channels NO

External Data Bus Width 16

Format FIXED POINT

Integrated Cache NO

JESD-30 Code S-PQFP-G80

Length (mm) 12.0000

Low Power Mode YES

Moisture Sensitivity Level 1

Number of DMA Channels 0

Number of External Interrupts 2

Number of I/O Lines 40

Number of Serial I/Os 1

Number of Terminals 80

Number of Timers 1

On Chip Data RAM Width 8

Program Memory Width (bits) 8

Operating Temperature-Max (Cel) 70.0000

Operating Temperature-Min (Cel) 0.0000

PWM Channels YES

Package Body Material PLASTIC/EPOXY

Package Code LFQFP

Package Equivalence Code QFP80,.7X.9,32

Package Shape SQUARE

Package Style FLATPACK, LOW PROFILE, FINE PITCH

DLA Qualification Not Qualified

Data RAM Size (bytes) 232

RAM (words) 232

Program Memory Size (words) 8192

Program Memory Type MROM

Seated Height-Max (mm) 1.6600

Speed (MHz) 12.00000000

Supply Current-Max (mA) 55.00000000

Supply Voltage-Max (V) 5.5000

Supply Voltage-Min (V) 5.0000

Supply Voltage-Nom (V) 5.0000

Surface Mount YES

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Form GULL WING

Terminal Pitch (mm) 0.500

Terminal Position QUAD

Width (mm) 12.0000

uPs/uCs/Peripheral ICs Type MICROCONTROLLER
