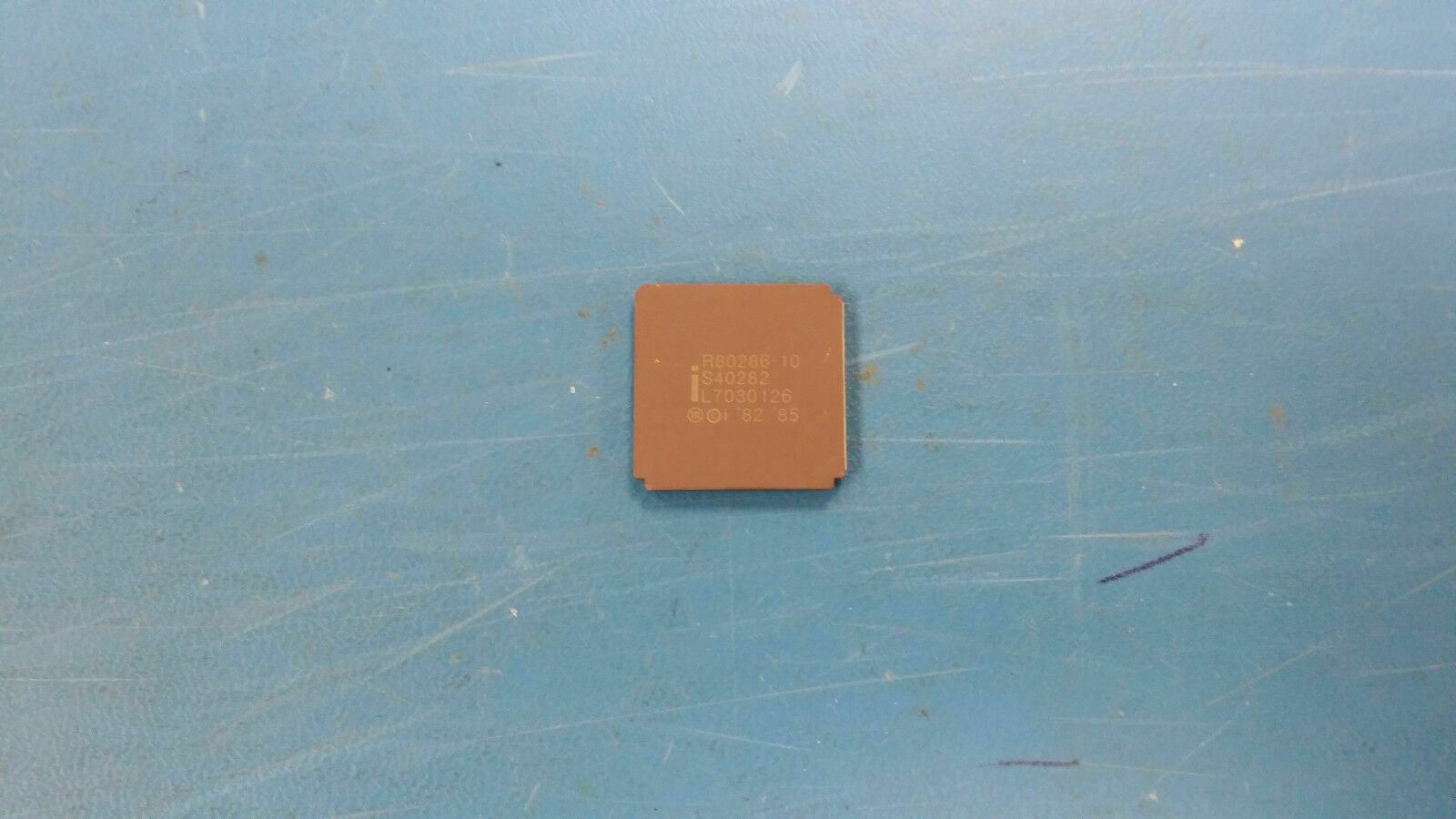

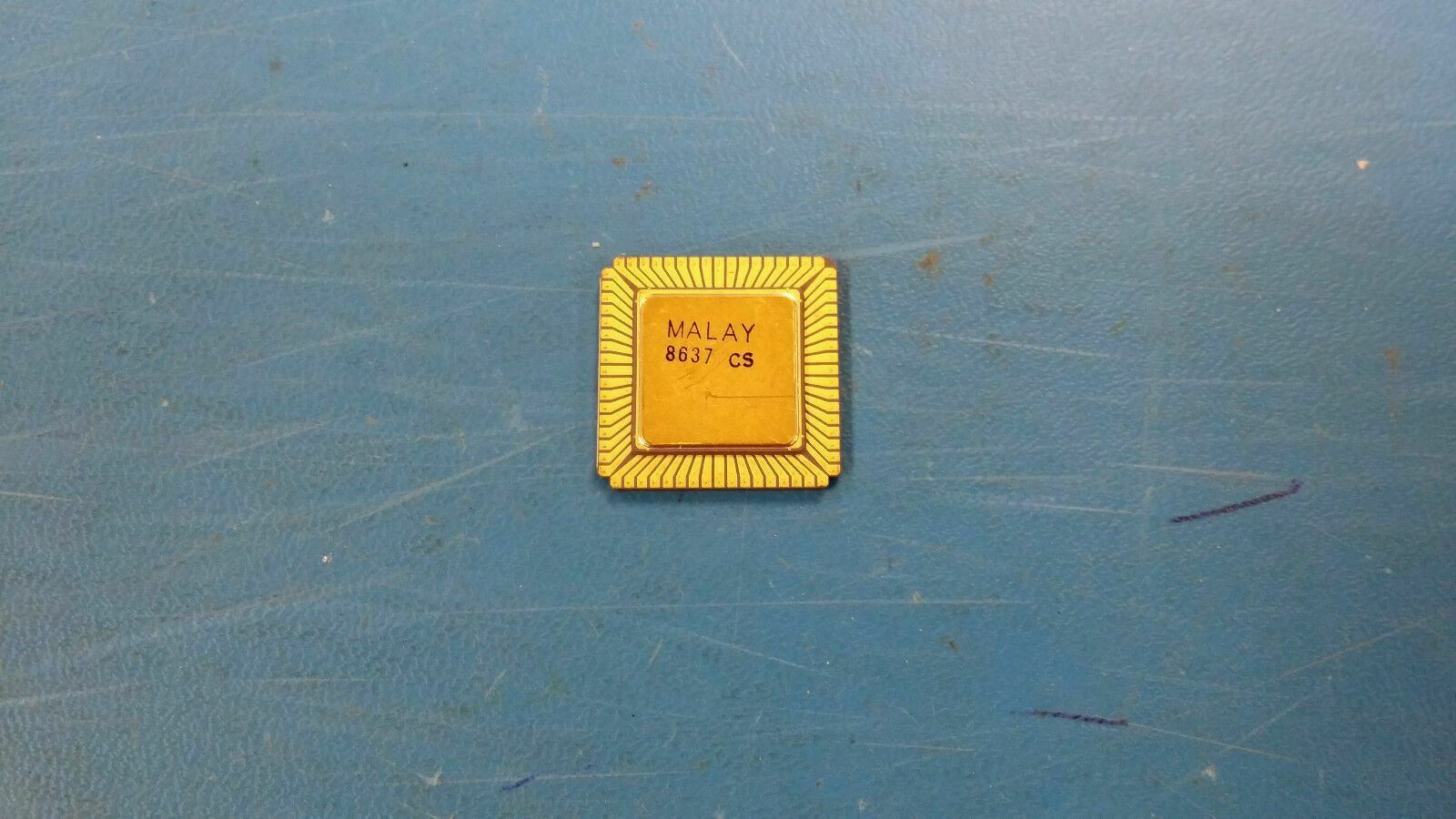

(1 PC) R80286-10 INTEL 16-BIT, 10MHz, MICROPROCESSOR, CQCC68

  • $12.75
    Unit price per
Tax included.

Only 18 left!

THIS LISTING IS FOR (1 PC) OF R80286-10 BY INTEL
16-BIT, 10MHz, MICROPROCESSOR, CQCC68

Part #: R80286-10

Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Intel Corporation
Description: 16-BIT, 10MHz, MICROPROCESSOR, CQCC68
Mfr Package Description LCC-68
REACH Compliant Yes
Status Discontinued
Microprocessor/Microcontroller/Peripheral IC Type MICROPROCESSOR
Address Bus Width 24
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 10 MHz
External Data Bus Width 16
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-CQCC-N68
JESD-609 Code e0
Low Power Mode NO
Number of Terminals 68
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code QCCN
Package Equivalence Code LCC68A,.95SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 3.68 mm
Speed 10 MHz
Sub Category Microprocessors
Supply Current-Max 600 mA
Supply Voltage-Nom 5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology MOS
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form NO LEAD
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 24.13 mm
Width 24.13 mm
