(1 PC) QS5LV931-50Q IDT Zero Delay PLL Clock Driver Single SSOP20
(1 PC) QS5LV931-50Q IDT Zero Delay PLL Clock Driver Single SSOP20

(1 PC) QS5LV931-50Q IDT Zero Delay PLL Clock Driver Single SSOP20

Tax included.
Only 134 left!

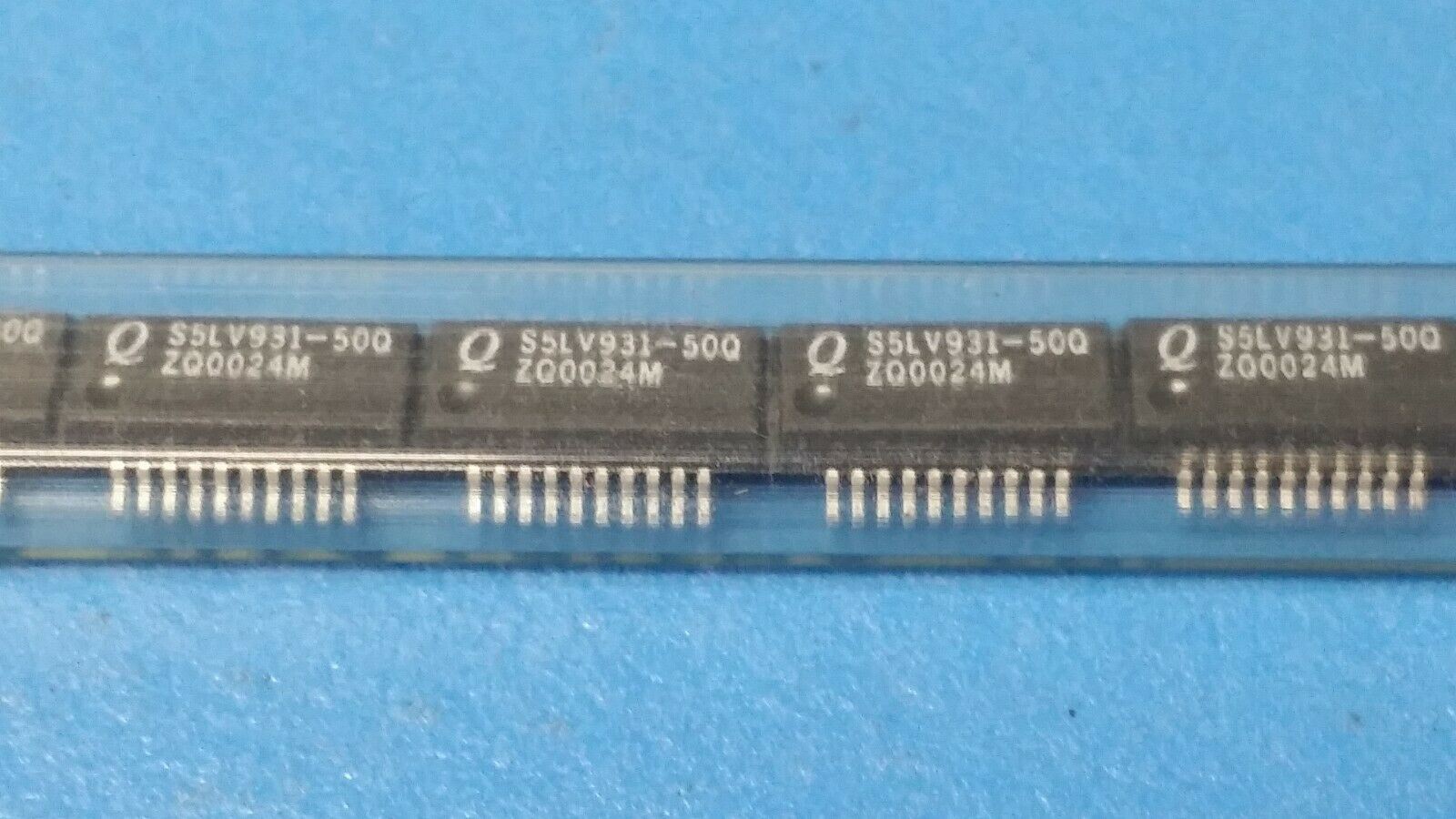

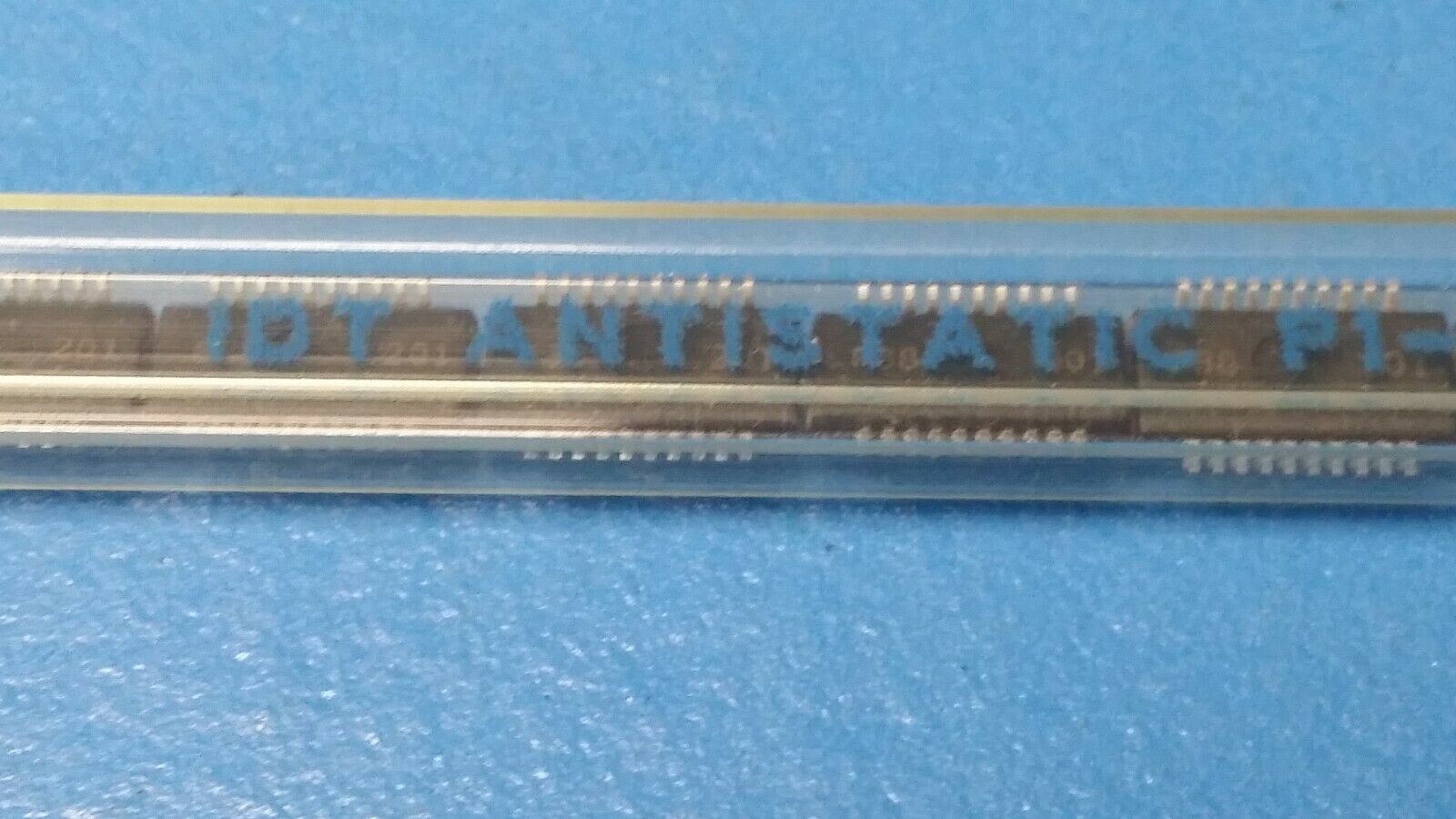

THIS IS FOR (1 PC) OF QS5LV931-50Q BY IDT
Zero Delay PLL Clock Driver Single SSOP20

Part #: QS5LV931-50Q
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: PLL Based Clock Driver, 5LV Series, 6 True Output(s), 0 Inverted Output(s), CMOS, PDSO20

Mfr Package Description QSOP-20
Status Discontinued
Logic IC Type PLL BASED CLOCK DRIVER
Sub Category Clock Drivers
Family 5LV
fmax-Min 50.0  MHz
Input Conditioning SCHMITT TRIGGER
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Max I(ol) 0.024  Amp
Moisture Sensitivity Level 1
Number of Functions 1
Number of Inverted Outputs 0.0
Number of Terminals 20
Number of True Outputs 6.0
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 85.0  Cel
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 240
Propagation Delay (tpd) 0.5  ns
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.3  ns
Seated Height-Max 1.75  mm
Supply Voltage-Nom (Vsup) 3.3
Supply Voltage-Min (Vsup) 3.0  V
Supply Voltage-Max (Vsup) 3.6  V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.635  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 20
Length 8.65  mm
Width 3.9116  mm
