(1 PC) PIC16C71-16I/P MICROCHIP 8-BIT, OTPROM, 16MHz, MICROCONTROLLER, PDIP18

  • $12.95
    Unit price per
Tax included.

Only 64 left!

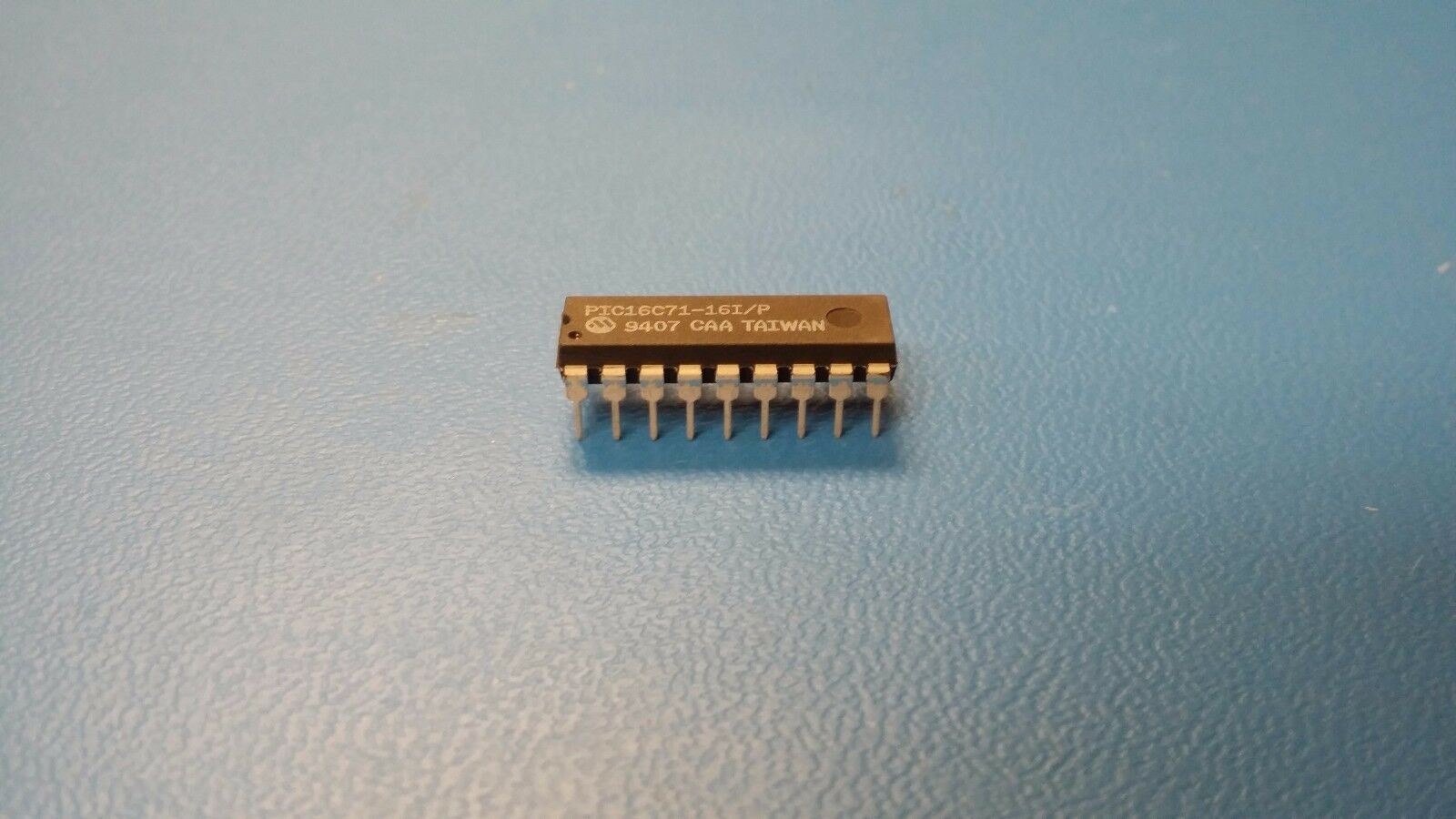

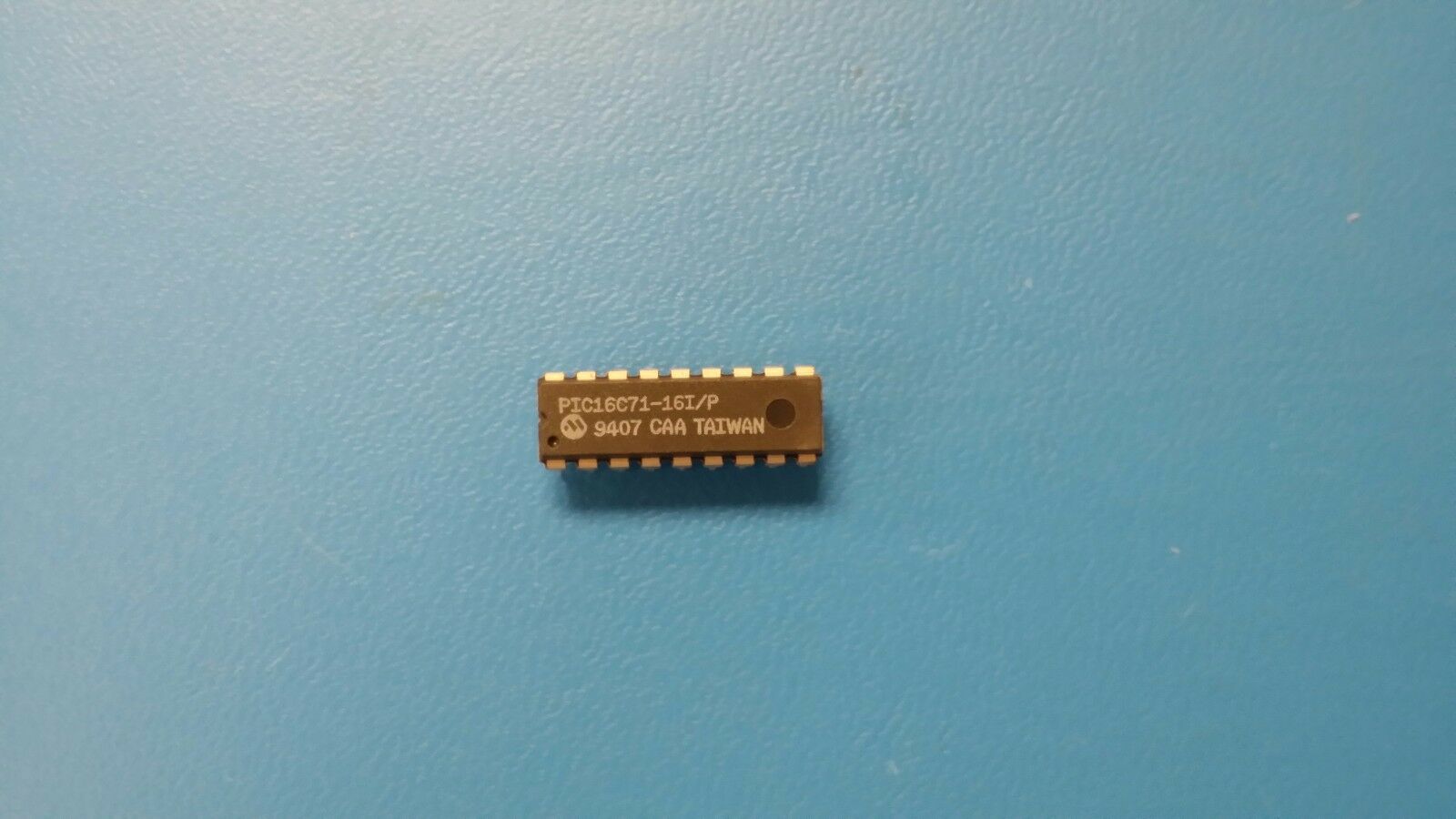

THIS LISTING IS FOR (1 PC) OF PIC16C71-16I/P BY MICROCHIP
8-BIT, OTPROM, 16MHz, MICROCONTROLLER, PDIP18

Part #: PIC16C71-16I/P


Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Microchip Technology, Inc.
Description: 8-BIT, OTPROM, 16MHz, MICROCONTROLLER, PDIP18


Mfr Package Description 0.300 INCH, PLASTIC, DIP-18
Status Discontinued
Microprocessor/Microcontroller/Peripheral IC Type MICROCONTROLLER
ADC Channels YES
Address Bus Width 0.0
Bit Size 8
Boundary Scan NO
Clock Frequency-Max 16.0 MHz
CPU Family PIC
DAC Channels NO
DMA Channels NO
External Data Bus Width 0.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T18
JESD-609 Code e0
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 1.0
Number of I/O Lines 13.0
Number of Serial I/Os 0.0
Number of Terminals 18
Number of Timers 1.0
On Chip Data RAM Width 8
On Chip Program ROM Width 14.0
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
PWM Channels NO
Qualification Status Not Qualified
RAM (bytes) 36.0
RAM (words) 36
ROM Programmability OTPROM
ROM (words) 1K
Speed 16.0 MHz
Sub Category Microcontrollers
Supply Current-Max 20.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature ROM PROTECT
