(1 PC) PI90LV031AW Line Driver, 4 Func, 4 Driver, CMOS, PDSO16
Tax included.

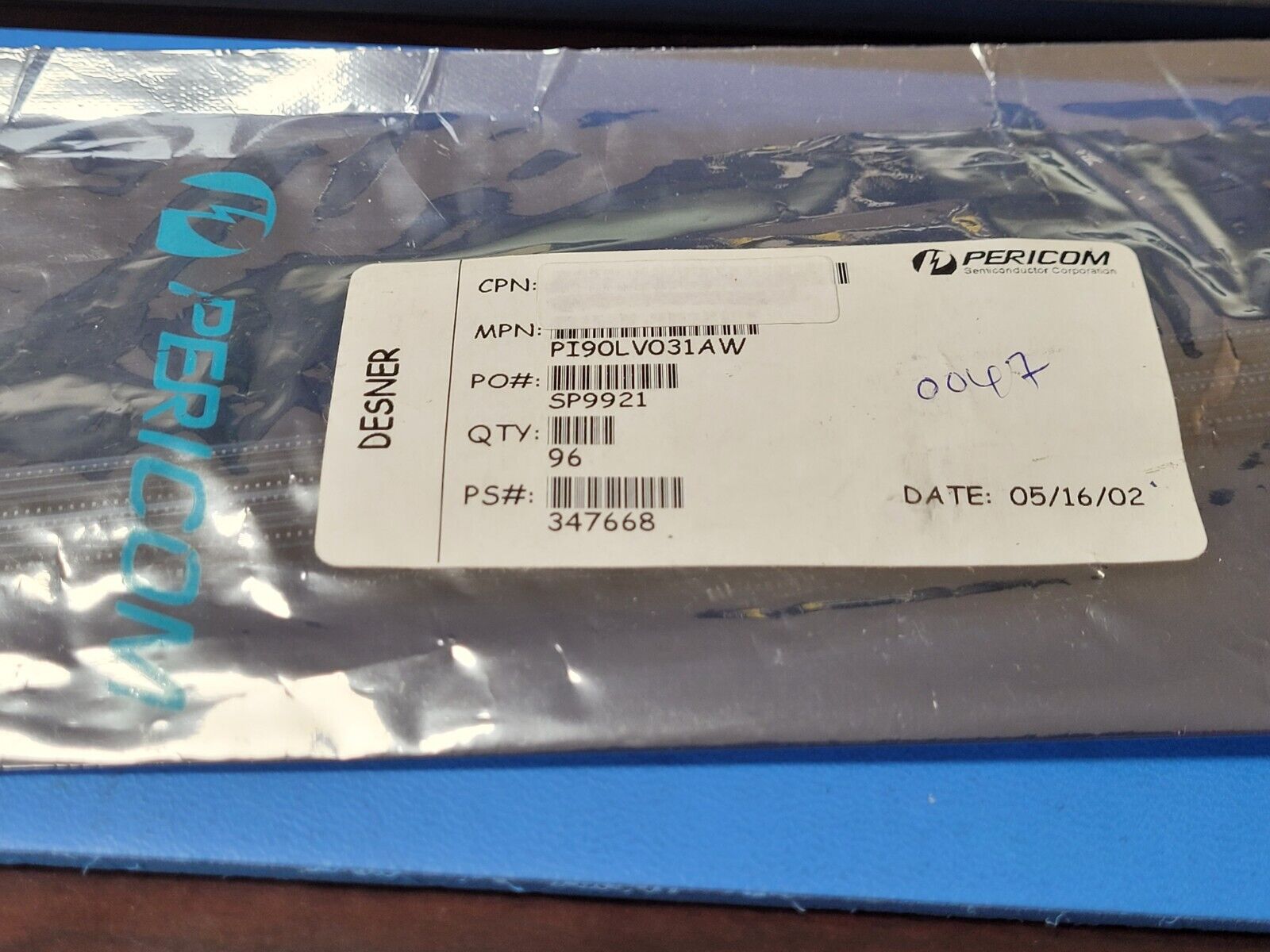

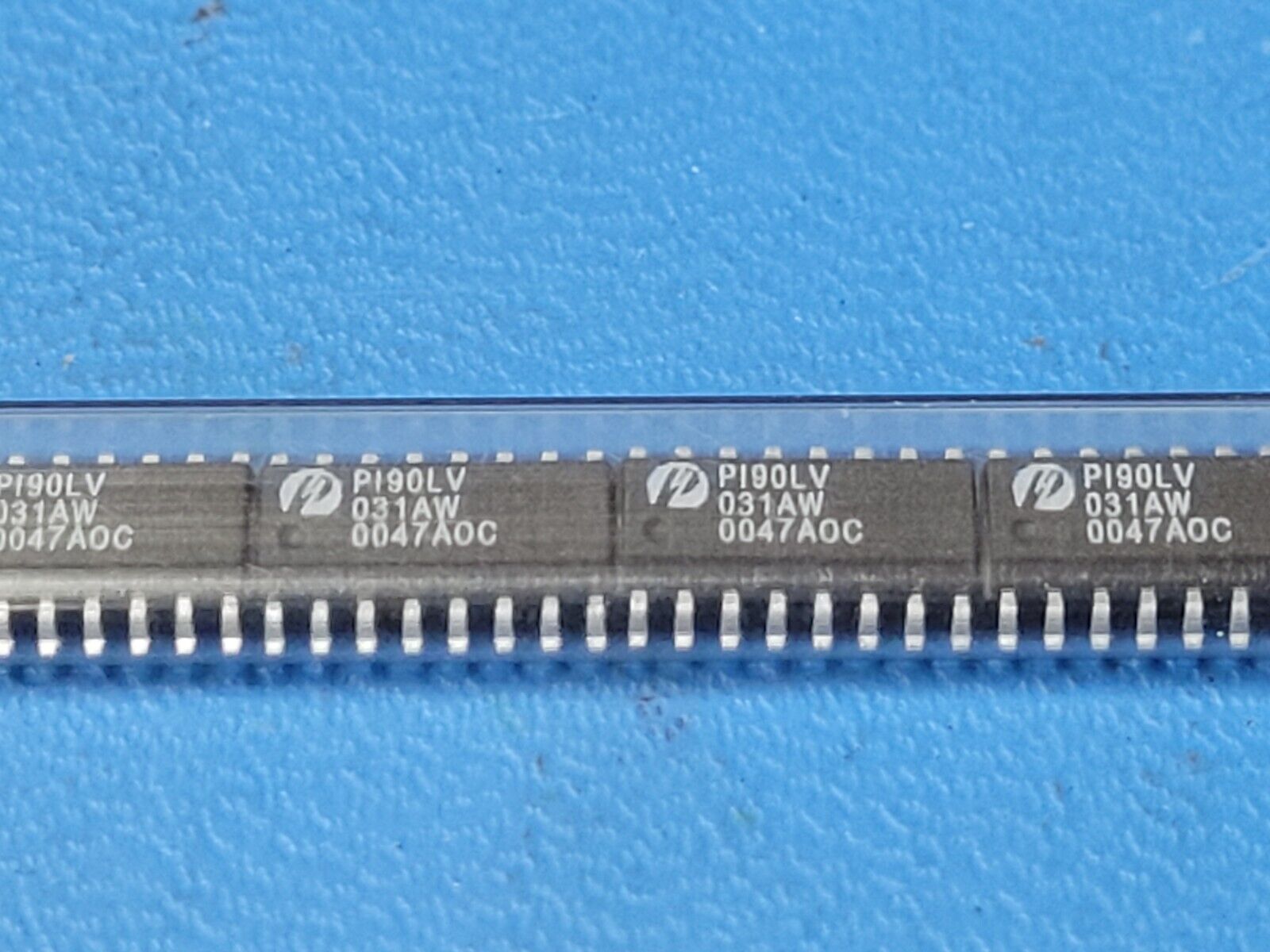

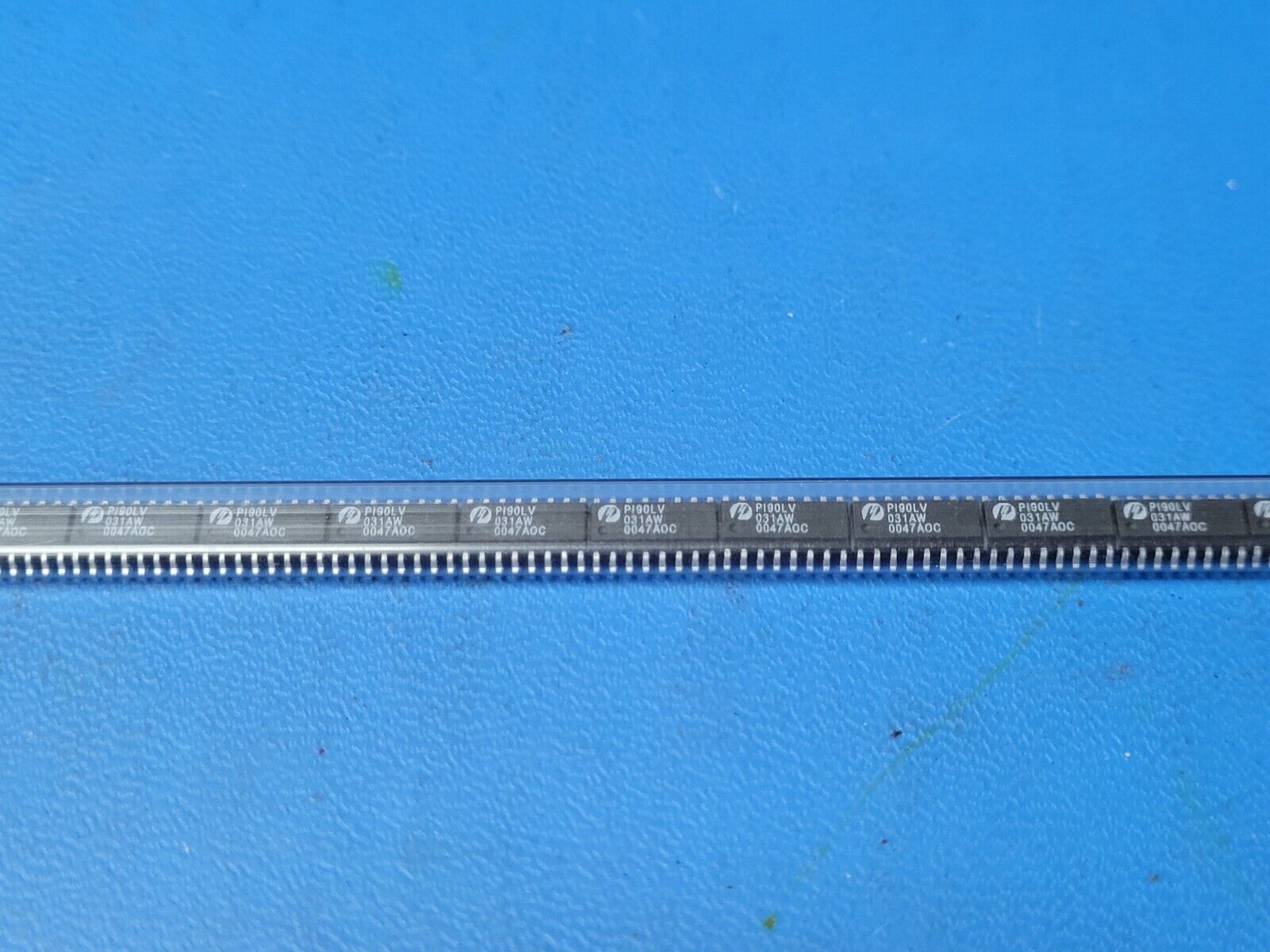

THIS IS FOR (1 PC) OF PI90LV031AW BY PERICOM
Line Driver, 4 Func, 4 Driver, CMOS, PDSO16
Mfr Package Description 0.150 INCH, SOIC-16
REACH Compliant Yes
Status Discontinued
Interface IC Type LINE DRIVER
Differential Output YES
Driver Number of Bits 4.0
High Level Input Current-Max 1.0E-5 Amp
Input Characteristics STANDARD
Interface Standard EIA-644; IEEE 1596.3
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Functions 4
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Out Swing-Min 0.25 V
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Receive Delay-Max 2.0 ns
Seated Height-Max 1.75 mm
Sub Category Line Driver or Receivers
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Transmit Delay-Max 4.0 ns
Length 9.9 mm
Width 3.81 mm
