(1 PC) PI74FCT162646TVA Registered Bus Transceiver, 2-Func, 8-Bit, CMOS, SSOP-56
Tax included.

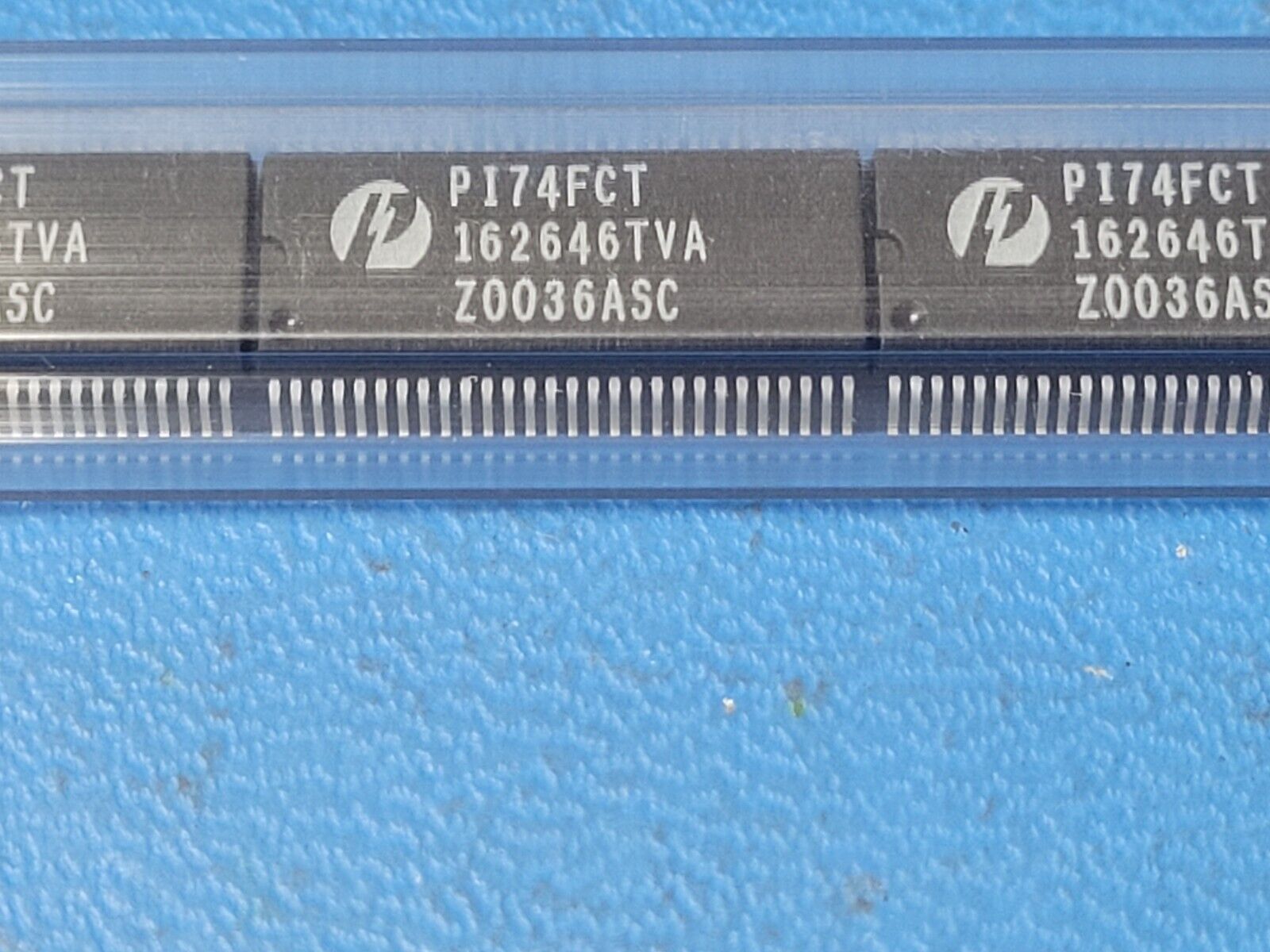

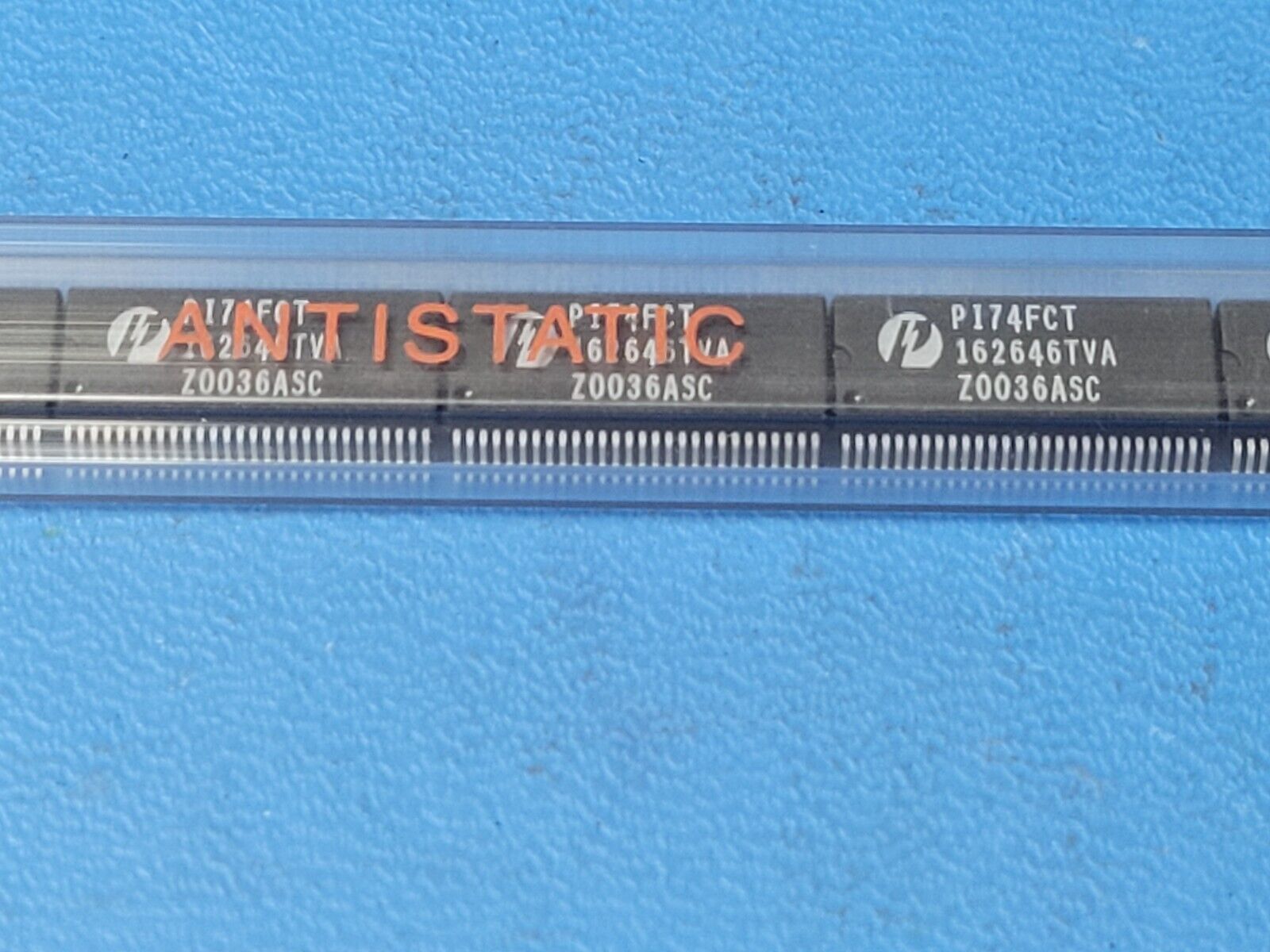

THIS IS FOR (1 PC) OF PI74FCT162646TVA BY PERICOM
Registered Bus Transceiver, 2-Func, 8-Bit, CMOS, SSOP-56
Part #: PI74FCT162646TV
Part Category: Logic ICs
Manufacturer: Pericom Semiconductor Corp.
Description: Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56
Mfr Package Description 0.300 INCH, PLASTIC, SSOP-56
Status Discontinued
Logic IC Type REGISTERED BUS TRANSCEIVER
Sub Category Bus Driver/Transceivers
Control Type INDEPENDENT CONTROL
Count Direction BIDIRECTIONAL
Family FCT
JESD-30 Code R-PDSO-G56
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.024 Amp
Number of Bits 8
Number of Functions 2
Number of Ports 2
Number of Terminals 56
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE WITH SERIES RESISTOR
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP56,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Prop. Delay@Nom-Sup 9.0 ns
Propagation Delay (tpd) 9.0 ns
Qualification Status Not Qualified
Seated Height-Max 2.74 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position DUAL
Translation N/A
Trigger Type POSITIVE EDGE
Length 18.415 mm
Width 7.5 mm
Additional Feature DIRECTION CONTROL; SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED OR REAL TIME DATA
