(1 PC) PCM56P-J Audio D/A Converter ICs Series Input 16B Monolithic DAC PDIP16

$9.95
Unit price per

Tax included.

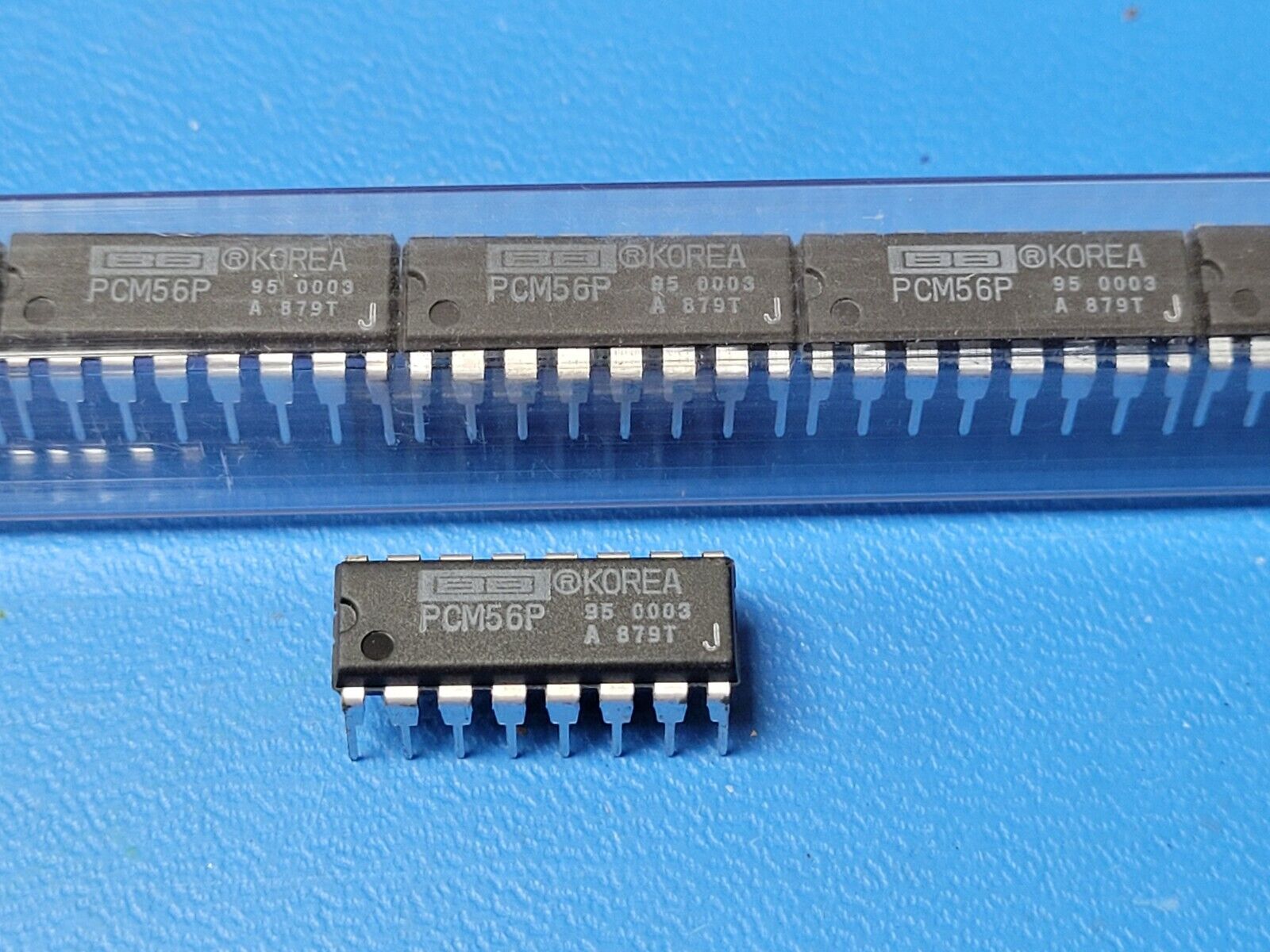

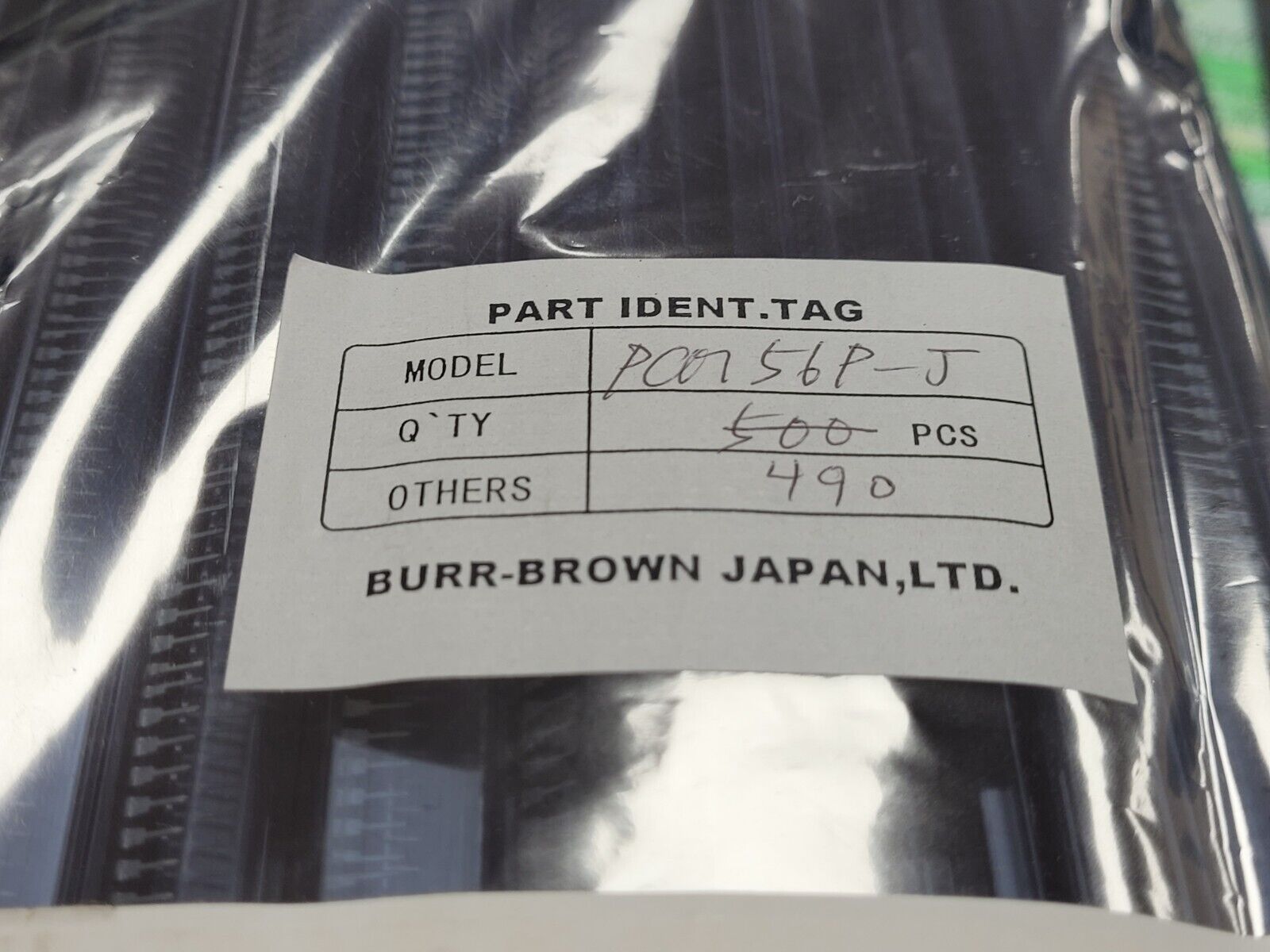

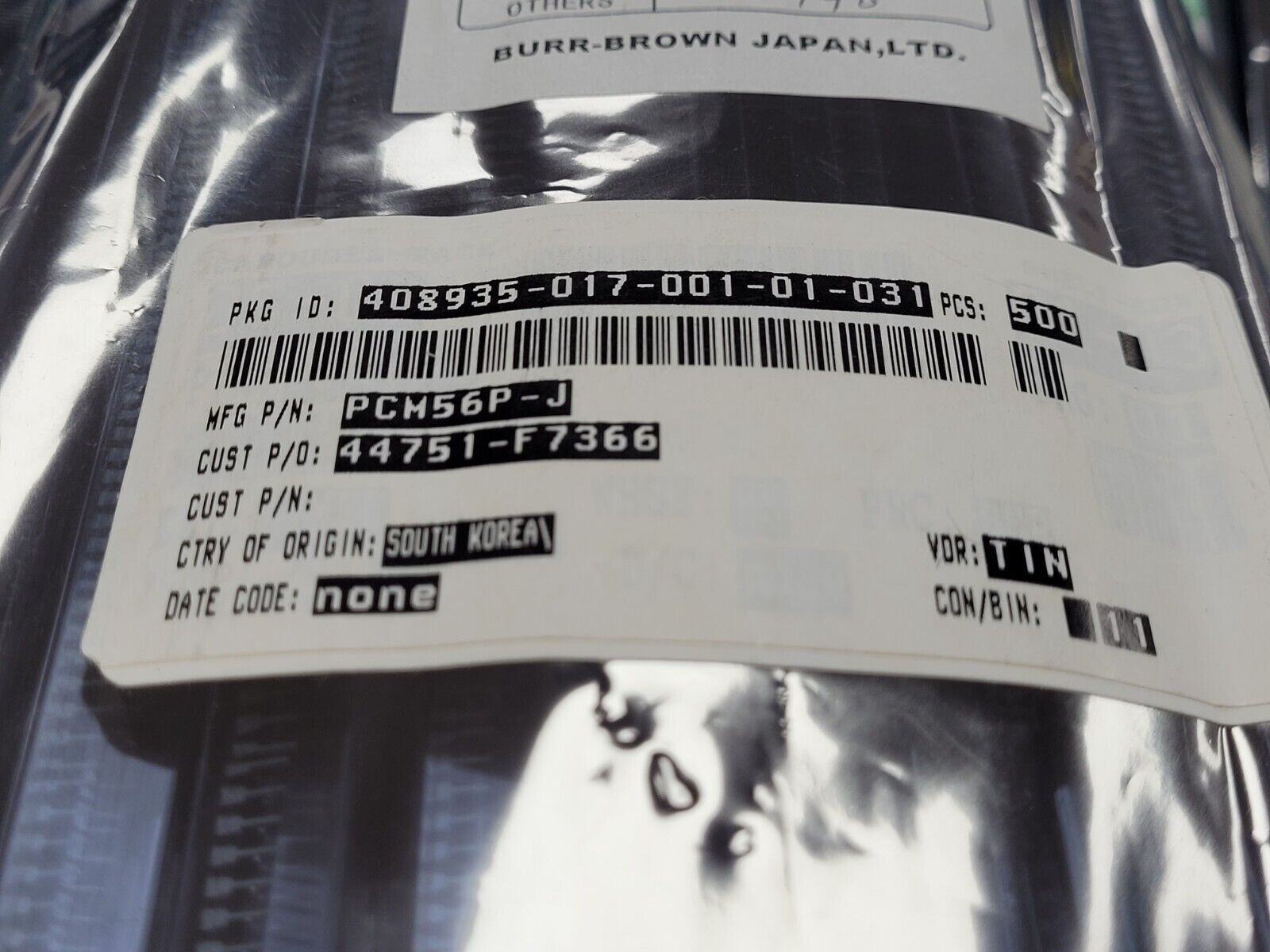

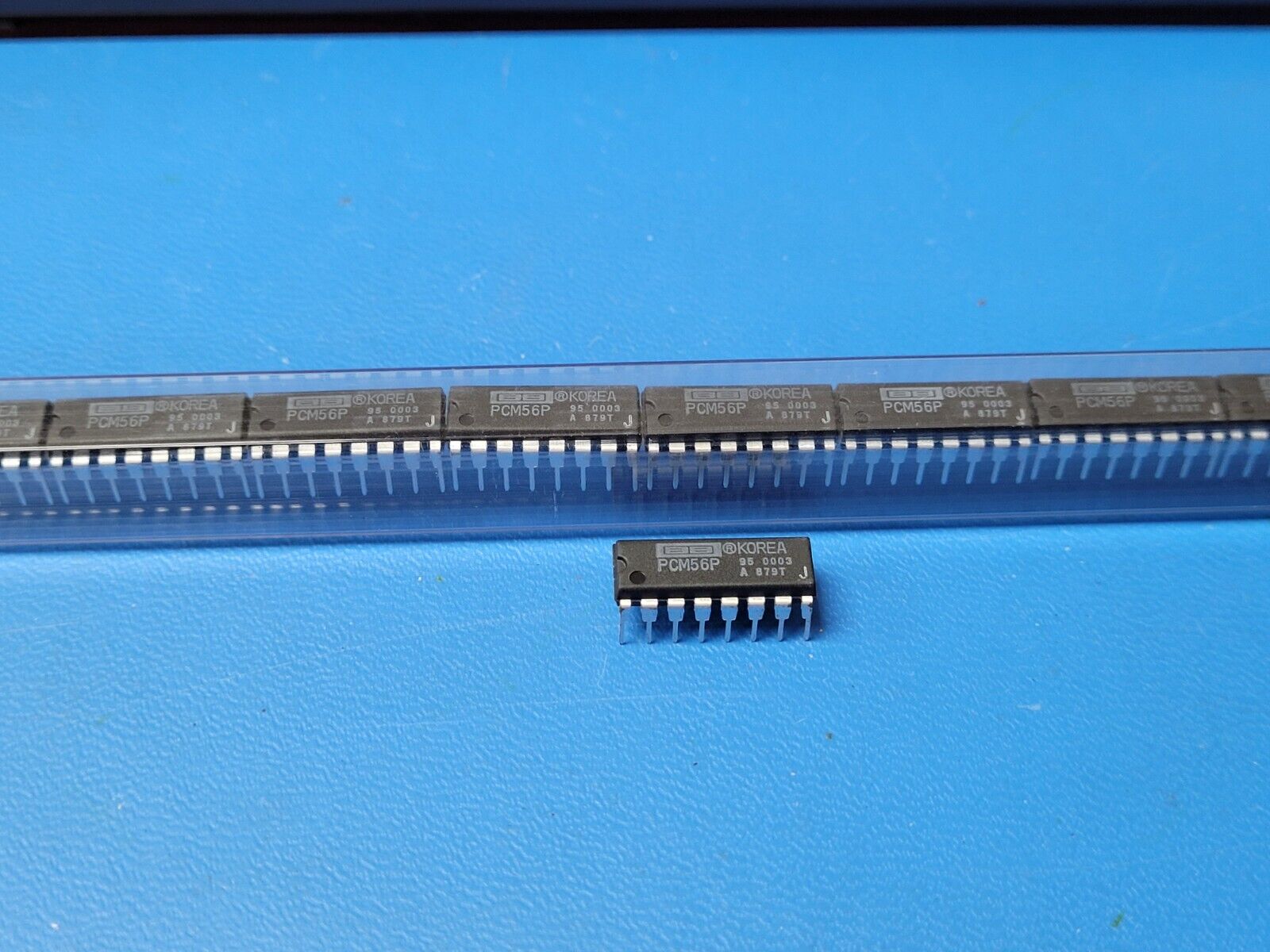

THIS IS FOR (1 PC) OF PCM56P-J BY (TI) BURR-BROWN

Audio D/A Converter ICs Series Input 16B Monolithic DAC PDIP16

Part #: PCM56P-J

Part Category: Converters

Manufacturer: (BURR-BROWN) Texas Instruments High-Performance Analog

Description: D/A Converter, 1 Func, Serial Input Loading, 1.5us Settling Time, PDIP16

Mfr Package Description PLASTIC, DIP-16

Status Transferred

Converter Type D/A CONVERTER

Analog Output Voltage-Min -3.0 V

Analog Output Voltage-Max 3.0 V

Input Bit Code 2'S COMPLEMENT BINARY

Input Format SERIAL

JESD-30 Code R-PDIP-T16

JESD-609 Code e0

Negative Supply Voltage-Nom -5.0 V

Number of Bits 16

Number of Functions 1

Number of Terminals 16

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP16,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Qualification Status Not Qualified

Settling Time-Nom (tstl) 1.5 µs

Sub Category Other Converters

Supply Voltage-Nom 5.0 V

Surface Mount NO

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL
