(1 PC) PCI9050-1 PLX PCI Bus Controller, CMOS, PQFP160

$34.95
Unit price per

Tax included.

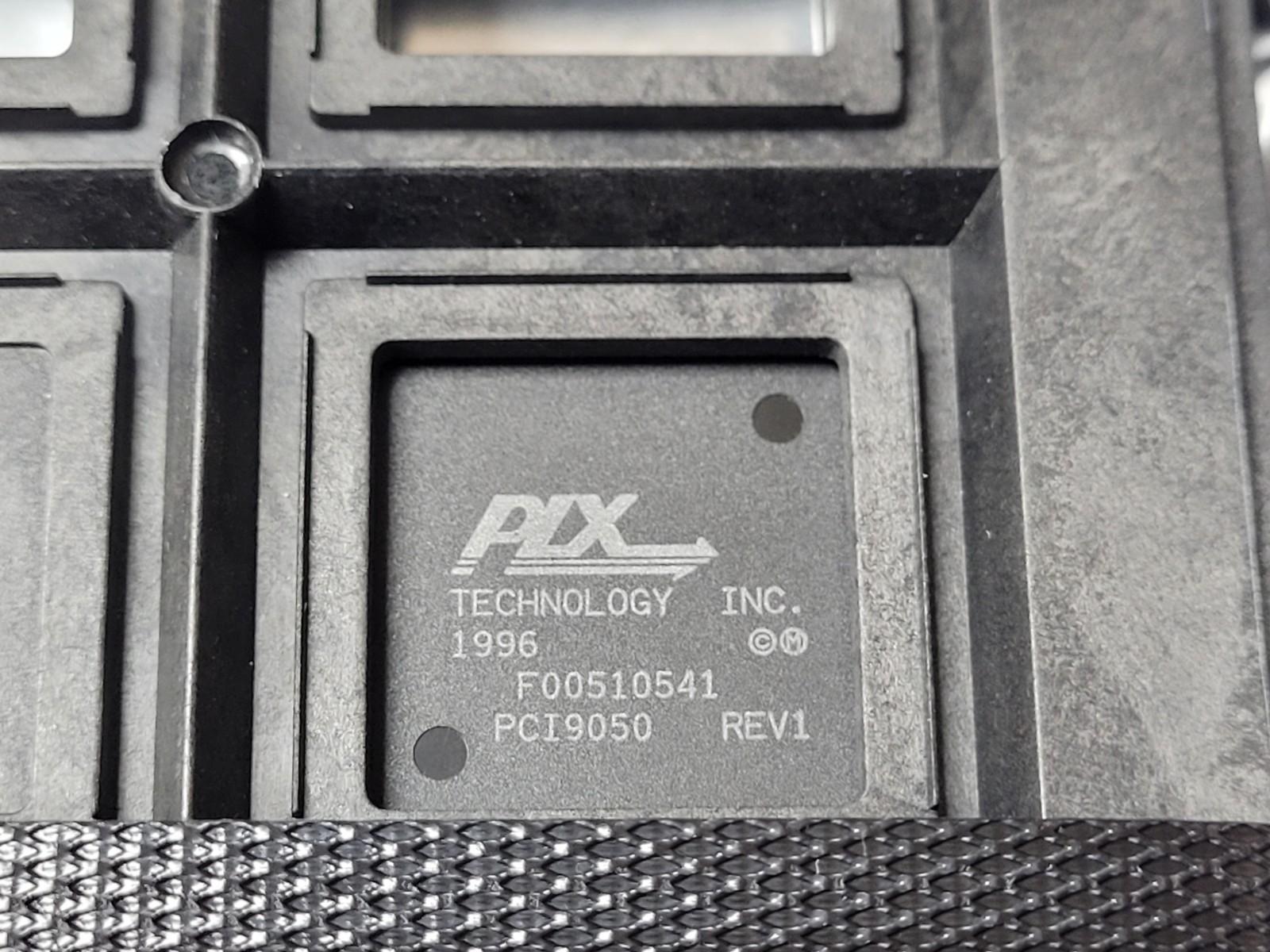

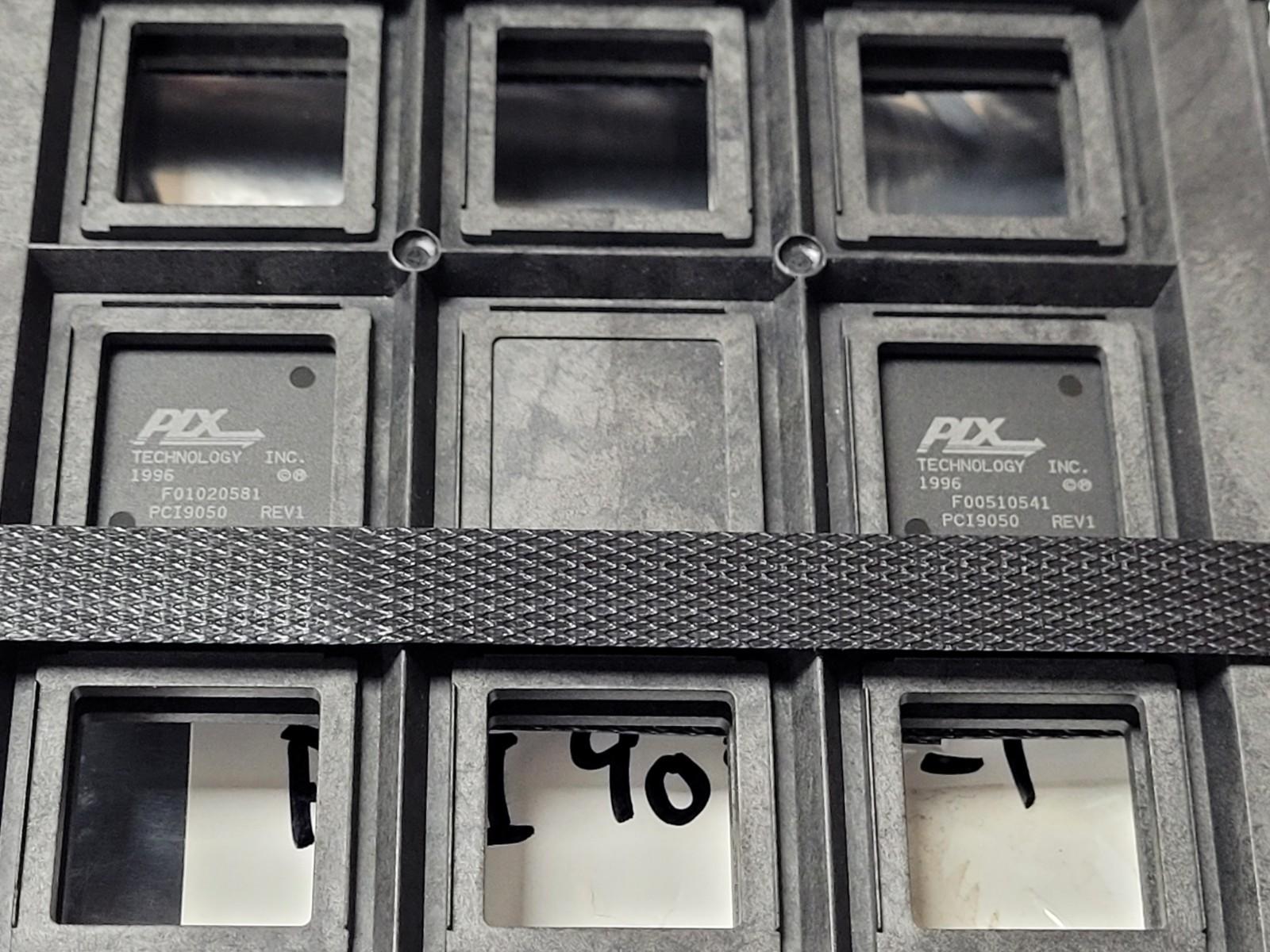

THIS IS FOR (1 PC) OF PCI9050-1 BY PLX

PCI Bus Controller, CMOS, PQFP160

Part #: PCI9050-1

Obsolete

Part Category:Bus Controllers

Manufacturer:PLX TECHNOLOGY INC

Description:

PCI Bus Controller, CMOS, PQFP160

Status Discontinued

Address Bus Width 25

Bus Compatibility PCI; ISA

Clock Frequency-Max (MHz) 40.0000000000000000

Data Transfer Rate-Max (MBps) 132.0000000000000000

External Data Bus Width 32

JESD-30 Code S-PQFP-G160

J-STD-609 Code e0

Length (mm) 28.0000

Moisture Sensitivity Level 3

Number of Terminals 160

Operating Temperature-Max (Cel) 85.0000

Operating Temperature-Min (Cel) -40.0000

Package Body Material PLASTIC/EPOXY

Package Code QFP

Package Equivalence Code QFP160,1.2SQ

Package Shape SQUARE

Package Style FLATPACK

Peak Reflow Temperature (Cel) 260

DLA Qualification Not Qualified

Seated Height-Max (mm) 4.0000

Supply Current-Max (mA) 130.00000000

Supply Voltage-Max (V) 5.2500

Supply Voltage-Min (V) 4.7500

Supply Voltage-Nom (V) 5.0000

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Pitch (mm) 0.650

Terminal Position QUAD

Width (mm) 28.0000

uPs/uCs/Peripheral ICs Type BUS CONTROLLER, PCI
