(1 PC) PAL20X8ACNS (AMD / MMI) OT PLD, PAL-Type, TTL, PDIP24
Tax included.

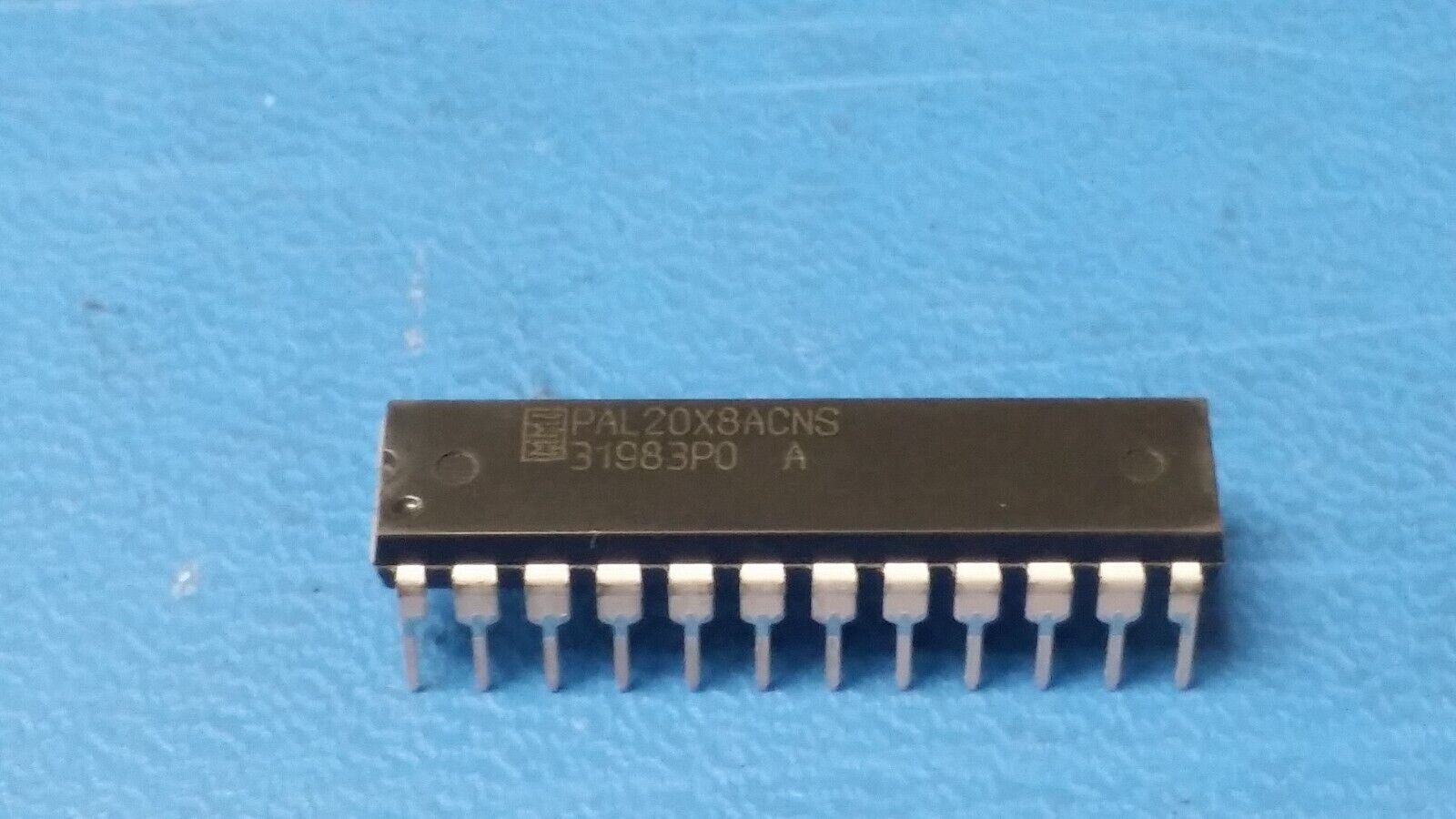

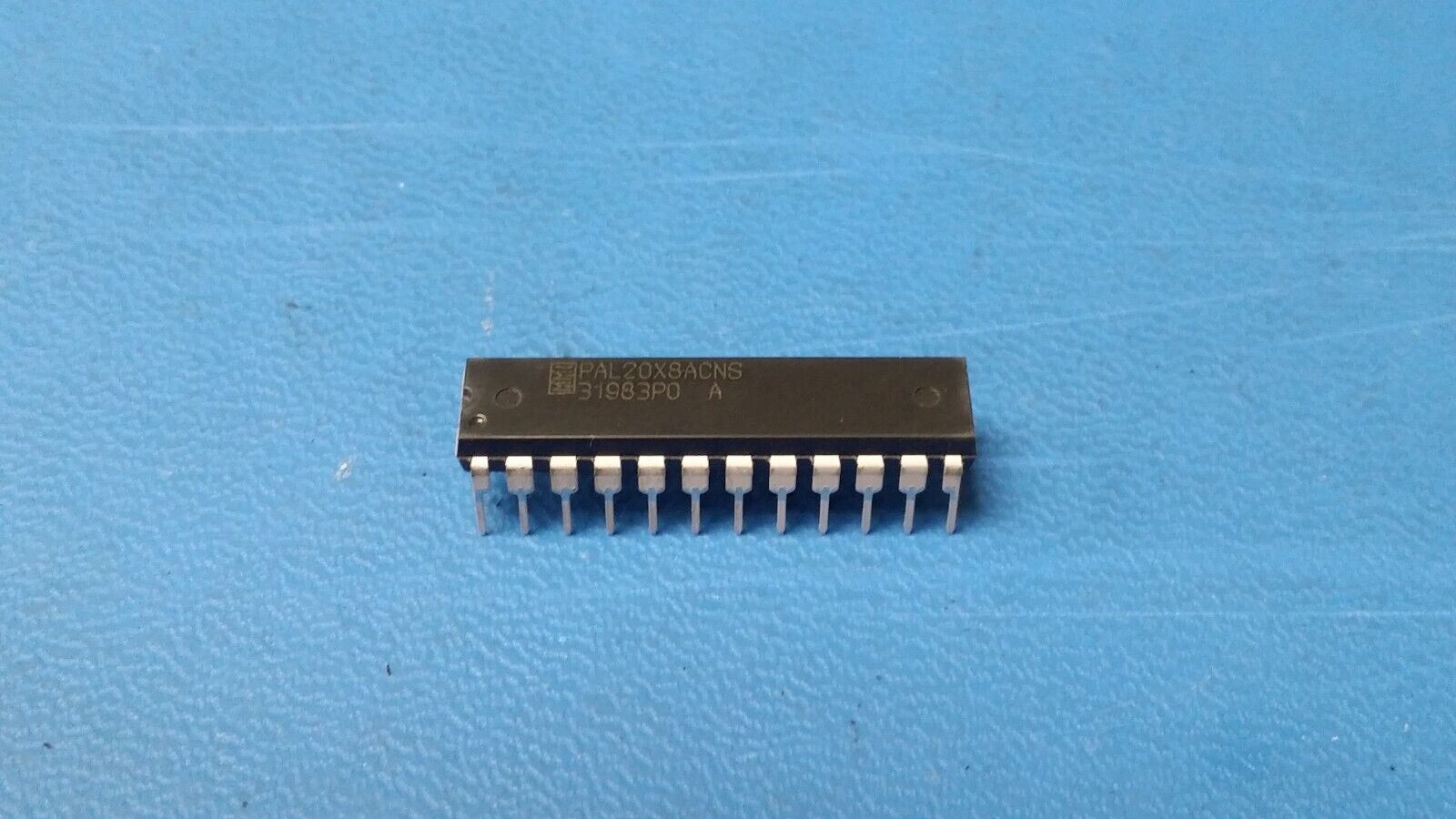

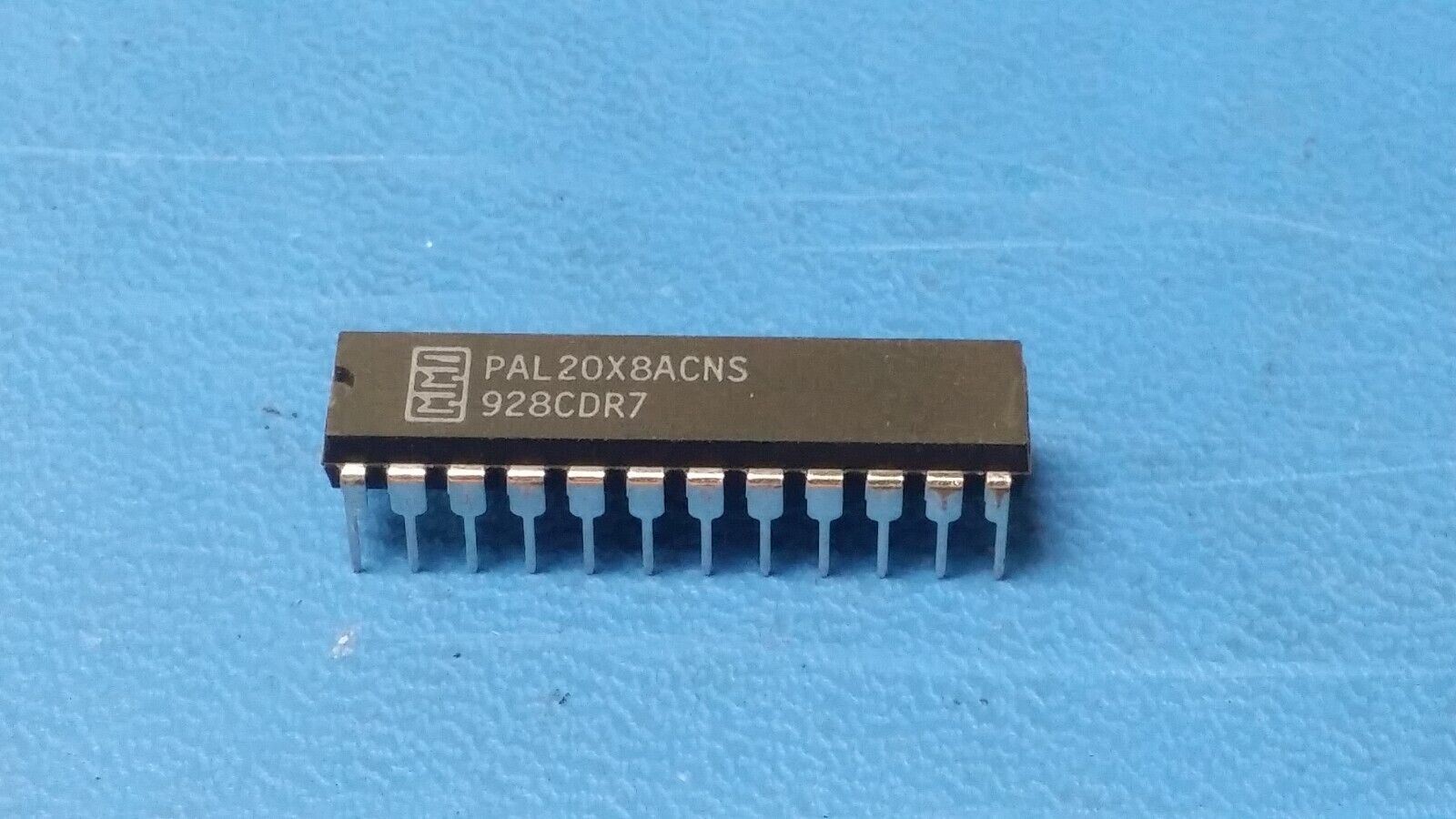

THIS IS FOR (1 PC) OF PAL20X8ACNS BY (AMD / MMI)
OT PLD, PAL-Type, TTL, PDIP24
Part #: PAL20X8ACNS
Part Category: Programmable Logic ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: OT PLD, PAL-Type, TTL, PDIP24
Status Transferred
Programmable Logic Type OT PLD
Architecture PAL-TYPE
Clock Frequency-Max 22.2 MHz
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Number of Inputs 12.0
Number of Outputs 10.0
Number of Product Terms 40.0
Number of Terminals 24
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies 5
Qualification Status Not Qualified
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
