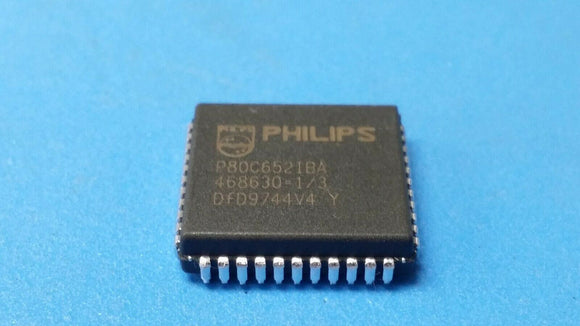

(1 PC) P80C652IBA PHILIPS Microcontroller, 8-Bit, 8051 CPU, 24MHz, CMOS, PLCC44
Tax included.
THIS LISTING IS FOR (1 PC) OF P80C652IBA BY PHILIPS
Microcontroller, 8-Bit, 8051 CPU, 24MHz, CMOS, PLCC44
Mfr Package Description PLASTIC, SOT-187-2, LCC-44
REACH Compliant Yes
Status Discontinued
ADC Channels NO
Address Bus Width 16.0
Bit Size 8
Boundary Scan NO
Clock Frequency-Max 24.0 MHz
CPU Family 8051
DAC Channels NO
DMA Channels NO
External Data Bus Width 8.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-J44
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 2.0
Number of I/O Lines 32.0
Number of Serial I/Os 2.0
Number of Terminals 44
Number of Timers 2.0
On Chip Data RAM Width 8
On Chip Program ROM Width 0.0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 245
Power Supplies 5
PWM Channels NO
Qualification Status Not Qualified
RAM (bytes) 256.0
RAM (words) 256
ROM (words) 0
Seated Height-Max 4.57 mm
Speed 24.0 MHz
Sub Category Microcontrollers
Supply Current-Max 33.8 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Length 16.5862 mm
Width 16.5862 mm
Additional Feature I2C SERIAL BUS INTERFACE
