(1 PC) P1200 ETAL LINE MATCHING TRANSFORMER

  • $9.95
    Unit price per
Tax included.

Only 9 left!

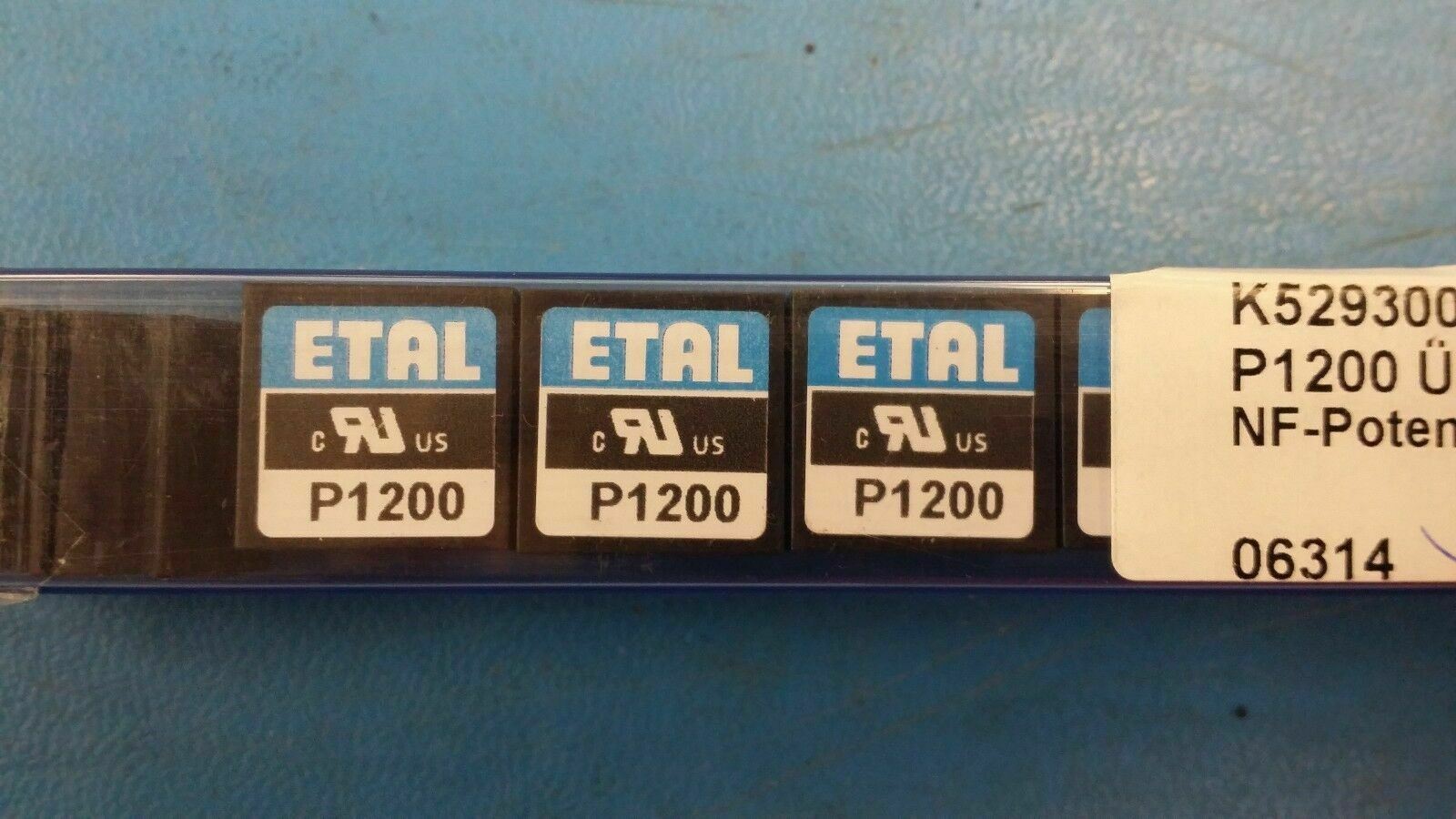

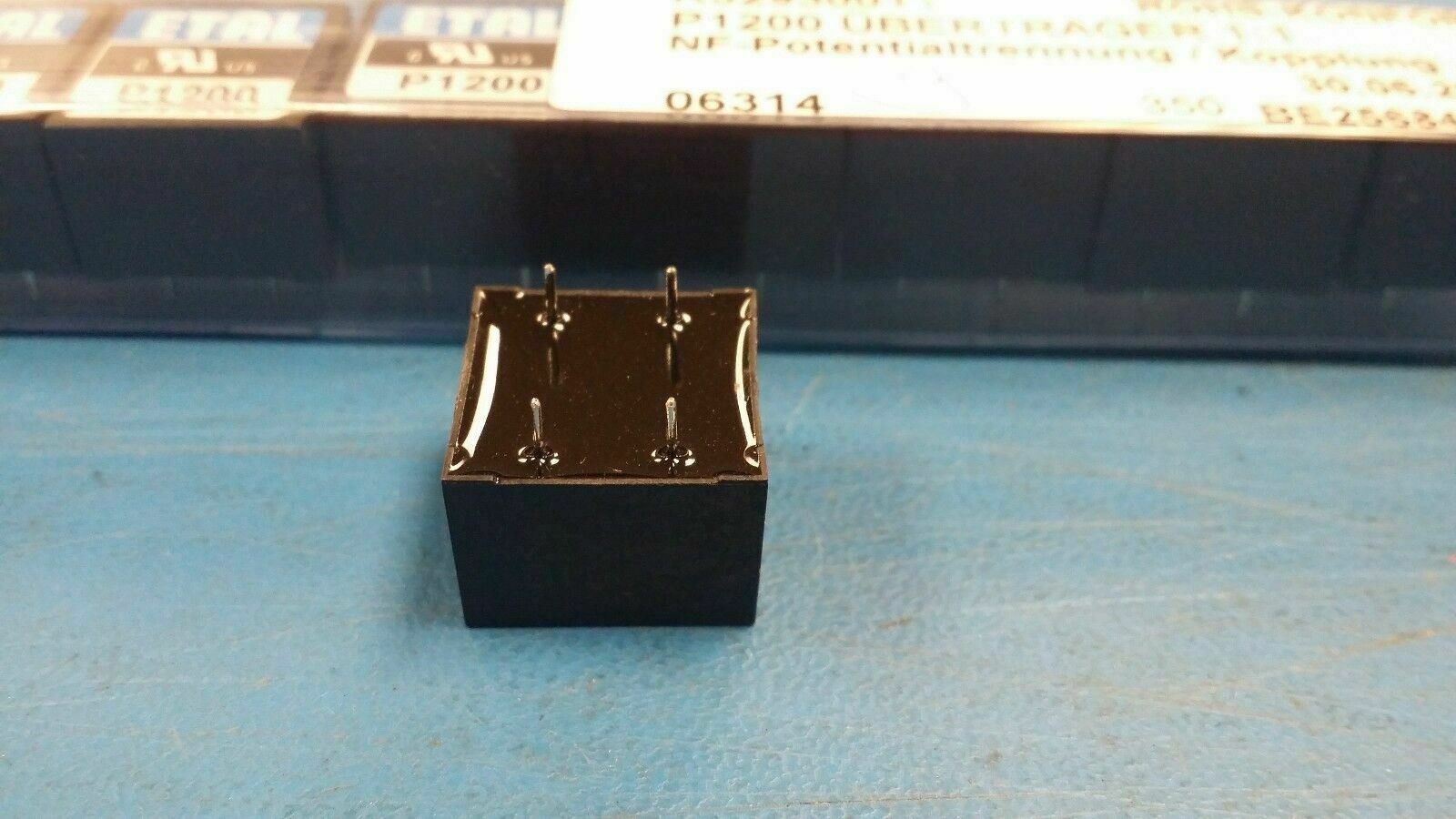

THIS LISTING IS FOR (1 PC) OF P1200 ETAL LINE MATCHING TRANSFORMER
LINE MATCHING TRANSFORMER

The P1200 from ETAL is a line matching transformer. It is specifically designed to be easily matched to both 600 ohm and complex impedance telephone lines. This transformer is ideal for voice telecommunications applications and for data communications to V.32bis (14,400 bits/second), V.34 applications to 28,800bits/second data rates.
  • Insertion loss is 1.5dB
  • Return loss is 18dB
  • 12.6mm (0.5") seated height
  • Vacuum encapsulated
  • IEC 60950 and UL 60950 certified
  • UL recognized component
